For optimal performance in three-phase induction equipment, use a line-voltage contactor rated 10-15% above the actual demand. Connect overload relays on two phases only–L1 and L3–when integrating Class 10 or Class 20 protection devices. This configuration minimizes false tripping while ensuring thermal overload detection remains effective.
Wire size selection depends on ambient conditions. For installations exceeding 40°C, increase conductor gauge by one size from standard NEC tables. Copper conductors should comply with NFPA 70 Article 430, while aluminum equivalents require a minimum AWG upsize due to higher resistance.
Termination torque values must adhere to manufacturer specifications. Insufficient tightening causes overheating at connections; excessive torque distorts terminal threads. Use a calibrated torque screwdriver set to 12-15 lb-in for control circuits and 25-30 lb-in for power contacts.
Neutral conductors require distinct handling in reversible units. Avoid grounding neutral connections directly. Instead, isolate neutral through a separate terminal block connected upstream of the main disconnect. This prevents stray currents from interfering with control logic or safety interlocks.
Control voltage selection affects system reliability. Use 120VAC for standard applications but switch to 24VDC when ambient noise levels exceed 60 dB or where long cable runs (>30 meters) introduce voltage drop issues. DC control offers superior noise immunity in high-electromagnetic environments.
Essential Circuit Layouts for Industrial Control Systems
Begin with verifying the power supply matches the contactor’s voltage rating–24V DC, 120V AC, or 230V AC–before connecting auxiliary contacts. Mismatches risk coil burnout or insufficient magnetic pull-in. Use a multimeter to confirm live voltage at the feed terminals (L1, L2, L3) and ensure the neutral (if used) is properly bonded to ground at the source.
- For three-phase installations, wire the overload relay using 90°C THHN/THWN copper conductors sized per NEC Table 310.16. A 10 HP drive at 460V requires #10 AWG for 30A circuits, while 25 HP demands #6 AWG.
- Route control circuits separately from power conductors to prevent induced noise. Use shielded 18 AWG cables with foil shielding grounded at one end only, typically at the panel’s earth bus.
- Label every wire at both ends with heat-shrink tubing or printed sleeves. Include destination terminal numbers (e.g., “OL-X1,” “AUX-NO”) to simplify troubleshooting.
Connect the normally open (NO) contact of the overload relay to the start pushbutton’s holding circuit. This ensures the coil remains energized only after the relay resets, preventing nuisance trips. For reversing setups, interlock the forward and reverse contactors mechanically (via auxiliary contacts) and electrically (via PLC logic) to avoid phase-to-phase shorts.
- Install surge suppression across the coil terminals–a MOV or RC snubber rated for the system’s voltage. This extends coil life by absorbing switching transients.
- Ground the metal enclosures using a dedicated #6 AWG copper conductor connected to the facility’s grounding electrode system. Never rely on conduit as the sole ground path.
- Test the phase rotation with a rotation meter before commissioning. Incorrect rotation damages pumps or fans, requiring immediate correction via any two power leads.
For soft start applications, wire the bypass contactor in parallel with the solid-state starter’s SCRs. Size the bypass contactor for 125% of the full-load current. Include a time-delay relay (set to 5 seconds) to ensure the SCRs fully commutate before transferring load to the bypass path, avoiding arc faults.
Document the layout with a schematic showing:
- Conductor types, gauges, and insulation ratings.
- Fuse or breaker sizes at each branch (e.g., 20A for control circuits, 60A for auxiliary motors).
- Torque specs for terminal screws (e.g., 12-15 in-lbs for #10 AWG).
- PLC address assignments if used (e.g., “Local:1:I.Data.0” for start input).
After energizing, verify:
- Contactor pull-in voltage (typically 85% of nominal for AC coils).
- Overload trip points via manual test button or digital tester, confirming reset operation.
- Audible hum from transformers or contactors–excessive noise indicates loose laminations or incorrect coil voltage.
Critical Elements in Industrial Control Circuit Schematics
Start by identifying the overload relay (e.g., 193-EC or 193-K series) within the schematic–its position directly determines trip class and response time to current surges. Ensure auxiliary contacts (97-98) align with the control voltage (typically 120VAC or 24VDC) to prevent nuisance tripping during start-up transients. Verify coil voltage ratings match the control source; mismatches lead to premature failure or insufficient magnetic pull for proper sealing.
Trace the main contactor (e.g., 100-C or 700-H) connections from line conductors (L1, L2, L3) through the normally open contacts to the load terminals (T1, T2, T3). Confirm wiring gauge complies with NEC Table 430.250 for full-load amps, accounting for 125% continuous duty derating. Label pilot devices (e.g., HOA switches, ESTOP) with clear terminal designations to simplify troubleshooting; mislabeled components cause delays during emergency shutdowns.
Step-by-Step Connection Guide for Industrial Power Switchgear Using Manufacturer-Supplied Schematics
Disconnect the main power supply at the circuit breaker before initiating any terminal work, confirming absence of voltage with a multimeter set to AC range (750V+). Mark each conductor according to the schematic legend–L1, L2, L3 for line inputs; T1, T2, T3 for load outputs; coil connections A1 (+) and A2 (-). For a Size 1 NEMA contactor, torque terminal screws to 7-9 lb-in (0.8-1.0 Nm); oversized or undersized compression risks intermittent faults or thermal damage. Route auxiliary contacts–typically color-coded red (NO) and black (NC)–to control relays or indicating lamps, ensuring polarity aligns with the 120VAC/24VDC operating voltage specified on the nameplate.
| Conductor | Terminal | Gauge (AWG) | Insulation Type |
|---|---|---|---|
| L1/L2/L3 | Main lugs | 6-2 (480V), 10-6 (208V) | THHN/THWN-2 |
| T1/T2/T3 | Load lugs | 6-2 (current-matched) | THHN/THWN-2 |
| Coil (A1/A2) | Control block | 18-14 | PVC (120°C rating) |

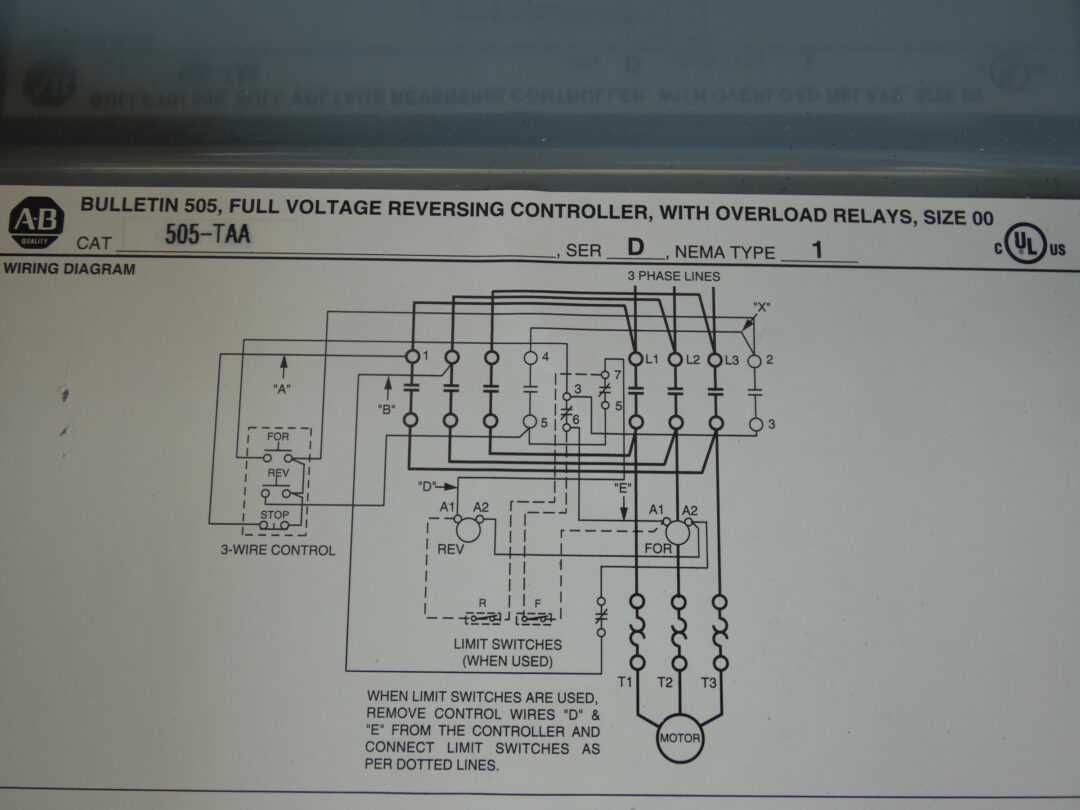

Attach overload relay heaters directly beneath the contactor main poles, selecting units within 70-120% of full-load amperage (FLA) from motor nameplate data. Test continuity across heater elements with an ohmmeter–open circuits indicate defective units; replace immediately. Wire control circuits last, starting with the start/stop pushbutton stations: connect momentary NO start (green) to the NO auxiliary contact (9-10), then series the NC stop (red) in line with coil A1. For reversing applications, integrate a second contactor and mechanical interlock; cross-wire L1/T3 and L3/T1 to swap phase rotation, verifying proper sequencing with a phase rotation meter before energizing.
Key Errors to Sidestep When Reading Industrial Control Schematics
Misidentifying auxiliary contacts as power switches leads to incorrect circuit tracing. Verify each contact’s designation by cross-referencing the legend–look for suffixes like “NO” (normally open) or “NC” (normally closed) alongside device numbers. A contact labeled 2-S1-NO differs functionally from 2-S1-NC, yet both may share similar physical layouts. Use a multimeter in continuity mode to confirm behavior before energizing.
Neglecting coil voltage ratings invites equipment failure. A 24VDC coil will not operate reliably on 120VAC, nor will a 120VAC coil tolerate 24VDC without damage. Check the control panel’s power supply voltage and match it precisely to the schematic’s coil specifications. Label all voltage sources directly on the diagram to prevent mismatches during troubleshooting.
Overlooked Safety Interlocks
- Emergency stop circuits often run through multiple contactors–skipping any breaks the chain. Trace each e-stop path to its endpoint.
- Overload relay reset circuits may require manual intervention; assume they’re tripped until verified otherwise.
- Door-mounted interlock switches must align perfectly with enclosure frames–misaligned actuators bypass protection.
Assuming identical symbols perform the same role across manufacturers causes critical oversights. A circle with an “M” denotes a motor in one system but may represent a meter or transducer elsewhere. Examine the component list and legend for each schematic–never rely on visual similarity. Create a quick-reference table comparing symbols between the project’s schematics and any legacy documentation to avoid inconsistencies.
Interpreting Contact Symbols and Terminal Designations in Industrial Control Schematics
Locate the reference designation system immediately–schematics use alphanumeric codes (e.g., “1-2,” “A1-A2,” “L1-L2”) printed adjacent to symbols to denote connection points. Terminals marked “L” signify line inputs (power source), while “T” indicates load outputs (device connections). Contacts labeled NO (normally open) close when energized, whereas NC (normally closed) break under the same condition; verify these against the legend or device footprint to avoid miswiring power circuits.
Examine auxiliary contact symbols: relay and coil representations use standardized shapes (rectangles for coils, slanted lines intersecting conductors for contacts). Overlapping symbols indicate mechanical linkages–for instance, a single coil activating multiple contacts depicted as stacked segments. Terminal pairs like “95-96” or “13-14” denote safety or auxiliary contacts on modular overload units; cross-reference with the manufacturer’s data sheet to confirm exact function and voltage ratings (+/- 10% tolerance typical).
Decode terminal numbering conventions: three-phase contactors prefix phases with “1,” “3,” “5” (inputs) and “2,” “4,” “6” (outputs), while directional starters append suffixes “F” (forward) or “R” (reverse) to phase sequences. Polarity-sensitive components (e.g., control transformers) label primary terminals “H” (high voltage) and secondary “X” (low voltage), often accompanied by fuse symbols or surge suppressors directly adjacent in the layout.
