Begin by locating the power management IC on the board–this component dictates voltage distribution across subsystems. Most modern handsets use a PMIC (Power Management Integrated Circuit) like the Qualcomm PM8xxx or MediaTek MT63xx series. Trace the VBAT line from the battery connector to the PMIC, then follow the BUCK and BOOST converters responsible for stepping voltages to 3.3V, 1.8V, and 1.1V rails. These rails power the application processor, RAM, and baseband. Verify continuity with a multimeter set to diode mode–expected readings should range between 0.2V–0.5V for healthy connections.
Examine the clock tree next. The primary oscillator typically operates at 26MHz (e.g., TXC 7D-26.000MEEQ-T), feeding into the RF transceiver and SoC. On the PCB, trace the clock signal from the crystal to the Phase-Locked Loop (PLL) within the processor. Use an oscilloscope to confirm a clean sine wave with amplitude 0.6V–1.2V peak-to-peak. Distorted waveforms often indicate failing capacitors or a damaged crystal, requiring replacement with ±5ppm stability components.
Focus on the memory interface. The NAND Flash and LPDDR RAM communicate via a 32-bit or 64-bit bus running at 1.5GHz–2.4GHz, depending on the chipset. Locate the ball grid array (BGA) pads for the RAM–shorts or open circuits here cause boot loops. Check resistance between adjacent pins with a 10Ω–50Ω tolerance. For eMMC/UFS storage, probe the CMD, CLK, and DAT0–DAT7 lines; corrupted data often stems from failed pull-up resistors (typically 10kΩ–47kΩ).
Inspect the RF chain for signal integrity. The antenna switch module (ASM), such as the Skyworks SKY77xx, routes signals between GSM, WCDMA, LTE, and 5G bands. Measure the VSWR at the antenna port–values above 2.0:1 suggest impedance mismatches or broken feedlines. For LTE, verify the envelope tracking (ET) IC regulates power dynamically; failures here cause dropped calls. Use a spectrum analyzer to check for spurious emissions, particularly near 700MHz–2.6GHz.
Understanding Mobile Device Circuit Blueprints
Begin by locating the power management IC (PMIC) on the board layout–typically marked near charging ports. Verify its connection to the battery, coils, and input/output capacitors. Most modern layouts place this near the bottom edge for thermal efficiency.
Trace signal paths from the SoC to key components: DDR memory, flash storage, and RF modules. Use a multimeter in continuity mode to confirm connections match the reference layout. Deviations often stem from corrosion or cold solder joints.
Decoding RF and Antenna Networks
Identify the primary antenna switch and its adjacent matching circuit. Check for three critical elements: bandpass filters, impedance-matching inductors (usually 1-10nH), and ground vias spaced at quarter-wavelength distances. Missing vias disrupt signal integrity.
Examine carrier aggregation paths–modern blueprints include dual/triple antenna feeds converging at the RF transceiver. Each feed correlates to specific LTE/5G bands; cross-reference with FCC documents for exact frequency ranges.
Signal Integrity and Data Bus Analysis
Measure trace impedance on high-speed lanes (MIPI, USB, PCIe). Ideal values:
- MIPI D-PHY: 100Ω differential
- USB 3.0: 90Ω differential
- DDR: 30-50Ω single-ended
Deviations above 10% require layout revisions.
Inspect decoupling capacitors near power pins–values typically range from 100nF to 22µF. Calculate required capacitance using the formula: C = (I × Δt) / ΔV, where ΔV
Cross-check ESD protection diodes at connectors; most designs use dual-series diodes to VSS with 5-8pF capacitance. Absence leads to transient failures under electrostatic discharge tests (>8kV contact).
How to Interpret Mobile Electronics Blueprint for Troubleshooting
Identify power rails first–trace thick lines labeled VBAT, VCC, or similar. These supply voltage to critical components. Use a multimeter in continuity mode to verify connections from the battery connector to the main chipset. If no signal, check for fractured traces or corroded pads.

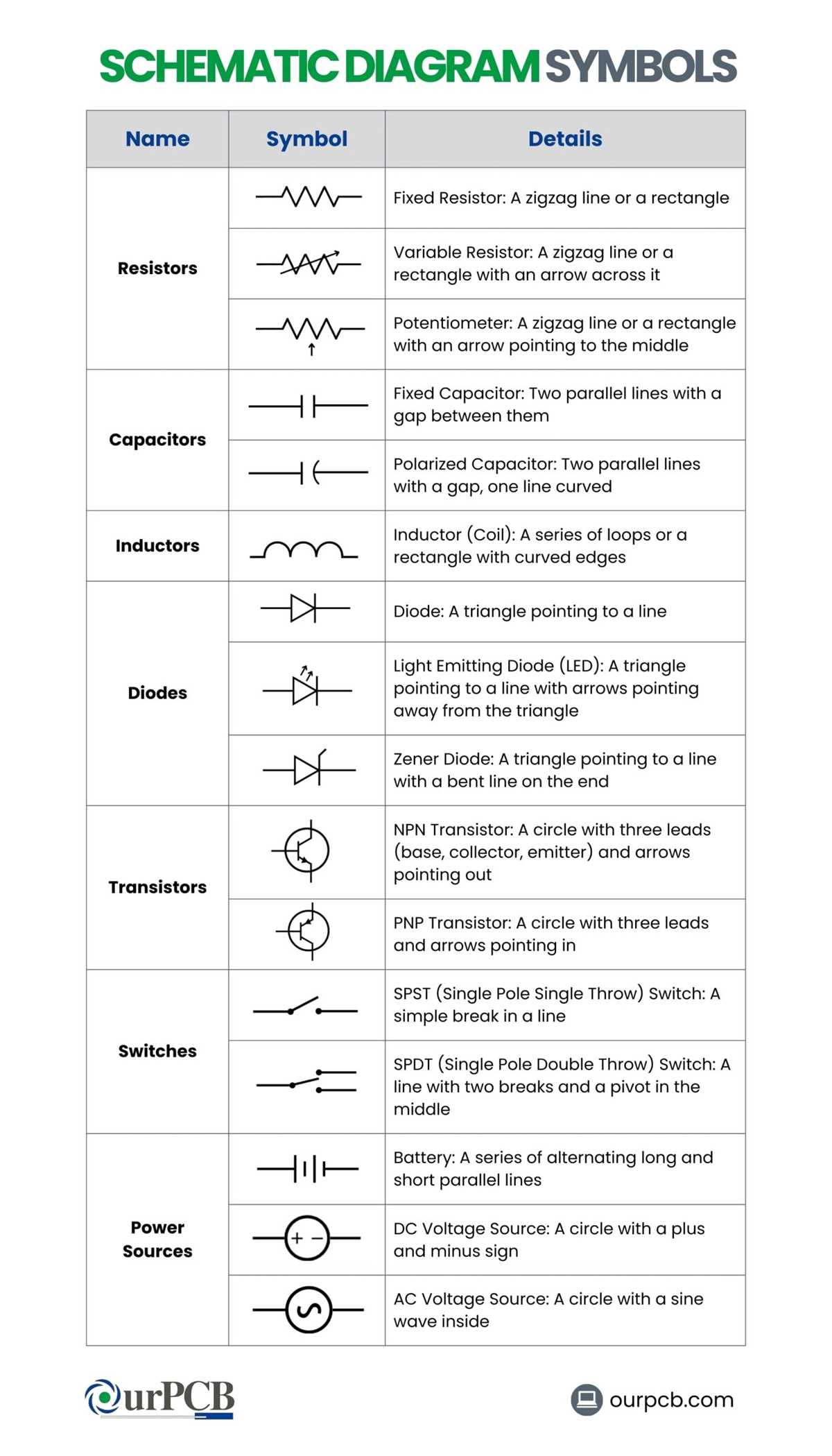

Component symbols decode:
- Resistors: Marked as
R###with values in ohms (e.g., 10k = 10,000Ω). - Capacitors:
C###–measure with capacitance meter; shorted units often fail. - Coils:
L###–test with inductance mode; open circuits indicate damage. - ICs: Noted with part numbers (e.g.,
U###orPMIC). Cross-reference datasheets for pinouts.
Locate test points (TPs) near signal paths. These small circles or dots provide voltage references–ideal for probing without removing solder mask. Compare readings against expected values from service manuals.
Examine ground planes–shaded areas on plans. A broken ground return disrupts functionality. Reflow solder joints near thermal pads if resistance exceeds 0.1Ω between points.
Signal Flow Analysis
Follow data lines (e.g., MIPI, USB_D+) from connectors to processors. Look for series resistors (0Ω) acting as fuses–common failure points. Signal integrity degrades if traces exceed 10cm without proper termination.
Common failure signatures:
- No charging: Check
BATT+→ charging IC →VCHG→ USB connector pathway. - No display: Trace
LCD_EN,LCD_VCC, and differential pairs (D0±,CLK±). - No network: Inspect
RF_IN/OUTlines from antenna connector to transceiver.
Use a microscope to inspect vias (plated holes) for micro-fractures. Thermal stress often breaks hidden connections. Reball or replace components if solder balls appear dull or cracked.

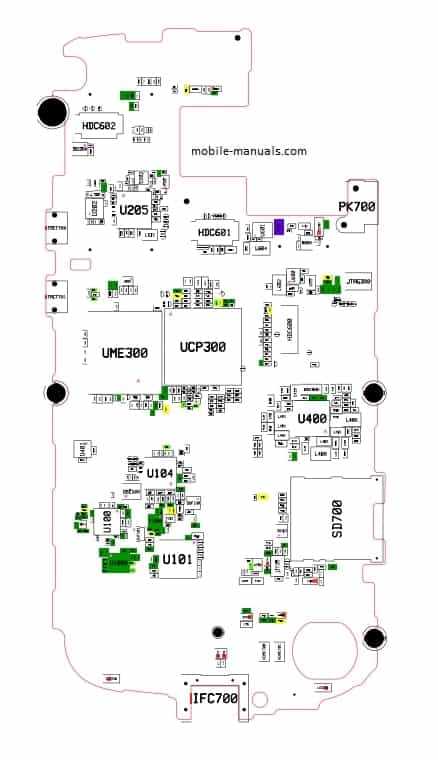

Reference designators (R102, C301) correlate with physical board layouts. Print the layout file, mark tested paths with a highlighter, and update notes in real-time to avoid redundant checks.

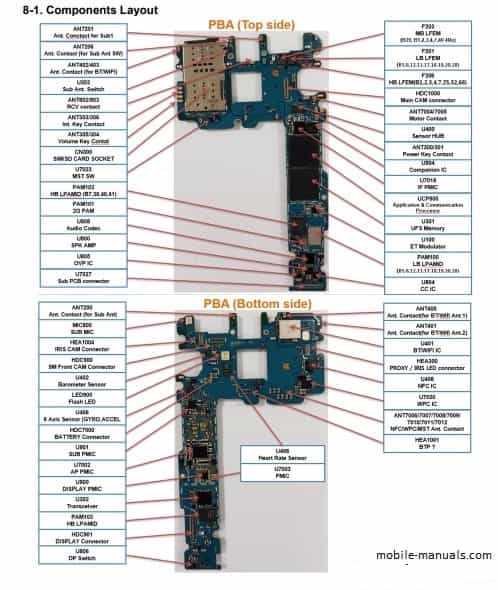

Key Components Identified in Mobile Device Circuit Blueprints
Prioritize locating the power management IC (PMIC)–it regulates charging, voltage conversion, and power distribution. Brands like Qualcomm’s PM8xxx series integrate buck converters, LDO regulators, and battery charging logic into a single die. Missing or damaged PMIC traces often manifest as erratic charging, sudden reboots, or no power-on condition. Use a thermal camera to identify overheating PMICs post-failure; shorted outputs typically exceed 60°C under minimal load.
| Component | Purpose | Failure Symptoms | Test Points |
|---|---|---|---|
| Baseband Processor | Handles cellular modem functions, RF signal processing | No network, dropped calls, SIM errors | UART RX/TX, clock oscillator pins |
| Flash Storage | Hosts firmware, user data (eMMC/UFS) | Boot loops, corrupted files, write errors | CMD, CLK, DATA lines |
| RF Front-End Module | Amplifies/receives radio signals | Poor signal strength, LTE/5G dropout | PA_EN, RX_EN control lines |
Examine decoupling capacitors near high-speed ICs–values often range between 0.1µF–10µF. Insufficient bypassing causes clock jitter, data corruption, or intermittent crashes. Swap multilayer ceramics for tantalum capacitors in critical paths if ESR stability is required. Probe DC bias points on power rails with an oscilloscope to detect ripple exceeding 50mVpp; excessive noise indicates failed filtering or faulty switching regulators.
Identify antenna matching networks by tracing PCB microstrip lines from RF modules to coaxial connectors. A 3:1 VSWR or worse suggests open/shorted tuning components (typically 0Ω resistors or inductors). Replace with exact-value parts listed in the service manual–generic 5% tolerance replacements degrade stage gain by 1–3dB. For Wi-Fi/BT paths, ensure co-located crystals (e.g., 26MHz or 38.4MHz) oscillate within ±10ppm; frequency drift causes protocol handshake failures.
Step-by-Step Guide to Tracing Circuits on a Mobile Device PCB
Prepare a high-resolution image of the printed circuit board (PCB) before starting. Use a digital microscope or macro lens for clarity–details as small as 0.1mm may affect tracing accuracy. Label components manually on the image or print it for physical annotation.
Identify power rails first. Locate the battery connector, charging IC, and main voltage regulator. Trace thick copper pours or wide traces–these typically carry primary power lines (3.3V, 5V, or higher). Use a multimeter in continuity mode to confirm paths from the power source to key chips.
Follow signal lines from processors. Begin at the application processor’s pins, then trace data buses (DDR, MIPI, I2C) to peripheral components. Look for differential pairs or groups of parallel traces–these indicate high-speed signals. Note vias connecting to inner layers, as they often redirect critical paths.
Check ground planes next. Verify if the ground network spans the entire board or has isolated sections. Probe for star grounding near sensitive components like RF modules or power amplifiers. Poor grounding causes noise and instability, so confirm continuity between all ground points.
Locate decoupling capacitors near ICs. These small components (typically 0.1µF–10µF) stabilize voltage by filtering noise. Trace their connection from IC power pins to the nearest ground plane–missing or improperly placed capacitors lead to erratic behavior.

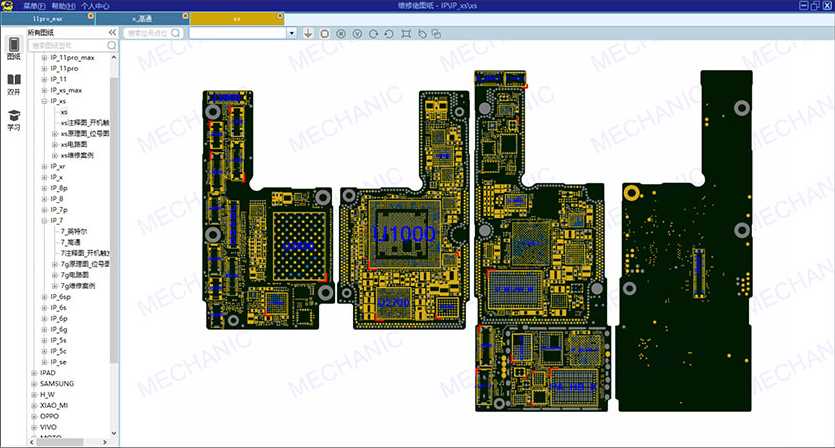

Use a schematic viewer alongside the PCB image. Cross-reference component designators (e.g., C100, R45) between the board and reference materials. Mark discrepancies, as revisions often change layouts without updating schematics.
Test connectivity with a logic analyzer for digital signals or an oscilloscope for analog circuits. Attach probes to test points or component pads, ensuring signals match expected waveforms (e.g., clock pulses, PWM). Record deviations, as they hint at fault locations.
Document findings in real time. Sketch paths on paper or use PCB design software to overlay traced routes. Include layer transitions, component values, and voltage levels–this record accelerates future troubleshooting or reverse-engineering tasks.
