Start by identifying the main components on the cooling unit’s circuit layout: compressor, condenser fan, evaporator blower, and control board. Each device requires precise voltage–typically 230V for high-power elements and 24V for relay signals–so trace connections from the power source to terminals. Incorrect voltage routing risks tripping breakers or damaging motors. Always verify wire gauge against manufacturer specs; undersized cables overheat under load.
Label every wire with its function before disconnecting anything. Use colored sleeves matching the schematic: black for line, white for neutral, red/yellow for switched loads, blue for low-voltage signals. Skipping labels leads to errors during reassembly. Check continuity with a multimeter–readings above 0.3 ohms indicate loose terminals requiring re-soldering. Pay special attention to capacitor wires; reversed polarity destroys start/run components.
Ground connections demand priority. Every metal frame must link to a dedicated earth terminal; resistance below 1 ohm confirms proper grounding. Isolate high-voltage segments from low-voltage zones–accidental contact causes short circuits. When routing cables, avoid sharp edges; use protective conduit for runs longer than 3 meters. Test each segment under load before sealing the unit–transient spikes can reveal hidden faults not visible in static checks.
Replace brittle insulation immediately. Frayed strands increase resistance, generating heat that melts adjacent wires. For capacitor circuits, confirm microfarads match original specs–even small deviations alter startup torque, stalling motors. If the schematic shows a thermal fuse, locate it near heat-generating components; bypassing it voids safety certifications and risks fire. After final inspection, power up incrementally, monitoring current draw at each stage. Normal operating values range between 6-12 amps for 3.5kW units.
Understanding HVAC Circuit Schematics
Before handling any cooling system connections, isolate power at the breaker–failing to do so risks shock or equipment damage. Use a multimeter set to 250V AC to confirm zero voltage across L1/L2 terminals on both indoor and outdoor units.
Label each conductor with heat-shrink tubing before disconnecting: black (L), red (L), blue (N), green/yellow (G), and communication wires (typically brown/orange). Cross-reference these colors against the manufacturer’s color-coding table below to avoid miswiring:
| Wire Color | Function (Common Standards) | Terminal Designation |
|---|---|---|
| Black | Line (Hot) 1 | L1, T1 |
| Red | Line (Hot) 2 | L2, T2 |
| Blue | Neutral | N |
| Green/Yellow | Ground | GND, E |
| Brown/Orange | Control Signal | S, COMM |
For split systems, route the interconnect cable through pre-drilled ½-inch knockout on the outdoor unit’s base–avoid sharp edges that could fray insulation. Secure connections with copper crimp lugs and torque to 1.2 Nm using an insulated screwdriver; loose terminals cause resistive heating and potential fire hazards. Verify polarity with a non-contact voltage tester before energizing.
Troubleshooting Mismatched Schematics
If the outdoor compressor fails to start, check the control board’s error code against this reference:
| Code | Fault Condition | Immediate Action |
|---|---|---|
| E1 | High pressure cutoff | Inspect refrigerant levels, condenser coil blockage |
| E3 | Low voltage at compressor | Test L1/L2 supply (minimum 198V for 220V models) |
| E5 | Open phase or reversed polarity | Recheck terminal connections per first table |
| F0 | Communication error between units | Replace 4-wire interconnect cable; shielded twisted pair required |
Replace any conductor with nicked insulation or oxidation–use stranded 14 AWG for power lines, 18 AWG for signals, rated for 105°C. Store spare cables in sealed polyethylene bags to prevent moisture ingress.
Decoding Key Symbols in Climate System Electrical Schematics

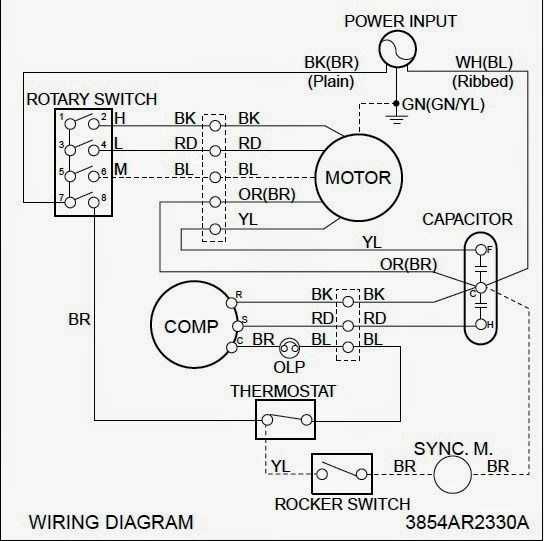

Begin by locating the power source indicator–typically a straight horizontal line with vertical dashes–marking the main supply connection. Identify compressor circuits first: a circular shape with a diagonal line or three inward-facing triangles denotes the motor, while adjacent zigzag lines represent overload protection. Thermostat symbols appear as a wavy line enclosed in parentheses or a rectangle with a temperature label; their placement reveals control signal paths. Fan depictions often use a semi-circular fan blade shape near dotted lines showing airflow direction. Capacitors manifest as two parallel lines (start/run) or a curved line adjacent to a straight one (dual-purpose). Ground points feature three descending parallel lines, wider at the top and narrowing downward.
Trace color-coding conventions for precise interpretation:
- Red/black: high-voltage conductors
- Brown/blue: compressor-specific leads
- Yellow/orange: outdoor unit controls
- Green/yellow stripe: mandatory grounding path
- White: neutral return (North American standards)
Examine connection blocks marked with numbered rectangular outlines–these denote terminal strips, where numerical sequences correspond to labeled system components (e.g., “1-2-3” often aligns with compressor, fan, common). Interpreting dashed lines correctly is critical: they either indicate shielded cables protecting signal wires or internal circuit boundaries within a single device. Control relays display as rectangles with diagonal slashes; count the slashes to determine poles (single slash = SPST, double = DPDT). Pressure switches feature a simple closed/open circle depending on switch state, while reversing valves appear as a filled triangle with perpendicular lines.

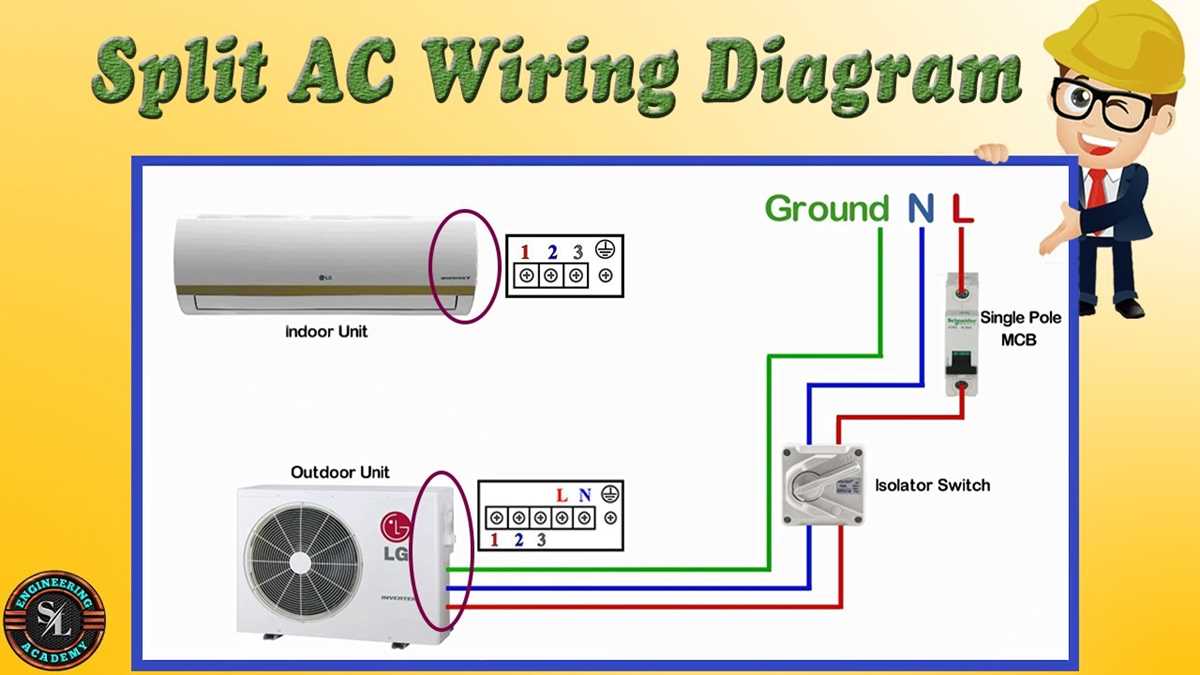

Step-by-Step Guide for Connecting a Split Climate Unit
Shut off the power supply at the circuit breaker before handling any internal components. Verify the absence of current using a multimeter on both indoor and outdoor units–probes should read 0V AC when tested across live and neutral terminals. Failure to confirm this risks severe electrical shock or damage to sensitive parts like the compressor or control board.
Preparing the Electrical Connections
Mount the disconnect box within 3 feet of the outdoor unit and route the power cables through a protective conduit. Use 12 AWG copper wires for units up to 24,000 BTU (12-15 amps) and 10 AWG for larger models, matching the gauge to the manufacturer’s specification sheet. Strip exactly ½ inch of insulation from each wire end to prevent short circuits while ensuring a secure fit in the terminal blocks. Twist stranded wires lightly with pliers to prevent fraying during insertion.
Align the color-coded wires (L1/L2/L3 for three-phase, red/black for single-phase, and green/yellow for ground) with the corresponding labels on the outdoor unit’s terminal strip. Tighten terminal screws to 12-15 in-lbs using a torque screwdriver–over-tightening can strip threads, while under-tightening causes arcing. Recheck each connection with a gentle tug to confirm stability, then seal the conduit entry points with silicone for weather resistance. Reapply power only after inspecting all links for exposed copper or misaligned conductors.
Common Mistakes to Avoid When Connecting Climate Control Electrical Systems
Misaligning the phase sequence in a three-phase compressor unit will cause immediate failure. Verify L1, L2, and L3 labels on both the power source and motor terminals before securing connections. Swapping any two wires reverses rotation, leading to irreversible damage within minutes. Use a multimeter to confirm 400V (±10%) between phases; deviations suggest faulty supply or undersized conductors.
- Skipping insulation resistance tests: Cold checks below 2MΩ indicate degraded wire covering, risking short circuits. Test with a 500V megohmmeter, not a standard voltage meter.
- Overlooking terminal torque specs: Copper lugs require 12-18 Nm; aluminium ranges 8-12 Nm. Loose contacts overheat at 60°C+, melting adjacent plastic housings.
- Ignoring ambient conditions: Outdoor units exposed to 90%+ humidity need tinned copper cables. Corrosion accelerates at 1.2mm/year in untreated connections, doubling resistance within months.
Incorrect thermostat pairing wastes energy–matching a 4-wire thermostat to a 2-wire evaporator coil forces the compressor to run continuously, tripping overload protectors after 6-8 hours of runtime. Capacitor microfarad ratings tolerances are strict: ±5μF for start capacitors, ±3μF for run capacitors. Even slight deviations reduce efficiency by 12% and shorten component life by 40%. Always cross-reference manufacturer datasheets; universal replacements rarely meet OEM thermal drift specifications.
Critical Error Examples
- Mixing 14 AWG with 12 AWG conductors creates voltage drop inconsistencies. A 5m run of 14 AWG to a 2.5kW condenser loses 8% voltage, while adjacent 12 AWG drops only 3%.
- Grounding errors: Connecting system ground to a neutral bus in subpanels violates NEC 250.24(A)(5), inducing stray currents detectable by a clamp meter showing 0.5A+ leakage.
- Installing contractors without surge protection: 1200V transients from nearby lightning strikes destroy unprotected PCB control boards. MOV-rated surge protectors require replacement every 3 years or after 4 major events.
Essential Equipment and Safety Steps for HVAC Electrical Setup
Begin by gathering a multimeter calibrated for at least 600V AC/DC to verify voltages, detect shorts, and confirm circuit continuity. Use a non-contact voltage tester for rapid live wire checks without direct exposure, particularly near terminals rated for 240V single-phase or 415V three-phase configurations. Insulated screwdrivers and pliers with grips designed for 1000V isolation prevent accidental arcing when adjusting compression fittings or securing crimp connectors.
Critical Protective Gear
Nomex flame-resistant gloves rated to IEC 61482-1-2 Class 1 shield hands from arc flashes up to 4 cal/cm², mandatory when handling capacitors charged at 370V or disconnecting inductance coils. Safety goggles with ANSI Z87.1-2020 impact certification block debris and prevent retina damage from UV flashes during transient surges. Arc-rated face shields and Category 3 flame-retardant coveralls protect against catastrophic faults in high-current contactors.
A torque screwdriver preset to manufacturer-specified values (typically 0.5–1.5 Nm for terminal blocks) ensures reliable connections and avoids loose contacts that generate heat. Wire strippers with adjustable stops for 14–10 AWG copper conductors prevent nicking strands, which weaken current capacity. Crimping tools with ratcheted dies for insulated spade and butt connectors eliminate cold solder joints, critical for low-resistance circuits.
Before energizing, ground the system using a 6 AWG bare copper conductor connected to a dedicated earth rod with resistance below 25 ohms. Isolate the power source via a molded-case circuit breaker with proper interrupting rating (e.g., 10kA for residential units). Label all conductors with heat-shrink identifiers denoting phase (L1, L2, L3), neutral (N), and ground (PE) to prevent miswiring. Store capacitors in shorted state using 10kΩ 5W bleed resistors to discharge stored energy safely.
