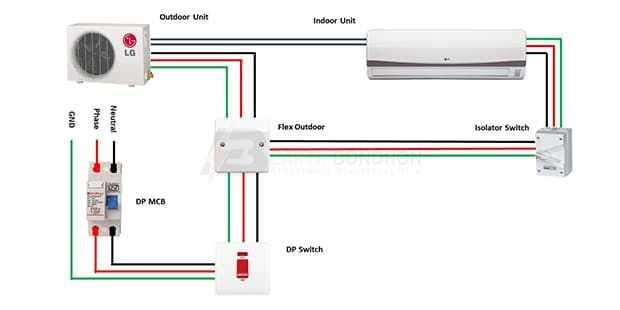

Start by locating the main disconnect switch–usually a double-pole breaker rated for the unit’s maximum current draw. Most residential split-system cooling units operate on a 230V circuit, requiring 12-gauge or thicker wiring for runs up to 50 feet. Check the manufacturer’s spec sheet for exact wire sizing; undersized conductors cause voltage drop, reducing compressor efficiency by up to 18%. Label each wire at both the outdoor condenser and indoor handler before disconnecting power to prevent cross-connection errors.
Connect the low-voltage thermostat circuit (typically 24V) using 18-gauge wire. The red (R) terminal supplies power, while the white (W) controls heating, yellow (Y) enables cooling, and green (G) activates the blower. For heat pumps, add an orange wire (O/B) to manage reversing valve operation. Avoid running low-voltage wires alongside high-voltage lines; induced current can corrupt signal integrity, causing intermittent faults. Test continuity with a multimeter–resistance should read below 1 ohm between connected terminals.
Outdoor units require a dedicated ground wire attached to the chassis via a copper lug. Failure to bond the ground increases risk of electrical noise, which disrupts variable-speed drives and can trigger nuisance tripping of circuit protection. Verify torque specifications on terminal screws; loose connections generate heat, degrading insulation over time. Use crimp connectors rated for 90°C and apply antioxidant paste to aluminum conductors to prevent oxidation.
For variable refrigerant flow (VRF) systems, follow the control wiring carefully–communication bus lines must be shielded twisted pair (STP) to prevent interference from inverter drives. Mark each terminal block according to the legend supplied in the installation manual. Reverse-engineering unmarked schematics risks damaging the inverter board, which repairs exceed $600 in labor alone. Always strip wires precisely–exposed copper causes short circuits, while excessive insulation prevents proper seating in terminals.
If retrofitting an older system, replace relay switches and contactors rated for at least 20% above the unit’s full-load amperage (FLA). Cheaper relays weld shut under arcing, forcing the compressor to run continuously. Check capacitor microfarad ratings against the nameplate; mismatched capacitors reduce motor starting torque by 30%. For multi-zone setups, daisy-chain power to zone control boards only after confirming they share the same phase–cross-phasing destroys actuators instantly.
HVAC Electrical Schematic Guide: Key Connections and Safety
Begin by locating the compressor relay on the cooling system’s control board–typically marked as “CMPR” or “COMP” near terminals labeled “L1” and “L2”. Verify the relay’s coil voltage matches the unit’s power supply (24VAC for residential models, 230VAC for commercial split-systems) before proceeding. Incorrect voltage risks damaging the coil or causing intermittent failures.
Trace the high-voltage lines (usually 14-12 AWG copper) from the outdoor condenser’s contactor to the capacitor. Look for color-coded insulation: red (live), black (neutral), and yellow/green (ground). Measure capacitance against the manufacturer’s specs (e.g., 30-50μF for single-phase models) using a multimeter; deviations over 10% indicate a faulty component.
Examine low-voltage thermostat connections at terminals “R” (24V power), “Y” (cooling call), “G” (fan control), and “C” (common). Cross-reference the thermostat’s subbase with the indoor unit’s wiring harness–mismatched pins cause erratic cycling. For heat pump configurations, note “O” (reversing valve) and “B” (backup heat) terminals; incorrect polarity freezes the valve in one position.
Install an inline fuse (3-5A) on the 24V circuit between the transformer secondary and the control board if the system lacks factory protection. Fuse ratings must align with the transformer’s VA rating (commonly 40VA for residential units). Overfusing risks transformer overheating; underfusing fails during startup surges.
Check the defrost control module on heat pumps for a dedicated sensor circuit (often marked “DFS”). Probe the sensor’s resistance at 32°F (typically 10-12KΩ)–values outside ±5% suggest a faulty thermistor or corroded terminals. Replace sensors without silicone sealant; moisture ingress skews temperature readings.
Label all connectors using heat-shrink tubing or adhesive wire tags. Note sequence-dependent components like dual-run capacitors (Herm and Fan terminals) and stage cooling boards (Y1, Y2). Mislabeling leads to reverse polarity in multi-stage systems, triggering compressor overload protection.
Validate the ground bond between the indoor evaporator coil and outdoor condensing unit. Use a megohmmeter to test resistance (0.5Ω) indicates corroded connections or undersized grounding wire (minimum 10 AWG copper for systems under 3 tons).
For variable-speed inverter drives, reference the OEM schematic’s “PWM” or “DC Bus” sections. Confirm the drive’s input voltage matches the system’s bus voltage (e.g., 310VDC for 230VAC input). Skipping this step risks damaging the drive’s IGBT modules or causing erratic speed fluctuations.
Critical Elements in Cooling System Electrical Blueprints
Begin by locating the compressor relay on the schematic–typically marked near power supply inputs. This component bridges high-voltage circuits to the motor, ensuring controlled startup. Verify its placement relative to the thermal overload protector, as misalignment here disrupts the entire cycle.
Trace the thermostat connections next. In most residential setups, these lines appear as thin, color-coded pairs branching from the control board. Confirm continuity with a multimeter: resistance should measure between 5–50 ohms. Factory defaults often label these paths as “R,” “Y,” “G,” or “C,” but variants exist–consult the unit’s technical bulletin if discrepancies arise.
Capacitors demand special attention. Dual-run types usually show as two adjacent symbols, each with distinct microfarad values (e.g., 35μF/5μF). Single-phase systems may merge these into one. Check for swollen casings or leakage during inspection–replacement requires exact voltage matching (±10% tolerance) to avoid catastrophic failure. Note polarity markings on start capacitors; reversing leads destroys the dielectric film within seconds.
Fan motor circuits differ between condenser and evaporator assemblies. Condenser fans often share a dedicated line with the compressor bypass switch, while evaporator fans connect through the blower relay. Speed control modules, if present, appear as dashed or dotted lines–these require separate signal verification (typically 5–12VDC). Brushless DC motors may include embedded Hall sensors, shown as additional small circles near windings.
- High-pressure cutout switches: Look for a circled “HPS” symbol adjacent to compressor lines–operates at ~300–400 PSI.
- Defrost timers: Usually a rectangular box with internal contacts; manual override often labeled “TEST.”
- Reversing valves: Illustrated as a solenoid coil with arrowed flow paths–flips refrigerant direction in heat pump models.
Isolate low-voltage control cables (
Step-by-Step Guide to Tracing Power Supply Lines in HVAC Systems
Begin by isolating the main breaker panel for the climate control unit. Verify the circuit is de-energized using a non-contact voltage tester–never assume disconnection based solely on switch position. On the panel, identify the dedicated breaker labeled for the HVAC compressor or outdoor condenser; typical amperage ranges from 15A to 60A depending on system capacity. Cross-reference this with the manufacturer’s technical specs to confirm correct wire gauge: 14 AWG for 15A circuits, 12 AWG for 20A, and 10 AWG or thicker for higher loads.
Locating the Primary Power Conduit
Trace the armored cable or PVC conduit from the breaker to the outdoor unit. Look for a rigid metal conduit (common in commercial setups) or a flexible liquidtight conduit (typical in residential installations). Follow the conduit along exterior walls or through crawl spaces, checking for junction boxes–these must remain accessible per NEC Article 314. At the outdoor unit, confirm the conduit terminates at an electrical disconnect box; this should house fuses or a pullout switch rated for the system’s maximum locked-rotor current.
Inside the disconnect, inspect the line-side terminals (typically labeled L1/L2 for single-phase, L1/L2/L3 for three-phase). Use a multimeter in continuity mode to verify the path from the breaker to these terminals: probe between the breaker output and each terminal while the disconnect is off. A reading of zero ohms indicates a complete circuit; infinite resistance confirms no shorts to ground. Document each measurement–deviations from expected values suggest corroded connections, undersized wires, or improper crimping.
Move to the control board–usually a small enclosure with relays, capacitors, and terminal blocks. Identify the power input terminals, often marked as “R” (red, 24V), “C” (common), and “Y” (yellow, compressor call). Use a schematic from the unit’s service manual to cross-check terminal designations; mislabeling risks damaging low-voltage components. With the system powered, measure voltage between “R” and “C”–expect 24VAC ±10%. If absent, trace the 24V transformer, checking for loose spade connectors or burnt windings, which manifest as a faint scent of ozone or discolored insulation.
For verification, switch the thermostat to cooling mode and observe the compressor relay closure. A functioning relay emits an audible click within 5 seconds of call initiation; absence indicates a faulty relay, blown fuse on the control board, or open Y wire. If the relay clicks but the compressor doesn’t start, bypass the relay temporarily (only for diagnostics) by jumping “Y” to “R”–this isolates the issue to either the compressor motor or its start capacitor. Replace capacitors showing bulging tops, electrolyte leakage, or failed capacitance reads (measured in microfarads via a capacitor tester) before attempting further diagnosis.
