Use a multimeter to confirm the constant 12V (+) lead, switched accessory power, and ground connections before attaching any new head unit or amplifier. Factory integration harnesses like Metra 70-1761 or Scosche GM02B simplify compatibility with vehicle-specific power, speaker, and antenna control lines–match pinouts precisely to avoid blown fuses or permanent damage to the onboard computer. Always disconnect the battery’s negative terminal to protect the ECU during modifications.
Verify speaker impedance (typically 4 ohms for single-voice-coil setups) and polarity–reversed connections create phase cancellation, muddying bass response. High-power amplifier installations demand thicker gauge wire (14–16 AWG for main power, 18–20 AWG for signal leads) routed away from engine heat and moving parts. Use relays for heavy-current accessories (subwoofers, cooling fans) to prevent voltage drops on long runs.
Color-coded harness adapters eliminate guesswork for common vehicle platforms: GM’s orange/white (illumination dimmer), Ford’s dark green/light green (parking brake override), and Toyota’s white/black (vehicle speed sensor signal) must be properly bridged to enable navigation, rearview camera, or handsfree features. Skipping these steps triggers fault codes in the infotainment system.
Secure all connections with solder and heat-shrink tubing rather than crimp connectors–vibration loosens cheap splices over time. Route new cables through factory grommets to prevent chafing against metal edges, and bundle wires with spiral wrap to reduce rattle. Test each channel’s output with a tone generator before final reassembly to catch clipped signals or incorrect impedance loads.
Installing a Custom Audio System: A Clear Step-by-Step Process
Disconnect the vehicle’s battery first. Use a 10mm wrench to loosen the negative terminal–this prevents short circuits while handling connections. Label each factory harness wire with masking tape to match them later. A multimeter set to DC voltage helps verify live circuits before cutting.

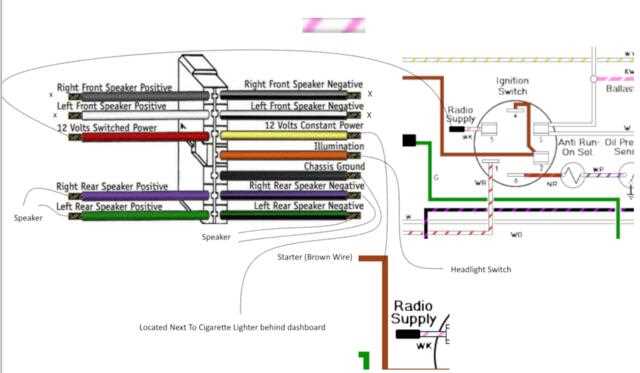

Refer to the manufacturer’s color-coded guide for the new head unit. Common standards include yellow for constant 12V power, red for switched ignition, black for ground, blue/white for amplifier turn-on, and orange for illumination. If colors differ, cross-check with the vehicle’s original harness schematic.
Trim excess wire insulation carefully–strip only 3–5mm to avoid exposed strands causing shorts. Use crimp connectors for secure joints; soldering adds durability but requires a steady hand and heat shrink tubing to insulate. For OEM harness adapters, align pinouts precisely–mismatched connections can damage the new system or trigger error codes in modern vehicles.
Mount the head unit with the provided brackets. If space permits, use a dash kit for a factory-like fit. Secure the unit tightly to prevent vibrations from loosening connections over time. Route all cables behind the dash, avoiding sharp edges or moving parts like the steering column.
Test each function before final assembly. Power on the system to confirm radio reception, media playback, and volume control. Check reverse signal input if connecting a backup camera–input should trigger automatically when shifting into reverse. Adjust EQ settings in an open environment to avoid misleading acoustics inside the vehicle.

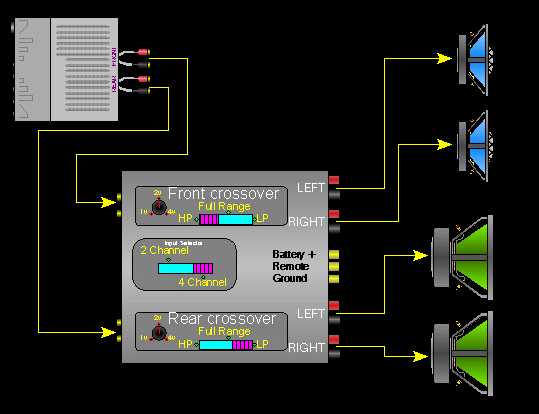

For amplified setups, run power cables directly from the battery. Use an AGU or mini-ANL fuse within 18 inches of the battery terminal for protection. Ground the amplifier to a bare metal chassis point, sanded clean for optimal conductivity. Signal cables should run separately from power wires to prevent interference.
Reconnect the battery and verify all connections hold under load. If warning lights appear on the dash (e.g., airbag or check engine), recheck the harness for pinched or crossed wires. Some vehicles require a reset of the infotainment module after installation–consult the owner’s manual for procedures.
Reinstall trim panels methodically. Secure any loose wires with zip ties or foam padding to prevent rattles. If Bluetooth or USB functions misbehave, reset the head unit to factory defaults and re-pair devices. For persistent issues, trace each wire path with a multimeter–open circuits or weak grounds are frequent culprits.
Identifying Your Vehicle’s Original Connector Color Codes
Start by locating the main audio integration plug behind the manufacturer-installed audio unit or beneath the dashboard panel. Most car brands use a standardized 12-pin connector, though luxury models or European makes may include additional 8- or 16-pin extensions.
Trace each wire to its termination point–speakers, power source, or ignition feed–and record the color sequence. Japanese vehicles typically follow this pattern:
- Red: constant +12V (memory retainer)
- Yellow: battery feed (always hot)
- Black: chassis ground
- Blue/White stripe: amplifier trigger (remote turn-on)
- Gray: front right speaker (+)
- Gray/Black stripe: front right speaker (−)
- White: front left speaker (+)
- White/Black stripe: front left speaker (−)
- Purple: rear right speaker (+)
- Purple/Black stripe: rear right speaker (−)
- Green: rear left speaker (+)
- Green/Black stripe: rear left speaker (−)
European marques often deviate with single-color wires featuring thin tracer stripes–BMW’s violet/yellow powers the antenna motor, while VW’s orange/purple feeds illumination dimming. American trucks (Ford, GM) frequently employ light blue for dimmer circuits and dark green for mute functions.
Use a multimeter set to DC voltage (20V range) to confirm polarity–connect the black probe to bare metal chassis, then touch the colored lead to each wire. A reading of +12V indicates power; speakers yield minimal voltage (0.5–2V AC) when the audio system plays a test tone.
Capture close-up photos of the connector before disconnecting, using macro mode to reveal faint stripes on damaged insulation. Label each wire with masking tape and a fine-tip marker–avoid relying on memory for post-disassembly verification.
Consult the owner’s manual under “Specifications” or “Electrical Component Locations” for model-specific instructions. Online forums specific to your vehicle’s year/make/model often archive scanned OEM schematics with color-coded annotations.
Exceptions and Variations
Audi’s MMI systems add an orange/black CAN bus line, while Mercedes COMAND modules include brown/red for steering wheel controls. Asian brands like Hyundai and Kia sometimes substitute light blue for antenna boost instead of the usual blue/white.
Ground wires may split–verify with a continuity test between suspected grounds rather than assuming all black wires terminate at the same point. Illumination wires (often orange or brown) dim when headlights activate; test by toggling the dashboard light switch.
Aligning Upgraded Audio System Cables with Original Vehicle Links
Begin by identifying the constant 12V power source in the car’s harness–typically a yellow or red wire with a minimum 10-gauge thickness. This line ensures memory retention for presets and settings. Verify its function with a multimeter (12V+ when ignition is off) to avoid draining the battery. Connecting it to an accessory wire will result in power loss when the vehicle is switched off.
Ground connections demand attention: a poor link causes engine noise, distortion, or system failure. Locate a bare metal surface within 18 inches of the head unit’s mounting point–clean it thoroughly with a wire brush and secure a 12-16 gauge black cable (often labeled “GND”). Avoid proximity to fuel lines, ABS modules, or moving parts that could interfere with signal integrity.
Speaker outputs follow a standardized color scheme but factory harnesses may deviate. Front left (white/gray) and front right (gray/brown) pairs often carry traces of blue or violet stripes for clarity. Back channels (green/orange and purple/green) sometimes include polarity markings (+/-). Cross-reference with the vehicle’s service manual–some luxury models integrate amplified signals requiring additional resistance checks.
Signal triggers like remote turn-on (usually blue with a white stripe) activate external amplifiers. Test this wire with the ignition in the “accessory” position–voltage should rise to 12V. Failure to connect it leaves amplifiers dormant. In some European models, this wire also manages antenna motor controls; cut and tape if not needed to prevent erratic behavior.
Dimmer or illumination circuits (orange or orange/white) adjust display brightness in sync with dashboard lights. Probe this wire only when lights are on–it should read ~11-12V. Incorrect pairing results in unreadable screens or no response. Ford and GM vehicles often label this “ILLUM” or “LMP,” while Japanese brands may use “ILL” or “DIM.”
Data buses (common in late-model vehicles) control secondary functions like steering wheel audio controls or vehicle diagnostics. These lines (often purple, pink, or data-specific pinouts) require adapters or bypass modules. Attempting direct splicing disrupts CAN bus networks, triggering warning lights or disabling features. Use a harness adapter specific to the vehicle make/model to ensure compatibility.
Always terminate unused wires with electrical tape or heat-shrink tubing to prevent short circuits. Double-check all connections with a multimeter before powering the system: resistance between speaker wires should read below 0.5 ohms, and insulation from ground/chassis must show infinite resistance. Reversing polarity during installation damages tweeters, so label connections immediately after cutting original harnesses.
