Start with a linear regulator if stability matters more than efficiency. A LM7805 delivers 5V with minimal noise, ideal for sensitive analog components. Input voltage must exceed output by 2V to maintain regulation–plan for 7–12V input. Add a 10μF electrolytic capacitor on both input and output to suppress ripple. Avoid exceeding 1A without a heatsink; thermal shutdown kicks in at 125°C.

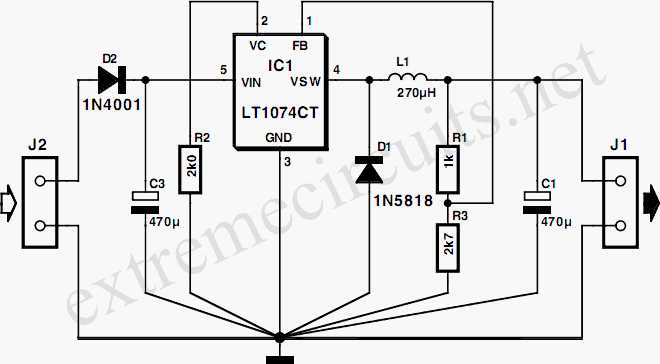

For higher efficiency, switching converters like the LM2596 cut losses dramatically. Set output voltage via a feedback resistor divider–formula: Vout = 1.23 × (1 + R1/R2). Use low-ESR capacitors (e.g., 22μF ceramic) to minimize voltage spikes. Inductors must handle peak current without saturating; 33μH works for 1A loads. Add a Schottky diode (e.g., 1N5822) to clamp inductive flyback.
Test under load before finalizing. A multimeter confirms steady output, while an oscilloscope checks for switching noise (>100mV peak-to-peak demands additional filtering). For adjustable designs, use a 10kΩ potentiometer in the feedback loop. Ground loops skew readings–keep traces short and wide, especially near the ground pin. If thermal drift is critical, opt for a precision reference like the TL431 instead of fixed regulators.

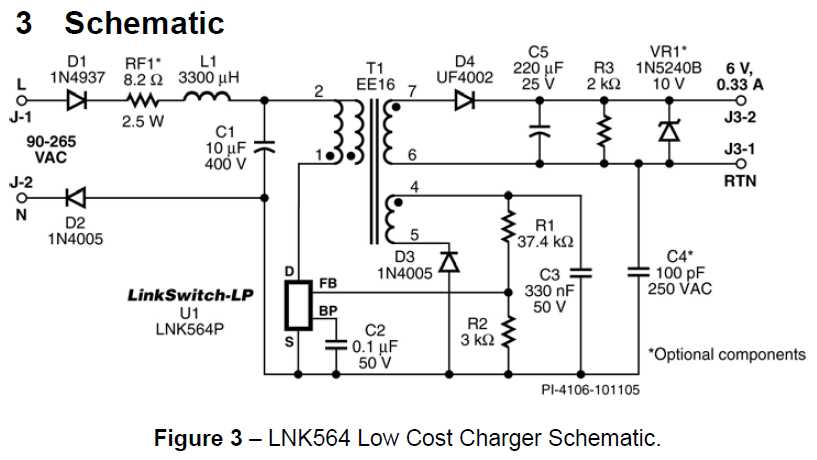

Isolation extends safety in high-voltage scenarios. A flyback transformer with a UC3843 controller isolates input/output grounds. Primary-side feedback avoids optocouplers but demands precise winding ratios. For 5W–20W designs, EE16 cores suffice; above 50W, switch to EI25 or ETD29. Snubber networks (1kΩ + 1nF) tame voltage spikes during turn-off. Always include fusible resistors (e.g., 0.5Ω 1W) to halt runaway faults.
Designing Convertor Layouts: Key Schematics for Power Transformation
Always start with a precise voltage requirement analysis. For a 5V to 12V step-up converter, use a boost topology with components rated for at least 1.5× the expected load current. A TPS61020 IC paired with a 10μH inductor (saturation current ≥1.2A) ensures efficiency above 85% under typical conditions.
Select capacitors based on ripple specifications. Input capacitance (Cin) of 22μF (X7R dielectric) and output (Cout) of 47μF (tantalum) minimize voltage fluctuations. Place them within 10mm of the IC to reduce trace inductance.
- For noise-sensitive applications, add a 1μF ceramic cap across the IC’s VIN and GND pins.
- Use a 0Ω resistor on the EN pin if automatic startup is required, or a 10kΩ pull-down for manual control.
- Avoid electrolytic caps for Cout–they increase ESR and degrade performance.
Grounding strategy dictates stability. Isolate the power ground from signal ground using a single-point star connection. Route high-current paths (inductor, input/output caps) as short, wide traces (≥2mm) to prevent thermal hotspots. Thermal vias (0.3mm diameter) under the IC improve heat dissipation.
Feedback resistor values directly influence output voltage. For R1 = 10kΩ and R2 = 30kΩ, VOUT = 1.2V × (1 + R2/R1) ≈ 4.8V. Adjust ratios to match your target–tolerance ≤1% resistors reduce error to
Schottky diodes (e.g., 1N5817) clamp reverse voltage during inductor demagnetization. Position the diode as close to the inductor as possible to limit switching losses. For frequencies above 500kHz, consider a synchronous MOSFET to improve efficiency by 2-3%.
Test inductors under full load before finalizing the schematic. Use an LCR meter to verify nominal inductance–deviations >±10% may cause instability. Measure output ripple with an oscilloscope (>50MHz bandwidth) to confirm ≤50mVpp under worst-case load transients.
PCB layout demands priority placement. High-current loops (IC → inductor → diode → IC) must be minimized. Keep switch-node traces short to reduce EMI–adding a ground pour around them absorbs stray capacitance. For multiple outputs, use separate converters or post-regulators to avoid cross-regulation issues.
Selecting an Optimal Transformer for Voltage Reduction Converters
Prioritize transformers with a primary voltage rating matching your input supply–typically 230V for European grids or 110V for North American ones–while ensuring the secondary winding delivers the exact output your device demands. For example, a 24V output requires a secondary winding of at least 25V to account for diode drop and regulation losses. Check core material: ferrite cores excel in high-frequency switching (above 50 kHz), while laminated steel suits lower frequencies (50-60 Hz).
Calculate the power rating by multiplying secondary voltage by load current. Add a 30% safety margin to prevent overheating. A 10W transformer (e.g., 5V at 2A) should be specified for at least 13W. Ignore “maximum” ratings on datasheets; rely on continuous RMS values. For toroidal designs, verify that the inner diameter fits your enclosure, as mismatched dimensions lead to mechanical stress or inefficiency.
- Primary taps: Opt for multi-tap transformers (e.g., 115V/230V) if the converter must operate across regions with varying mains voltages.
- Insulation class: Class B (130°C) suffices for most applications, but Class F (155°C) is mandatory for high-ambient environments or poorly ventilated cases.
- Leakage inductance: Below 5% for flyback topologies; values above 10% force additional snubber circuits, increasing component count.
For PCB-mounted transformers, confirm lead spacing aligns with your layout. Surface-mount devices (SMD) reduce footprint but limit power to ~15W due to thermal constraints. Through-hole variants handle up to 100W but demand larger board real estate. Test saturation current with an LCR meter; if the inductance drops >20% at full load, the core is undersized. Replace immediately to avoid audible hum and efficiency collapse.
Verify regulatory compliance: UL 5085 for North America, EN 61558 for Europe. Non-compliant units risk failure during certification, necessitating costly redesigns. For adjustable outputs, use transformers with multiple secondary taps (e.g., 9V/12V/15V) and a selector switch–avoid linear regulators for >3W dissipation, as they require heatsinks the size of the transformer itself.
Designing a Bridge Rectifier for AC to DC Conversion
Start with four fast-recovery silicon diodes rated for at least 1.5 times the peak inverse voltage (PIV) of the expected AC input. For a 12V RMS input, this means diodes with a PIV of ≥25V; 1N4007 (1000V) or 1N5822 (40V) are common choices, but verify their current capacity matches your load–typically ≥1A for small power supplies. Ensure the diodes’ forward voltage drop (≈0.7–1.1V per pair) is factored into output calculations; Schottky diodes reduce this to ≈0.3–0.5V, improving efficiency for low-voltage designs.
Calculate the ripple voltage using V_ripple = I_load / (2 * f * C), where f is the input frequency (50/60Hz) and C is the smoothing capacitor. For a 500mA load at 50Hz, a 2200μF capacitor yields ≈4.5V ripple; double C to halve the ripple. Place the capacitor as close as possible to the diode bridge outputs to minimize ESR-induced voltage drops. Use polarized electrolytics with a voltage rating ≥1.5× the DC output (e.g., 25V for a 12V output) to avoid dielectric breakdown.
Thermal Considerations
Mount diodes on a heatsink if their power dissipation exceeds 0.5W. A 1A load through a standard diode (≈1V drop) dissipates 1W; without heatsinking, thermal resistance junction-to-ambient (RθJA) of ≈100°C/W will raise the junction temperature by 100°C above ambient, risking failure. For high-current designs (>3A), use dual diodes in parallel to split the load or switch to TO-220 packages with RθJA ≤5°C/W. Verify thermal calculations with P_dissipated = I_load × V_forward × duty_cycle, where duty cycle is ≈50% for full-wave rectification.
Optimizing Output Stability
Add a 10Ω series resistor before the smoothing capacitor to dampen high-frequency transients during load changes. For precision applications, follow the bridge with a linear regulator (e.g., LM7812 for 12V), but account for its dropout voltage–typically ≥2V at full load. If the DC output must stay within ±5%, use an adjustable regulator (LM317) with feedback resistors set to V_out = 1.25 * (1 + R2/R1), where R1 is 240Ω. Avoid ceramic capacitors for smoothing; their low ESR causes ringing, while electrolytics or polymer tantalum types provide better damping.
Calculating Capacitor Values for Voltage Smoothing
To determine the optimal capacitor size for ripple suppression, use the formula C = I_load / (2 × f × V_ripple), where I_load is the maximum current draw (in amperes), f is the rectification frequency (typically 100 Hz for full-wave or 50 Hz for half-wave), and V_ripple is the acceptable peak-to-peak ripple voltage (e.g., 0.1–1V for most low-power setups). For a 500mA load with 100Hz rectification and 0.5V ripple tolerance, this yields C = 0.005 A / (2 × 100 Hz × 0.5 V) = 50 μF. Round up to the nearest standard value (e.g., 68 μF) for safety margins.
For pulsed loads (e.g., microcontrollers or LEDs), multiply the calculated capacitance by 3–5× to account for transient current spikes. A 50μF capacitor may suffice for steady loads, but a 220μF unit ensures stable operation during sudden demand surges. Always verify the capacitor’s voltage rating exceeds the peak DC input by 20–30%–for a 12V supply, use at least 16V-rated components to prevent dielectric breakdown.
Frequency and Load Dependency
Higher rectification frequencies reduce required capacitance. A 400Hz aerospace power source needs 4× less capacitance than a 50Hz mains supply for identical ripple specs. Conversely, rectifiers with lower frequencies (e.g., 12Hz in battery-backed systems) demand capacitors in the 1000–4700 μF range to maintain
Electrolytic capacitors dominate due to cost and bulk capacitance, but their ESR (Equivalent Series Resistance) worsens ripple suppression. For critical applications, parallel a low-ESR ceramic capacitor (1–10μF) to shunt high-frequency noise left unfiltered by the primary electrolytic. This pairing reduces ripple by 40–60% without increasing the primary capacitor’s size.
Thermal and Lifetime Considerations
Capacitor longevity halves for every 10°C temperature rise above 85°C. Place smoothing capacitors away from heat sources (e.g., regulators or transformers) and ensure airflow. For high-current designs, select capacitors with ripple current ratings ≥1.5× the load current to avoid premature failure. Self-healing metallized polypropylene capacitors outlast electrolytics in harsh environments but require 10–20× larger volume for equivalent capacitance.
Final verification demands real-world testing. Simulate worst-case conditions by loading the system with 120% of expected current and measuring ripple under both cold (25°C) and hot (60°C) states. If ripple exceeds specifications, either increase capacitance, improve heat dissipation, or add a post-regulator (e.g., LDO) for tighter voltage control. The trade-off between component cost and performance risks should guide decisions–prioritize capacitor selection based on the device’s susceptibility to voltage noise (e.g., analog sensors tolerate
