For precise repair or reverse-engineering tasks, obtain the official mainboard layout files directly from the manufacturer’s authorized service portal. Search for service manuals under the model code ZQ4–this designation corresponds to the exact hardware revision. Avoid third-party aggregators; verified schematics often include component placement grids, voltage rails, and signal paths absent in unofficial copies.

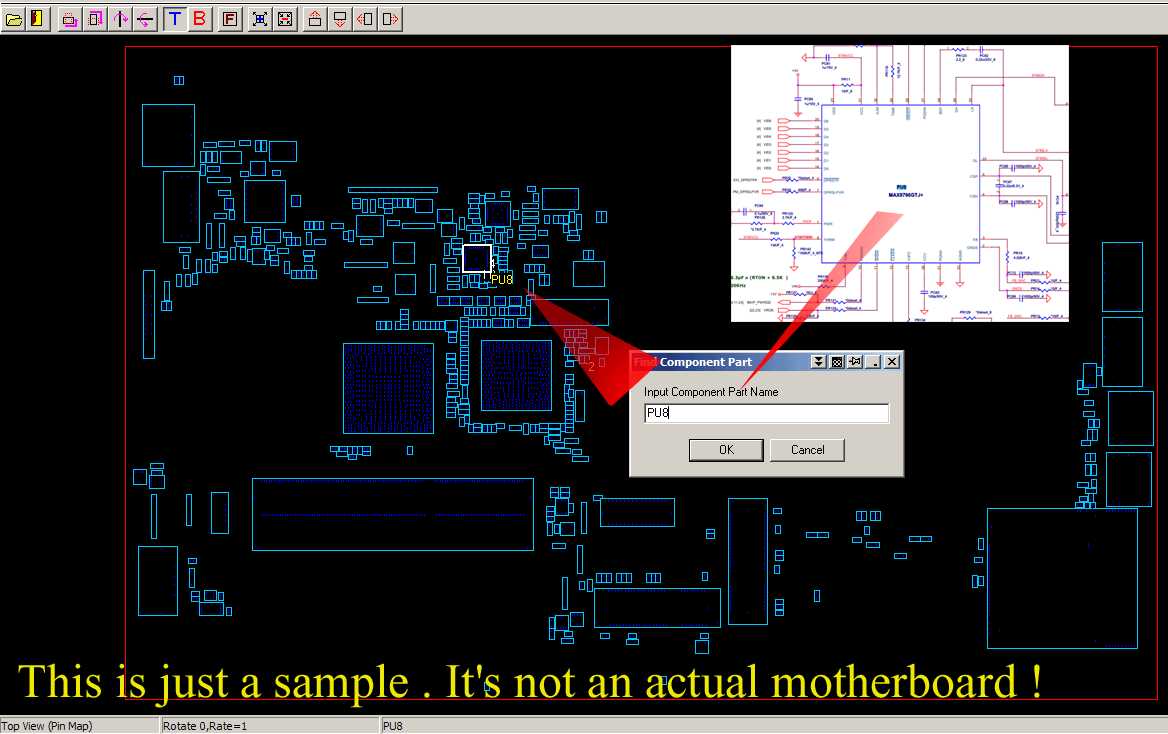

If official documentation is inaccessible, examine high-resolution board scans from reputable electronics forums or hardware repair communities. Focus on threads tagged with boardview files–these interactive maps allow tracing connections between BGA chips, power ICs, and peripheral controllers. Prioritize sources that provide layer-by-layer breakdowns, as single-layer images obscure critical traces in multi-layer PCBs.
Before measuring voltages or probing, cross-reference the schematic with a multimeter continuity test to confirm ground/power planes. Note that revisions ZQ4A and ZQ4B differ in GPU power delivery; mismatches between physical board and diagram can cause irreversible damage. For BIOS-level modifications, identify the Winbond 25Q16 SPI flash pinout–incorrect wiring during reprogramming corrupts firmware.
Locating the DA0ZQEMB8E0 Rev.E1 Circuit Blueprint
To begin repairs on this portable device’s mainboard, secure a high-resolution reference file labeled DA0ZQEMB8E0 Rev.E1–this layout is indispensable for identifying power rails, signal traces, and key IC connections. Focus on pages 12-15 showing the EC controller (ITE IT8572E), voltage regulators (AOZ1016 for 3.3V/5V), and memory interface (Intel HM65 chipset). Cross-reference the LVDS connector (CN2) on page 8 with the inverter circuit on page 17 to resolve display backlight failures without guessing.
Critical Trace Paths and Component Mapping
Use a multimeter in continuity mode to verify the SMBus lines (pins 3-4 on JGPU1) linking the GPU (N12P-GS1-A2) to the EC–common corrosion here disrupts graphics output. For no-power issues, prioritize the PU7 buck converter (TPS51218) near the 19V input jack (CN4), checking D19/SD1 for short circuits. The BIOS chip (Winbond 25Q32BV) resides near the DDR3 slots; reflashing requires 3.3V standby power via Q6 (APM4953). Avoid probing the CLK/CMD lines without proper ESD protection–their 1.5V signalling is sensitive to static discharge.
How to Find the Accurate Circuit Reference for Your Portable Device’s Mainboard
Begin by searching official service documentation released by the manufacturer. These files often include board layouts, component placement guides, and signal flow charts. The most reliable sources are the repair manuals labeled “Service Guide” or “Hardware Maintenance Manual.” For this model line, download archives from the brand’s authorized support portal–avoid third-party sites that repackage outdated versions.
If official resources prove scarce, scrutinize electronics repair forums where technicians upload shared material. Look for threads where users discuss fault diagnosis, particularly those referencing voltage regulators, BIOS chips, or GPU solder points. Filenames containing “DA0ZQXMB8E0,” “Quanta ZQ1,” or “PEW71 LA-7541P” correlate directly with the internal board designation for this series.
Key identifying markers on the PCB will help confirm you’ve found the right schematic sheet. Near the CPU socket, locate silk-screened text: “ZQ1” or “UMA,” followed by a version number (e.g., “REV E”). Match these details precisely–even minor version discrepancies can alter pin assignments of critical ICs like the EC controller or memory voltage rails.
Verifying PDF Integrity
Once downloaded, open the file in a vector-capable viewer like Foxit or PDF-XChange Editor. Legitimate schematics display clear, uninterrupted lines; pixelated pages or watermarked layers typically signal corrupted or cropped versions. Check page 3 for the power delivery tree–authentic diagrams list every MOSFET, inductor, and fuse with exact part numbers (e.g., “Q33_AZK7” for a charging circuit FET).
The most comprehensive diagrams split into functional blocks: EC interface, DDR3 timing, GPU power sequencing, and Super I/O lanes. Each section includes test points labeled TP###, often near vias or bypass capacitors. Use a multimeter in continuity mode to verify these pads correspond with the labeled nets–mismatches here mean the reference is incorrect or modified for a different revision.
If the primary schematic lacks detail on a specific subsystem (e.g., keyboard matrix or Wi-Fi module), cross-reference with component datasheets. The Realtek ALC269 audio codec PDF will outline pin functions for the jack circuit, while the Intel HM65 chipset document clarifies LPC bus routing between the southbridge and embedded controller.
Critical Parts Highlighted in the Portable Device’s Mainboard Blueprint
Locate the Intel HM65 Express Platform Controller Hub near the center of the layout, marked as U51. This chip governs data transfers between the CPU, memory, and peripheral interfaces, acting as the system’s central switchboard. Verify solder joints for micro-cracks, especially around pins connected to the southbridge, as thermal cycling often causes these points to fail first. Use a 10x magnifier and multimeter in continuity mode to inspect traces leading to the DDR3 slots–intermittent power losses here typically manifest as boot loops or random reboots.
Examine the Winbond W25Q32BV flash chip (U41) at the upper-left corner for firmware corruption. This 4MB SPI storage holds the BIOS, and its failure prevents any POST screen from appearing. Reflashing requires a CH341a programmer and the exact binary for the board’s revision–generic firmware often causes USB or keyboard port malfunctions. Keep the programming voltage at 3.3V to avoid damaging the chip, which is rated at a maximum of 3.6V.
RT8206 dual-phase buck converter (U33) powers the core logic, converting 12V input to 1.05V for the CPU. Replace this IC if the device exhibits sudden shutdowns under load, as degraded MOSFETs inside the package cause voltage spikes that trip over-current protection. Test input/output capacitors–C301 (22µF) and C302 (10µF)–with an ESR meter; values above 0.2 ohms indicate the need for replacement. Avoid using generic SMD capacitors–opt for polymer types with a ripple current rating above 3A to match the original specs.
Step-by-Step Guide to Interpreting Portable Computer Circuit Documentation
Locate power regulation sections first. Identify the main power rails marked with labels like “VCC,” “V5,” or “3V3” near switching converters (often rectangles with inductor symbols). Trace these rails backward to their source–typically a step-down converter or linear regulator. Note voltage values, as deviations here cause system instability. For example, a “TPS51125” near the DC jack indicates dual-channel buck conversion; mismatches between input and output voltages on this IC signal potential faults.
Examine signal pathways between the central processing unit and peripheral interfaces. Look for data buses marked “DDR3,” “SATA,” or “PCI-E,” which usually appear as parallel lines connecting the northbridge or platform controller hub to memory slots, storage, or expansion ports. Cross-reference pin assignments with component datasheets–for instance, a “Intel HM65” chipset uses specific lane configurations for SATA II (pins 54–60) that must align with the BIOS configuration. Shorts or open circuits in these pathways often manifest as boot failures or device detection errors.
Critical Component Reference Table
| Component | Designator | Typical Voltage Range | Failure Symptoms |
|---|---|---|---|
| Buck Converter | PU7, PU9 | 3.3V–5V | No power, overheating |
| EC Controller | U12 | 3.3V | Keyboard/touchpad unresponsive |
| BIOS Flash | U19 | 1.8V | Blank screen, POST errors |
| DDR3 Termination | R200–R240 | 0.75V (VTT) | Memory initialization failures |
Check reset and clock signals. The “PCIRST#” line (usually near the southbridge) should toggle from low to high during boot; a stuck signal here prevents initialization. Crystals (marked “Y1,” “Y2”) near the central processing unit and clock generator (e.g., “SLG8SP513”) must output stable frequencies–test with an oscilloscope if power-on resets occur intermittently. Capacitors near these components (typically 0.1µF–10µF) filter noise; bulging or leaky units disrupt timing.
Verify BIOS/UEFI circuitry. The flash IC (often an 8-pin SOIC) connects to the platform controller hub via SPI lines. Look for pull-up resistors on “CS#,” “SCLK,” and “MOSI/MISO” (commonly 10kΩ). Corruption in these lines causes firmware recovery loops; reflowing solder joints or replacing the flash IC may resolve persistent boot hangs. Adjacent capacitors (e.g., 1µF) stabilize voltage for the flash chip–measure at startup to ensure 3.3V is present before accessing the chip.
Test secondary rails like “VGA_3V3” or “CAM_1.5V” when peripheral devices fail. These rails often stem from standalone LDOs (e.g., “APL5913”)–probe output pins for expected voltages while the system is under load. Missing rails suggest faulty linear regulators or broken enable signals from the EC. For example, a missing “VGA_3V3” renders external monitors inoperable; trace back to the enable pin on the LDO, often controlled by GPIO from the embedded controller.
Common Issues Diagnosed Using the Portable Computer Mainboard Wiring Guide
Trace voltage rails using the wiring guide to isolate power delivery failures. The LA-7091P reference layout highlights VCC_CORE, VCC_GFX, and standby rails–measure each with a multimeter at test points TP101, TP203, and TP405. A reading below 1.0V on VCC_CORE while the system appears powered indicates a faulty VRM module U23 or corroded L24 inductor. Replace these components before proceeding to signal integrity tests to avoid cascading faults.
Examine the BIOS chip U7 footprint on the wiring guide if the device shows no POST signs. The MX25L3206E flash IC connects via SPI lanes SCK, MISO, MOSI, and CS–check continuity on these traces with a logic analyzer. Intermittent boot failures often stem from dry solder joints on pins 1-8; reflow these connections using a 300°C tip for 3 seconds max to prevent pad lift. Verify firmware integrity by comparing checksums before and after flashing.
Diagnose keyboard unresponsiveness by referencing the embedded controller EC_KBC section. Signals KB_CLK and KB_DATA converge at resistor packs RP1 and RP2–test resistance across each pair, which should measure 4.7kΩ ±5%. Shorts on these lines commonly occur due to liquid ingress; clean beneath RP1 with isopropyl alcohol followed by a hot-air reflow of the surrounding vias to restore function.
Identify display backlight failures by tracing the LCD inverter circuit. The wiring guide labels LVDS signals TX0+ through TX3- alongside 12V and 3.3V rails–measure voltage at connector CN9. Missing 12V suggests a blown fuse F5 or faulty P-channel MOSFET Q11; both components can be replaced with equivalents rated for 3A continuous current. For dim or flickering backlight, focus on capacitors C412 (10μF/25V) and C415 (22μF/16V), which degrade under thermal stress.
USB Port Malfunctions
- Check USB power rails on the wiring guide at TP_USB_5V and TP_USB_3.3V. Voltage below 4.75V indicates a failed polyfuse PF1–replace with a 5A rated equivalent.
- Inspect data lines D+ and D- for continuity. The wiring guide labels these at connector JUSB1; use a USB protocol analyzer to detect signal drops, often caused by broken vias beneath resistor packs R201-R204.
- For intermittent detection issues, reflow the USB hub controller U19 (SLG8SP540). Cold solder joints on pins 1-10 commonly disrupt downstream device recognition.
Resolve overheating by mapping thermal sensor placements. The wiring guide marks THRM1 and THRM2 near the CPU socket–verify resistance (10kΩ at 25°C) against NTC thermistor datasheets. A reading above 200kΩ indicates an open sensor; replace and apply new thermal compound to the heatsink interface. For persistent thermal throttling, inspect the PWM fan controller at U8–signals TACH and FAN_PWM should toggle at 25kHz; static high/low levels require IC replacement.
Troubleshoot Wi-Fi connectivity by cross-referencing the mini-PCIe slot. The wiring guide denotes RF lines and power rails–measure 3.3V at TP_WLAN and 1.8V at TP_VCC_IO. Missing voltages point to corroded contact finger L23 or a defective LDO U28 (AP7313-18); both require removal and cleaning of the surrounding EMI shield. For weak signal strength, verify antenna cables are seated in connectors JANT1/JANT2–misalignment here reduces throughput by 40%.
Audio Distortion Fixes
- Confirm the audio codec U10 (ALC269) receives 3.3V_AUD at pin 28 and RESET# at pin 1–these lines fail due to cracked vias near the jack assembly.
- Test speaker output lines SPKR_L+ and SPKR_R+ for AC voltage (1Vrms typical). Absence suggests a blown amplifier U12 (TAS5711); replace with a drop-in compatible TI DRV2703.
- For crackling sounds, inspect capacitors C301-C304 (22μF/6.3V) in the audio filter network–leaky components here introduce DC offset; replace with solid polymer variants to prevent recurrence.
