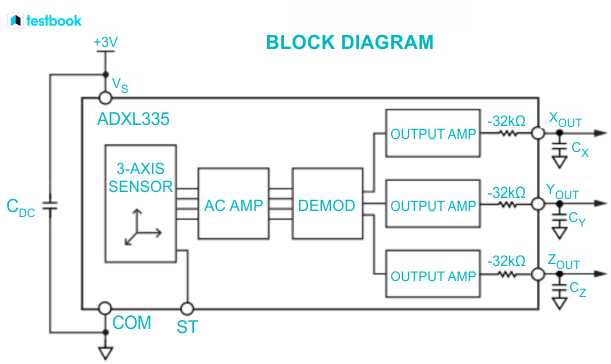

Begin with a triaxial MEMS sensor (e.g., ADXL345 or MMA8452Q) to capture dynamic forces along three perpendicular axes. Connect the sensor’s VCC pin to a 3.3V regulated supply–avoid 5V logic unless specified by the datasheet, as exceeding voltage limits risks permanent damage. Ground the sensor’s GND pin directly to the power supply’s reference point to minimize noise interference.
For signal transmission, use short, shielded cables between the sensor’s output pins (X, Y, Z) and the microcontroller’s analog or I2C/SPI inputs. If employing analog output, route traces away from high-frequency components like PWM generators or switching regulators. A 0.1µF decoupling capacitor soldered near the sensor’s power pins filters voltage spikes, critical for maintaining measurement accuracy.
Integrate a low-pass RC filter (resistor-capacitor pair, e.g., 10kΩ + 10nF) on each axis if targeting static tilt detection. This attenuates high-frequency vibrations–useful for stabilizing readings in industrial or vehicular setups. For digital protocols (I2C/SPI), assign pull-up resistors (4.7kΩ) to the communication lines to ensure reliable data transmission.
Validate sensor alignment during assembly: misorientation of even 1–2 degrees skews readings in freefall or inclination tests. Mount the sensor rigidly to the target structure, avoiding flexible intermediate layers (e.g., double-sided tape) that introduce parasitic motion. Calibrate the device by logging raw counts at known orientations (e.g., resting on a level surface, then inverted) and apply offsets or gains in firmware.
Power draw typically ranges 250–500µA in active mode but can drop below 3µA in standby–consult the datasheet to balance current consumption against wake-up latency. Isolate the circuit from EMI sources; even a nearby DC motor can corrupt readings unless separated by ferrite beads or a dedicated ground plane.

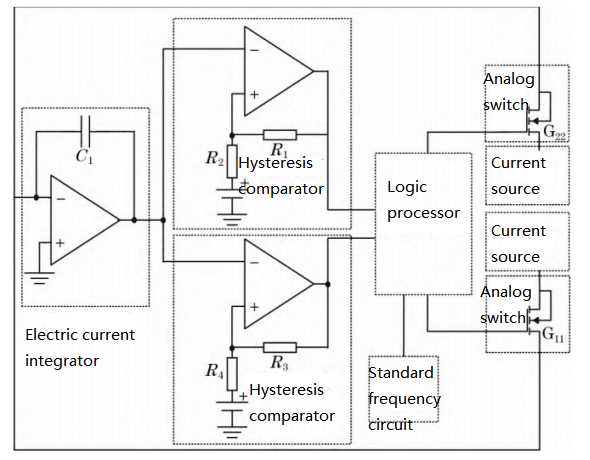

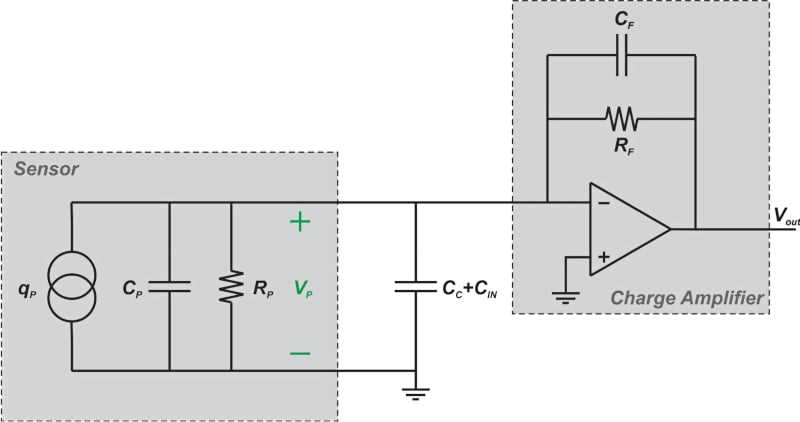

Designing a MEMS Sensor Schematic for Motion Detection
Select a tri-axis sensing element like the ADXL345 for precise measurement of tilt, vibration, and impact forces. This IC integrates signal conditioning, analog-to-digital conversion, and digital filtering in a single package, reducing component count and layout complexity. Power it with 3.3V via a low-dropout regulator to maintain stable output under varying loads.
Ground the sensor’s VDD_IO pin separately from the analog ground plane to minimize noise coupling. Use a 0.1µF ceramic capacitor between the supply and ground, placed within 2mm of the IC, to suppress high-frequency transients. For immunity to electromagnetic interference, route traces with controlled impedance and avoid crossing them over split planes.
Connect the sensor’s data lines–SCL and SDA–to an I²C master via pull-up resistors of 4.7kΩ. Ensure these resistors are terminated at the controller’s supply rail, not at the sensor’s VDD, to prevent backfeeding. For long traces, add a series resistor (33Ω) to dampen reflections and reflections-induced ringing.
Implement a power-on reset circuit using a 1µF capacitor to ground on the reset pin. This ensures the device initializes properly after power cycles, particularly in battery-operated designs where voltage ramps may be slow. Avoid relying on software resets alone, as intermittent brownouts can cause erratic behavior.
For applications requiring shock detection, configure the sensor’s internal threshold registers. Set the accelerometer’s dynamic range to ±8g and enable the free-fall interrupt on pin INT1 with a 100ms duration threshold. This allows immediate response to impact events without continuous polling, reducing MCU load and power consumption.
Decouple the analog and digital grounds at the sensor’s AGND and DGND pins using a ferrite bead or a small inductor (100nH). This isolates high-speed digital switching noise from the sensitive analog front end, critical for low-g measurements where resolution matters. Test the layout with a near-field probe to verify noise rejection before finalizing the PCB.
Validate the design by subjecting the prototype to controlled vibrations using a shaker table. Log the sensor’s raw output at 100Hz sampling rate and compare it against reference equipment to ensure linearity and absence of aliasing. For automotive or industrial use, verify compliance with IEC 60068-2-6 for sinusoidal vibrations and IEC 60068-2-27 for mechanical shock.
Key Components for a Basic Motion-Sensing Module
First, select a microelectromechanical system (MEMS) sensor with a three-axis data output. Models like the ADXL345 or MMA8452Q provide ±2g to ±16g ranges, sufficient for most applications. Ensure the package includes interrupt pins for free-fall or tap detection–these reduce software overhead by triggering hardware events directly. Prioritize sensors with low noise density (
- Bandwidth filter: Set cut-off frequencies from 0.1 Hz (for tilt) to 1 kHz (for shock detection). The ADXL345 lets you configure this via register 0x2C.
- Data rate: 10 Hz suits human motion tracking; 3200 Hz captures rapid impacts. Note higher rates draw more current.
- Self-test: Verify functionality by sending a known electrostatic force; the device should return predictable offset shifts.
Pair the sensor with a microcontroller (MCU) matching its digital interface. I²C (standard 100 kHz or fast 400 kHz) works for single sensors, but SPI (up to 10 MHz) reduces latency in multi-sensor setups. Choose an MCU with dedicated interrupt pins; an Arduino Nano handles one sensor efficiently, while an ESP32 manages multiple devices concurrently. Add a 0.1 μF decoupling capacitor close to the sensor’s VDD pin–omitting it risks erratic readings under dynamic loads. For battery-powered designs, include a low-dropout regulator (e.g., TLV70233) to maintain stable 3.3V despite voltage sag.
How to Interface a Motion Sensor with a Microcontroller
Select a sensor with a compatible output format–common choices include I²C or SPI interfaces. Verify the voltage levels match the microcontroller’s logic, typically 3.3V or 5V, to prevent signal degradation or damage. For I²C devices, connect the SDA and SCL pins to the corresponding microcontroller pins, ensuring pull-up resistors are present–4.7kΩ works for most setups.
For SPI-based sensors, wire the MOSI, MISO, SCK, and CS lines directly. Double-check the datasheet for clock speed limits; exceeding them causes communication failures. Use decoupling capacitors (0.1µF) near the sensor’s power pins to filter noise, especially in high-vibration environments.
Configure the microcontroller’s interface protocol before powering the sensor. Initialize the clock speed, addressing mode, and data format according to the sensor’s specifications. Avoid default settings–misconfigured modes lead to corrupted readings or no response.
Implement error-checking early in the code. For I²C, monitor NACK signals during transmission; for SPI, verify data integrity via checksums or parity bits. Skipping this step masks hardware issues until late-stage debugging.
Read the sensor’s data registers sequentially if the sensor streams multiple axes. Cache values in a buffer to prevent race conditions during interrupts. For real-time applications, optimize the read frequency to match the sensor’s output rate–oversampling wastes cycles, undersampling loses precision.
Calibrate the sensor by collecting baseline readings before deployment. Subtract these offsets from live data to improve accuracy. Store calibration values in EEPROM if the microcontroller resets frequently–repeating this process manually wastes energy and time.
Test the setup under controlled conditions first. Move the sensor along each axis while logging outputs to confirm linearity. Non-linear responses indicate misalignment, poor soldering, or faulty components–recheck connections before proceeding.
For low-power applications, disable unused sensor features via control registers. Reduce the output data rate or switch to standby mode when idle–this extends battery life significantly. Always restore settings before resuming operations to avoid unexpected behavior.

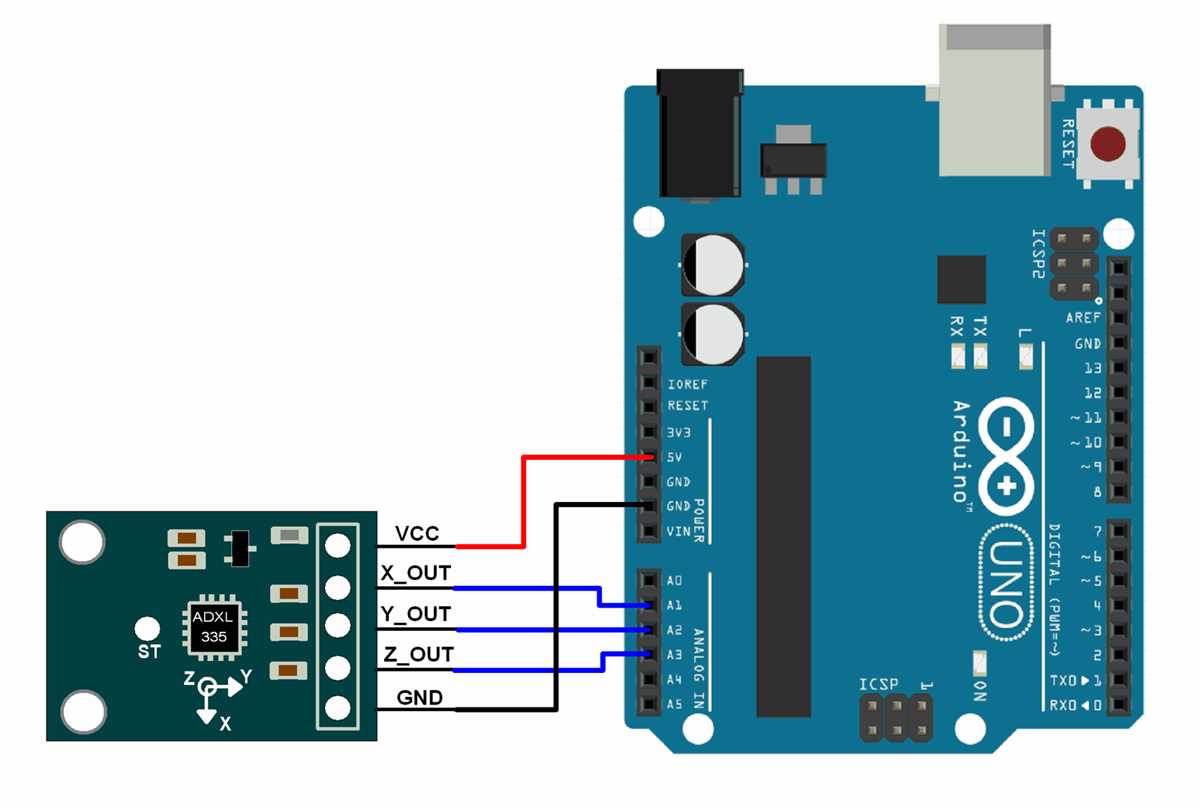

Wiring Schematics: Single-Direction vs Multi-Direction Motion Sensors
For single-direction motion detection setups, route the output pin directly to an analog input on your microcontroller with a 0.1µF decoupling capacitor soldered between the sensor’s power and ground pins as close to the component as possible. Use 22 AWG solid-core wire for signal lines to minimize noise; stranded wire introduces impedance variations at frequencies above 1 kHz. Keep traces under 15 cm to prevent signal degradation–longer runs require differential pairs with a reference ground.
Multi-direction units demand separate signal paths for each axis. Assign a unique analog input per channel and employ a common ground plane beneath the entire sensor footprint to suppress crosstalk. For I²C interfaces, pull-up resistors of 4.7 kΩ on SDA/SCL lines are optimal; weaker values introduce latency, stronger ones risk communication errors. Shield power traces with adjacent ground lines, maintaining a 3:1 width ratio (signal:ground) for stability at 3.3 V operation.
Bypass capacitors differ by sensor type: 10 µF tantalum caps for single-axis devices, 22 µF ceramics for multi-axis variants. Place them within 2 mm of power pins–vias add inductance. If using a breakout board, verify pad-to-pin mapping; incorrect orientation flips X/Y axes or corrupts Z readings when tilted beyond ±45°. Avoid daisy-chaining grounds from other peripherals; star topology prevents ground loops.
For SPI configurations, terminate clock speeds at 1 MHz when sampling rates exceed 500 Hz; faster clocks induce ringing on unshielded cables. Use twisted-pair wiring for SCK/MISO/MOSI traces–untwisted lines suffer from 6% signal loss per meter. Verify sensor datasheet for internal voltage regulators; some models require 5 V input despite delivering 3.3 V logic, necessitating level shifters if interfacing with 1.8 V controllers.
Calibration procedures vary: single-direction devices need only one reference voltage measurement (e.g., resting state aligned with gravity), while multi-direction units require orthogonal rotations to derive offset values for each axis. Store these offsets in EEPROM if the system undergoes temperature fluctuations–drifts of 0.02 g/°C are common. When prototyping, omit long shielded cables until layout is finalized; parasitic capacitance in early iterations distorts readings during dynamic tests.
Power sequencing critically impacts startup behavior. Multi-direction sensors with integrated ADCs require 10 ms stabilization time after VDD ramp-up; immediate polling risks erroneous initial readings. Single-direction models tolerate immediate sampling but exhibit a 2% hysteresis below 0.5 g if VDD rises slower than 100 mV/ms. Always verify shutdown pin functionality–floating pins cause sporadic 3.5 mA current draw on some ICs.
