Constructing a four-diode configuration for converting alternating current to direct current requires precise component selection. Use 1N4007 diodes for standard applications–each rated at 1A forward current and 1000V reverse voltage. For higher loads, replace with 1N5408 (3A) or HER158 (faster recovery, 1.5A). Ensure the transformer’s secondary winding matches the required DC output; a 12V AC secondary yields roughly 16.8V DC after conversion, accounting for diode voltage drops (~1.4V total).
Filter capacitors must handle the peak voltage–choose at least 25V for a 12V AC input. A 1000µF electrolytic capacitor reduces ripple to below 1% at 100mA load. For heavier currents, scale up capacitance (4700µF for 500mA) or add a second-stage LC filter. Calculate ripple voltage using Vripple = Iload / (2 × f × C), where f is the mains frequency (50/60Hz).
Thermal management is critical. Mount diodes on a heatsink if the average current exceeds 50% of their rating. For example, four 1N4007 diodes in TO-220 packages can dissipate ~1W each without additional cooling at 0.5A, but derate linearly for higher currents. Verify the transformer’s VA rating–oversizing by 20% minimizes heat and efficiency losses. Use a fuse on the primary side (e.g., 500mA slow-blow for a 10W supply) to protect against overloads.

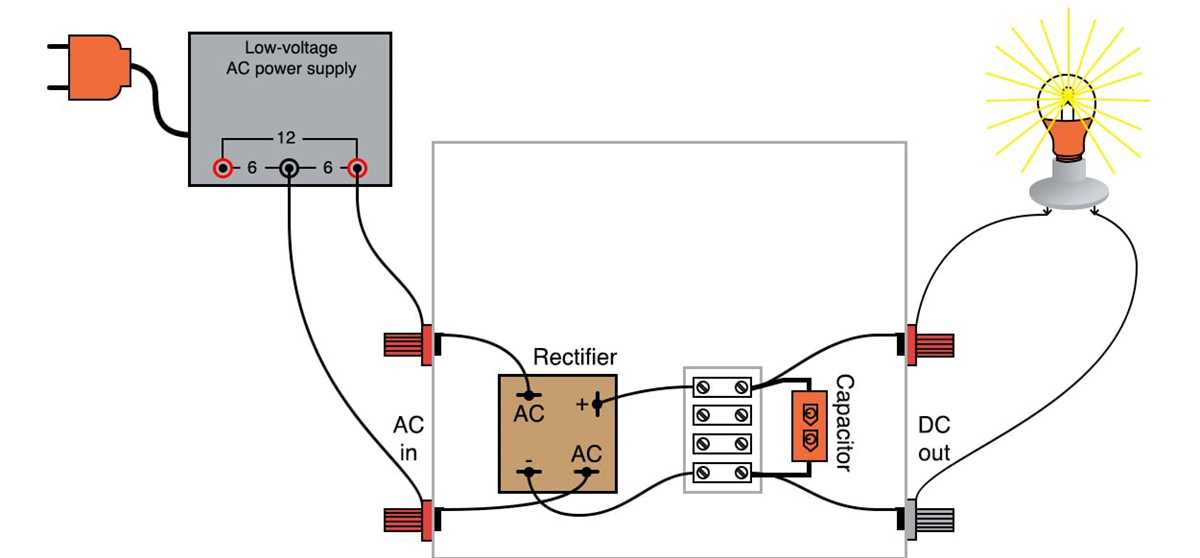

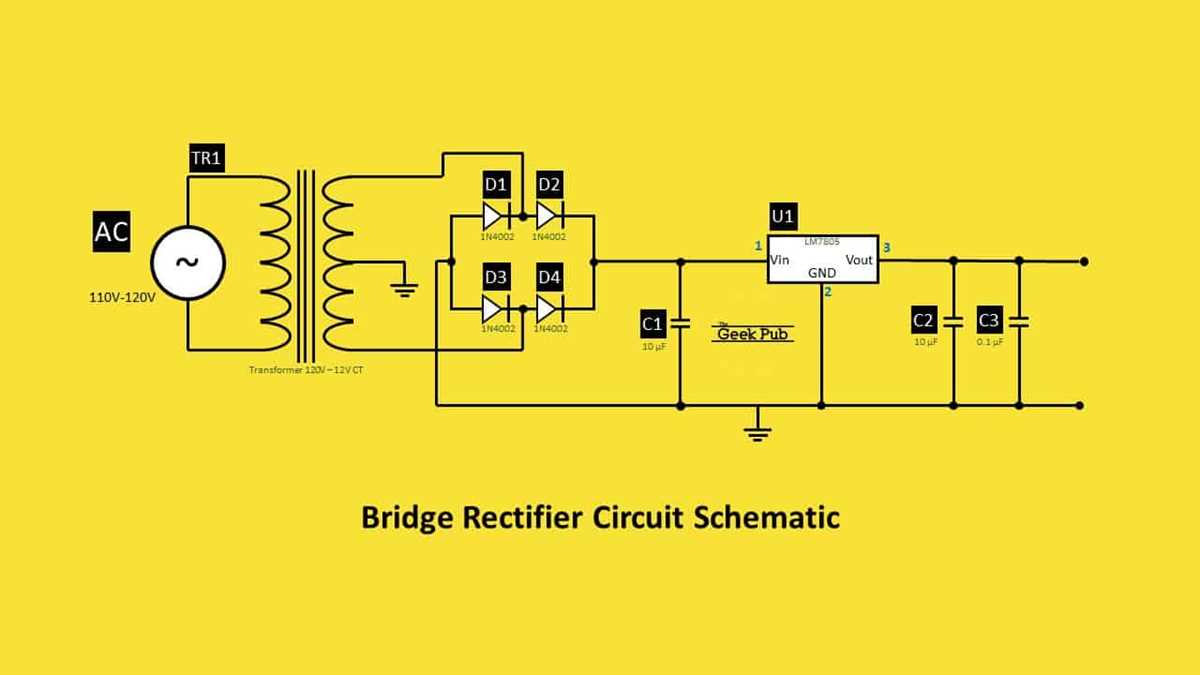

Testing the setup involves three steps: confirm AC input (multimeter, AC mode), check DC output under load (adjust capacitor if ripple exceeds 5%), and measure diode temperatures after 30 minutes of operation. Replace any component exceeding 80°C. For variable loads, simulate with a rheostat and monitor voltage regulation–drop below 10% at full load is acceptable for basic designs. Advanced versions integrate a voltage regulator (e.g., LM7812) downstream for stable 12V DC.
Full-Wave Converter Component Layout and Wiring Guide

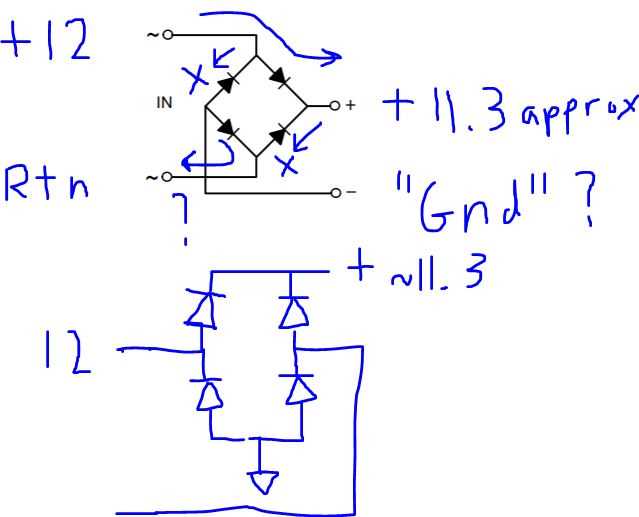

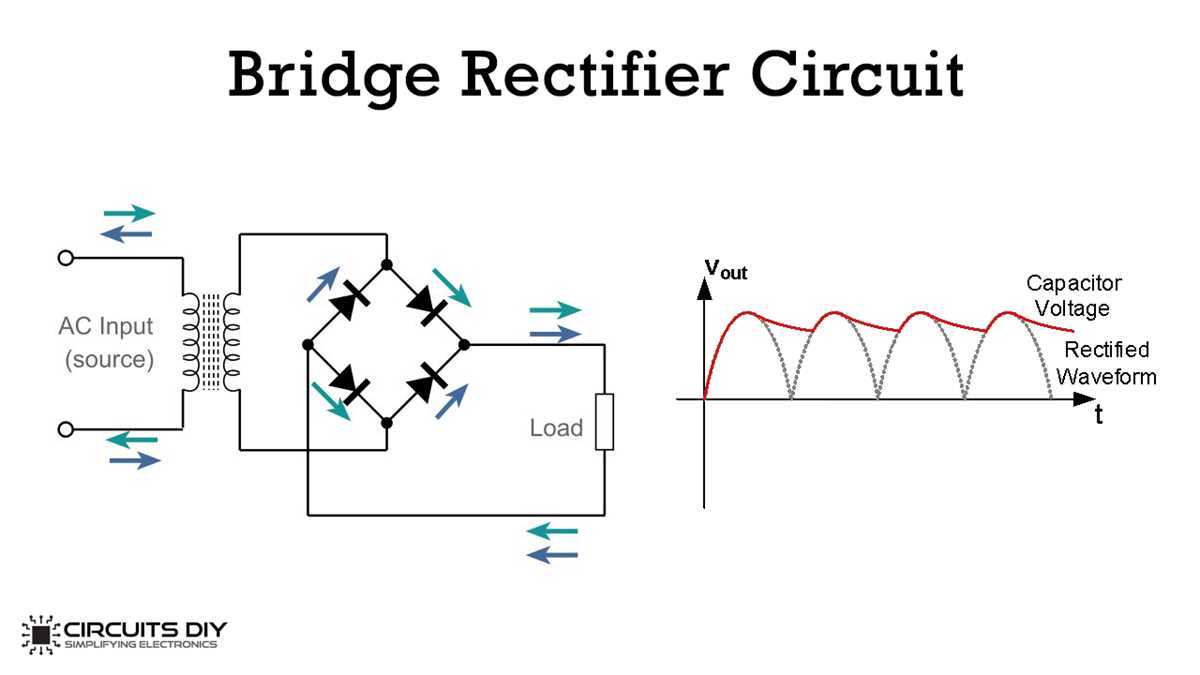

Assemble a four-diode arrangement in a closed-loop topology to block reverse polarity while allowing both halves of the sinusoidal input to contribute to the smoothed output. Start with 1N4007 diodes–each rated for 1 A forward current and 1000 V reverse voltage–mounted on a compact perforated board or soldered into a dedicated footprint etched on a copper-clad laminate.
Follow these connection steps:
- Link the AC transformer’s secondary terminals to opposite corners of the diamond-shaped diode cluster.
- Attach the remaining two corners to the DC output rails, observing the anode-cathode orientation marked on each diode package.
- Install a 1000 µF, 25 V electrolytic capacitor across the output rails, keeping lead spacing ≥5 mm to prevent arcing.
- Add a 10 kΩ bleeder resistor in parallel with the capacitor to discharge residual voltage within 10 seconds after power removal.
For 230 VAC mains feeding a 12-0-12 V center-tapped transformer (50 Hz), expect ≈16.9 VDC unloaded and ≈15.3 VDC under 500 mA load after smoothing. Deviations above 0.3 V suggest a faulty diode or incorrect wiring; recheck polarity and solder joints under bright illumination.
Safety and Testing Protocol
Isolate the entire setup with a 250 V, 1 A slow-blow fuse inline with the AC input and a MOV protector (varistor) across the transformer primary. Use a multimeter set to DC 20 V to verify:
- Open-circuit voltage–confirm ≥16.5 VDC before connecting load.
- Loaded voltage–measure ≤15.5 VDC with a 10 Ω resistive load (5 W minimum).
- Ripple voltage–≤200 mVpp at full load when monitored on an oscilloscope.
If ripple exceeds 250 mVpp, double the smoothing capacitance or insert a second-stage LC filter: a 10 mH choke (saturation current >750 mA) followed by a 470 µF capacitor. Testing at ambient temperatures above 40 °C requires derating each diode by 20%; substitute 1N5408 diodes for sustained 3 A operation.
Key Components for a Full-Wave Conversion Assembly
Select a transformer with a secondary voltage rating 10-15% higher than the required DC output. For a 12V DC output at 1A, a 13.8V RMS secondary ensures minimal voltage drop across the diodes. Use a center-tapped transformer only if PCB space is constrained; otherwise, opt for a standard dual-winding type to reduce copper losses. Core material should be silicon steel (e.g., M4 grade) for frequencies below 1 kHz, or ferrite (e.g., N87) for switching applications above 20 kHz.
Semiconductor Devices and Thermal Considerations
Four ultrafast recovery diodes (e.g., FR307, MUR460) minimize reverse recovery time (trr ≤ 50 ns) to prevent efficiency loss at high frequencies. For currents above 3A, replace with Schottky diodes (e.g., SB560) to eliminate trr losses and reduce forward voltage drop (0.3V vs 0.7V for silicon). Mount diodes on a heatsink with thermal resistance ≤ 8°C/W for every 5W of power dissipation. Ensure PCB copper pours (≥2 oz/ft²) act as supplementary cooling for currents above 1A.
Capacitor selection dictates ripple performance. For 50/60Hz mains applications, use low-ESR electrolytics (e.g., Nichicon UHE series) with capacitance ≥ 1000µF per ampere of load current. At switch-mode frequencies (≥20 kHz), replace with film capacitors (e.g., WIMA MKS2) to handle high RMS currents. Include a 0.1µF ceramic (X7R dielectric) across each pair of diodes to suppress high-frequency transients. Add a 10Ω series resistor with the filter capacitor if load current exceeds 5A to limit inrush current.
Step-by-Step Assembly of a Full-Wave Converter on a Prototyping Board
Begin by selecting four 1N4007 diodes for the configuration. Verify each diode’s anode and cathode markings–a silver stripe denotes the cathode. Place them in a diamond pattern on the board, ensuring the cathodes of two diodes face the positive output and the anodes of the remaining two connect to the negative rail. This arrangement enables bidirectional current flow during alternating input phases.
Connect the AC input terminals to the outer junctions of the diamond layout. For a 12V transformer secondary, wire one lead to the point where the anode of the first diode meets the cathode of the second, and the second lead to the opposite junction. Secure these connections with jumper wires, avoiding loose contacts that could introduce noise or unreliable behavior.
| Component | Specification |
|---|---|
| Diodes | 1N4007 (or equivalent) |
| Capacitor | 1000µF, 25V electrolytic |
| Load Resistor | 1kΩ, 0.5W |
| Protoboard | 400+ tie points |
Insert a 1000µF smoothing capacitor between the positive and negative output rails. The capacitor’s positive lead attaches to the same node as the cathodes of the two upper diodes, while the negative lead connects to the shared anode node of the lower pair. Ensure correct polarity–reversed leads will damage the capacitor and disrupt the output. Test the setup with a multimeter in DC voltage mode; expect approximately 16.8V across the capacitor for a 12V AC input.
Attach a 1kΩ load resistor across the output terminals. This step simulates real-world usage and prevents floating voltages. Monitor the DC voltage drop–it should settle around 15–17V under load. If readings deviate, recheck each diode’s orientation and solderless connections for shorts or open circuits.
Power the assembly via the transformer’s secondary winding only after confirming all connections. Use an oscilloscope to observe the waveform at the output: a clean DC signal should appear, with minimal ripple. If ripple exceeds 0.5V peak-to-peak, increase the capacitor value to 2200µF or add a second 1000µF unit in parallel.
Finalize the build by trimming excess lead lengths to avoid accidental shorts. Secure components with hot glue if the board will undergo movement. Document the layout with a quick sketch or photo for future reference–this aids troubleshooting and replication. Measure current draw under load; typical values for a 1kΩ resistor should range between 15–17mA.
Calculating Required Diode Ratings for Your Power Supply
Select diodes with a reverse voltage rating at least 1.5 times the peak AC input voltage. For a 230V RMS supply, the peak voltage is 325V; ensure diodes handle at least 488V. This margin accounts for transients and voltage spikes typical in mains operations.
Forward current capacity must exceed the maximum DC load current by 50%. If the load draws 2A, diodes should support 3A continuously. Check datasheets for derating curves–higher temperatures reduce current handling, often requiring additional headroom.
Surge current ratings demand attention during startup or short-circuit events. A 2A steady load may briefly draw 20A at turn-on; diodes must withstand this without failure. Look for non-repetitive surge current (IFSM) values in microsecond ranges.
Thermal resistance and power dissipation directly impact reliability. A diode dropping 1V at 3A dissipates 3W; ensure the package (DO-201AD, TO-220) can dissipate this heat. Attach heatsinks if ambient exceeds 50°C or dissipation tops 2W.
Reverse recovery time (trr) matters in high-frequency applications. Fast diodes (trr < 500ns) prevent commutation issues in supplies switching above 20kHz. Schottky diodes excel here but trade off reverse voltage tolerance, maxing around 100V.
Check thermal cycling limits if the supply experiences temperature swings. Diodes in outdoor or automotive environments should tolerate -40°C to 125°C. Packages like DO-41 handle cyclic stress better than plastic-encapsulated variants.
Snubber networks may be necessary if ringing exceeds 20% of the peak voltage. A series RC pair (e.g., 10Ω, 10nF) across each diode damps oscillations, reducing stress. Omit this only if transient simulations confirm negligible ringing under worst-case loads.
