Start with a multimeter set to continuity mode to verify the integrity of the electromagnetic switch contacts. If resistance exceeds 5 ohms, replace the unit–faulty contacts will cause voltage drops under load, leading to premature failure of the cooling mechanism. Locate the thermal protector: it’s typically a cylindrical device wired in series with the main power circuit, interrupting current at 15A or when temperatures reach 110°C.
Use 14-gauge wire for the primary loop–any thinner gauge risks overheating under sustained operation. Secure connections with crimp terminals and heat-shrink tubing to prevent corrosion from moisture or road debris. Check the capacitor’s microfarad rating; most systems require 30-50 µF for proper phase shift. A mismatched value will force the motor to draw excessive amperage, tripping protective circuits.
The control module’s low-voltage side (5V or 12V) must interface with the high-voltage loop via an isolating component–never splice low and high circuits directly. Test the starter solenoid: it should emit a distinct click at 8-10V, confirming engagement. If silent, inspect the coil winding for open circuits or ground shorts using an ohmmeter (resistance should read 50-120 ohms).
Route wires away from sharp edges or moving parts–vibration from the fan assembly can chafe insulation over time. Label each lead before disconnecting anything; even minor miswires can reverse polarity, damaging sensitive electronics. When reassembling, torque electrical fasteners to 8-10 in-lbs–over-tightening cracks solder joints, while loose connections cause arcing.
Understanding Climate Control System Electrical Connections
Begin by locating the power distribution panel in your vehicle’s engine bay. Identify the climate control unit’s fuse–typically a 10A to 30A fuse labeled for HVAC or cooling systems. Verify its condition with a multimeter; a blown fuse indicates a short circuit elsewhere in the circuit. If intact, proceed to trace the red (power) and black (ground) leads from the fuse box to the climate control module’s input terminal.

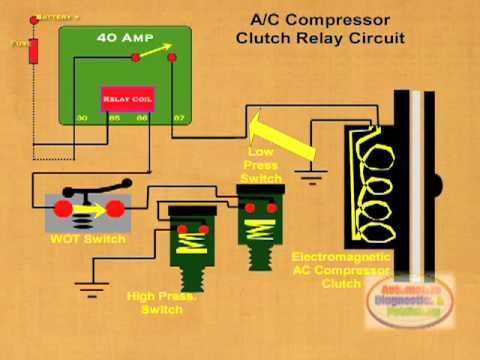

Examine the electromagnetic switch controlling the cooling unit. This switch, often a 4-pin or 5-pin SPDT type, activates when the thermostat signals the need for cooling. Use a wiring schematic specific to your vehicle’s make and model to confirm pin assignments:
- Pin 85: Power from ignition-switched circuit
- Pin 86: Ground via thermostat or pressure sensor
- Pin 30: Direct battery feed (thick gauge wire)
- Pin 87: Output to cooling unit’s clutch or motor
Faulty connections here will prevent current flow to the cooling mechanism.
Inspect the thermal protection device–a single-use fuse or bimetallic switch–installed near the cooling unit. This safety feature disconnects power if temperatures exceed 240°F (115°C) or pressures surpass 400 psi. Bypass tests should only be temporary; replace a tripped device immediately to avoid permanent damage to the fan coil or drive shaft assembly.
Key Voltage Checks
Measure voltage at three critical points with the climate control engaged:
- At the electromagnetic switch input (Pin 85): 12–14V
- Between the switch output (Pin 87) and cooling unit terminal: 11.5–13.5V
- Across the cooling unit’s clutch coil: 2–4 ohms resistance
Readings outside these ranges suggest corroded terminals, damaged insulation, or a failing drive pulley clutch.
For vehicles with dual-zone climate systems, note that each zone may have independent electromagnetic switches and fusible links. Label wires before disconnecting connectors–mixing inputs and outputs of adjacent zones can cause erratic operation or permanent circuit damage. Always consult OEM documentation for zone-specific pinouts; aftermarket schematics often omit critical details like diode orientation or transient voltage suppressors.
How to Pinpoint the Right Conductors in Your Cooling Unit Control System
Start with the control module–that small plastic or metal enclosure near the engine bay. Check for labels like “85,” “86,” “30,” “87,” and “87a” etched on its housing. These markings identify the primary pathways: 85 and 86 are the coil connections, while 30 is the common feed. 87 links to the power output, and 87a, if present, is a secondary path often tied to lower-current devices. Verify these by cross-referencing a schematic if available, or use a test lamp to confirm live voltage at 30 when the ignition is on.
Trace the thickest cable from the condenser fan assembly back to its origin. This heavy-gauge conductor typically carries the main current to the magnetic clutch and is almost always terminated at output pin 87. Its insulation may be black, red, or dark blue, but color alone isn’t reliable–irrigation harnesses often deviate from standard codes. Instead, note the wire’s diameter: it should be noticeably thicker than the others, often exceeding 4 AWG in most passenger vehicles.
Locate the thermal protector switch mounted on the refrigerant housing. Two slender conductors leave this switch–one heads toward the control module (usually trigger terminal 86), while the other runs to a pressure sensor or ambient temp probe. The path to the module will show continuity only under safe operating conditions. Probe both with a multimeter set to ohms; if resistance exceeds 5 ohms, suspect corrosion or a loose crimp.
Isolate the ground reference by finding a bolted connection to the chassis behind the headlamp bracket or beneath the fender liner. This spot often serves multiple high-drain components, so multiple cables may share the same ring terminal. Peel back insulation on the suspect line–it should be braided or tinned copper, not aluminum, and secured with a serrated washer. A clean, tight connection here prevents voltage drop that mimics clutch failure.
Examine the instrumentation cluster for hidden telematics connectors; these often split the coil return line (pin 85) into two paths. One travels directly to chassis ground, while the other loops through the vehicle’s ECU. The ECU-controlled segment will display pulsed voltage when the climate controls are activated, not steady 12V. Record voltage patterns with a scope–spikes or irregular waveforms signal interference requiring shielded replacement cables.
Shake-test each joint under moderate stress before securing. Grip the insulation near the terminal and apply gentle side-to-side motion. Loose terminals produce a faint rattle and inconsistent meter readings. Swap any suspect terminal with a gold-plated spade connector rated for 20A, ensuring heat-shrink tubing extends over the crimp zone to prevent oxidation.
When splicing diagnostic taps, avoid piercing tools–they create moisture channels. Instead, carefully cut the insulation, expose 10 mm of copper, and solder a tap wire sized no smaller than 18 AWG. Insulate the splice with adhesive-lined heat-shrink tubing and secure the tap route with split loom conduit routed away from moving parts. Test continuity after installation; any added resistance above 0.2 ohms demands reassembly.
How to Connect a Climate Control Switching Module to Your Vehicle’s Cooling Unit
Locate the main power source for the cooling system–typically a 12V battery connection on the positive terminal. Use a fuse holder rated between 10-20 amps, placing it within 7 inches of the battery to prevent short circuits. Strip ¼ inch of insulation from the wire ends before crimping ring terminals for secure attachment.
Identify the climate control switching module–usually a small black or gray box near the engine bay. Check the manufacturer’s manual for pin assignments, as misalignment can damage the module. Most setups use a four-pin layout: two for input (power and ground), one for the pressure switch, and one for the magnetic clutch actuator.
Preparing the Electrical Pathway
Trace the existing cables from the cooling unit’s clutch actuator back to the switching module. If replacing old components, label each wire with masking tape to avoid cross-connections. Use a multimeter set to continuity mode to verify broken circuits–resistance above 2 ohms indicates corrosion or frayed wires.
Connect the first wire from the battery’s fuse to the switching module’s power input pin. Secure the ground cable to a clean, unpainted metal surface on the chassis, ensuring no rust or paint interferes with conductivity. Test the circuit with a voltmeter–the reading should match the battery’s voltage (12.6V–14.4V).
Attach the pressure switch wire to its designated pin on the switching module. This component monitors refrigerant levels and interrupts power if pressure drops below 25 psi or exceeds 400 psi. Bypass it only for testing, never permanently–improper pressure can rupture the system.
Finalizing the Clutch Actuator Circuit
Run the last wire from the switching module to the cooling unit’s clutch actuator. Use solder and heat-shrink tubing for connections exposed to vibration or heat. The actuator requires a clean signal–avoid twisting wires or using electrical tape alone, as moisture can seep in.
Reassemble the engine bay components, ensuring no wires are pinched by moving parts or near hot surfaces like the exhaust manifold. Start the vehicle and engage the climate system–listen for a distinct click from the actuator within 1-2 seconds, confirming proper engagement. If the clutch fails to activate, recheck all connections with the multimeter.
Calibrate the system by cycling the climate controls on/off five times, verifying consistent actuator response. For vehicles with automatic climate management, ensure the cabin sensor reads within 1°F of the set temperature–discrepancies may signal faulty switching logic.
