Start with a 1.8V to 4.2V power rail–the A6’s core requires stable voltage for UART, SIM800L-like AT commands, and SMS/voice operations. A TP4056 charging IC paired with a 470μF/6.3V capacitor on the input prevents voltage drops during transmission bursts. Skip linear regulators if battery space is tight; instead, use an MP2307 buck converter set to 3.8V output to minimize heat dissipation.
Route the SIM card holder traces with 0.2mm clearance–standard 6-pin layouts (VCC, RST, CLK, GND, DAT, VPP) often cause contact failures. Add a 10kΩ pull-up resistor on DAT/CLK lines to avoid floating signals. For antenna matching, a π-network (27pF + 4.7nH + 15pF) tuned to 900/1800MHz bands reduces VSWR below 1.5.
Isolate the UART communication (TXD/RXD) with 330Ω series resistors–MCUs like STM32 or ESP32 can flood the A6’s buffer during boot. Connect a 1μF decoupling capacitor between VCC and GND, positioned within 2mm of the IC’s power pin. For debugging, solder a LED + 1kΩ resistor to the “NETLIGHT” pin to monitor network registration (0.6s blink = registered).
Avoid ground loops by star-routing all GND points to a single 2.54mm via directly under the A6. If using a lithium cell, add a 500mA PTC fuse in series to prevent thermal runaway. For PCB layout, prioritize:
- Top-layer copper pour for GND (minimum 20mm²).
- 45° trace bends on RF lines to reduce impedance mismatches.
- 1.6mm drill vias for thermal relief on power pads.
Test steps:
- Power up with 3.7V LiPo–measure current (30-50mA idle).
- Send
ATvia UART–responseOKconfirms hardware readiness. - Check
AT+CSQ–rssi >15 indicates usable signal strength.
A6 Wireless Communication Board Circuit Layout Guide
Connect the A6 chip’s VBAT pin directly to a 3.7V LiPo battery with a minimum 1000mAh capacity–omit intermediate regulators if the battery’s voltage remains stable. Routes between the power input and the chip should use 22 AWG or thicker traces to handle transient current surges up to 2A during transmission bursts. Add a 100µF tantalum capacitor at C1 and a 0.1µF ceramic bypass capacitor at C2 within 3mm of the chip’s power pins to suppress voltage fluctuations.
Solder SIM card holder pins 2 (VSIM), 3 (SIM_DATA), 4 (SIM_CLK), and 5 (SIM_RST) to the corresponding A6 contact pads using 30 AWG wire; confirm 1.8V logic compatibility or insert a level shifter if interfacing with 3.3V MCUs. Antenna impedance must match 50Ω–achieve this by etching a 1.5mm wide microstrip trace on FR-4 substrate with 1oz copper, extending no longer than 30mm before transitioning to an SMA connector. Calibrate RF performance with a spectrum analyzer set to 900MHz and -80dBm sensitivity to detect harmonic distortions.
UART communication between the A6 and host controller requires TXD and RXD cross-connections; disable echo with AT+IPR=0 to prevent serial loopbacks. Include a 1kΩ pull-up resistor on the PWRKEY pin, tying it high–momentary grounding powers the board on/off without external switches. Debug AT commands via a 3.3V USB-to-serial adapter at 115200 baud; test network registration latency using AT+CREG? while ensuring RSSI values remain above -90dBm for stable data sessions.

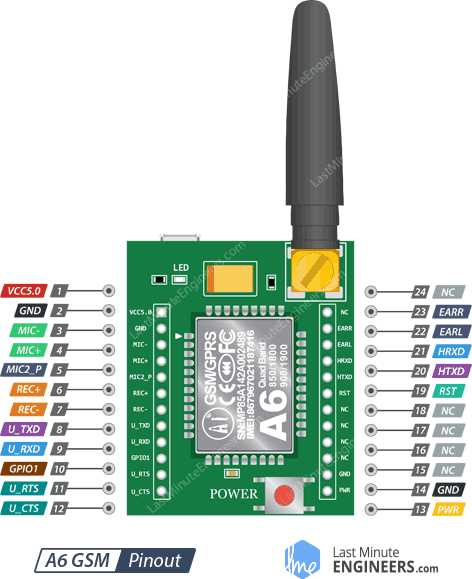

Key Components and Pin Configuration of the A6 Wireless Unit
Begin integration by soldering the power input pins first: VCC requires a stable 3.8–4.2V DC supply with at least 2A current capacity. Use a low-dropout regulator to prevent brownouts during high-current transmissions. Place decoupling capacitors–10µF and 0.1µF–directly adjacent to the VCC pin to filter noise and ensure signal integrity.
The antenna connector, labeled UART_ANT or MAIN_ANT, demands a 50-ohm impedance match. Route traces in a straight path, 15–20 mm long, avoiding sharp bends over 45 degrees. Ground plane voids under the trace path prevent parasitic capacitance from distorting RF output. Shield sensitive sections with copper pour tied to ground.
Primary communication occurs via the UART interface: TXD and RXD support 3.3V logic levels. Level-shift signals with a resistor-divider or FET buffer if interfacing with 5V controllers. Keep trace lengths under 10 cm, and add 33-ohm series resistors to suppress ringing on fast edges. Hardware flow control pins–RTSP and CTS–should remain unused unless working with firmware >V1.0.4.
Essential Control and Status Leads
The PWRKEY pin initiates activation when pulled low for 500–1000 ms. A MOSFET driver simplifies microcontroller toggling and prevents latch-up. RESET pin behaves identically but triggers a cold restart; avoid floating this lead during operation. NETLIGHT blinks at 80 ms intervals when registered on a network, ideal for visual feedback without querying STATUS pin.
STATUS pin outputs a steady 2.8V when connected to a base station, toggling to 0V during sleep modes. Sample this pin via a voltage divider (47k/10k) to prevent 3.3V logic damage. Audio paths–MIC_P, MIC_N, SPK_P, SPK_N–require balanced differential signals; terminate unused lines with 22-nF capacitors to ground to block DC offset. Ground microphone shields to the analog return path.
Reserve GPIO_2 for firmware updates; pull LOW during boot to enter firmware upload mode. GPIO_13 and GPIO_14 serve as general-purpose I/O at 1.8V levels. Protect these pins with 470-ohm series resistors and clamp diodes to avoid ESD damage. VUSB pin powers USB peripherals at 5V–ensure external 5V supply with 500 mA capability avoids back-feeding the main regulator.
Thermal considerations demand a grounded copper area under the unit’s pad. Maintain operating ambient below 75°C, derate transmit power linearly above 60°C. Keep firmware current at least version A6_JAU_V1.1, as earlier releases harbor sleep mode bugs causing 20% higher standby current.
Step-by-Step Circuit Assembly for A6 Wireless Communication Board Integration
Begin by soldering the voltage regulator to the PCB, ensuring stable input of 4.2V from a lithium battery. Connect the enable pin to a microcontroller output for power management–use a 10kΩ pull-down resistor to prevent floating states. Verify output with a multimeter before proceeding; fluctuations above 3.8V may damage the board’s internal circuitry.
Attach the SIM card holder next, aligning pin 1 (VCC) to the board’s 3.3V rail. Route the remaining pins–RST, DAT, CLK, and GND–to corresponding microcontroller ports, leaving the ninth pin (unused) unconnected. Apply minimal solder to avoid bridging; test continuity after each step to confirm isolation.
Route the antenna via a U.FL connector or soldered 50Ω coaxial cable. Position the trace away from high-frequency components to minimize interference–keep it at least 15mm from the voltage regulator. For improved signal strength, add a pi-network matching circuit (two 0.5pF capacitors and a 1.8nH inductor) between the board’s RF pad and the antenna.
Connect the UART interface using 3.3V logic levels–TX to RX and RX to TX–pairing with the microcontroller. Insert a 1kΩ resistor in series with each line to protect against backflow current if the host device operates at 5V. Ground the flow control pins (CTS/RTS) if unused to prevent erratic behavior.
Add decoupling capacitors: a 10μF electrolytic near the power input and a 0.1μF ceramic adjacent to each IC power pin. Place them within 2mm of the component leads to filter noise. For the crystal oscillator, use a 27MHz source with 8pF load capacitors–avoid substituting values, as stability depends on precise resonance.
Implement a power-on reset circuit with a 1μF capacitor to VCC and a 10kΩ resistor to ground. This ensures a clean startup sequence; omit it at risk of undefined states during initialization. For battery-powered applications, add a MOSFET switch to cut power to the board when idle–this extends operational life by reducing standby current to under 1mA.
Finalize the build with a copper ground plane beneath the entire assembly, stitching it to the PCB’s ground pour with vias every 10mm. This reduces EMI and improves signal integrity–especially critical for GPS functions. Test the setup by sending an AT command (e.g., “AT”) via UART; response time should be under 200ms with no corrupted characters.
Power Supply Requirements and Stabilization Techniques for Cellular Interface Components
Use a low-dropout regulator (LDO) with an input voltage range of 3.4–4.2 V for the core circuitry to maintain a stable 3.3 V output. Ensure the LDO supports a minimum of 500 mA continuous current to prevent brownouts during peak transmit operations. Pair the LDO with a tantalum capacitor (47 µF, 6.3 V) at the output and a ceramic capacitor (10 µF, X7R grade) at the input to filter high-frequency noise. Place both capacitors within 2 cm of the regulator pins to minimize inductance.
Avoid switching regulators for sensitive analog sections; their inherent ripple can degrade signal integrity. If space constraints demand a switching solution, select a buck converter with a switching frequency above 2 MHz (e.g., Texas Instruments TPS62743), configured for 3.3 V output at 600 mA. Use a shielded inductor (2.2 µH, 1.1 A saturation) and two 22 µF ceramic capacitors (X5R) on the input and output to suppress EMI. Enable the converter’s soft-start feature to limit inrush current to 300 mA/ms.
For battery-powered designs, implement a dual-stage power path. Route the primary path through a 2.1 A Schottky diode (e.g., Vishay SS14) to prevent reverse current during charger connection. Insert a P-channel MOSFET (e.g., NXP PMV48XP) in the secondary path to bypass the diode drop, improving efficiency by 0.3 V. The MOSFET’s gate should be driven by a comparator monitoring battery voltage; turn it on only when Vbat exceeds 3.6 V to avoid deep discharge.
Transient response is critical during RF bursts. Add a 0.1 Ω sense resistor in series with the LDO output, feeding a differential amplifier (gain = 20) to detect current spikes. Configure the amplifier’s output to trigger a 20 ms monostable timer that disables a shunt transistor (e.g., BJT 2N3906) if the spike exceeds 400 mA. This prevents the supply rail from collapsing while allowing brief, controlled droop within the ±5 % tolerance of the 3.3 V rail.
Recommended Decoupling Network Values
| Component | Value | Placement | Purpose |
|---|---|---|---|
| Ceramic (X7R) | 100 nF | Each VDD pin | High-frequency noise filtering |
| Tantalum | 22 µF | LDO input & output | Low-frequency bulk storage |
| Ferrite bead | 600 Ω @ 100 MHz | Between regulator and load | Isolate digital noise from analog |
| Ceramic (X5R) | 4.7 µF | PA supply pin | Absorb TX current pulses |
Thermal management dictates PCB layout. Allocate a 3 cm² copper pour for the LDO’s thermal pad, stitching it to the inner ground plane with 12 vias (0.3 mm diameter, 1 oz copper). Use 2 mm-wide traces for all power rails, keeping them at least 1.5 mm away from signal traces to minimize crosstalk. Route the 3.3 V rail on the top layer only; distribute it via multiple star points rather than a single daisy chain to reduce IR drop.
