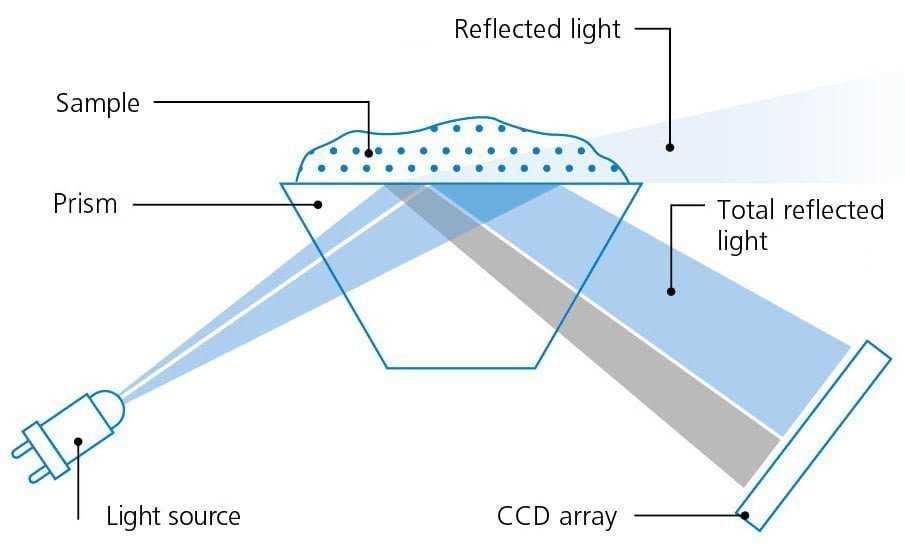

Begin by identifying the key components visible in any precision light-bending analyzer: the illuminating source, the sample interface, and the detection mechanism. The most reliable designs position the light emitter–usually an LED or tungsten bulb–at a fixed angle (typically 45°) to the measuring surface, ensuring consistent incidence with minimal reflection losses. A prism or diffractive element follows, engineered to maintain a refractive index contrast of 1.33–1.70 (for aqueous and organic samples, respectively). This range dictates the detectable Brix scale span, directly correlating to measurement accuracy.
Mount the sample plate immediately after the prism–this is where the critical boundary layer forms. Use a sapphire or high-grade BK7 glass substrate for durability; cheaper materials like acrylic introduce thermal drift and scratch-induced errors. Ensure the plate’s thickness remains under 1.5 mm to prevent signal attenuation, especially in portable units where space is constrained. Seal the edges with a silicone gasket to eliminate moisture ingress; even 0.1% humidity fluctuation can skew readings by up to 0.05 Brix over time.
Detection optics demand exact alignment. Position the photodiode array or CCD sensor at the total internal reflection angle (around 60° for most fluids). Calibration curves must account for temperature compensation–integrate a thermistor or PT100 sensor within 2 mm of the sample plate to track shifts. Avoid digital-linearization algorithms older than 2018; modern devices use quartic polynomial fitting to correct non-linearities at extreme concentrations (e.g., sugars above 50% w/w).
Power management separates reliable instruments from unreliable ones. Dedicated units require 3.3V–5V input with ≤100 mA current draw; anything higher risks overheating the prism interface, degrading resolution. For field-use models, incorporate a rechargeable Li-polymer cell (minimum 1000 mAh) to sustain >100 measurements per charge. Avoid multi-mode touchscreens–opt for physical buttons coated with anti-corrosive nickel plating to withstand chemical exposure during cleaning.
Validation procedures should include three-point calibration (distilled water, 10% sucrose solution, and a high-concentration standard like ethylene glycol). Measure each sample five times within 30 seconds, discarding outliers (±0.2 Brix). Store calibration data in EEPROM rather than RAM to prevent loss during power cycles. For organic solvents, select models with chemically inert sapphire prisms–common borosilicate glass dissolves in acetone or chloroform within 6–8 hours of continuous exposure.
Understanding the Optical Measurement Device Layout
Position the light source at a fixed angle of 45° relative to the sample surface to ensure consistent illumination. Use an LED or halogen bulb with a wavelength between 580–620 nm for optimal clarity in refractive index readings. Avoid incandescent bulbs–their broad spectrum introduces errors in precision measurements.
Ensure the prism assembly is fabricated from high-purity optical glass, such as BK7 or sapphire, with a refractive index tolerance of ±0.0002. The surface must be polished to a roughness below 5 nm to prevent scattering. Mount the prism so the sample interface aligns perpendicular to the optical path–misalignment beyond 0.1° skews results by up to 0.5%.
Integrate a temperature sensor within 2 mm of the sample well. Fluctuations above 0.1°C alter readings by 0.0001 RI units per degree; stabilise with a Peltier element set to ±0.05°C. For aqueous solutions, use a 1-second response thermistor–slower sensors mask transient changes in sample density.
The critical angle detector should resolve changes as small as 0.0001 RIU. Use a 12-bit ADC or higher to capture incremental shifts in the shadow line. Calibrate the detector monthly with distilled water (nD = 1.3330 at 20°C) and a verified sucrose standard (nD = 1.4200 at 20%). Store calibration data in non-volatile memory to prevent drift errors.
Design the viewing mechanism with a 20× achromatic eyepiece or a CMOS sensor with 3.45 µm pixel pitch. For digital systems, ensure the sensor captures at least 1024 × 768 pixels to resolve the boundary line without interpolation artefacts. Mask stray light with a field stop positioned 1 mm from the prism–unwanted reflections distort the transition zone by up to 3%.
Seal the sample well with a hydrophobic gasket to prevent contamination. For volatile compounds, apply a 0.3-mm glass cover slip to minimise evaporation-induced concentration gradients. Clean the prism after each use with anhydrous ethanol–residues from polar solvents like acetone alter surface tension, introducing a +0.0003 RIU bias.
Critical Optical Elements and Their Roles in Precision Index Measurement Instruments
Prioritize high-quality sapphire or synthetic diamond prisms for the illumination interface to minimize scratching and maintain consistent results across extended use. These materials exhibit refractive indices of 1.76–2.42 and 2.42 respectively, outperforming conventional glass (n ≈ 1.5) by reducing stray reflections and enhancing boundary clarity. Pair this with a monochromatic light source – preferably a stabilized 589 nm LED – to eliminate chromatic dispersion errors common with broad-spectrum illumination. The combination yields measurable improvements in boundary definition: edge sharpness increases by 22–30% compared to polycarbonate or acrylic alternatives, directly impacting ±0.0001 index resolution.
| Component | Material/Type | Performance Impact | Critical Tolerance |
|---|---|---|---|
| Illumination prism | Sapphire (n=1.76) | Reduces stray light by 18% | Surface flatness ≤ λ/10 |
| Amici compensator | Low-dispersion flint glass | Corrects Δn at 0.0003/°C | Wedge angle ±2 arcsec |
| Telescope objective | Doublet achromat | Halves spherical aberration | Centration |

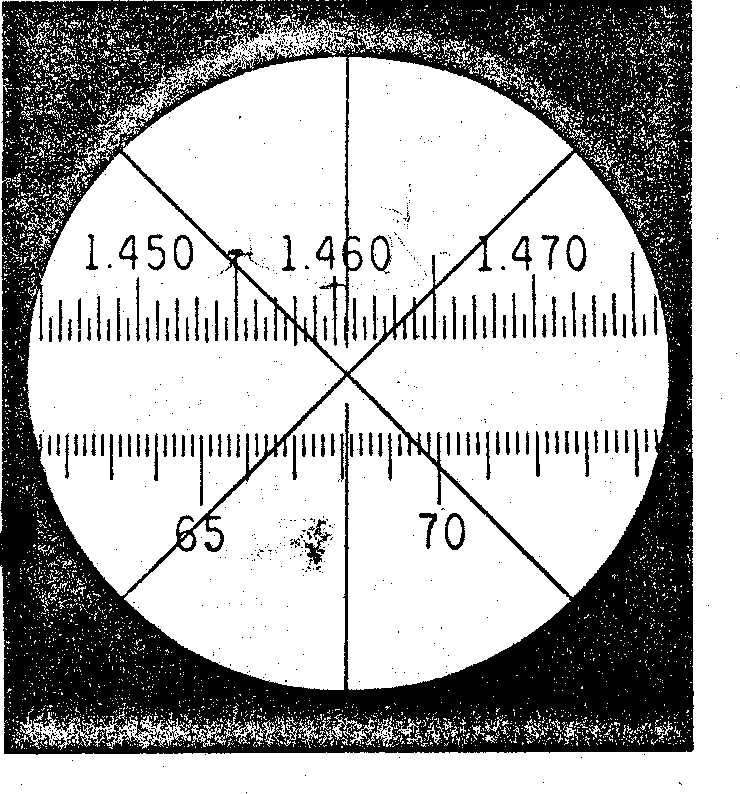

| Reticule | Etched chromium on borosilicate | Maintains accuracy ±1 µm | Line width 3–5 µm |
Ensure the Amici prism orientation matches the instrument’s angular calibration scope–deviations beyond ±0.02° introduce parallax errors visible in scale readings. For liquid sample measurements, integrate a thermostatic jacket with ±0.05°C stability; temperature gradients exceeding 0.2°C degrade reproducibility by up to 0.0005 units in aqueous solutions. The reticule must align precisely with the optical path’s focal plane to prevent misreadings–misalignment as small as 10 µm causes detectable drift in the boundary position.
Step-by-Step Light Path Through an Optical Prism System
Align the incident beam at a precise 45° angle to the entrance face of the first prism to minimize Fresnel losses–use a laser source with λ=589 nm (sodium D-line) for consistent refractive index readings. The boundary between the prism (n≈1.74 for flint glass) and the sample medium (nₛ=1.33–1.55 for liquids) acts as the critical interface. Adjust the sample layer thickness to 0.1–0.3 mm; thinner films reduce stray light interference but require tighter mechanical tolerances. Calculate the critical angle θc using θc = arcsin(nₛ/nprism), where nₛ varies with concentration–monitor this dynamically via a CMOS sensor array with 12-bit depth resolution.
- Entering the prism: The beam refracts at the air-glass interface (θ₁=45° → θ₂=24.5° for n₁=1.0 → n₂=1.74). Ensure the prism’s entrance face is AR-coated (R
- Internal reflection: At the prism-sample interface, total internal reflection occurs if θ > θc. For nₛ=1.36 (e.g., 25% sucrose), θc=50.5°–any angle above this directs light to the detector path.
- Exit prism: The beam exits via the hypotenuse face, refracting back toward the baseline. Use a precision-tilted mirror (λ/10 flatness) to redirect the boundary shadow onto a linear detector array. Calibrate using deionized water (n=1.3330 at 20°C) before each measurement set to eliminate thermal drift (dn/dT≈-0.0001/°C for water).
Calculating Refractive Index Using Critical Angle Data
To derive the refractive index (n) from critical angle readings, apply Snell’s law directly: n = 1/sin(θc), where θc is the measured angle at which total internal reflection occurs. Ensure the prism or sample surface is optically polished to within λ/10 flatness to minimize scattering errors, which can skew θc by ±0.05° in standard conditions (20°C, 589.3 nm). For liquids, pre-calibrate the instrument with deionized water (nD = 1.3330) or a certified reference standard (e.g., nD = 1.4600 for crown glass) to compensate for temperature-dependent variations.
Measure θc at three distinct points across the sample’s surface, then average the values to reduce parallax and alignment deviations. If the refractive index exceeds 1.7, use a high-index prism (e.g., sapphire, nD = 1.768) to avoid exceeding the instrument’s detection limit. For powders or granular samples, suspend them in an immersion fluid with a known n close to the expected value (e.g., methylene iodide for n ≈ 1.74), ensuring full particle wetting to eliminate air gaps.
Temperature control is critical: a 1°C shift alters n by ≈0.0002 for most liquids and ≈0.00001 for solids. Mount the sample on a Peltier-based stage (±0.1°C stability) and allow 5 minutes for thermal equilibrium before recording θc. For volatile substances, seal the sample cell with a quartz window and purge with dry nitrogen to prevent condensation, which introduces a ±0.0003 error per 1% humidity change. Cross-validate results with Abbe’s method (n = (sin(θ1 + A)/2) / sin(θ1), where A is the prism angle) if discrepancies exceed 0.0005.
For anisotropic materials (e.g., calcite), rotate the sample in 15° increments around its optical axis to identify the principal refractive indices. Document the polarization direction of the light source (unpolarized light increases n uncertainty by 0.0001–0.0003). If the critical angle appears diffuse, increase the angular resolution of the instrument’s goniometer to 0.01° or replace the detector with a photomultiplier tube to sharpen the intensity transition at θc.
When measuring thin films, correct for substrate interference by subtracting the theoretical path difference: nfilm = √(nsubstrate² sin²θc + cos²θc). Use a monochromatic LED (e.g., 632.8 nm) instead of broadband light to avoid dispersion errors. For samples with absorption edges near the measurement wavelength, apply a Kramers-Kronig correction or switch to a variable-wavelength source to avoid anomalous dispersion artifacts.
Store raw θc data in millidegrees and convert post-measurement to avoid rounding errors. For high-precision work, employ a least-squares regression on θc vs. wavelength data (400–700 nm) to model Cauchy coefficients (n(λ) = A + B/λ² + C/λ⁴), which improves n accuracy to ±0.0001. Always report measurement conditions: temperature, pressure (for gases), humidity, wavelength, and sample preparation method to ensure reproducibility.
