Start by examining functional block illustrations before attempting hands-on assembly. These visual layouts break down complex systems into digestible subcomponents, assigning clear inputs, outputs, and connections between stages. For example, a power supply section will typically show input AC lines transforming into regulated DC outputs–distinct blocks mark rectification, filtering, and voltage regulation steps. Identify these blocks first; label them with their purpose (rectifier, smoothing capacitor, voltage regulator) and note how they interconnect. This approach prevents errors when transitioning to physical wiring.
Look for standardized symbols used across technical fields–resistors (zigzag lines), capacitors (parallel lines), transistors (three-connected lines), and integrated circuits (rectangles with designated pins). Each symbol carries precise implications: a resistor limits current flow, a capacitor stores charge temporarily, and a transistor amplifies or switches signals. Misinterpreting these symbols leads to incorrect assembly; cross-reference them against datasheets for each component. Always verify pin assignments–confusing a transistor’s collector with its emitter won’t just fail the circuit but can destroy components.
Pay attention to ground references, represented by downward-pointing triangles or the letters “GND.” These aren’t just symbolic–they define the circuit’s zero-voltage baseline, essential for diagnosing voltage drops, measuring signal integrity, or identifying floating nodes. Analog circuits (amplifiers, sensors) rely on stable grounds; digital circuits (microcontrollers, logic gates) demand separate grounding to avoid noise coupling. If the illustration shows multiple ground symbols, confirm whether they denote isolated grounds (safety, analog, digital) or a shared reference.
Trace the signal path methodically, following arrows or directions indicated by lines. Highlight loops where feedback occurs–these dramatically impact circuit behavior. For instance, in an operational amplifier configuration, a line connecting output to input creates feedback controlling gain, frequency response, or stability. Missing or misrouting this feedback transforms functionality: an intended amplifier might oscillate, or a voltage regulator may fail to regulate.
Annotate each node with measured voltages, expected waveforms, or component values if provided. This habit clarifies intent–designers often omit these details expecting familiarity. For resistors, note both resistance (e.g., “1kΩ”) and power rating (e.g., “¼W”)–exceeding wattage burns traces. For capacitors, capture capacitance (e.g., “10µF”) and voltage rating (e.g., “16V”)–under-rated capacitors leak or fail. Transistors require identifying model numbers (e.g., “2N3904”) and verifying maximum current and voltage limits.
Validate connectivity before soldering by comparing the illustration against the physical board. Use a multimeter continuity test to ensure no unintended shorts or open circuits exist. Look for hidden assumptions–some illustrations omit decoupling capacitors (placed near IC power pins to filter noise) or pull-up resistors (used with open-drain outputs). These omissions aren’t errors but deliberate efficiencies requiring contextual knowledge. Add them explicitly on the physical board if missing.
If the illustration includes test points (marked circles often labeled “TP”), measure voltages or waveforms at these nodes. Expect specific values–an oscillator might show a square wave swinging between 0V and 3.3V; a voltage regulator should output a steady 5V. Deviations indicate component failure, incorrect assembly, or layout issues. Always probe these points before concluding a circuit works as intended.

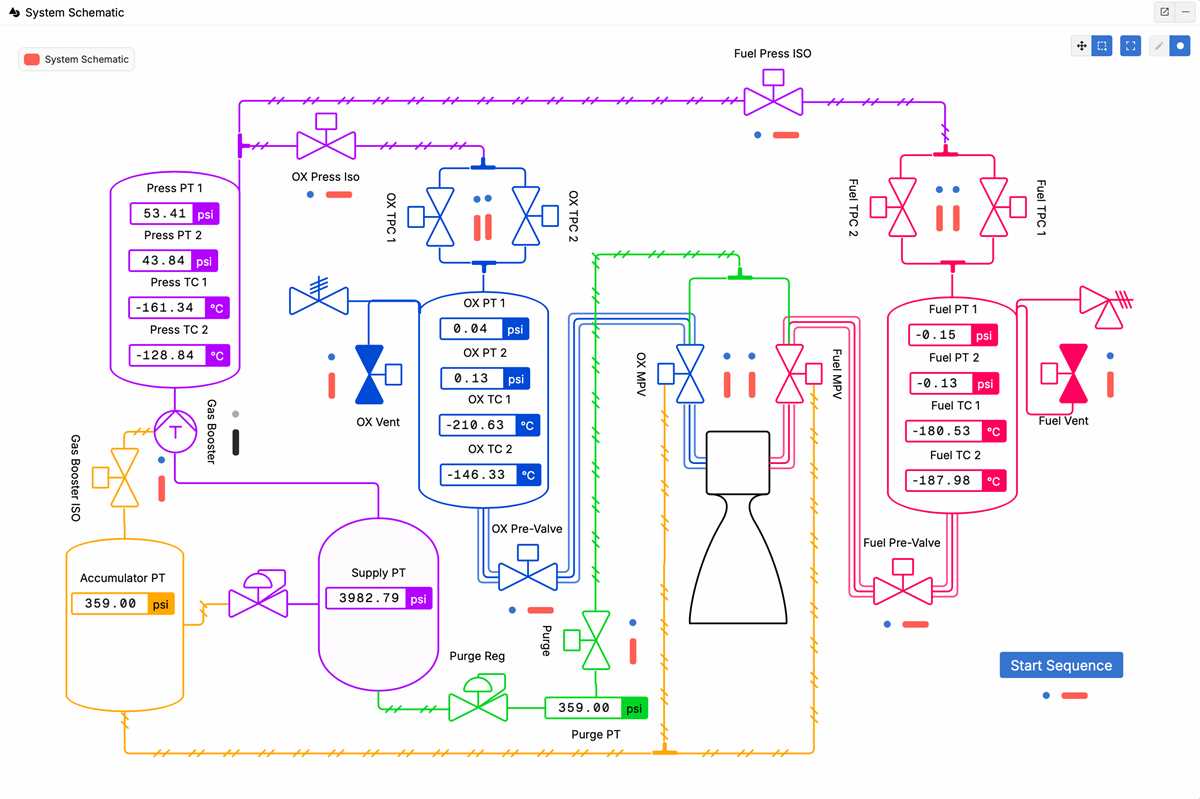

Understanding Technical Blueprints: Key Insights
Begin by labeling every symbol on your visual layout with its exact function–resistors as “R,” capacitors as “C,” and connections with arrows indicating current flow. Use IEEE 315-1975 standard for electrical symbols to avoid misinterpretation across teams. For mechanical layouts, apply ASME Y14.100-2013 protocols, ensuring thread types and tolerances are visibly annotated. This eliminates guesswork in manufacturing or troubleshooting.
Break complex assemblies into modular sections, each occupying no more than 15×20 cm on the page. For example:
- Power supply circuits should be isolated from signal processing blocks.
- Heat sinks and cooling paths require dedicated sub-visuals with thermal resistance values (e.g., “θJA = 12°C/W”).
- Label I/O pins with full descriptions (not just “Pin 1”)–e.g., “3.3V LDO Out” or “UART TX @ 115200 baud.”
Common Pitfalls in Visual Representations
Omitting ground references ranks as the most frequent error–always include a star ground symbol for analog circuits and a chassis ground for EMI-sensitive designs. For PCB layouts, mark trace widths based on current load: 0.2 mm for ≤1A, 1.0 mm for 3-5A, and allocate 25% extra width for high-frequency signals. Use red for power, blue for grounds, and yellow for control lines to improve readability. Cross-reference with a bill of materials (BOM), linking each symbol to its datasheet or vendor part number (e.g., “C5 – 10μF X7R – Murata GRM32ER71C106KA12L”).

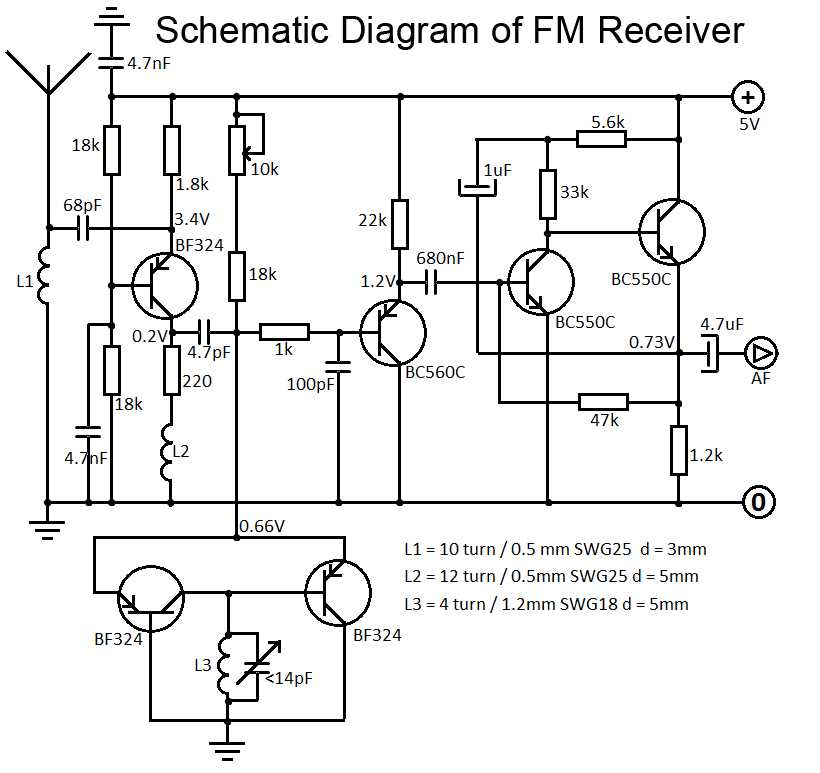

How to Identify Components in an Electrical Blueprint
Begin by locating symbols with distinct geometric shapes–resistors appear as zigzag lines or rectangles with labels like R1, while capacitors are marked by two parallel lines, often accompanied by C identifiers. Inductors feature curved or coiled symbols, typically tagged L. Check for polarity indicators on electrolytic capacitors and diodes, where a band or angled line denotes the cathode. Transistors (BJTs or FETs) are identifiable by three terminals (emitter/base/collector or source/gate/drain) with arrow directions hinting at the type (NPN/PNP or N-channel/P-channel).
Refer to standardized libraries like IEEE 315 or IEC 60617 for symbol variations–U.S. schematics often use different conventions than European ones. For instance, a U.S. resistor may be a simple rectangle, while its IEC counterpart includes a zigzag. Integrated circuits (ICs) are box-shaped with pins numbered clockwise from the top-left (pin 1). Look for dashed outlines grouping related elements, such as logic gates, where AND/OR/NOT gates have unique curved or straight-edged shapes.
Key Annotations and Labels
Prioritize reference designators–components labeled R (resistor), C (capacitor), U (IC), Q (transistor), or D (diode) followed by numbers (R2, C5) indicate their role in the circuit. Values like 10kΩ, 22pF, or 47µF denote resistance, capacitance, or inductance. Voltage ratings (16V, 50V) appear on capacitors and diodes, while tolerance (±5%, ±1%) is often noted for precision parts. Test points are labeled TP, and connectors use J or P prefixes.
Trace power rails first–positive voltage (VCC, VDD) and ground (GND, VSS) symbols appear frequently. Batteries are stacked horizontal lines, and voltage regulators have triangular shapes with input/output labels. Switches are toggles or pushbuttons, often marked SW or S. For microcontrollers, locate the crystal oscillator symbol (two parallel lines with a sine wave) next to pins like XTAL1 and XTAL2. LED indicators use a diode symbol with two small arrows pointing outward.
Cross-check symbols against a datasheet when in doubt–manufacturers sometimes use proprietary markings. For example, a MOSFET’s body diode is shown as a diode inside the transistor symbol. Pull-up/pull-down resistors are attached to logic lines, while decoupling capacitors (usually 0.1µF) sit near IC power pins. Unusual symbols, like transformers (coiled pairs), optocouplers (light-emitting and receiving components), or relays (a switch with an electromagnet), follow industry-specific templates. Always verify symbol orientation, as misalignment can reverse polarity or signal flow.
Key Symbols Used in Common Electrical Blueprints

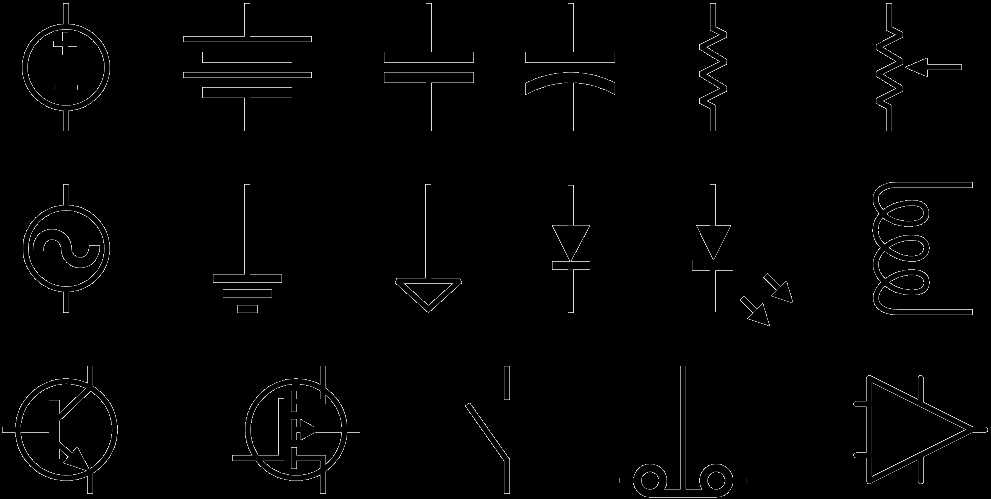

Start by memorizing resistors, capacitors, and inductors–these form the foundation of most circuit layouts. Resistors are drawn as zigzag lines or rectangular blocks with “R” notation, while capacitors appear as two parallel lines (for polarized types, one line curves). Inductors use coiled loops or a series of semicircles. Always verify component values directly adjacent to symbols; a “10k” resistor is not interchangeable with a “1k” in fault-sensitive designs.
Core Active Component Markers
| Symbol | Component | Critical Notes |
|---|---|---|
| ▷ | NPN Transistor | Arrow direction indicates current flow; reversed arrow denotes PNP. |
| ⏚ | Ground | Chassis ground (△) differs from signal ground; mixing them risks shorts. |
| ○→ | Diode | Band marks cathode; reverse bias > breakdown voltage destroys the device. |
| ⊕ | Op-Amp | Inverting (-) and non-inverting (+) inputs must match polarity specs. |
Pay strict attention to power symbols–misreading +5V for +12V often damages microcontrollers. Battery symbols show a series of alternating long/short lines; label voltage explicitly. Switches use a break in the line (SPST) or intersecting lines (SPDT); test continuity with a multimeter before relying on them in high-current paths. Connectors appear as circles or dots; always confirm pin numbering–manufacturers frequently flip pinouts between revisions.
For ICs, locate the notch or dot marking pin 1–rotate 90 degrees clockwise for correct alignment. Crystal oscillators are depicted as rectangles with two leads; ensure load capacitance values match the datasheet to avoid unstable clock signals. Fuse symbols resemble resistors with a vertical break; select amp ratings 20% above expected peak current. When interpreting analog meters (depicted as circles with arrows), remember the arrow indicates positive polarity–reversing leads distorts readings.
