Start by locating the fuse box under the dashboard on the driver’s side–it houses relays labeled “LT HDLP” and “RT HDLP.” These control the high-beam circuits for the left and right assemblies. Trace the red wire (14-gauge) from terminal 30 on the relay to the battery’s positive terminal via a 20A fuse in the under-hood block. This is the power source during active operation.
For low-beam operation, identify the dark green wire (16-gauge) exiting the multifunction switch. It routes through the bulkhead connector (C2, pin 23) before splitting at the front harness junction. The left-side circuit continues along the driver’s fender, terminating at the bulb socket (pin 2). The right-side mirror version follows the passenger-side route, connecting at the socket’s counterpart terminal.
Ground connections are critical. The black wires (18-gauge) from each socket tie into chassis grounds at G101 (left) and G102 (right), secured with 10mm bolts. Verify these joints are free of corrosion–resistance above 0.5 ohms will cause flickering or failure. For daytime running lamps, the light gray wires (16-gauge) bypass the multifunction switch, pulling 12V from the body control module via a dedicated relay.
If retrofitting HID or LED components, retain the factory ballast connections–the white wires (14-gauge) handle high-voltage triggers. Swapping bulbs without modifying this segment risks damaging the lamp control module, particularly the CAN bus interfaces at pins 12 and 13 of the module’s 16-pin connector.
Diagnose dimming issues by probing the orange wire (12-gauge) at the fuse block–voltage should remain steady at 13.5–14.8V. Drop below 12.5V indicates alternator or wiring faults; inspect the alternator’s B+ terminal and the inline fuse link near the radiator support.
Electrical Layout for GXP Sedan Front Illumination System

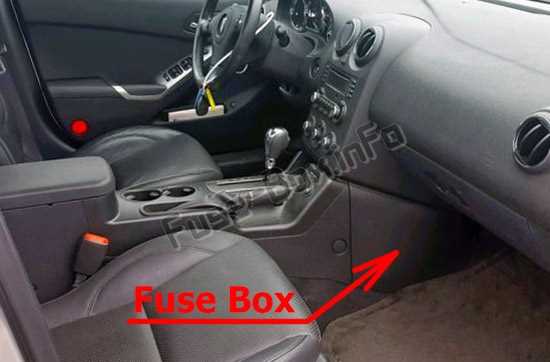

Begin troubleshooting by locating the fuse box under the dashboard on the driver’s side–look for fuse #24 rated at 10A, which supplies power to the entire low-beam circuit. Use a multimeter set to 12V DC to verify voltage at the fuse terminals while the ignition is in the “ON” position. Absence of reading indicates a blown fuse or corroded relay contacts in the under-hood module labeled “C1.”
Connector Pinout and Wire Color Codes
Disconnect the vehicle battery before handling the headlamp assembly harness to prevent short circuits. The 8-way connector on the back of each unit follows this layout: pin 1 (white) carries high-beam feed, pin 2 (light blue) controls the auto-leveling sensor signal, pin 3 (yellow) delivers ground, and pin 4 (dark green) supplies parking lamp voltage. Probe each pin with the multimeter to confirm continuity–partial failures often stem from broken strands in the light blue or dark green wires.
Replace the entire pigtail if insulation damage is visible near the stress points where the harness exits the assembly. Use NATO-grade adhesive-lined heat shrink tubing to repair chafed segments, ensuring a watertight seal after soldering. For the GXP trim, note the additional purple wire (pin 7) that integrates with the adaptive forward lighting module–verify its 5V reference signal before condemning the motor actuator.
Test the Daytime Running Lamp (DRL) circuit by bridging the brown wire at the body control module (BCM) to the yellow ground–if the lamps illuminate, the BCM output transistor requires replacement. For vehicles equipped with HID projectors, check the ballast’s violet and gray wires for 42V AC using an oscilloscope; distorted waveforms point to a failing igniter coil.
Common Failure Points and Solutions
Inspect the turn signal switch for melted terminals–overloading from LED retrofits often causes the tan/black wire to burn internally. The left inboard bulb socket’s pink wire (low-beam ground) is prone to oxidation; clean contacts with a fiberglass brush and apply dielectric grease. If both lamps flicker simultaneously, suspect a faulty alternator or bad ground at G101 near the driver’s side strut tower.
For intermittent outages, focus on the bulkhead connector behind the driver’s side kick panel–corrosion in the orange and dark blue pins disrupts the CAN bus signals controlling the adaptive system. Clear fault codes B2571 and C0710 with a Tech 2 scanner, then recheck voltage stability at the BCM’s K40 connector. Always reinstall the wheel well liner clips tightly to prevent harness pinching against the tie rod during suspension travel.
How to Find the Front Lamp Cabling Bundle in a G6 Sedan
Start beneath the hood. Disconnect the negative battery terminal to prevent shorts–use a 10mm socket. Locate the plastic under-hood fuse box; it sits near the driver-side strut tower. Remove its cover to expose bundled cables.
Trace the primary harness forward along the firewall. The front lamp assembly cables split from this main trunk roughly 15 cm past the fuse box. Look for a black protective sleeve housing three wires: high beam (white), low beam (orange), and turn signal (light blue). These colors match GM’s standard coding for 2008-2010 mid-size models.
Follow the sleeve toward the front bumper. It routes behind the radiator support, secured by two plastic clips. Press the center tabs to release each clip. The harness then branches; the right side leads to the passenger-side lamp, the left to the driver side. Avoid pulling–wiggle the clips free instead.
- Right-side bundle tees near the coolant overflow tank; look for a rubber grommet where it passes through the chassis.
- Left-side cable loops behind the washer fluid reservoir–unclip the reservoir brace to access it.
Inside the wheel well, remove the inner fender liner’s upper fasteners (two 7 mm bolts). The harness exits the engine bay here, entering the lamp housing through a sealed grommet. Push the grommet inward; the wires will slide out with minimal force. Check for corrosion–common at this entry point on models from this production cycle.
Reassembly requires re-seating the grommet fully. Test all functions before securing components: low beam, high beam, and turn signal should trigger without flicker. If resistance is felt during disconnect, inspect for pinched cables or bent pins inside the connector. Replace the connector if pins are damaged–GM part #21131376 fits both sides.
Pinpointing Circuit Paths for Illumination Beams on G6 Models
Locate the vehicle’s fuse box cover under the dashboard on the driver’s side to begin tracing the illumination system. The high-intensity bulb circuit typically routes through fuse #38 (15A) and relay #K6, while the dim setting connects to fuse #39 (10A) and relay #K5. Verify these positions with a multimeter set to 12V DC; probe the relay sockets to confirm power delivery before proceeding.
Inspect the harness connector behind the front lamp assembly–gray for the primary beam, black for the secondary. The primary circuit’s positive lead is orange with a black stripe (code ORG/BLK), supplying current directly from the relay. The ground for this path merges into a brown wire (BRN) terminating at chassis point G101 near the strut tower. For the secondary beam, trace a light blue wire with a red stripe (LT BLU/RED) back to its relay.
Check the bulb socket for corrosion or melted plastic, as these symptoms often indicate a failed connection. The secondary bulb’s socket uses a separate white wire (WHT) as its return path, grounding at G102 adjacent to the radiator support. If resistance exceeds 0.5 ohms, clean the contact surface with 400-grit sandpaper and apply dielectric grease to prevent oxidation.
Follow the ORG/BLK wire from the primary bulb to the front harness grommet near the wheel well. Strip a 5mm section of insulation to expose copper strands; clip a test light lead to the wire and ground the probe tip to the chassis. Illumination confirms active voltage–if absent, inspect the relay and fuse for continuity with a circuit tester.
The LT BLU/RED wire splits from the main harness mid-fender, branching toward the inner bumper support. At this junction, a splice connector (yellow with a gray stripe) links to the daytime running lamp module. Disconnect this connector temporarily to isolate the secondary beam circuit and prevent parasitic draw if the module is faulty.
For vehicles equipped with automatic illumination control, the dim setting receives additional signaling via a beige wire (TAN) routed from the body control module. This wire toggles between 0V (off) and 5V (on) through a pulse-width modulation signal. Use an oscilloscope to verify the waveform; a flat line indicates a failed module or broken wire.
If both circuits fail simultaneously, focus on shared components: the headlight switch, ignition relay, or battery junction module. The ignition relay (slot #K30) supplies power to the entire lighting system via a dark green wire with a yellow stripe (DK GRN/YEL). Bypass the relay by jumping socket terminals 30 and 87–if illumination restores, replace the relay immediately.
Document each wire’s path with masking tape labels (e.g., “Primary Beam + 12V ORG/BLK”) before reassembling. Store a digital photograph of the cleaned ground connections to reference during future troubleshooting. For vehicles with integrated LED strips, note that these circuits often piggyback on the secondary beam wire (LT BLU/RED) and require a separate 2-ohm resistor to stabilize current.
Diagnosing Electrical Faults in G6 Front Lamp Circuits
Check the fuse box under the dashboard or near the battery first–blown fuses (typically 10A for low beams, 15A for high beams) often mimic complex failures. Replace suspect fuses with identical amperage; avoid upgrading to higher values as this risks melting wiring harnesses. If the new fuse blows immediately, trace the circuit using a multimeter: set to continuity mode and probe the socket terminals (pin 87 for high beam relay, pin 85 for ground) while operating the stalk. Zero resistance indicates a short; infinite resistance points to an open circuit or corroded connector.
- Inspect the under-hood junction block–look for greenish corrosion on terminals, especially the BCM connectors labeled C1 (pins 58-60 for lamp control). Clean terminals with electrical contact cleaner and a wire brush; apply dielectric grease to prevent recurrence.
- Test the multifunction switch by swapping it with a known-good unit (part #25970246). A faulty switch often causes intermittent operation or complete failure in one mode (e.g., low beams work but high beams don’t).
- Examine bulb sockets for melted plastic or discolored contacts–replace sockets if damaged (part #15892480). Ensure bulbs are correctly seated; HID models require a firm click to engage the locking tab.
- Verify the DRL module (if equipped) by bypassing it temporarily–connect the lamp harness directly to the battery via a fused jumper wire. If lamps illuminate, the module needs replacement (GM #12499243).
