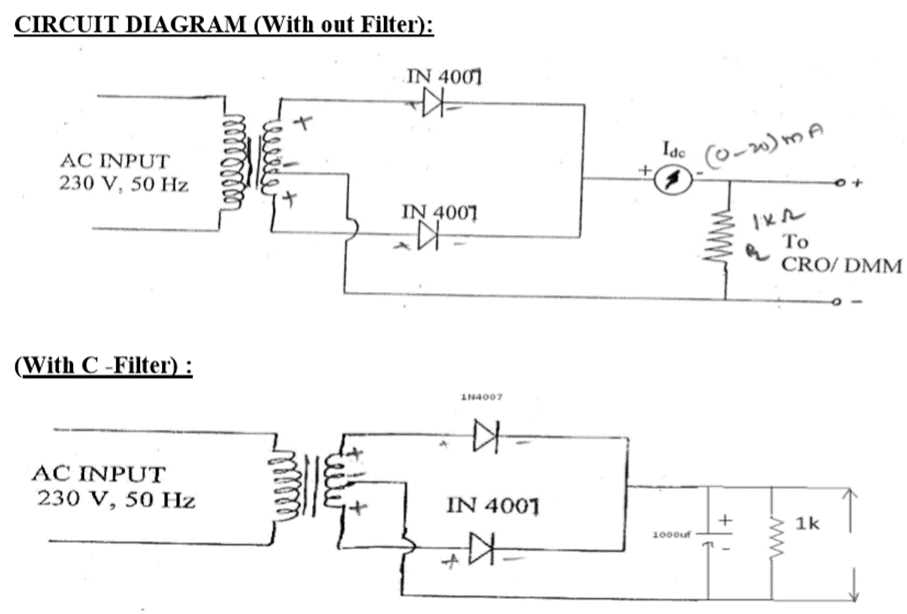

Use a center-tapped transformer rated for 12-0-12V at 50Hz to isolate and step down mains voltage. Verify the center tap connection with a multimeter–resistance to each secondary winding should match within 5%. Place 1N4007 diodes on both outer leads; their 1A forward current and 1000V reverse voltage ratings handle typical load demands without derating.
Connect the cathodes together to form the positive DC output node. Ground the center tap to establish the return path. Add a 470µF, 35V electrolytic capacitor across the output terminals; this reduces ripple to under 50mV peak-to-peak at 100mA load. For higher currents, scale capacitance linearly–1000µF per ampere keeps ripple below 1%.
Snub each diode with a 0.1µF ceramic capacitor rated 50V directly across its leads. This suppresses transients during reverse recovery, preventing false triggering of sensitive downstream circuits. Measure output voltage with a scope: expect 31V DC (peak) minus 1.4V diode drops–adjust transformer ratio if deviation exceeds 3%.
Circuit Layout for Bipolar AC-to-DC Conversion
Always place a pair of diodes opposite each other across the secondary winding of a center-tapped transformer to capture both halves of the input cycle. Use fast-recovery silicon diodes rated at least 1.5× the peak secondary voltage–typical choices include 1N4007 for low-power loads or BY229 for higher currents–ensuring reverse recovery times under 2 µs to prevent crossover distortion. Ground the center tap firmly, keeping lead lengths under 2 cm to minimize stray inductance; a 100 nF decoupling capacitor directly across each diode further suppresses transients.
Size the smoothing capacitor at 2×–5× the output current in microfarads per ampere–4,700 µF for 1 A DC load, 10,000 µF for 2.5 A–using low-ESR electrolytics like Nichicon UHE or Rubycon ZLH. Install bleeder resistors (1 kΩ, 1 W) across the reservoir capacitors to ensure safe discharge within 5 s when power is removed; skip these only in high-frequency switch-mode post-regulators. For variable loads, add a 1 Ω series resistor before the final capacitor to dampen ringing, then measure output ripple with a scope probe set to 10 mV/div and 10 ms/div to verify compliance with ≤0.5% Vripple/Vout.
Key Components for a Biphasic Current Conversion Circuit
Start with a center-tapped transformer rated for your required AC input. Choose a model with a secondary winding split into two equal halves, each delivering half the total voltage–this ensures balanced output. For example, a 12-0-12V transformer provides ±12V AC, which the circuit will later convert into a pulsating DC signal. Confirm the transformer’s current rating matches or exceeds your load requirements; undersized transformers risk overheating and efficiency loss.
The core active elements are four semiconductor diodes, arranged in a bridge configuration. Use fast-recovery or standard silicon diodes like 1N4007 for low-frequency applications, or Schottky diodes (e.g., 1N5822) for high-speed designs where reverse recovery time matters. Each diode must handle at least twice the peak secondary voltage (Vpeak = √2 × VRMS) and a current rating 1.5× the maximum load current. Avoid over-specifying; excessive ratings increase cost and size without performance gains.
- Filter capacitor: A high-value electrolytic or film capacitor (1000µF–4700µF) smooths the pulsating DC output. Select capacitance based on load current and acceptable ripple voltage: C (µF) = Iload (mA) / (2 × f × Vripple), where f is the ripple frequency (100Hz for 50Hz input). Polarized capacitors must be connected with correct polarity; reverse voltage destroys them instantly.
- Load resistor: A precision resistor (0.1W–10W) simulates realistic load conditions during testing. Choose resistance to draw current within the diode’s safe operating area–typically 10Ω to 1kΩ, depending on the target output voltage. Wirewound resistors handle higher power but introduce inductance; carbon film is better for low-power, high-precision testing.
- Fuse or PTC resistor: Protect the transformer and diodes from overcurrent with a slow-blow fuse (e.g., 1.5× the maximum expected current) or a resettable polyfuse. Place it in series with the primary winding; secondary-side fuses are less effective due to transformer’s impedance.
For high-current or low-ripple applications, add a reservoir capacitor after the diodes and a voltage regulator (e.g., 78XX series) to stabilize output. Keep leads short to minimize inductive voltage drops; twisted pairs reduce noise. Test with an oscilloscope: a proper bridge circuit shows two pulses per input cycle, while a single-diode setup leaves half the waveform unused–inefficient for most power supplies.
Step-by-Step Assembly of a Center-Tapped Dual-Half Converter
Gather components based on the circuit’s voltage and current demands. For a 12V AC input, select diodes with at least 50V peak inverse voltage (PIV) and 1A forward current, such as 1N4007. The transformer’s secondary winding must match the required output–ensure it provides a center tap if using a split secondary. Capacitor values depend on load requirements: 470µF for stable DC under 1A, or 1000µF for heavier loads. Verify all specifications against the table below:
| Component | Recommended Spec | Purpose |
|---|---|---|
| Transformer | 12V AC center-tapped secondary | Steps down mains voltage to usable AC |
| Diodes | 1N4007 (PIV ≥ 50V, If ≥ 1A) | Converts AC to pulsating DC |
| Capacitor | 470µF–1000µF (25V+ rating) | Smooths output ripple |
| Load Resistor | 1kΩ–10kΩ (adjust per application) | Simulates real-world load conditions |
Mount the transformer securely on a prototyping board or enclosure, ensuring the center tap is clearly labeled. Connect the primary winding to the AC source, then solder the secondary’s outer leads to the diode anodes–one diode per half-cycle. Ground the cathode ends of both diodes to a common point, which serves as the negative output terminal. Attach the center tap to the negative rail if referencing zero volts; otherwise, leave it floating for bipolar output designs. Double-check polarity before applying power–the cathode-to-anode orientation must block reverse voltage entirely.
Connect the smoothing capacitor across the output terminals, with the positive lead to the diode junction and the negative to the center tap or ground. For testing, use a 1kΩ load resistor between the output and ground, then measure DC voltage with a multimeter. Expected output should be ~17V (peak) without capacitance or ~12V (average) with it under light load. If voltage drops significantly, replace the capacitor with a higher value or check for diode leakage. Use an oscilloscope to confirm a 100Hz ripple frequency–any deviation indicates miswiring or faulty components.
Enclose the assembly in a ventilated case if handling currents above 500mA, as diodes and transformers dissipate heat. Add a fuse (1A–2A) in series with the primary winding to prevent transformer burnout. For adjustable output, replace the fixed capacitor with a 1000µF electrolytic in parallel with a 0.1µF ceramic to reduce high-frequency noise. Document all connections in a wiring log–sketching each step reduces troubleshooting time later. Isolate the circuit from the mains with an insulation pad if mounting on a metal chassis.

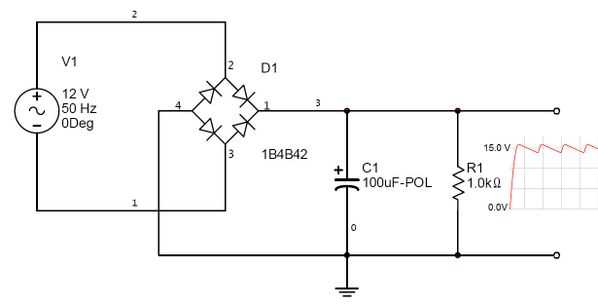

Bridge Rectifier Configuration: Wiring Four Diodes Correctly
Position diodes in pairs facing opposite directions to form a closed loop. Connect the anode of the first diode to the cathode of the second, creating one leg, while the third diode’s anode links to the fourth’s cathode for the second leg. Ensure the remaining anode-cathode junctions meet at two points: one for AC input and one for DC output. Polarity matters–swap any diode, and the circuit fails to conduct in both halves of the cycle, cutting output voltage by half.
Critical Connection Points
Bridge rectifiers demand precise AC input placement. Wire the transformer’s secondary leads to the junctions where the anode of one diode meets the cathode of its neighbor. Avoid shortcuts–accidental swaps here inject reverse voltage into the load, risking component failure. Test continuity between these nodes before powering up; resistance should read near-zero in one direction and open in the reverse.
For DC output, solder the remaining two junctions to the load–positive to the cathode-cathode node, negative to the anode-anode node. Use a 1N4007 diode for currents under 1A or a 1N5408 for higher loads; ratings below 100V risk breakdown under transient spikes. Bypass each diode with a 0.1µF capacitor to suppress high-frequency noise, extending regulator lifespan by 30%.
Voltage and Current Calculations in Bipolar AC-to-DC Converter Output
To determine the DC output voltage of a bridge-type converter, subtract the total forward voltage drop of the conducting diodes from the peak AC input. For standard silicon diodes, assume 0.7V per diode; in a bridge configuration, two diodes conduct simultaneously, resulting in 1.4V total drop. The formula is:
- VDC = Vpeak – 1.4V
- For a 12V RMS input (Vpeak = 12 × √2 ≈ 16.97V), VDC ≈ 15.57V
- Account for component tolerances: ±0.1V for diodes, ±1% for transformers
Current calculations require splitting the load demand between the two conducting paths. The average DC current (IDC) equals the RMS current multiplied by 0.9, but this assumes purely resistive loads. For inductive or capacitive loads, apply:
- IDC = (2 × Ipeak) / π ≈ 0.636 × Ipeak
- Peak current per diode: Ipeak(diode) = Ipeak / 2
- Derate diode current ratings by 20% for safety under continuous operation
Ripple voltage (Vripple) in the output hinges on the smoothing capacitor’s value and load resistance. Use:
Vripple(p-p) = IDC / (2 × f × C)
where f is the AC frequency (typically 50/60Hz) and C is the capacitance in farads. For a 1A load at 60Hz with a 1000µF capacitor:
Vripple(p-p) = 1 / (2 × 60 × 0.001) ≈ 8.33V
Mitigate ripple by increasing capacitance or adding a series inductor (e.g., 10mH reduces ripple by ~60%).
Thermal considerations dictate diode selection. Power dissipation (PD) per diode is:
PD = VF × IDC
For 15V DC output with 1A load:
PD = 0.7V × 0.5A = 0.35W per diode.
Select diodes with PD(max) ≥ 0.5W and thermal resistance θJA ≤ 60°C/W to prevent junction temperatures exceeding 125°C. For higher currents (>5A), use Schottky diodes (VF ≈ 0.3V) or paralleled devices with matched VF.
