Begin by locating the 12-pin rectangular connector behind the factory radio slot. Pins 1 (black/yellow) and 2 (black/orange) deliver constant 12V power–verify voltage with a multimeter before splicing. Ground connections terminate at pin 8 (black/white); secure with a ring terminal to bare metal for noise-free signal return.
Front speakers connect via pins 3 (gray/light blue) and 4 (gray/red) (positive/rear left), pins 5 (white/light green) and 6 (white/violet) (positive/rear right). Remove 2 ohms of resistance from each channel by bypassing the factory amplifier–trace the dark blue/white wire from pin 9 to the amp’s turn-on lead and splice directly to aftermarket units.
For rear audio output, pins 7 (purple/light green) and 10 (purple/yellow) serve the left channel, while pins 11 (green/orange) and 12 (green/white) handle the right. Use 18-gauge stranded copper wire for extensions; solder joints and heat-shrink tubing prevent corrosion. Antenna control wires–red/light blue for power, brown/yellow for ground–require direct routing to avoid signal dropout in weak reception zones.
Install a 10A fuse within 7 inches of the battery on the black/yellow wire to prevent fire hazards. If retaining the stock wiring harness, lubricate connections with dielectric grease to inhibit oxidation–recheck continuity every 12 months. For steering wheel control integration, map resistance values across pin 16 (tan/black); aftermarket adapters must match 2.2K–390Ω ranges to avoid erratic input responses.
Color-Coded Audio System Installation for 1998 Pickup
Locate the harness behind the dashboard’s lower panel–this 12-pin connector carries all audio signals. Match the aftermarket head unit’s wires to these colors:
| Vehicle Wire | Function | Aftermarket Connection |
|---|---|---|
| Yellow | Constant 12V | Yellow (battery) |
| Red | Switched 12V | Red (ignition) |
| Black | Ground | Black |
| Gray | Front Right (+) | Gray (or purple stripe) |
| White | Front Left (+) | White (or green stripe) |
| Dark Green | Rear Left (+) | Dark Green (or brown stripe) |
| Violet | Rear Right (+) | Violet (or light blue stripe) |
Use a multimeter to verify voltage on yellow (12V constant) and red (12V when ignition is on) before connecting–this prevents draining the battery. For amplified systems, tap the orange/light blue illumination wire to sync dash lights with the new unit. Avoid twisting speaker wires together during testing; instead, use crimp connectors or solder joints wrapped in heat-shrink tubing for long-term reliability.
If retaining the factory amplifier, splice the blue/white remote turn-on wire from the replacement receiver to the original harness’s matching wire (blue/white or solid blue). Failure to connect this will result in no sound, despite correct power and ground links.
Finding the Original Audio System Plug Interface

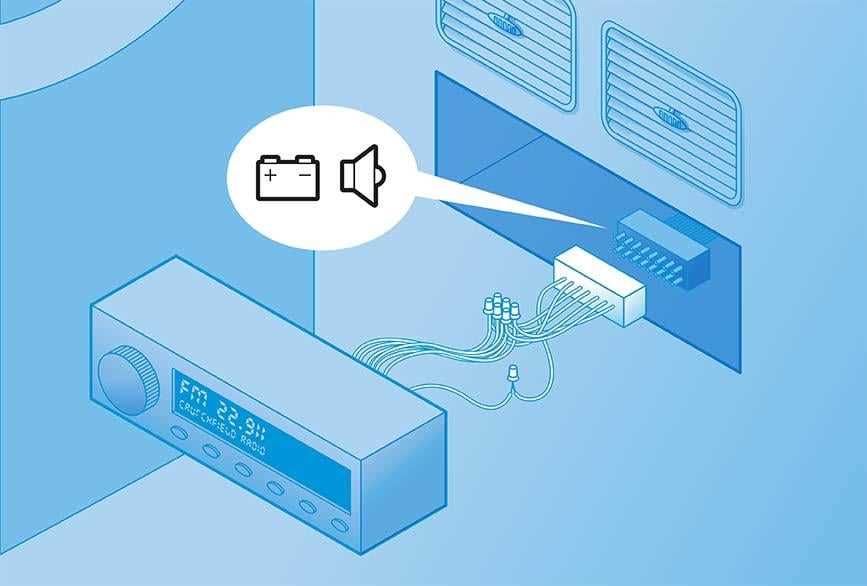

Begin by removing the central dashboard trim panel. On 1998 compact pickup models, the main audio unit is secured behind a rectangular bezel held in place by four clips–two along the top edge and two at the bottom. Gently pry outward starting from a bottom corner, working upward with a flat plastic trim tool to avoid damaging the surrounding plastic surfaces. Once the clips release, pull the bezel forward just enough to access the rear of the audio head unit without fully detaching it.
The factory plug interface is positioned directly behind the audio control module, attached via a 12-pin rectangular connector. Trace the bundle of colored leads extending from the back of the unit–these terminate in a white or gray plastic housing, roughly 2 inches by 1 inch in size. Labels printed on the connector include power (+12V constant, ignition-switched), ground, speaker outputs (front/rear pairs), and antenna trigger. Verify the correct plug by matching the pin count and keyed notch orientation.
If the connector is not immediately visible, check for hidden fasteners or secondary brackets securing the wiring harness near the firewall. The bundle may pass through a protective grommet or be taped to an adjacent HVAC duct. Avoid tugging on individual wires–instead, follow the main harness bundle upward toward the vehicle’s floorboard, where it merges with the primary electrical distribution center.
For confirmation, consult the vehicle’s service manual under “Instrument Panel Electrical” or cross-reference the plug’s color codes against standard industry aftermarket adapters–the constant power lead should read 12V with a multimeter while the ignition wire registers voltage only when the key is turned to the ON or ACC position.
Identifying Wire Color Codes for Power and Ground in Vehicle Audio Systems
Locate the yellow cable first–this is the primary constant 12-volt supply line for memory retention in aftermarket units. Check for voltage with a multimeter while the ignition is off; it should register close to battery levels. If readings drop below 11 volts, inspect the fuse panel for blown protection or corroded connections near the harness adapter.
Black wires typically serve as ground points but verify by tracing their termination. The main grounding route often connects directly to the chassis or a dedicated bolt near the installation area. Scrape off paint or rust at the contact surface before securing the ring terminal to ensure minimal resistance–poor grounding causes intermittent functionality or audio distortion.
- Red: Ignition-controlled power, active only when the key is in the “on” or “accessory” position
- Orange: Illumination dimmer lead, adjusts with dashboard brightness
- Blue/white stripe: Amplifier remote turn-on, triggers external power amplifiers when the unit powers up
- Brown: Mute control, grounds to temporarily halt audio output during phone calls or navigation prompts

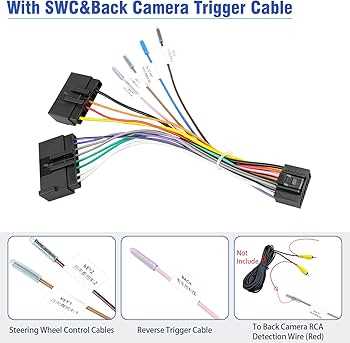

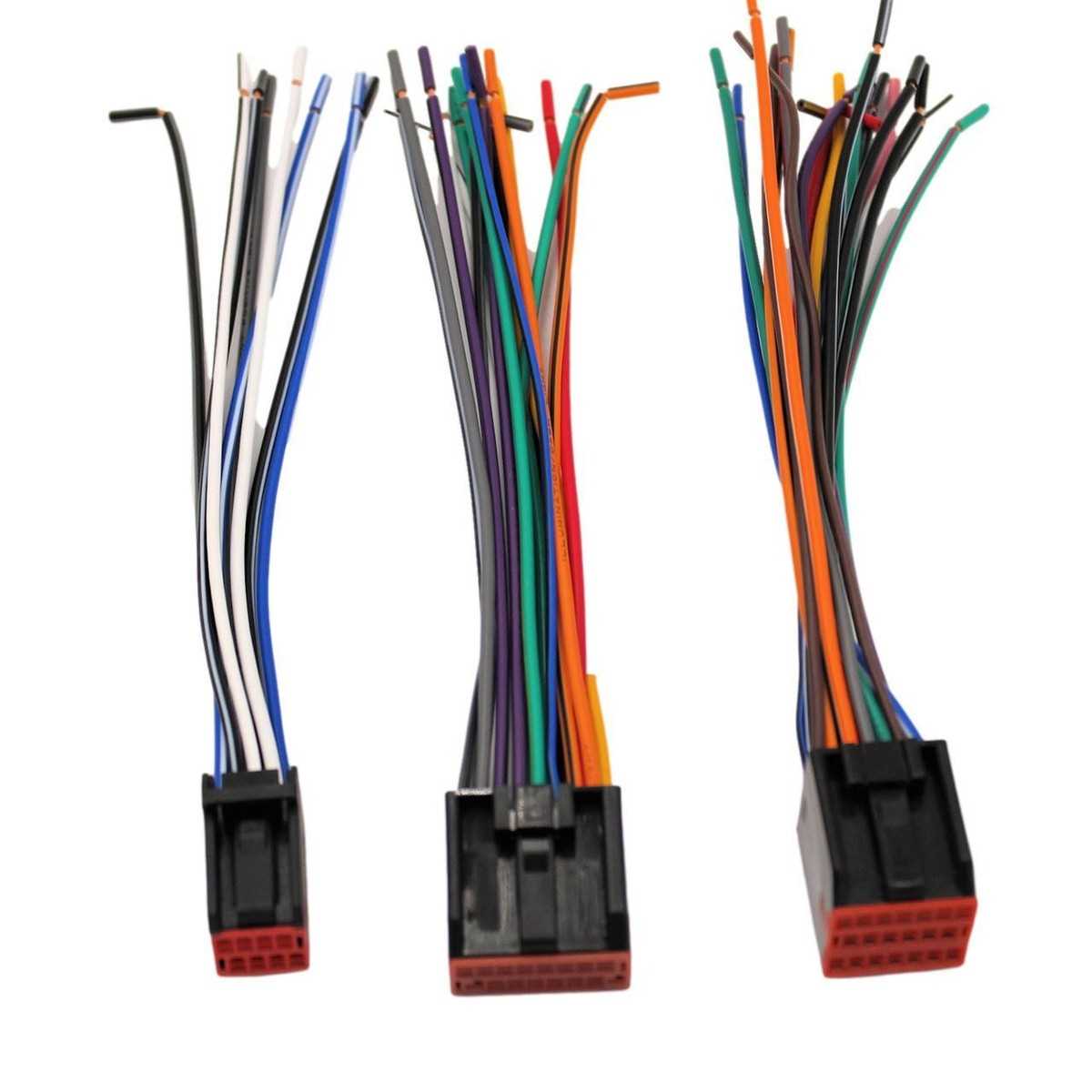

Use a wiring harness adapter specific to the model year to avoid splicing factory connectors. Mismatched connectors risk short circuits or incorrect voltage distribution. Verify adapter compatibility against the vehicle’s build sheet–some configurations include separate subwoofer pre-outs (gray or purple) for premium sound systems.
Test each wire’s function sequentially before finalizing connections. Mock-install the head unit with bare wires secured by electrical tape to prevent accidental contact. Power up the system and confirm all features operate correctly–radio reception, CD player, and auxiliary inputs–before securing permanent mounting.
For vehicles equipped with factory security or anti-theft features, retain the original connector’s antitheft leads (often pink or light green). Disconnecting these without proper bypass measures triggers immobilizer faults, requiring dealer intervention to reset. If retaining factory amplifiers, ensure the orange/white speaker outputs match impedance ratings to prevent overheating or premature failure.
Hooking Up a Modern Receiver to Factory Harness Wires
Match the aftermarket harness color codes to the factory connector pins using a multimeter set to continuity mode. Probe each original car’s harness pin while referencing the new head unit’s pinout diagram–most third-party manufacturers label channels with standard ISO colors (white/white-black for front left, gray/gray-black for front right, etc.). If factory wires lack labels, trace each to the corresponding door panel by ear while playing a 1 kHz test tone.
Trim 1/4 inch of insulation from each factory wire and crimp with female spade connectors sized for 0.25-inch terminals–avoid solder on older PVC-coated strands, as heat embrittles them; instead, use copper-butt crimp splices rated for 22-18 AWG. Bundle grouped channels (front/rear) with loom tape every 12 inches to prevent vibration shorts where the harness bends behind the dash. Ground the new unit’s yellow/red power leads directly to the chassis near the fuse box, not the original harness’s harness plug, to bypass resistance from aged factory wiring.
Verify signal integrity with an oscilloscope–expect 2-4V peak-to-peak for unclipped output–before securing the receiver. If rear speakers exhibit 50% less volume, check for a high-impedance factory amplifier in the trunk; bridge the aftermarket blue/white wire to a dedicated remote turn-on lead or wire a 12V relay to the ignition-switched circuit.
Resolving Electrical Problems in a 1998 Pickup Audio System
Check the fuse box first–specifically fuse #18 (10A) and #22 (15A). A blown fuse often mimics speaker failure or power loss. Use a multimeter to verify continuity before replacing; corrosion on contacts can cause intermittent outages. If the fuse blows repeatedly, inspect the positive lead (yellow) for chafing against metal near the firewall.
- Inspect ground connections at G500 (behind the dashboard) and G501 (near the shift lever). Scrape paint from mounting points and tighten bolts to 8-10 Nm.
- Test speaker impedance with an ohmmeter. Expected values: front tweeters (4Ω), door woofers (6Ω), rear coaxial (4Ω). Readings below 2Ω suggest a short; disconnected wires show as open circuit.
- Probe the dimmer wire (orange/light green stripe) while adjusting dash lights. Voltage should swing between 0-12V. No change indicates an open between the head unit and switch.
For no sound in one channel, swap RCA cables between left/right outputs. If distortion moves, replace the amplifier or check speaker coils. If static persists, examine the antenna lead (blue/white) for a short–strip 0.5″ of insulation, re-crimp terminals, and apply dielectric grease to connectors.
Intermittent power often traces to the ignition feed (red). Trace this wire to the ignition switch harness connector C202; unplug and clean terminals with electrical contact cleaner. If voltage drops below 11.8V at key-on, replace the switch or bypass with a relay using a 40A fuse on the accessory circuit.
