Begin by identifying the phase coils: locate terminals labeled T1–T3 for the start of each winding and T4–T6 for their ends. Use a multimeter to verify continuity–connect probes to T1 and T4; a closed circuit confirms a single coil pair. If resistance exceeds 5–10 ohms or reads infinite, inspect for broken strands or corrosion at lugs.
For delta configuration, bridge T4 to T2, T5 to T3, and T6 to T1. Energize with three-phase power–L1 to T1, L2 to T2, L3 to T3. Measure voltage between T7–T9; expect 0V if neutral is ungrounded. Overcurrent greater than 120% FLA indicates reversed polarity–swap L1 and L2 to correct.

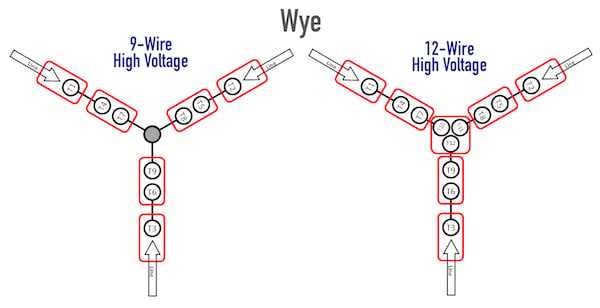

Wye connection demands grounding T7–T9 (neutral). Wire T4–T6 together, then connect L1, L2, L3 to T1, T2, T3 respectively. Single-phase testing: apply 240V across T1–T4, confirming 120V at T7. Rotation reversal requires swapping any two line inputs–avoid disturbing T7–T9 unless dual-voltage setup specifies.

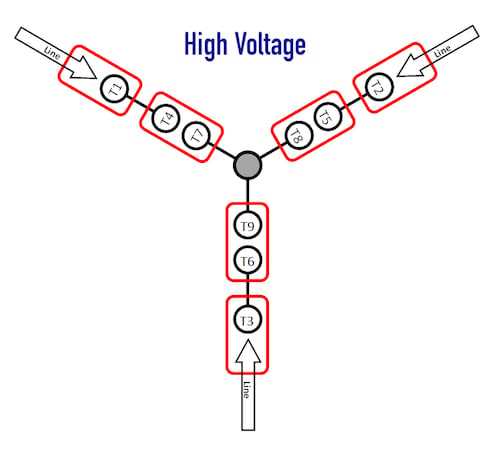

Dual-voltage units (240V/480V) utilize T7–T9 for reconfiguration. For 480V, separate T4–T6 and connect in series with T1–T3. Link T7 to T4, T8 to T5, T9 to T6. Verify phase-to-phase voltage at 277V before full energization. Incorrect jumper placement risks catastrophic coil overheating–temperature rise should not exceed 80°C under load.
Connecting a Nine-Terminal Electrical Device: Practical Schematics
Begin by identifying the terminal pairs using a multimeter in continuity mode. Terminals 1-4, 2-5, and 3-6 form the coil sets, while 7, 8, and 9 connect to the common and dual-voltage configurations. Label each wire with numbered tags to prevent misconnections. For low-voltage operation (230V), link 4-5-6 together and supply power to 1, 2, and 3. High-voltage (460V) requires pairing 1-7, 2-8, and 3-9 while energizing 4, 5, and 6.
- Dual-voltage testing: Verify no shorts exist between coil groups before applying power. A 1MΩ resistance between any two unconnected terminals indicates insulation failure.
- Thermal overload protection: Route auxiliary contacts through terminals 7-8-9 if incorporating external relays. Bypass this only for direct drive applications without startup torque control.
- Grounding: Always terminate the equipment ground to the chassis bonding point, never to a phase conductor.
Phase rotation testing demands a dedicated sequence checker. Incorrect polarity reverses direction, risking mechanical damage in pumps or conveyors. For wye-start/delta-run setups, energize the closed transition via 7-8-9 first, then switch to 1-2-3 after 3-5 seconds to reduce inrush current. Failure to observe this timing overloads circuit breakers rated below 2.5× FLA.
- Strip insulation from terminals only as needed–excessive bare conductor increases arcing risk.
- Use crimp connectors rated for 90°C minimum on aluminum windings to prevent oxidation.
- Document each connection with a torque value: 10 in-lbs for #14 AWG, 15 in-lbs for #12 AWG.
- Avoid splices in junction boxes for outdoor installations–humidity causes corrosion at dissimilar metal junctions.

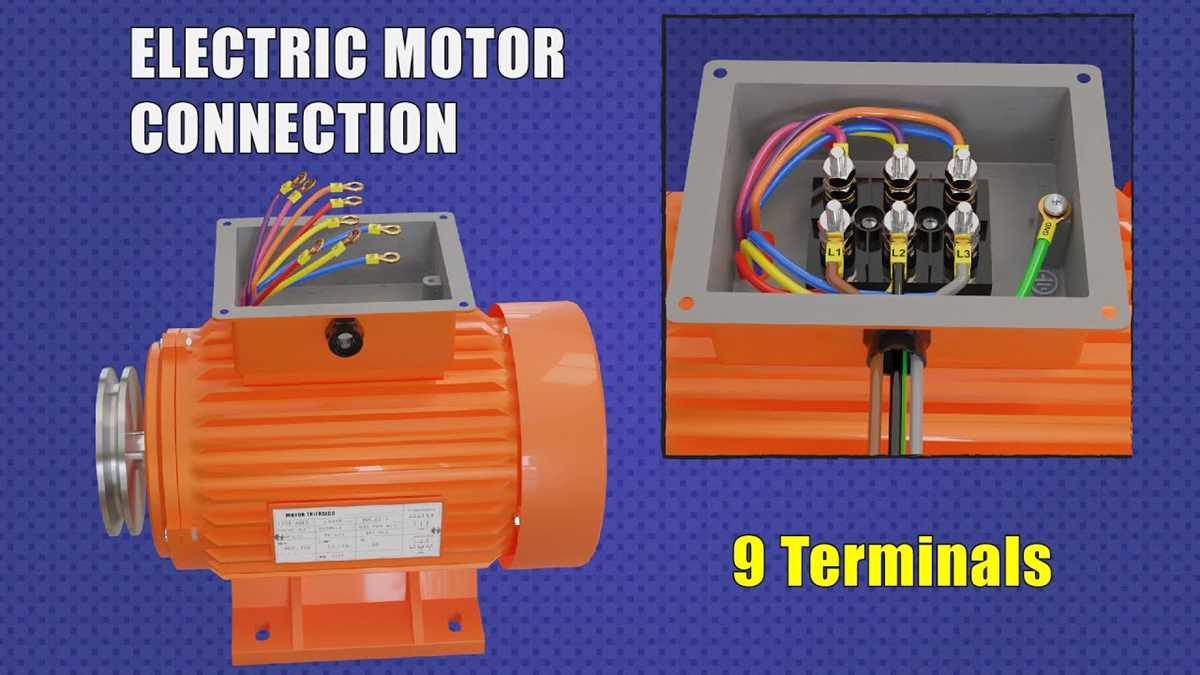

Connecting a Nine-Terminal Dual-Voltage Electric Machine: Exact Procedures
Begin by verifying the voltage rating on the nameplate before making any junctions. For low-voltage operation (typically 230V), group terminals 1, 7, and 6 together, then connect terminals 4, 5, and 2. The remaining terminals (3, 8, and 9) form the final cluster. Secure each group with a ratcheting crimper, ensuring strands are fully inserted without nicking conductors. Use color-coded sleeves–black for input phases, blue for neutral, and red for jumper links–to prevent misrouting.
For high-voltage applications (usually 460V), reconfigure the connections into series paths. Link terminal 6 to 9, 4 to 7, and 2 to 8. The supply phases attach to terminals 1, 3, and 5. Confirm continuity with a multimeter set to 200 ohms; readings between each phase should match within 3% of each other. If values deviate, inspect for loose strands or improperly seated ferrules.
- Label each cable with heat-shrink tubing before stripping insulation.
- Tighten terminal screws to 12 in-lbs using a calibrated torque driver.
- Avoid combining aluminum and copper without approved oxide inhibitor compounds.
- Route cables away from sharp edges; use grommets if passing through enclosures.
Test rotation direction by applying brief power. If reversed, swap any two input phases–this adjustment does not require reconfiguring internal junctions. For applications requiring frequent voltage switches, install a three-pole double-throw switch rated for motor current. Mount the switch adjacent to the starter to simplify future adjustments.
Seal unused enclosure entries with knockout plugs rated for the installation environment (NEMA 4X for outdoor use). Apply corrosion-resistant grease to all terminals after final tightening. Document the configuration on a weatherproof tag affixed inside the enclosure, including date, technician initials, and voltage setting. Recheck all junctions annually or after any power interruption exceeding 5 minutes.
How to Identify Terminal Labels on a 9-Pin Electrical Component
Locate the manufacturer’s nameplate first–it typically lists terminal designations or a schematic reference. For NEMA-standard units, pins are marked T1 through T9 in a clockwise or linear sequence, though some brands use U, V, W for primary connections and X, Y, Z for secondary. Dual-voltage models split coils into two sets: T1–T3 and T7–T9 for high-voltage (series), T4–T6 linking T1–T3 to T7–T9 for low-voltage (parallel). If no plate exists, check for etched or embossed letters near each binding post–older models often stamp T-numbers directly into the housing.
Common Labeling Patterns by Configuration
| Standard | Primary Coil | Secondary Coil | Jumper Link |
|---|---|---|---|
| NEMA 230V/460V | T1, T2, T3 | T7, T8, T9 | T4–T6 |
| IEC 400V/690V | U1, V1, W1 | U2, V2, W2 | Z1, Z2 |
| Custom Single-Phase | A, C | B | None |
Measure resistance between terminals if labels are ambiguous: lowest ohms (typically
Wye vs Delta Configuration: Selecting the Optimal Electrical Arrangement
Use a star (Y) connection for applications requiring lower starting current, particularly in high-power equipment like pumps, compressors, or fans where voltage drops must be minimized. A Y setup divides line voltage by √3 (≈1.73), reducing strain on the system while maintaining torque at 57.7% of line voltage. For 400V systems, phase voltage equals 230V–ideal for reducing inrush current by 33% compared to a mesh layout. Prioritize Y for soft-start scenarios or when the load demands consistent low-speed operation.
Key Trade-offs in Performance
Delta (Δ) arrangements deliver full line voltage across each coil, enabling 1.73× higher starting torque than Y–critical for heavy loads such as conveyors, mills, or HVAC blowers. However, Δ’s higher inrush current (6–8× nominal) risks voltage sag in weak grids. For 380–480V industrial setups, Δ’s phase voltage matches line voltage, maximizing power density. Balancing these factors hinges on load type: Y suits light-start, continuous-duty cycles; Δ excels in high-torque, intermittent demands.
Verify the nameplate’s voltage and HP ratings before deciding. A 230/460V machine in Δ runs at 230V if line voltage is 230V; in Y, it operates at 400V when fed 690V. Mismatches cause overheating (Y at Δ voltage) or reduced torque (Δ underpowered in Y). For dual-voltage systems, let load behavior dictate: Y for efficiency, Δ for raw power–no universal default exists.
Verifying Circuit Integrity Prior to Energizing the Machine
Use a multimeter set to continuity mode or the lowest resistance range to check each terminal pair. Confirm readings below 0.5 ohms between connected coils–anything above indicates a break or faulty junction. For three-phase setups, test T1-T4, T2-T5, and T3-T6 separately if the configuration is dual-voltage; record measurements for comparison.
Isolate the system entirely before starting: disconnect capacitors, relays, and power sources. Verify no voltage remains by probing adjacent conductors–even residual charge can distort readings. Probe threaded studs directly on the housing if terminals appear corroded; oxidation can falsely suggest an open circuit.
Critical Path Checks
Cross-verify unconnected studs for infinite resistance–any continuity here signifies insulation failure. For star-delta arrangements, T7, T8, and T9 must show high resistance to every other point. Map measurements against manufacturer specifications; deviations over 5% require further isolation of the path.
If dual-voltage, confirm the midpoint connections (typically T4-T7, T5-T8, T6-T9) before proceeding. Re-test after making any adjustments–even tightening fasteners can alter contact integrity. Keep test probes sharp to penetrate oxide layers without damaging conductors.
Troubleshooting Anomalies
If resistance fluctuates during testing, suspect loose internal connections or thermal expansion effects. Heat the housing slightly (under 50°C) and repeat checks–intermittent faults often surface under temperature variations. For nine-stud configurations, document every combination: 36 discrete checks ensure thorough validation.
Replace any jumper links showing inconsistency immediately–cheap copper alloys degrade faster than silver-plated terminals. After final confirmation, energize at low voltage first (20-30% rated) while monitoring current draw for imbalances. Only proceed to full voltage once all paths show stable continuity and matched impedance.
