To build a reliable 8-segment binary summation module, start with cascading two-input combinational elements. Use standard 74LS283 integrated modules–each handles four segments–wired in series for sequential propagation. Connect carry-out (CO) of the lower quartet to carry-in (CI) of the upper, ensuring minimal latency between stages. Ground the initial CI to logic 0 to avoid floating inputs.
For precise schematic drafting, employ a vector-based editor like KiCad or Altium. Define distinct net labels for data inputs (A₀–A₇, B₀–B₇) and output (Σ₀–Σ₇) to prevent clutter. Add explicit carry lines (CO₇) for cascading expansion. Validate logic with a 4-layer PCB stackup, reserving the innermost planes for power distribution to reduce noise coupling.
Optimize propagation delay by positioning gates in close proximity. Use deliberate trace routing, keeping carry lines under 50mm to limit RC effects. Add decoupling capacitors (100nF) adjacent to each IC’s VCC pin to suppress transient spikes. Simulate worst-case scenarios–input transitions from 0xFF to 0x00–to confirm timing margins before fabrication.
Label every node in the schematic with functional identifiers (e.g., “A₃→LSB of upper quartet”) rather than generic indices. Include an auxiliary output net for overflow detection–derive it from the final CO via an XOR gate, capturing arithmetic exceptions. Document power constraints: 5V±5% tolerance, ≤200mA per quartet at 1MHz.
Constructing an 8-Segment Binary Summation Module
Begin by cascading eight individual 1-digit combinational units, each comprising two XOR gates for sum generation and two AND gates with an OR gate for carry propagation. Use 74LS86 (quad XOR) and 74LS08 (quad AND) ICs for the first stage, pairing them with a 74LS32 (quad OR) for the final carry output. Power each IC from a stabilized 5V source, decoupling with 0.1µF capacitors at each VCC pin to suppress transients. Route inputs A0–A7 and B0–B7 through DIP switches or a microcontroller port, ensuring pull-down resistors (10kΩ) prevent floating states.
Implementation Checklist
| Stage | Component | Function | Pin Configuration (Example) |
|---|---|---|---|
| 1 | 74LS86 | Sum output (XOR) | Inputs: 1A/2A (An), 1B/2B (Bn); Output: 1Y/2Y (Sn) |
| 2 | 74LS08 | Partial carry (AND) | Inputs: 1A/2A (An), 1B/2B (Bn); Output: 1Y/2Y |
| 3 | 74LS08 + 74LS32 | Carry-out (AND→OR) | AND outputs to OR (1A/2A); Final Cout via 1Y |
| 4 | 0.1µF cap | Decoupling | Parallel to VCC/GND per IC |
Chain the carry-out (Cn) of each 1-digit unit to the carry-in (Cin) of the next, starting with C0=0 (ground). Validate functionality by testing all 256 input combinations: A7A6…A0 = B7B6…B0, measuring propagation delay (typ. 15–20ns per stage) with an oscilloscope. For extended precision, duplicate the module and connect the final C7 to a ninth 1-digit unit’s Cin.
Constructing a Single-Digit Binary Summator with Basic Components
Begin by assembling two XOR gates. Connect the first gate’s inputs to the primary signals you intend to combine–these represent the values to be processed. Route the output of this initial XOR into one input of the second XOR. The second input of this follow-up gate must receive the carry-over signal from a separate operation. This configuration ensures the sum’s least significant position is correctly generated.
Introducing the Carry-Over Logic
Form a carry-out signal using an AND gate and an OR gate. Wire the first AND’s inputs to the original signals you combined earlier. Direct the output of this AND into one input of the OR. The second AND, placed parallel to the first, takes one original signal and the carry-in as inputs–its output feeds the OR’s remaining terminal. This dual-path setup guarantees accurate carry propagation regardless of input combinations.
Test each gate pairing with a truth table before finalizing connections. Apply logical highs (1) and lows (0) to inputs systematically while measuring outputs at each stage. Verify that the sum output aligns with expected results–0+0=0, 0+1=1, 1+0=1, 1+1=0 with carry. Carry-out should only activate when both inputs or one input plus carry-in are high. Deviations indicate miswired gates or faulty components.
Use solderless breadboards for prototyping to avoid permanent assembly errors. Insert logic ICs like the 74HC86 (quad XOR) and 74HC08 (quad AND) into non-adjacent rows to prevent unintended shorts. Power rails should deliver 5V steady current; bypass capacitors (0.1µF) connected near IC power pins mitigate voltage fluctuations. Label all wires clearly–misrouted signals often cause debugging delays.
Once verified, encapsulate the assembly in a grounded enclosure if deploying in real-world conditions. Static-sensitive components may require antistatic foam storage during transit. For repeated use, consider etching a PCB with trace widths sufficient for 20mA current draw–standard logic components rarely exceed this threshold but verify datasheets for exact tolerances.
Step-by-Step Assembly of an 8-Unit Summation Block from Single-Unit Components

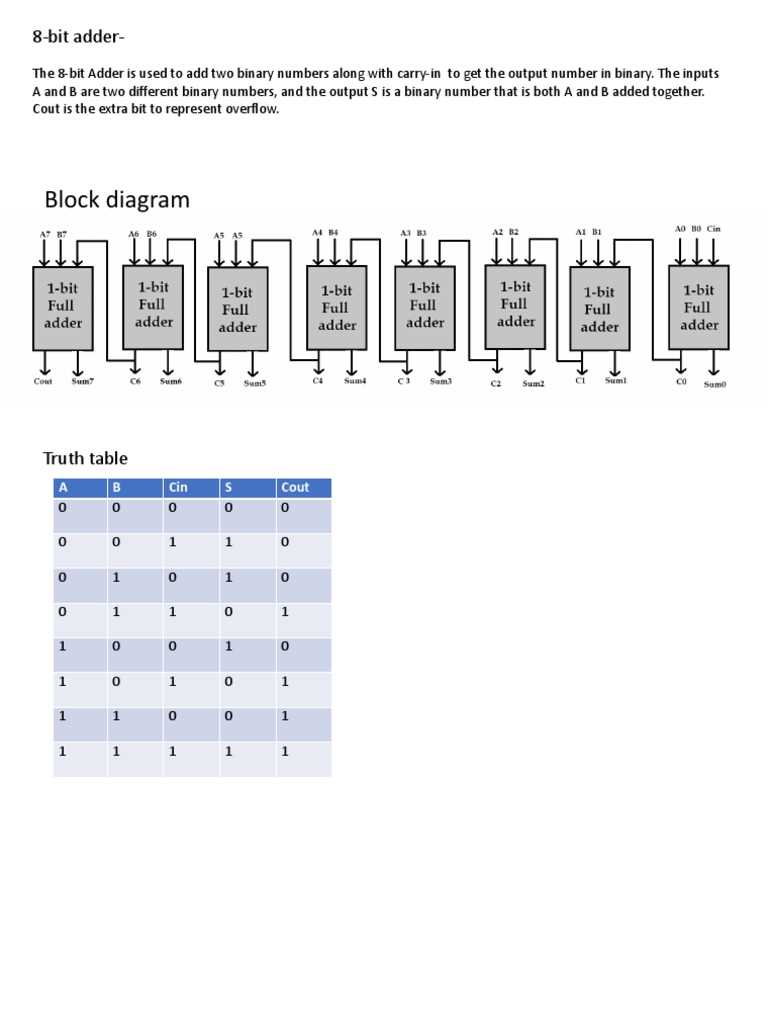

Begin by cascading eight 1-unit combinational calculators, connecting the carry-out (Cout) of each preceding unit to the carry-in (Cin) of the subsequent one. The first stage’s Cin must be tied to logic low (0V) to initiate propagation. Ensure all input pairs (An, Bn) receive distinct binary signals, aligning their least significant digits (LSD) with the first calculator and progressing sequentially. Verify intermediate outputs (S0–S7) and the final carry (C8) with a logic analyzer or four-channel oscilloscope to confirm correct ripple progression before applying dynamic inputs.
Critical Signal Routing and Validation
Route power rails (VCC, GND) with 0.1µF decoupling capacitors near each calculator’s supply pins to suppress transient noise. For prototyping, use a breadboard with dedicated bus strips for A/B inputs and summation outputs to minimize parasitic coupling. When transitioning to PCB layout, prioritize serpentine carry-path traces to equalize propagation delays between stages. Test each stage independently by forcing known inputs–e.g., feed An=1, Bn=1, Cin=0 to yield Sn=0, Cout=1–then correlate results with truth tables to isolate flawed connections.
Key Truth Table Values for Each Stage of an 8-Unit Binary Summator
Begin with the carry-in (Cin) behavior for the least significant incrementer (LSI). The critical combinations for validation are:
- Cin = 0, Input A = 0, Input B = 0 → Sum = 0, Cout = 0
- Cin = 0, Input A = 1, Input B = 1 → Sum = 0, Cout = 1
- Cin = 1, Input A = 0, Input B = 0 → Sum = 1, Cout = 0
- Cin = 1, Input A = 1, Input B = 1 → Sum = 1, Cout = 1
These four rows confirm correct propagation and generation logic before progressing. If discrepancies arise here, rewire Cin connections first–input pins are often misaligned.
For intermediate stages (positions 2–6 in the chain), prioritize carry-out transitions. Test these signal shifts:
- Three high inputs → Cout must flip high with Sum low
- Two inputs high + Cin low → Sum high, Cout low
- One input high + Cin high → Sum high, Cout low
- All inputs low + Cin high → Sum high, Cout low
Record each stage’s output separately–ripple delays compound, so isolate propagations by toggling only one input pair at once.
The most significant incrementer (MSI) demands special attention to overflow detection. Verify these edge cases:
- All inputs high → Sum = 0, Cout = 1 (counter wrap)
- Binary 11111111 + Cin = 1 → Sum = 0, Cout = 1 (max capacity)
- Binary 10000000 + Cin = 1 → Sum = 10000001, Cout = 0 (no wrap)
Use an oscilloscope on the Cout line–ringing indicates poor decoupling near the MSI node, requiring a 0.1 µF capacitor between Vcc and ground.
Pin Configuration and Wiring for IC-Based Summation Logic
Select the 74LS283 quad two-input arithmetic unit for 4-digit operations–its VCC connects to pin 16, ground to pin 8. Each carry input (CIN) occupies pins 7 (least significant) through 1 (most significant), while outputs (Σ) span pins 14 (LSB), 13, 11, and 9 (MSB). Keep decoupling capacitors (0.1µF) within 2mm of power pins to suppress transient spikes during arithmetic transitions.
For cascading two 74HC83 modules into an 8-digit system, link the final carry output (COUT, pin 14 on the lower IC) directly to the carry input (CIN, pin 7) of the upper module. Avoid daisy-chaining more than two devices–signal propagation delays exceed 22ns per stage, degrading clock synchronization in time-sensitive applications.
Align operand inputs (A0-A3, B0-B3) to respective pins 5-2 and 6-3 with AWG-22 solid-core wiring, minimizing inductive loops. For dual-rail configurations, invert polarity of one operand set using 74LS04 hex inverters–insert between source and A or B pins to maintain complementary logic without adding propagation skew.
Test carry propagation paths with a 50MHz oscilloscope probe placed on COUT (pin 14); valid transitions should stabilize within 18ns. If ringing exceeds ±0.4V, terminate the line with a 150Ω pull-up/pull-down resistor network–avoid series termination for frequencies above 20MHz to prevent LC resonance artifacts.
When interfacing with microcontrollers like the ATmega328P, assign summation outputs (Σ) to PORTD (PD0-PD3), reserving PC0-PC1 for carry flags. Use 2.2kΩ current-limiting resistors on operand inputs to prevent latch-up during unexpected step-voltage transitions–compliant with IOL specifications (8mA).
For floating inputs, strap unused operand pins (A3, B3) to ground via 10kΩ resistors–this prevents undefined states while allowing dynamic override via tri-state buffers. In mixed-voltage systems (3.3V/5V), employ TXB0104 level translators on all summation paths; keep translation delay under 7ns to preserve timing margins.
Layout traces for COUT and CIN with matched 12mil width and 6mil clearance–this reduces crosstalk below -35dB at 25MHz. For multiphase operations, stagger operand loading across clock edges using 74AC574 octal flip-flops–align data setup times (3ns) with summation settling windows (≤20ns).
Document all pin assignments in KiCad’s csv footprint library–include power rails, decoupling node coordinates, and thermal via placement (minimum 8 vias per IC for 2W dissipation). Validate carry chain integrity with boundary scan JTAG (IEEE 1149.1), ensuring TPD compliance () across process corners.
