Always match pin functions with manufacturer specifications before finalizing connections. Pin 1 (typically white) must be grounded to the towing vehicle’s chassis using at least 12 AWG wire–any thinner gauge risks voltage drop under load, especially for electric brakes. Verify ground integrity with a multimeter: resistance should remain below 0.5 ohms between the connector body and the vehicle’s negative terminal. Skipping this step leads to intermittent brake failures or erratic turn signal behavior.
Colors follow the SAE J560 standard: brown (marker/tail lights), green (right turn/brake), yellow (left turn/brake), blue (auxiliary functions like electric brake control), red (12V power), and black (battery charge line for trailers with on-board batteries). Swapping yellow and green wires causes reverse turn signal activation during braking, creating safety hazards. Use heat-shrink butt connectors for splices–crimp connectors alone fail under vibration.
For heavy loads, run blue (brake control) and red (power) wires through separate 10 AWG circuits fused at 30A. Install the fuse within 7 inches of the battery to prevent fire risks. If auxiliary circuits (e.g., interior lights) draw more than 10A, add a relay: coil powered by the ignition, contacts handling load current. Test under maximum draw conditions–voltage at the connector should not drop below 11.5V when all lights and brakes are engaged.

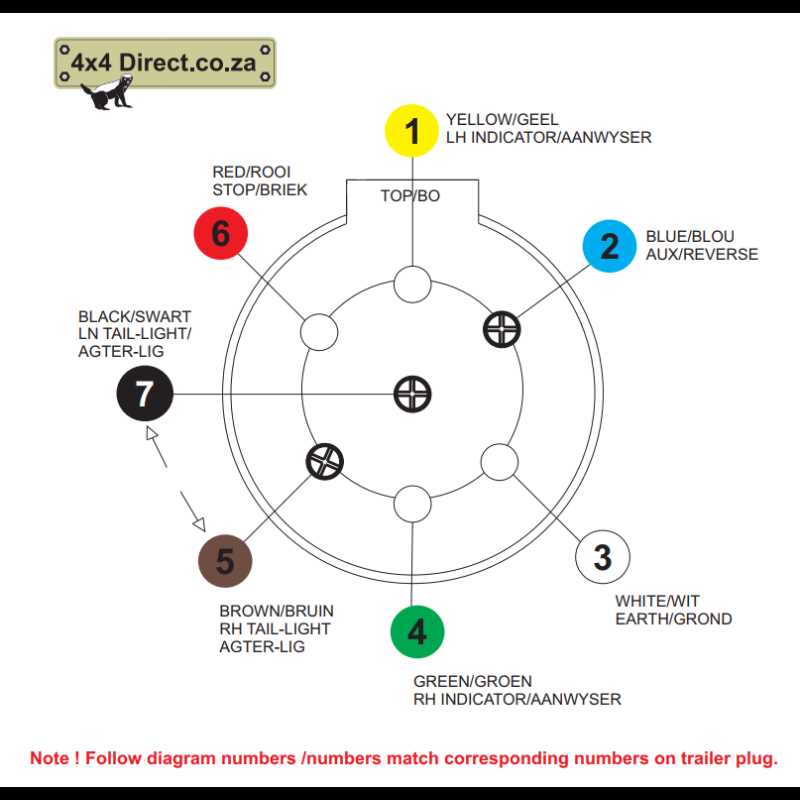

Adapters for international standards (e.g., ISO 11446) require pin reconfiguration: auxiliary power (red) moves to pin 7, while pin 2 becomes ground. Never splice different standards without a verified schematic–mismatched grounds create stray current loops, damaging sensitive controllers. Keep all connections elevated from the hitch frame to avoid corrosion; use dielectric grease on each terminal before assembly.
Standard Vehicle Connector Pinout for Heavy-Duty Towing

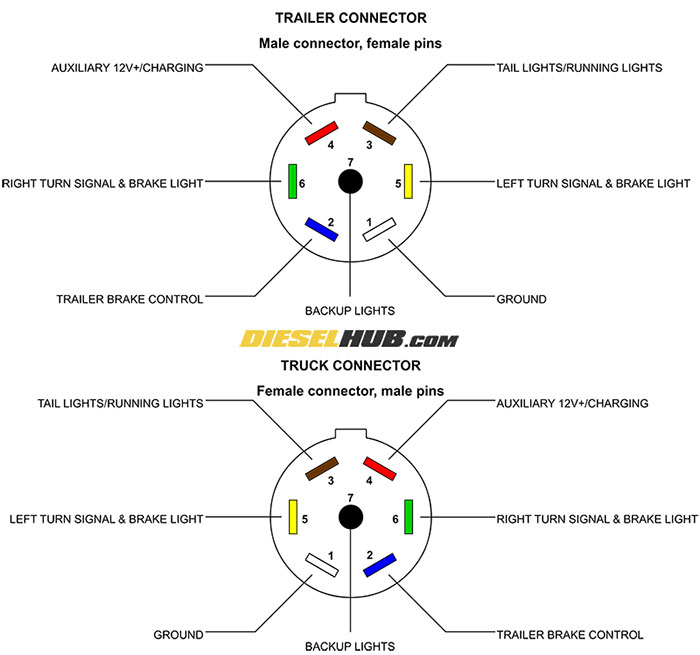

Begin by verifying the pinout of your heavy-duty connector matches SAE J560 standards: pin 1 (white) for ground, pin 2 (blue) for electric brakes, pin 3 (brown) for running lamps, pin 4 (green) for right turn/stop signals, pin 5 (yellow) for left turn/stop signals, pin 6 (red) for auxiliary power (typically 12V), and pin 7 (black) for reverse lights. Double-check voltage at each terminal with a multimeter–ground must read 0V relative to the chassis, while active circuits should register 12-14V when engaged.
Color-coding inconsistencies between North American and European setups necessitate direct tracing of each conductor from the tow vehicle’s harness to the mating socket. Use a circuit tester to confirm continuity while activating each function: turn signals, brake lights, and clearance lamps should flash or illuminate precisely as controlled by the vehicle’s onboard computer. Failure to isolate circuits may trigger false error codes in CAN bus-equipped models.
For OEM connectors, crimp terminals using a ratcheting crimper rated for 16-14 AWG wire–standard automotive-grade butt connectors (solderless) suffice for repairs, but marine-grade heat-shrink terminals with adhesive lining prevent corrosion in high-moisture environments. Secure all splices with dielectric grease before insulating to block oxidation. Always route auxiliary power cables (pin 6) through a dedicated relay if exceeding 20A draw to prevent voltage drop.
Reverse light circuits (pin 7) require activation only during backward motion, ensuring compatibility with automatic transmission interlocks. Test this function by engaging the vehicle’s reverse gear–voltage should spike to 12V exclusively in this state. Deviations indicate miswiring or a faulty transmission switch, which may disable other critical systems if unaddressed.
Ground integrity underpins all functions; attach the white conductor (pin 1) to a bare metal chassis point, avoiding painted surfaces or rusted sections. Sand the attachment area to expose clean steel, then fasten with a stainless-steel bolt and star washer. In aluminum-bodied vehicles, use a factory-provided ground stud or a dedicated bonding kit to prevent galvanic corrosion.
Before finalizing, conduct a load test: connect a lightweight camper or utility module and monitor voltage drop at each pin under full current draw (e.g., brake lights + turn signals + clearance lamps simultaneously). Voltage loss exceeding 0.5V signals inadequate conductor gauge, loose connections, or corroded terminals–replace suspect wiring with 12 AWG tinned copper cable rated for at least 30A service.
Understanding Connection Points in Vehicle Electrical Adapters
Start by locating the center post–the largest cavity in the round connector. This is your primary ground terminal, often labeled as “31” in European schematics or “G” in North American layouts. Verify its function with a multimeter: probe the pin while testing against the vehicle’s chassis–resistance should read near zero ohms. A poorly secured ground causes intermittent failures in all other circuits, so ensure the stud has clean threads and a tight connection to the vehicle frame or tow hitch.
Examine the remaining six terminals using a labeled pinout chart specific to your vehicle’s make and model. The left and right turn/stop lamps occupy two dedicated slots, typically positioned at 9 and 3 o’clock orientations. Test these by activating the brake pedal or turn signals while observing voltage: expect 12V DC pulses. If voltage drops below 11.5V under load, inspect for corroded sockets or undersized wiring gauge–minimum 14 AWG is recommended for 10-amp circuits.
Critical Circuits and Their Behavior
- Auxiliary power (often at 12 o’clock): supplies constant 12V for accessories like interior lights or battery chargers. Confirm voltage doesn’t sag below 12.2V when under a 5-amp load–sags indicate a weak alternator or degraded wire connections.
- Reverse lamps: found adjacent to the turn signals, this single terminal delivers 12V only when the vehicle is in reverse. Use a non-conductive probe to check for short circuits before connecting a fixture–reverse circuits can source up to 8 amps.
- Electric brakes: usually located opposite the primary ground, this channel carries modulated voltage (0-12V) during braking. Test with a brake controller simulator or monitor with an oscilloscope for a clean PWM signal–spikes above 13.5V suggest controller failure.
Label each terminal with heat-shrink tubing or adhesive markers immediately after verification. Use color-coding consistent with SAE J560 standards: white for ground, brown for tail lamps, yellow for left turn/stop, green for right turn/stop, blue for electric brakes, red for auxiliary, and purple for reverse. Cross-reference these colors with your adapter’s documentation–mismatches between vehicle and towed equipment schematics are a leading cause of blown fuses or fire hazards.
For troubleshooting, use a circuit tester with a 10-amp fuse in series to avoid damaging sensitive electronics. Prioritize testing under load conditions: connect a 25-watt bulb to each output and observe for flickering or overheating–sustained dimming indicates voltage drop in the harness or corroded terminals. Replace any connector housing showing green oxidation or pitted contacts; brass terminals treated with dielectric grease resist corrosion for 3-5 years under normal use.
Step-by-Step Connection Guide for Each Connector Hue
Begin by securing the white (ground) lead to the vehicle’s chassis–use a dedicated mounting point free from paint, rust, or debris. Crimp a 12-gauge ring terminal to the bare end and bolt it down with a stainless-steel fastener; torque to 10-12 inch-pounds. Route the remaining strands in a protected loom away from sharp edges, heat sources, or moving parts. Verify continuity with a multimeter before proceeding.
| Color | Function | Terminal Assignment | Gauge & Tool | Verification Tip |
|---|---|---|---|---|
| Yellow | Left turn/brake | Pin 1 (center) | 14 AWG; ratcheting crimper | Flash left signal; meter should read ~12.4V pulsed |
| Green | Right turn/brake | Pin 4 (right) | 14 AWG; F-crimp | Flash right signal; meter pulse confirms >10V |
| Brown | Marker lights | Pin 3 (upper-left) | 16 AWG; heat-shrink splice | Toggle running lamps; verify steady ~13.2V |
| Blue | Electric brakes | Pin 5 (lower-right) | 12 AWG; butt connector | Apply brake controller pedal; meter spikes 0-12V |
| Black | Auxiliary power | Pin 2 (upper-right) | 12 AWG; fused link | Accessory on; meter reads battery voltage (±0.3V) |
Strip each conductor to 5/16″, twist tightly, then secure with matching crimp connectors; solder joints only if environmental exposure exceeds 150°F. For the blue circuit, install an inline 30-amp fuse within 7″ of the battery terminal. On the towing apparatus, daisy-chain brown strands to all clearance, side-marker, and license plate lamps using waterproof Posi-Taps. After mating all connections, cycle every lamp set and brake actuator three times–momentary voltage drops below 10V indicate loose or corroded joints requiring immediate rework.
Common Pitfalls in Vehicle Connector Installation and Solutions
Incorrect pin assignments cause the most frequent issues, yet they’re easily prevented. Use a multimeter to verify voltage on each terminal before connecting cables. The standard configuration for heavy-duty connectors includes pin 1 (yellow) for left turn/brake, pin 4 (brown) for tail lamps, and pin 7 (white) as ground–reversing these leads to malfunctions or safety hazards. Label each wire during disassembly to eliminate guesswork during reassembly, especially in older setups where factory markings may fade.
Skipping corrosion protection guarantees premature failure, particularly in wet climates. Apply dielectric grease to each contact after cleaning terminals with a wire brush. Avoid petroleum-based products; they degrade rubber seals over time. For coastal areas, use marine-grade connectors or add sacrificial anodes to the setup to combat saltwater exposure. Check ground connections–bolted directly to the frame–and ensure they’re bare metal, not painted or rusted.
- Using undersized cables for high-demand circuits (e.g., auxiliary power) causes voltage drops, overheating, and potential fires. For 30-amp circuits, use 10 AWG copper wire; 50-amp circuits require 8 AWG. Measure resistance between the connector and the battery–values above 0.5 ohms indicate excessive resistance.
- Neglecting strain relief leads to wire fatigue at connection points. Secure cables with zip ties every 6 inches along the harness and use grommets when routing through metal chassis holes. Avoid sharp edges–wrap exposed sections with split tubing or loom.
- Mixing OEM and aftermarket components without verification creates compatibility issues. Some European-style connectors reverse pin 2 (blue) and pin 5 (green), while North American standards separate them. Always cross-reference the manual with a pinout chart before splicing.
Diagnosing Hidden Faults
Intermittent failures often trace to loose set screws in terminal blocks. Tighten each screw to 4-6 in-lbs; overtightening strips threads or cracks plastic housings. For modular designs, press connectors fully until they click–partial engagement is a common oversight. Test with a load (e.g., trailer lights) before finalizing; many faults appear only under current draw.
Ignoring the vehicle’s fuse box during installation risks overloading circuits. Locate the auxiliary fuse–typically 20-30 amps–and verify it matches the harness rating. For modular harnesses, add an inline fuse within 7 inches of the battery to protect against short circuits. Use a slow-blow fuse for motorized accessories like winches or refrigerators to handle inrush current.
- Document every step with photos or diagrams–color-coding alone isn’t reliable, as manufacturers use inconsistent standards (e.g., “red” may denote brake or battery lines).
- Inspect for chafing after 500 miles of use; vibration loosens clamps and abrades insulation. Replace any compromised sections immediately.
- For vehicles with ABS or brake controllers, verify CAN bus compatibility–incorrect voltage on pin 6 (blue) disrupts systems. Use an oscilloscope to check signal integrity if errors persist.
