Start by verifying pin assignments before making any connections–standard configurations vary by region. In North America, pin 1 (left white) serves as the ground, while pins 2 (yellow) and 5 (green) handle left and right turn signals, respectively. Pin 3 (brown) manages tail lights, pin 4 (red) powers brakes, pin 6 (blue) controls auxiliary functions like electric brakes or reverse lights, and pin 7 (black) supplies 12V power for accessories. European layouts differ, often swapping pin 2 and 5 functions. Use a multimeter to confirm voltages–ground should read 0V, while active pins should show ~12V.
Select the correct gauge wire for the load: 12 AWG for lighting circuits, 10 AWG for brake controllers, and 8 AWG for high-draw accessories like winches. Twisted pair wiring minimizes interference for signal circuits, while shielded cable is unnecessary unless running near high-RFI environments, such as near diesel engines. Secure connections with marine-grade heat-shrink butt connectors–avoid wire nuts or electrical tape, as vibration loosens them over time. Apply dielectric grease to connectors to prevent corrosion.
Route wires through a dedicated 7-way connector back shell whenever possible. If splicing into an existing system, tap into the tow vehicle’s fuse box using an add-a-circuit adapter–never directly to a hot wire. For brake controllers, connect to the brake switch output rather than the battery to ensure synchronization with pedal activation. Test each function systematically: activate turn signals, brake lights, and reverse lights one at a time, then combine inputs (e.g., left turn + brake) to confirm proper isolation. If lights flicker or dim, check ground integrity first–corroded or undersized grounds are the most common failure point.
For auxiliary circuits (e.g., refrigerators, hydraulic pumps), use a separate relay triggered by the 12V accessory pin. Calculate total amperage draw–most 7-pin connectors are rated for 40A continuous, but exceeding 25A risks overheating. Install a circuit breaker within 7 inches of the battery for primary power feeds, and use a fuse for each individual accessory circuit. If integrating a newer LED trailer with an older tow vehicle, add load resistors (~6Ω, 50W) to prevent hyperflashing due to insufficient load on the turn signal circuit.
7-Pin Trailer Connection: Field-Tested Installation Steps
Start by matching each terminal to its correct function before securing any connectors. Pin 1 (yellow) carries the left turn signal and brake light–test this first with a multimeter set to 12V DC. If voltage drops below 11.8V under load, replace the fuse or check trailer-side ground integrity. The ground pin (white) must connect directly to the chassis with a minimum #10 AWG wire; bypassing this step risks intermittent failures, especially in wet conditions.
Use heat-shrink tubing over soldered joints instead of electrical tape. Standard tape degrades after 30-40 washes, exposing copper to corrosion. For the 12V auxiliary pin (black), route through a dedicated relay if the circuit exceeds 15A; factory tow packages often lack sufficient amperage for cargo lights or winches. Verify trailer-side connectors with a circuit tester–most aftermarket plugs reverse pins 4 (right turn/brake) and 5 (tail/marker lights) compared to OEM standards.
For heavy trailers, replace the factory 4-pin connector with a 7-way modular socket. Install the new socket 18-24 inches above the hitch to avoid road debris damage. Pin 6 (blue) is reserved for electric brakes: ensure continuity with the brake controller by adjusting the gain to 60-70% during initial setup, then fine-tune while driving at 25 mph. A loose connection here can burn the controller’s microchip within 40 miles.
Label each wire with its function before stripping. The most common error is swapping the reverse light (pin 7, green) with the tail light (pin 5, brown). This triggers incorrect brake light activation or disables the backup camera. Use a wiring harness with built-in diode protection if towing dual-axle trailers–standard harnesses lack the capacity for 30+ LED loads, causing voltage spikes that fry trailer-side modules.
Secure all connections with dielectric grease, especially the ground terminal. Even a 0.5-ohm resistance here can dim trailer lights by 30% at 65 mph. For vehicles with factory trailer prep, splice into the OEM wires rather than using a T-connector; the latter can introduce signal latency, delaying brake engagement by up to 200 milliseconds. Test all functions with the trailer attached–loose couplings or corroded pins often pass bench tests but fail under load.
Replace the entire pigtail assembly if any pin shows discoloration. Copper alloys oxidize at 0.18 inches per year, reducing current flow by 12% annually. For diesel trucks, route the auxiliary circuit through a 30A breaker; alternator surges can exceed 18V during engine braking, destroying trailer electronics. Always store the trailer plug in a sealed bag when not in use–dust and moisture infiltration corrode contacts within 6-8 months.

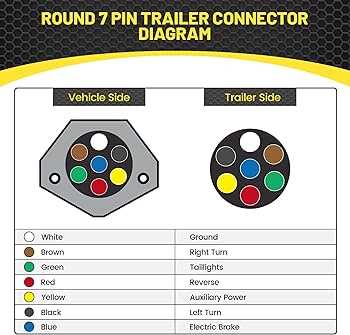

Identifying the Correct Leads in a 7-Way Trailer Connector
Start by locating the central pin–this is the 12V auxiliary power feed, typically yellow or red. Use a multimeter set to DC voltage (20V range) to confirm: with the vehicle ignition on, probe the pin and the ground (white lead). A reading near 12 volts verifies the circuit. If absent, check the fuse block or relay near the tow package control module, usually labeled “trailer” or “aux power.”

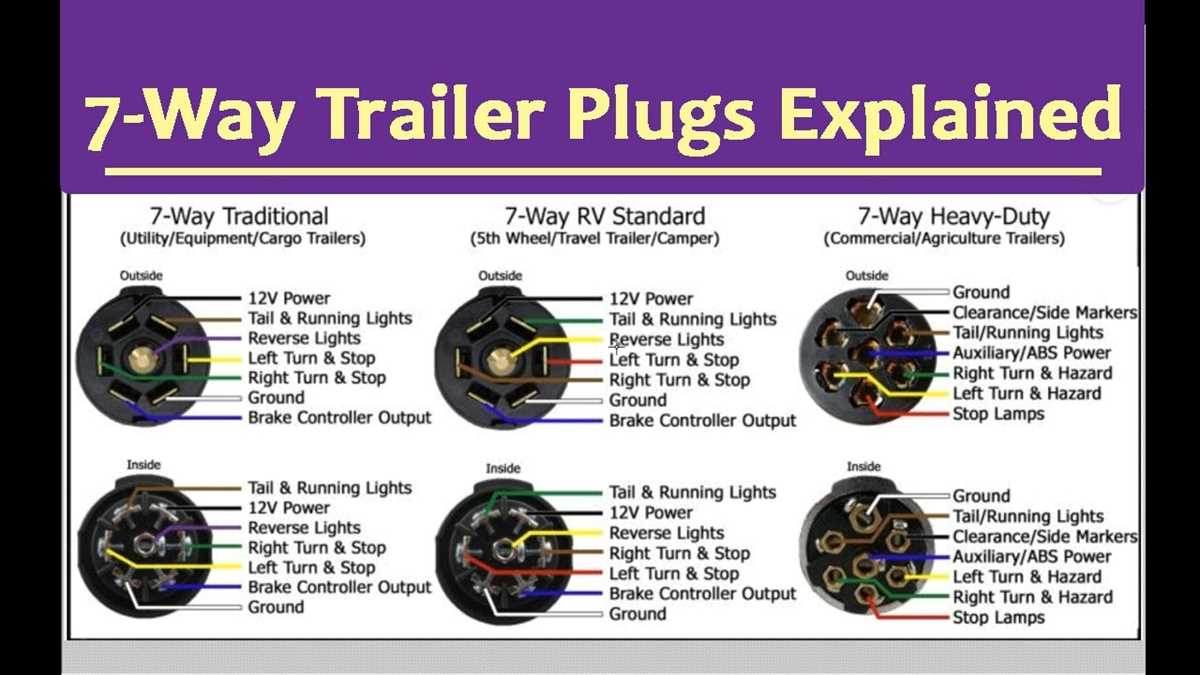

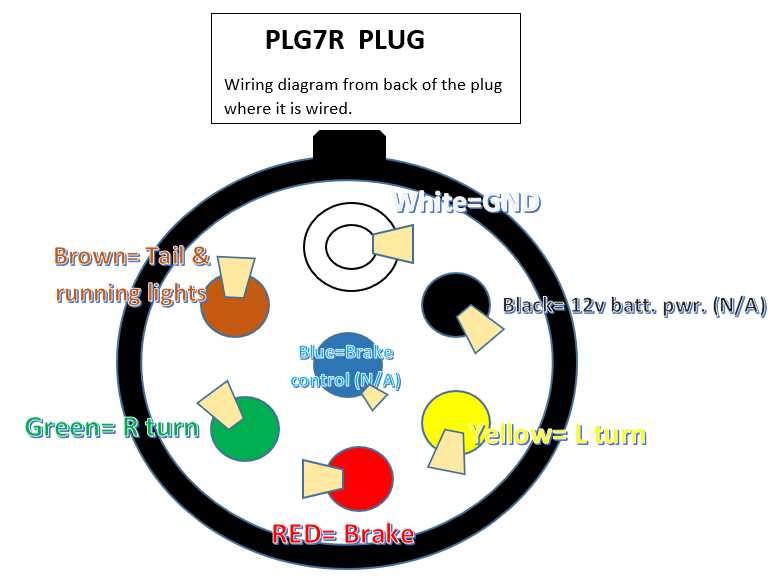

Matching Pin Functions to Wire Colors
Standard color codes vary by manufacturer, but common patterns exist:
- White: Ground (mandatory for all circuits).
- Brown: Running lights (check by activating clearance/brake lights).
- Green: Right turn/brake (test with turn signal).
- Yellow: Left turn/brake (test identically to green).
- Blue: Electric brake output (requires a brake controller; trace to the controller’s output terminal).
- Black: Battery charge (12V hot at all times; fuse directly from the battery).
Deviations occur in European or aftermarket adapters–always cross-reference with the vehicle’s OEM harness guide.
For unknown connectors, split the housing with a small flathead to expose individual lead sleeves. Strip 2mm of insulation from each and use a continuity tester across all seven contacts while toggling each light function (turn signals, brakes, aux). The meter beep indicates the correct pairing. Label each sleeve with masking tape before reassembly. Avoid guessing–incorrect connections risk frying the trailer’s lighting or onboard computers.
Step-by-Step Installation Guide for 7-Pin Recreational Vehicle Plug
Begin by securing the tow vehicle’s electrical harness and the trailer’s matching port. Identify each of the seven circuits by color and function: white (ground), brown (running lights), yellow (left turn/brake), green (right turn/brake), blue (auxiliary/electric brakes), black (12V power), and red (reverse lights if equipped). Use a multimeter to verify continuity between the harness terminals and the corresponding trailer fixtures–readings should show near 0 ohms for intact connections. Skip this step, and risk intermittent failures under load.
Strip 1/4 inch of insulation from each wire end, then twist strands tightly to prevent fraying. Crimp the correct spade or ring terminals using a ratcheting crimper–non-ratcheting tools can loosen under vibration. For trailer-side connections, solder joints offer superior durability; apply heat-shrink tubing immediately after soldering to seal against moisture. Secure terminals inside the plug housing with the provided screws or clamps–misaligned contacts lead to short circuits or overheating.
Testing and Troubleshooting
- Connect the plug to the tow vehicle’s socket and activate each circuit in sequence. Running lights should illuminate first, followed by turn signals (verify both sides flash at 60-120 pulses per minute), brake lights, and auxiliary functions. Listen for the electric brake actuator’s click–absence indicates a faulty blue wire connection.
- Check voltage at the 12V power terminal (black wire) with a loaded circuit; readings below 11V suggest corroded contacts or insufficient alternator output. Measure ground integrity by touching the multimeter probe between the white wire terminal and bare chassis–readings above 0.5 ohms require cleaning oxidation with a wire brush.
- Test reverse lights (red wire) by shifting the transmission into reverse–bulbs should glow steadily. If using a tow vehicle with a separate backup alarm, ensure the red wire carries only 12V in reverse, not constant power.
Apply dielectric grease to the plug’s internal terminals before final assembly to repel water and inhibit corrosion. Snap the housing together firmly–loose clips can admit road spray. For trailers exceeding 7,500 lbs, install a separate brake controller relay if the blue wire’s amperage draw surpasses 20A; omit this step only for lightweight pop-up campers. Recheck all functions after 50 miles of towing–thermal cycling often reveals weak joints not evident initially.
Common Mistakes When Connecting a 7-Way Trailer Harness
Reverse the ground and running light terminals during installation, and the trailer’s brake lights will illuminate simultaneously with the headlights–creating a dangerous false signal for drivers behind. Ground wires must terminate directly to the vehicle’s chassis, not to a painted or coated surface, or corrosion will form within weeks, causing intermittent failures. Check resistance with a multimeter before connecting; values above 5 ohms indicate a weak ground that will overheat under load. Route auxiliary circuits (like reverse lights or a trailer-mounted battery charger) through relays if the wire gauge is thinner than 12 AWG to prevent voltage drop under heavy use.
Overlooked Issues That Cause Immediate Failures
- Using dielectric grease on socket contacts but not on the plug pins–oxidation occurs on unprotected metal within months.
- Failing to secure the harness with zip ties every 18 inches; vibration loosens connections, especially near the hitch, where movement is greatest.
- Connecting the brake controller directly to the battery without a fuse within 7 inches–short circuits melt wires before the circuit breaker trips.
- Ignoring color-code mismatches between American and European trailers; verify functions with a test light before towing.
- Leaving exposed wires unsealed after cutting–use heat-shrink tubing rated for at least 125°C to prevent insulation breakdown from engine heat.
Test all circuits with a load tool before each trip; a single blown fuse in a combined circuit (e.g., turn and brake lights) can disable safety features without obvious signs.
