Start by matching the color codes strictly–brown for tail markers, yellow for left turn, green for right signals, white as ground. Verify voltage between ground and each contact with a multimeter: 12V for auxiliaries, 9-12V pulsed for stop lights. Reverse polarity will burn out LEDs instantly.
Use 16-gauge stranded copper wire for circuits under 10A, 14-gauge for brakes and charging. Crimp connectors must be sealed with adhesive-lined heat shrink tubing. Soldering adds durability but can melt insulation if overheated. Avoid twist-and-tape splices–vibration loosens them over time.
Test continuity before attaching the housing. Apply dielectric grease inside the plug to prevent corrosion. If current drops below 8V during a brake test, inspect for loose connections or undersized wires. Replace the entire assembly if any contact shows pitting.
Label wires at both ends. Miswiring the blue circuit (electric brakes) by even a single position causes uncontrolled braking. Double-check with the manufacturer’s reference sheet–colors sometimes deviate between Japanese and European standards.
Understanding the 7-Circuit Towing Connector Layout
Begin by verifying the connector’s color-coding matches the standard: yellow for left turn/brake, green for right, brown for tail lamps, white for ground, blue for brake controller output, black for battery feed, and red for auxiliary power. Mismatches often cause intermittent failures–test each circuit with a multimeter before installation.
For heavy-duty applications, substitute 18-gauge wires with 14-gauge to prevent voltage drop over distances exceeding 15 feet. Stress points–where the harness exits the vehicle or bends sharply–require abrasion-resistant sleeves; neglect here leads to exposed conductors within 12-18 months.
Install a weatherproof junction box between the tow vehicle and cargo carrier if splicing becomes unavoidable. Use crimp connectors filled with dielectric grease instead of solder; cold climates cause solder joints to fracture under vibration.
Ground the white conductor directly to the vehicle’s chassis frame–not to a painted surface. A single oxidation layer between metal contacts reduces current capacity by 30%, causing erratic lamp behavior. Clean contact surfaces with a wire brush and apply conductive paste annually.
Brake controller circuits (blue) must engage the cargo carrier’s electric brakes before the tow vehicle’s brakes activate. Calibrate delay settings via the controller’s manual; incorrect timing increases stopping distances by up to 40%.
Auxiliary power circuits (black/red) should pass through a 30-amp breaker to prevent overloads. Connect battery feeds only after verifying the circuit’s voltage remains stable under load–fluctuations above 14.5V damage LED cargo lights permanently.
Periodic maintenance includes probing connector terminals with a non-conductive tool to check for internal corrosion. Replace any housing showing greenish deposits; corrosion spreads across circuits within weeks, leading to irreparable failure.

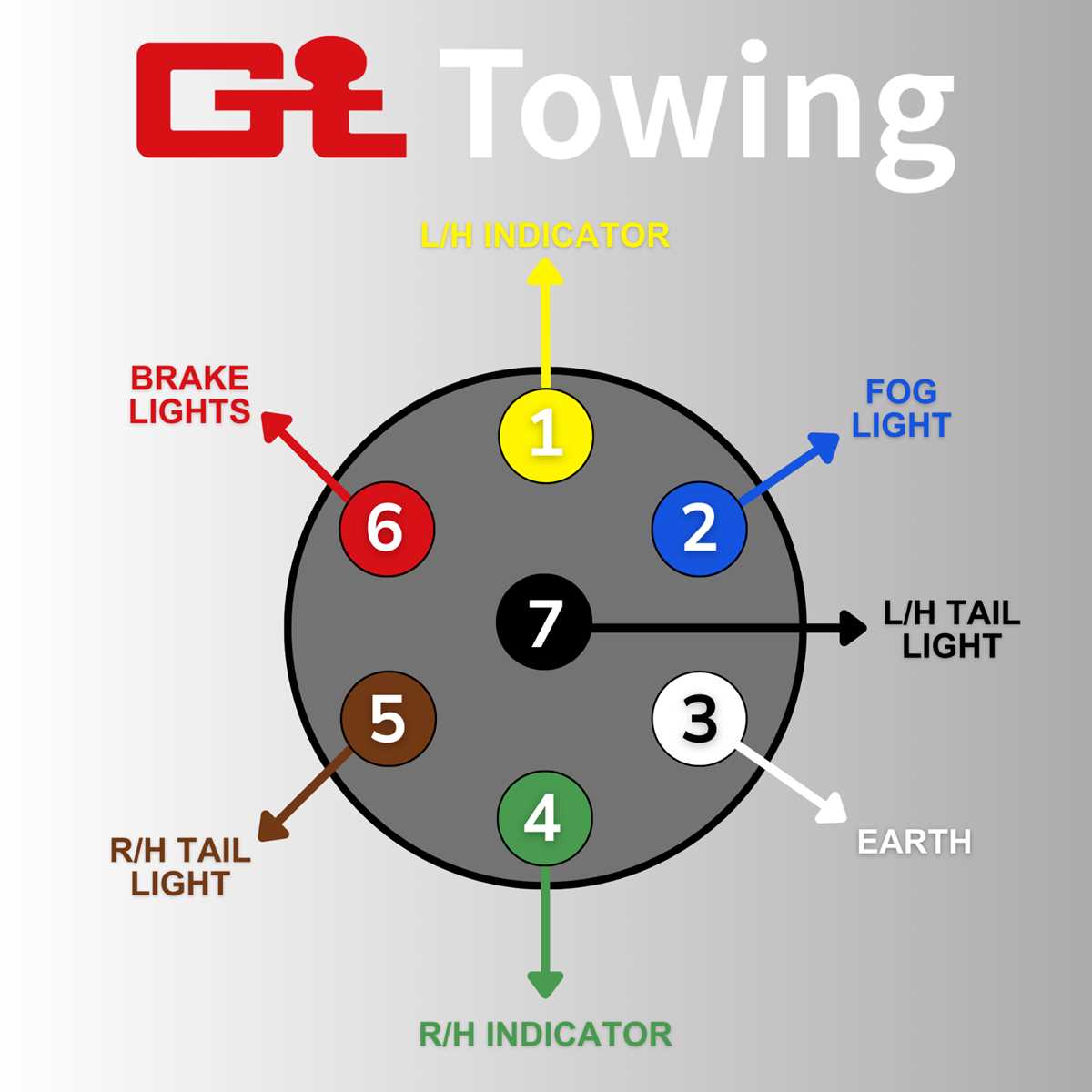

How to Identify Each Connector in a 7-Way Circular Vehicle Socket
Start by examining the color coding–this is the quickest method for most harnesses. The standardized sequence typically follows: white (ground), brown (running lights), yellow (left turn/brake), green (right turn/brake), blue (auxiliary power), red (battery charge), and black (12V power or reverse lights). Variations exist, so cross-reference with the owner’s manual if available.
Use a multimeter set to continuity or voltage mode to verify each terminal’s function. Touch the probe to the socket’s metal contact while activating the corresponding vehicle function (e.g., turn signal or brakes). A reading confirms the connection, eliminating guesswork.
Label each lead with masking tape or wire markers before disconnecting anything. Even momentary confusion can lead to reversed circuits, risking blown fuses or electrical damage. Include the color and confirmed function on each label to streamline reinstallation.
Ground (white) is non-negotiable–ensure it’s properly secured to a clean, bare-metal surface on the tow vehicle. A faulty ground causes intermittent failures across all other circuits, often mimicking more complex issues.
For the blue auxiliary circuit, check if it’s active only when the ignition is on. Some systems disable it to prevent parasitic drain. If unused, tape the lead to prevent shorting against the frame.
Reverse the multimeter probes if readings seem inverted. Polarity-sensitive connectors (like red for charging) may show negativo values if tested backward. Compare findings to the vehicle’s fuse box diagram–some models split functions across multiple relays.
Inspect the socket housing for burn marks or corrosion. A single compromised terminal can disrupt multiple circuits, especially in high-current paths like the black lead. Clean contacts with a wire brush and dielectric grease to restore conductivity.
When reconnecting, match each label to the new socket’s layout. Even minor positional differences between manufacturers can swap critical functions–double-check against the multimeter before final tightening.
Step-by-Step Installation for 7-Way Circular Vehicle Connectors
Begin by verifying the voltage of your tow vehicle’s electrical system–most operate at 12V, but confirm with a multimeter. Disconnect the battery negative terminal to prevent shorts during installation. Gather these tools: wire strippers, crimping pliers, heat shrink tubing, a soldering iron (optional for durable joints), electrical tape, and a 7-way circular socket with matching plug.

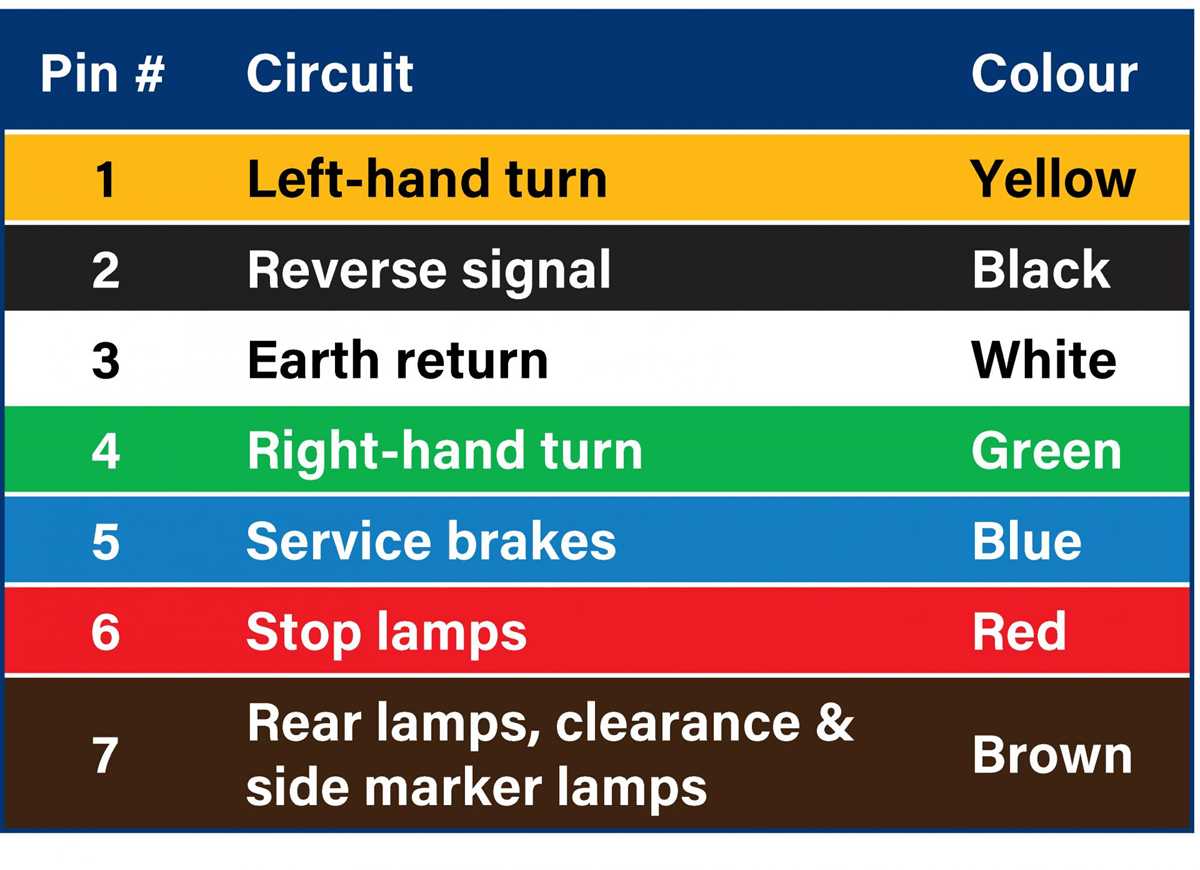

Identify the color-coded wires on the socket’s rear. Standard assignments are:
- White: Ground (attach to chassis or dedicated return path)
- Brown: Tail and marker lights
- Yellow: Left turn/brake signal
- Green: Right turn/brake signal
- Blue: Auxiliary/electrical brake control
- Red: 12V power (for winches or interior lights)
- Black: Backup lights
Strip 5mm of insulation from each wire on both the socket and vehicle harness ends. For secure connections, use crimp connectors or solder joints followed by heat shrink tubing. Avoid twisting wires alone–corrosion or vibration will degrade the connection. If soldering, apply flux to the strands before heating to ensure a solid bond.
Mount the socket bracket to a clean, flat surface on the tow vehicle’s rear, preferably near the existing light cluster. Drill pilot holes if needed, ensuring no wires or brake lines lie behind the mounting location. Secure the bracket tightly; loose hardware can misalign contacts over time.
Route wires along the vehicle’s frame or existing loom to the light cluster or fuse box. Use split loom tubing or spiral wrap to protect wires from chafing against metal edges. Maintain at least 5cm of slack at bends–stretched wires risk breaking under motion. For 12V power (red) and brake control (blue), connect to fused circuits; 30A for high-draw devices like winches, 10A for standard loads.
Attach the white ground wire to a bare metal surface free of paint or rust. Scrape off any coating with sandpaper or a wire brush. For vehicles with aluminum frames, use a self-tapping screw and star washer to create a reliable path. Poor grounding causes intermittent lighting failures–test continuity with a multimeter after installation.
Reconnect the battery negative terminal, then test each function: turn signals, brakes, tail lights, and auxiliary circuits. Use a test light or helper to verify proper operation. Check for voltage drop–excessive resistance (>0.5V) indicates a faulty joint. Seal the socket’s rear with dielectric grease to prevent moisture entry, then snap on the protective cover.
Common Mistakes When Installing a 7-Way Circular Connector System
Avoid crimping terminals directly onto insulation–strip at least 5–7 mm of coating and twist strands before securing to prevent corrosion or intermittent contacts. Many installers skip this step, assuming factory pre-stripped wires suffice, but road vibrations loosen poorly crimped joints within weeks.
Misaligning color codes is a frequent error; merge connector charts from the tow vehicle manual with the adapter kit instructions before starting. A single swapped circuit–like combining left brake and auxiliary power–can disable safety chains or reverse polarity, frying LED modules.
Using undersized gauge wires causes voltage drop over distances exceeding 4 meters. For heavy loads (e.g., winches or refrigeration units), upgrade to 12 AWG minimum; 16 AWG suffices only for tail lamps. Verify wire diameter with calipers–many generic harnesses bundle thinner conductors than labeled.
Neglecting heat shielding invites meltdowns under engine compartments. Route cables away from exhaust manifolds and secure with nylon clamps every 30 cm. Silicone tubing adds thermal protection where space constraints force proximity to hot surfaces.
Corrosion Prevention Essentials
| Material | Application Method | Durability |
|---|---|---|
| Dielectric grease | Thin coat on terminals pre-assembly | 12–18 months |
| Marine-grade shrink tubing | Heat-shrink over joints post-crimp | 3–5 years |
| Zinc spray | Apply to bare steel housings | 2–3 years |
Overloading the auxiliary circuit by connecting multiple high-draw devices draws excess current through the converter’s internal relay, causing overheating. Calculate total amperage–add a standalone relay if exceeding 15A, triggered by the original harness’ signal line.
Ignoring ground integrity leads to erratic lighting. Dedicate a chassis ground point with a star washer, avoiding shared bolts with painted or rusted surfaces. For aluminum tow arms, use a self-tapping screw with anti-seize compound; steel surfaces require a zinc-plated fastener.
Load Distribution Across Circuits
Distribute loads evenly–combining marker lamps and backup sensors on the same feed risks flickering under voltage fluctuations. Dedicate separate circuits for continuous (refrigerator) versus intermittent (winch) loads, and fuse each at 125% of expected current.
