To prevent cold-start misfires in compression-ignition engines, ensure the pre-heater activation control unit is powered by a dedicated 40A fuse linked directly to the battery’s positive terminal. Bypass the ignition switch during initial energizing–this isolates the circuit from voltage drops during cranks, preserving consistent resistive element performance.
Locate the switching module near the engine block–proximity reduces resistive loss in heavy-gauge cables. Route the high-current output through 6-gauge wire, terminating at the intake-mounted heating units. Ground the module’s chassis to the engine’s common grounding point, avoiding shared paths with inductive loads (fuel pumps, solenoids) to prevent transient interference.
Integrate a 1KΩ pull-down resistor across the control input to maintain a defined off-state when no trigger signal is present. This prevents erratic activation during ignition-off scenarios, particularly in vehicles with intermittent parasitic draws. Test continuity at each connection point with a milli-ohm meter–resistance exceeding 0.1Ω indicates corrosion or inadequate crimping, necessitating replacement.
For temperature-sensitive applications, splice a NTC thermistor (10KΩ @ 25°C) into the return path. This modulates the control signal based on ambient conditions, reducing unnecessary heating cycles at higher temperatures. Verify the thermistor’s response curve against manufacturer specifications–deviations above 5% require recalibration or replacement.
When securing relay contacts under load, use crimp sleeves with heat-shrink insulation rated for 125°C. Avoid solder-only connections; thermal cycling leads to brittle joints and eventual failure. Inspect the entire current path for abrasions–even minor insulation breaches can arc under 12V systems, compromising adjacent components.
Preheating System Control Circuit: Full Schematic Breakdown
Start by locating the starter control module in the engine bay–typically mounted near the battery or fender. Identify pin #86 on the solenoid switch, which supplies 12V during cranking cycles. Connect this directly to the ignition feed wire (red with blue stripe in most diesel setups) using a 16-gauge heat-resistant cable, ensuring a secure crimp connection with adhesive-lined shrink tubing. Avoid tapping into the starter motor circuit itself, as voltage drops under load can cause intermittent activation failures.
For the ground circuit, route a dedicated 12-gauge wire from pin #85 to the chassis via a self-tapping bolt near the engine block. Clean the contact surface thoroughly with a wire brush and apply dielectric grease to prevent corrosion. Never ground through painted or coated metal; even high-quality paint creates resistance that increases with engine vibration. Test continuity with a multimeter–readings above 0.2 ohms indicate a poor connection requiring rework.
Component-Specific Wiring Specifications
- Resistance heaters: Use 14-gauge wire rated for 15A continuous current; standard copper-core cables will overheat under prolonged preheating cycles. Solder all joints and insulate with high-temperature silicone tape (not electrical tape, which melts at 130°C).
- Temperature sensor: Connect the NTC thermistor to the ECU via a shielded twisted pair–ground one conductor at the sensor body to reduce EMI interference from fuel injectors. Use a 1K-ohm pull-up resistor on the signal wire to prevent floating voltage issues.
- Fuse selection: Install a 20A slow-blow fuse within 150mm of the battery positive terminal. Fast-acting fuses trip during inrush current (typically 40-60A for 3-4 seconds during cold starts), leading to false failures.
When integrating with modern engine management, splice the preheater control wire (pin #30) into the auxiliary output of the ECU–but only after verifying the output can supply 5A without triggering error codes. Older ECUs may require a relay bypass diode (1N4007) across the coil to suppress voltage spikes. For aftermarket tuners, note that some “cold start” maps disable heater cycles above 10°C ambient; adjust the temperature threshold via software or install a standalone timer module.
- Disconnect battery negative terminal before working.
- Label all wires at both ends with heat-shrink tags (e.g., “Heater +12V,” “ECU SIG”).
- Route wires through existing harness grommets; never drill new holes in the firewall.
- Check voltage drop across all terminals–any reading above 0.5V under load indicates excessive resistance.
- Cycle the ignition 10 times after completion to verify no warning lights appear on the dashboard.
For vehicles with block heaters, run a separate 10-gauge wire directly to a switched power source; combining circuits overloads the relay contacts (rated for 30A) and causes premature failure. Always use silver-plated contacts on high-current connections–they resist oxidation 5-7 times longer than tin-plated terminals. Keep wire runs away from exhaust manifolds and turbochargers; sustained temperatures above 180°C degrade insulation and increase short-circuit risk.
How to Find the Pre-Heating Control Unit in Your Diesel Engine

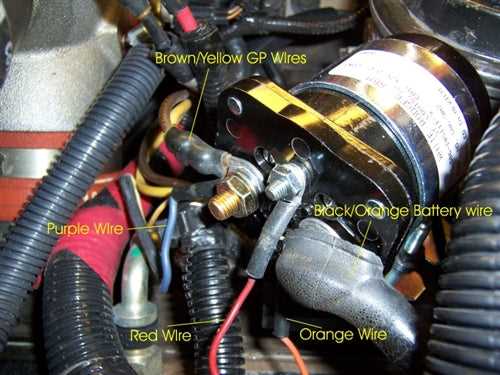

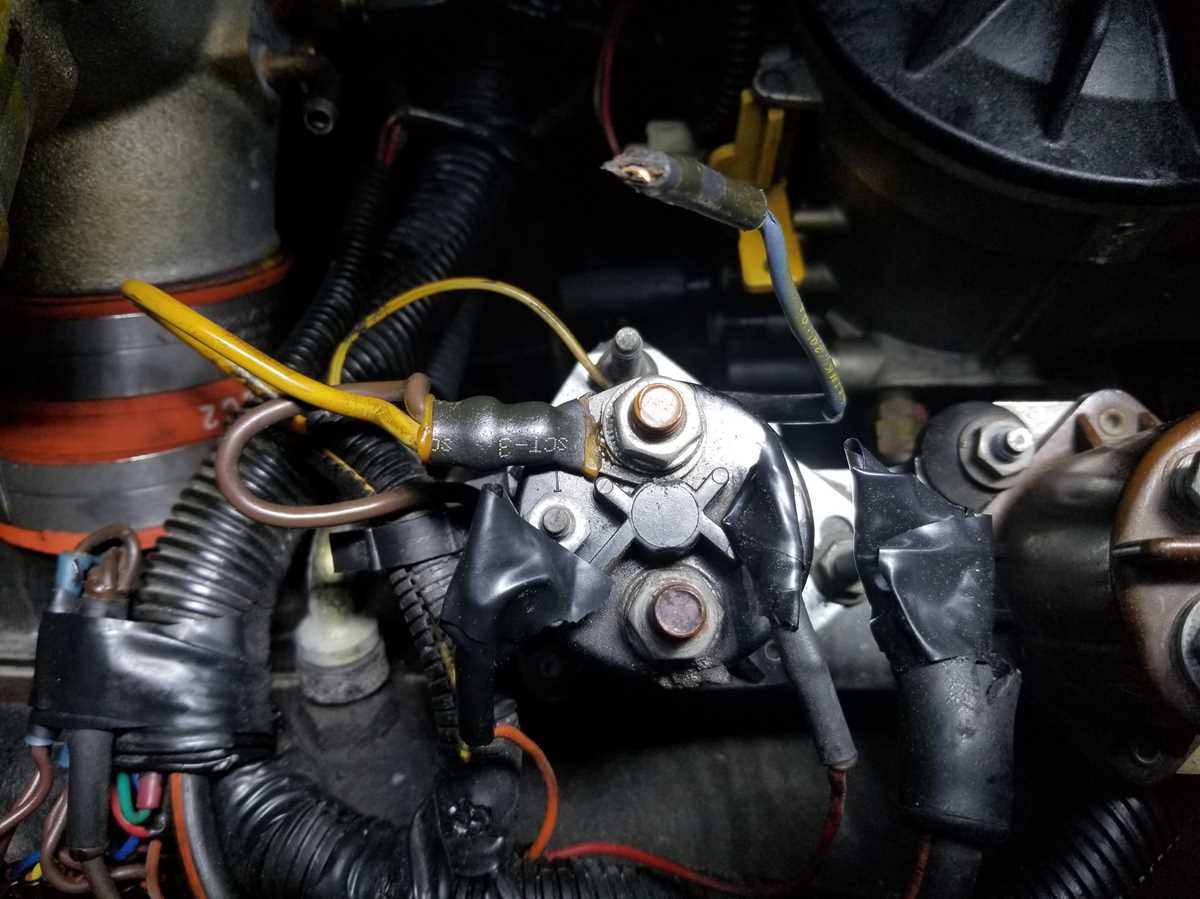

Start with the driver-side firewall near the battery tray, where the heating element switch is typically mounted. For Ford Power Stroke engines built from 1994–2003, the component sits in a rectangular black housing secured by two bolts. Use a 10mm socket to remove the cover–avoid forcing clips, as they snap easily under pressure. Beneath the lid, the unit’s four electrical contacts and heavy-gauge feed wires confirm its location. If the switch isn’t here, check under the dashboard directly behind the instrument cluster, though this is rare for this model range.
- Open the hood and locate the battery–the switch will be within 30 cm of its positive terminal.
- Look for a thick red wire (usually 8–10 AWG) leading into the housing; this carries primary current.
- Note any adjacent sensors or fuses, as these often share a wiring harness and can help verify placement.
Troubleshooting Hidden Locations
If the switch isn’t visible, trace the intake manifold’s electrical loom toward the engine block. The unit sometimes hides behind the high-pressure oil pump on earlier models, requiring removal of the coolant reservoir for access. On later vehicles, manufacturers occasionally relocated it near the alternator, so inspect the front engine bay thoroughly. Use a multimeter to test for continuity at the feed wire–absence of voltage suggests the switch is disconnected or installed elsewhere. Keep a flashlight handy; engine compartments cast deep shadows that obscure small components.
Precise Installation Sequence for Preheating System Control Unit
Locate the 12V ignition-switched feed–typically a yellow or red wire on fuse block terminal C3 or adjacent instrument cluster connector. Strip 8mm of insulation, then crimp a female spade terminal rated for 20A; secure to the control module’s “ignition input” port labeled IGN or SW. Verify voltage presence with a multimeter set to DC during key-on engine-off state–readings should stabilize between 11.8V and 13.2V to prevent false activation cycles.
Route the primary output cable–thick-gauge orange or purple–to each cylinder’s heating element connector sequentially, starting with the furthest injector harness; splice using solder-seal connectors withstanding 250°C intermittent exposure, ensuring each joint is insulated with heat-shrink tubing double-walled for submersion resistance. Ground the module’s black wire directly to chassis via a dedicated M8 bolt near the valve cover, cleaning contact surfaces with a wire brush and applying dielectric grease to prevent corrosion-induced voltage drop exceeding 0.2V under load.
Locating Damaged Conductors in Pre-Heating System Control Pathways
Start by examining the thick cable connecting the power source to the control module’s input terminal–this is typically a 4-6 AWG strand with crimped ring connectors. Use a multimeter set to continuity mode to verify zero resistance between the battery positive and the module’s input stud. If readings exceed 0.5 ohms, inspect the crimp joint for oxidation or mechanical failure; corroded terminals often appear dull gray or green rather than bright metal.
Focus on the thin signal leads between the module and the engine control unit–particularly the 18-20 AWG wires handling activation commands. Probe these strands at both ends while cycling the ignition; any voltage drop below 11.5V suggests internal breakage, common in areas near sharp bends or where wires pass through bulkhead grommets. Replace segments showing insulation cracks or exposed copper immediately.
| Fault Location | Symptom | Diagnostic Method |
|---|---|---|
| Power feed crimp | No current reaching module | Continuity test across crimp joint |
| Signal lead near ECU | Intermittent failure at cold temperatures | Voltage drop test during ignition cycle |
| Ground return path | Slow activation sequence | Measure resistance to chassis, target below 0.1 ohms |
Trace the return path to the chassis grounding point–usually a 10 AWG strand bolted to bare metal. Remove the fastener and clean both surfaces with a wire brush; re-torque to 15-20 ft-lbs. A resistance above 0.2 ohms here will cause incomplete circuit completion, leading to delayed or failed component energization.
Essential Equipment for Diagnosing and Fixing Heater Circuit Control Systems
Use a multimeter with at least 10MΩ impedance to prevent false readings when measuring low-voltage signals in pre-combustion heating circuits. Select models rated CAT III 600V or higher for safety with high-energy automotive systems. Fluke 87V or Klein Tools MM700 provide reliable accuracy for resistance, voltage, and continuity checks.
A 10A power probe simplifies circuit testing without disconnecting components. Devices like the Power Probe III deliver controlled current to verify control module responses and identify open circuits in under 30 seconds. Ensure the probe’s ground clip connects directly to the battery negative terminal for stable readings.
Insulated wire strippers with a 20-12 AWG range handle most automotive wiring repairs. Klein Tools 11061 or Hakko CHP-170 prevent conductor damage during splicing. For corroded terminals, a crimping tool with a ratcheting mechanism (e.g., Temco or Commercial Electric) ensures secure connections without slippage.
Thermal imaging cameras detect overheating or failed components in under-hood control units. Models like the FLIR ONE Pro (Android/iOS) or Seek Thermal CompactPRO identify temperature anomalies up to 400°C, critical for spotting shorted resistors or failing semiconductors before visible damage occurs.
For high-current paths, use a clamp meter rated 400A DC. Fluke 376 or Uni-T UT210E measure amperage draw during cold-start sequences to pinpoint excessively resistive elements. Verify the meter’s frequency response includes DC signals; AC-only models will produce misleading readings.
Precision Cleaning and Repair Tools
A fiberglass pen (e.g., Hakko FG-100B) removes oxidation from terminal contacts without damaging underlying metal. Follow with dielectric grease (Permatex 22058 or 3M 08878) to prevent future corrosion. For solder repairs, a 60W temperature-controlled iron (Weller WLC100) prevents thermal damage to PCB traces.
Micro cutters with 2mm jaw capacity (Xcelite 170M) trim damaged conductors without fraying. Pair with heat-shrink tubing (3:1 ratio) in 3mm and 5mm diameters for professional-grade insulation. Use dual-wall adhesive-lined tubing (TE Connectivity DR-25) for exposed repairs in high-vibration zones.
Diagnostic Adapters and Reference Materials
OBD-II breakout boxes (Innova 3100j or Autel MaxiCOM MK908) monitor ECM commands during heating cycles. Verify pin assignments for your vehicle’s specific control module–obtain schematics from manufacturer service manuals (e.g., Mitchell1 or AllDataDIY) rather than generic wiring diagrams.
Store all tools in a foam-lined case (Pelican 1120) to prevent electrostatic discharge. Include a 2.5x magnification visor (Donegan DA-5) for inspecting PCB solder joints and fine-gauge conductor strands. Rotate storage temperatures between 10°C and 30°C to maintain tool calibration.
