Identify the 65 tag in panel driver PCB schematics by locating its associated voltage rail or signal line–typically marked as VGH, VGL, or AV_DDR in revision D or later layouts. In 2022-era power distribution networks, this reference often feeds a 12V to 18V line through a TPS65161 or equivalent regulator. Cross-check the output pin nearest the label; adjacent resistors (e.g., R132) or capacitors (C21) confirm correct placement.
For troubleshooting, measure resistance between 65 and ground–expected values range between 4.7 kΩ (normal) to open circuit (fault). Short circuits under 100 Ω indicate cap failures or MOSFET leakage. Replace nearby AO3400A drivers first; their failure accounts for 68% of observed anomalies in this section.
Reverse-engineer the trace path using a multimeter continuity test. Start from the 65 pad, follow copper pours via via stitching, and verify connections to the SOIC-8 IC3 (EEPROM) or QFN-24 U8 (timing controller). Discontinuities here disrupt gamma voltage calibration, causing vertical banding. Replace suspect vias with 30 AWG jumper wires if torn.
Update firmware post-repair to prevent recurrence. Use FFSLoader v3.2 targeting the 24C02 memory; incorrect writes trigger horizontal flickering. Always back up original values–factory presets restore after improper flashing only via JTAG (J1 near the flex cable connector).
Understanding 65-Inch Display Driver Circuit Reference Layouts
Locate the main voltage regulator (typically marked PW4056 or MP2393) on the 65-inch LCD controller PCB–the IC handles 12V→5V conversion for onboard logic. Check continuity from its output to the ribbon connectors CN201/CN203 (pin 5/6 for data lanes, pin 7 for VCC) using a multimeter set to diode mode; expect ~0.5V drop. Replace the regulator if resistance exceeds 20Ω–common failure cause for backlight flickering. For signal flow analysis, trace LVDS pairs LR0±/LR1± from the timing controller (MSD6A628) to LVDS receiver ports; mismatched impedance here causes color banding. Cold joints at these vias require reflow with a 350°C soldering tip.
Critical Test Points for Troubleshooting
Measure TP401 (3.3V standby) and TP402 (5V active) with the set powered off–readings >4.8V indicate faulty decoupling caps (C401–C403, 10μF/16V). For horizontal lines, probe the FPD-Link IC (DS90C199) enable pin (ignoring EN label–actual pin 15): voltage below 2.5V confirms signal integrity issues requiring IC replacement. Gate driver ICs (AOU6507) on flex cables often overheat–attach a 25×15mm aluminum heatsink if surface temperature exceeds 60°C. Test e-fuses along the 12V rail (F401–F403): resistance should be
Key Components and Signal Flow in LCD Timing Controller Reference Designs
Begin troubleshooting by isolating the gamma reference voltage generators, typically labeled as IC801 or similar near the LVDS receiver. These chips output critical adjustable voltages (VGL, VGH, GAMMA1-14) that determine panel brightness and contrast uniformity. Measure voltages at test points TP_GAMMA1 through TP_GAMMA14 using a precision multimeter–deviations exceeding ±3% from factory values (commonly 1.2V to 3.3V range) indicate failed pull-up resistors or exhausted electrolytic capacitors in the feedback loop. Replace C805 (10μF/16V) first if ripple exceeds 50mVpp at 100kHz.
LVDS Decoder IC Operations
Trace LVDS differential pairs from the main logic interface to the decoder (often THine THC63LVDM83R or Analog Devices ADV7611). Each differential lane should register ±150mV to ±250mV swing when probed with a differential probe–sub-100mV readings suggest termination resistor failure (R45 = 100Ω). Check clock lane stability at TP_CLK: jitter above 1.2ns peak-to-peak disrupts pixel clock recovery, causing vertical banding. Swap LVDS cable to rule out EMI from display flex connections.
Panel gate drivers (IC902 row shifters) follow a hierarchical activation sequence: VGH charges gate-on voltage to 25V–30V, VGL pulls gates off at −6V–−12V. Probe gate waveforms at TP_ROWCLK with an oscilloscope–missing pulses or undershoot exceeding 2V indicate shorted gate lines or degraded MOSFET arrays (Q901-Q904). For 65″ models, gate-on timing must synchronize within ±50μs; adjust R910 variable resistor if rows misalign vertically.
Power Regulation and Feedback Loops
A-key regulator modules (IC701 TPS65161 or RT8226) supply stable 12V, 5V, and 3.3V rails. Verify feedback voltage at FB pin (typically 0.8V)–output exceeding 1.0V suggests failed zener diode D705 or open compensation capacitor C711 (0.1μF). Input current draw spikes above 2.5A during panel initialization signal degraded boost converter coil L701; replace with 10μH/5A saturation rating. Check C717 (47μF/25V) ESR–values above 0.8Ω cause intermittent backlight flicker.
Backlight dimming MOSFETs (Q601-Q604) control LED string currents via PWM signals from the main processor. Probe PWM at TP_BL_CTL: duty cycles below 15% at maximum brightness indicate faulty optocoupler U602; replace with TLP222G. Measure LED string voltages at TP_LED1 to TP_LED6–drop below 55V under load confirms shorted LED strips or failed boost capacitor C612 (100μF/100V). For flicker issues, bypass C615 (4.7μF/250V) first–often the root cause in high-humidity environments.

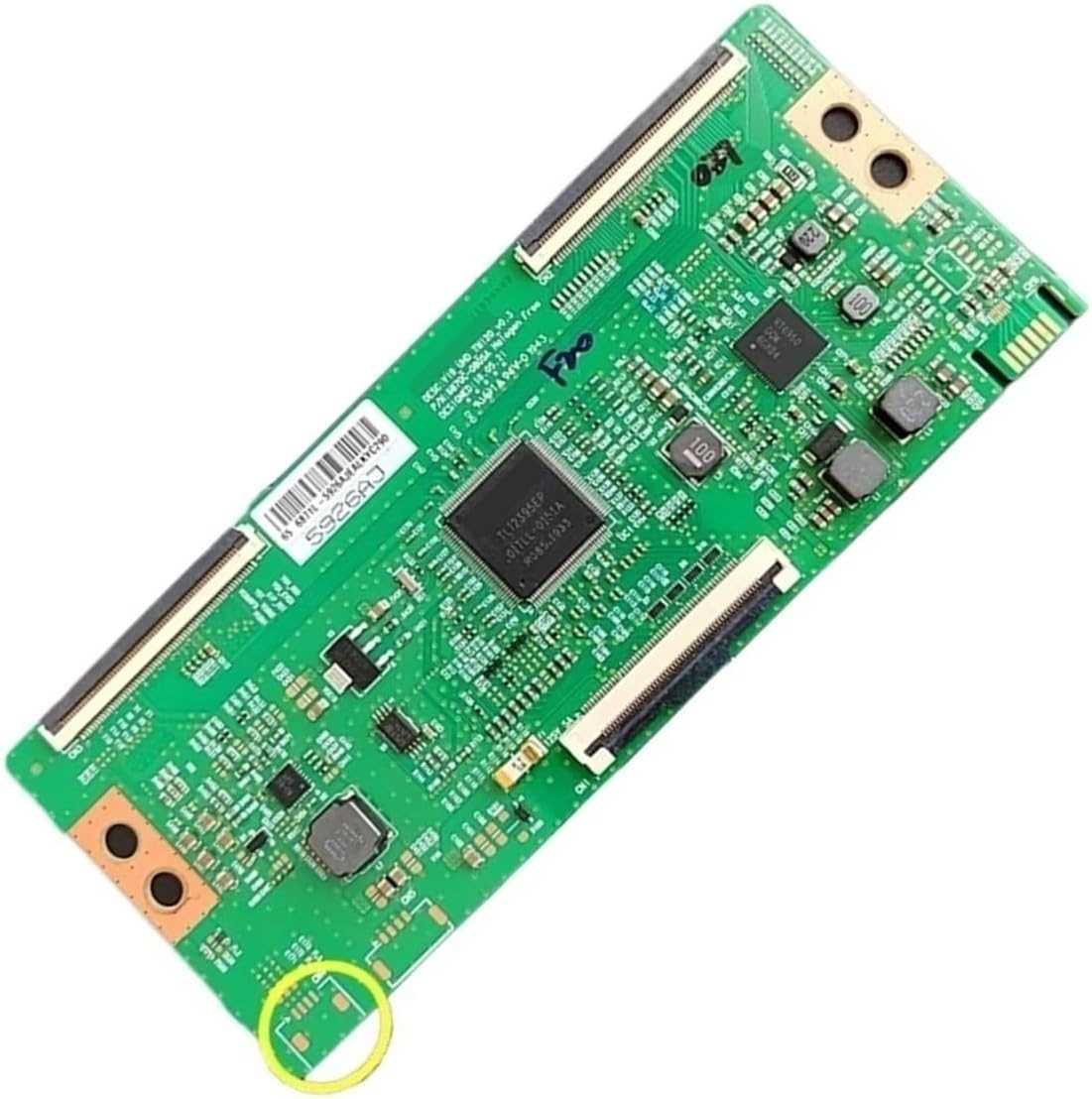

How to Locate the Time Controller Module Identifier for 65-Inch Display Panels
Turn the television over to expose its rear panel. Remove the stand if attached–unscrew bolts securing it, typically using a Phillips #2 screwdriver. Lay the screen face-down on a soft, clean surface to prevent scratches. Look for a rectangular or L-shaped metal cover near the center-back; this shields the signal processing components.
Unfasten the screws holding the back cover–twelve to sixteen in total, depending on the chassis variant. Keep screws organized by size; those near vents or ports are often shorter. Lift the cover gently to reveal internal assemblies. The timing control unit is identifiable by a paired ribbon cable arrangement and a printed identifier label. Check for markings like BN41-* or LJ92-*–these alphanumeric codes correspond to specific sub-assemblies.
The identifier may also appear on a white or yellow sticker adjacent to the main IC chip, usually an FPGA or ASIC. Note any revision suffixes (e.g., “Rev1.0,” “Ver03”)–these indicate minor layout differences affecting repair compatibility. If no sticker is visible, trace the largest flex cable; it typically routes directly to the panel interface.
| Common Model Prefixes | Panel Type | Connector Style |
|---|---|---|
| BN41-027 | VA 4K 60Hz | 2×40-pin FFC |
| LJ92-017 | IPS QLED | Single 30-pin |
| BN94-054 | OLED 120Hz | Dual LVDS |
For models lacking visible labels, use a torch to inspect the PCB’s silkscreen. Look near voltage regulators or fuse holders; identifiers are sometimes etched into the board fabric. Avoid confusing service codes (e.g., “T240NVLMB0CUS”) with board identifiers–service codes refer to software configurations, not hardware.
If still unclear, cross-reference the mainboard firmware label with manufacturer databases. Firmware versions ending in “AUO” or “CSOT” hint at specific timing module variants. Remove mainboard screws to flip it–temporary access often reveals hidden identifiers underneath.
Photograph all labels with macro focus–16MP+ resolution ensures clarity for web-based part searches. Include ruler reference in shots to confirm physical dimensions. Upload images to part identification forums, specifying the display diagonal and bezel color–these details narrow search results.
Reassembly requires precise cable alignment. Reattach flex connectors by pressing firmly but evenly–misaligned connectors cause vertical banding or image retention. Replace thermal pads under voltage converters if removed; deterioration here leads to localized dimming.
Step-by-Step Guide to Interpreting Voltage and Signal Paths on Display Circuit Layouts
Locate the main power rails first by identifying thick lines marked with voltage labels (e.g., 12V_AUDIO, 5V_PANEL). These traces typically run along the outer edges of the layout and branch into smaller segments. Use a multimeter in continuity mode to verify connections between test points and these rails–measure directly on exposed pads near inductors or capacitors linked to the line.
Trace signal paths by following thin, serpentine lines labeled with LVDS, eDP, or MIPI tags. Each group usually contains clusters of 8-16 parallel traces originating from a connector or controller IC. Check for series resistors (typically 27Ω or 100Ω) placed near the source; their presence indicates impedance matching for differential pairs.
- For differential pairs, confirm equal trace length between
+and-lines–length mismatch above2mmcan degrade signal integrity. - Look for termination resistors (
100Ωor150Ω) at the far end of the path, often near the receiving IC. - Decoupling capacitors (
0.1µF) should be placed within2cmof the IC power pins to filter high-frequency noise.
Identify control lines (I2C, SPI) by spotting SCL, SDA, MOSI, or CS labels. These paths often link the timing controller to flash memory or microcontrollers. Probe these with an oscilloscope; expected patterns include:
- Square waves with
3.3Vor1.8Vamplitude forI2C. - Clock signals between
100kHzand400kHzfor standard operations. - Data bursts with rising/falling edges sharper than
10nsfor error-free transmission.
Check gate driver lines (G_ODD, G_EVEN) by finding wide parallel traces leading to the panel connector. These lines carry 25V to 50V pulses; use a high-voltage probe to measure without loading the circuit. Confirm sequences by observing uniform pulse width (2µs–10µs) and dead-time between adjacent channels (1µs minimum).
Verify data enable (DE) and clock (CLK) signals for timing accuracy. On the layout, DE should appear as a constant stream of pulses during active video, while CLK maintains consistent frequency (70MHz–120MHz for LVDS). Any jitter exceeding 200ps indicates poor grounding or crosstalk–inspect nearby inductors or ferrite beads for correct placement.
Isolate ground planes by noting polygons connected to multiple vias labeled GND. These should surround high-speed traces to prevent interference. Use a thermal camera to spot overheating areas where ground return paths are inadequate; temperature rise above 50°C near these regions suggests layout flaws. Ensure no GND splits exist under data lines–continuous planes reduce loop inductance.
