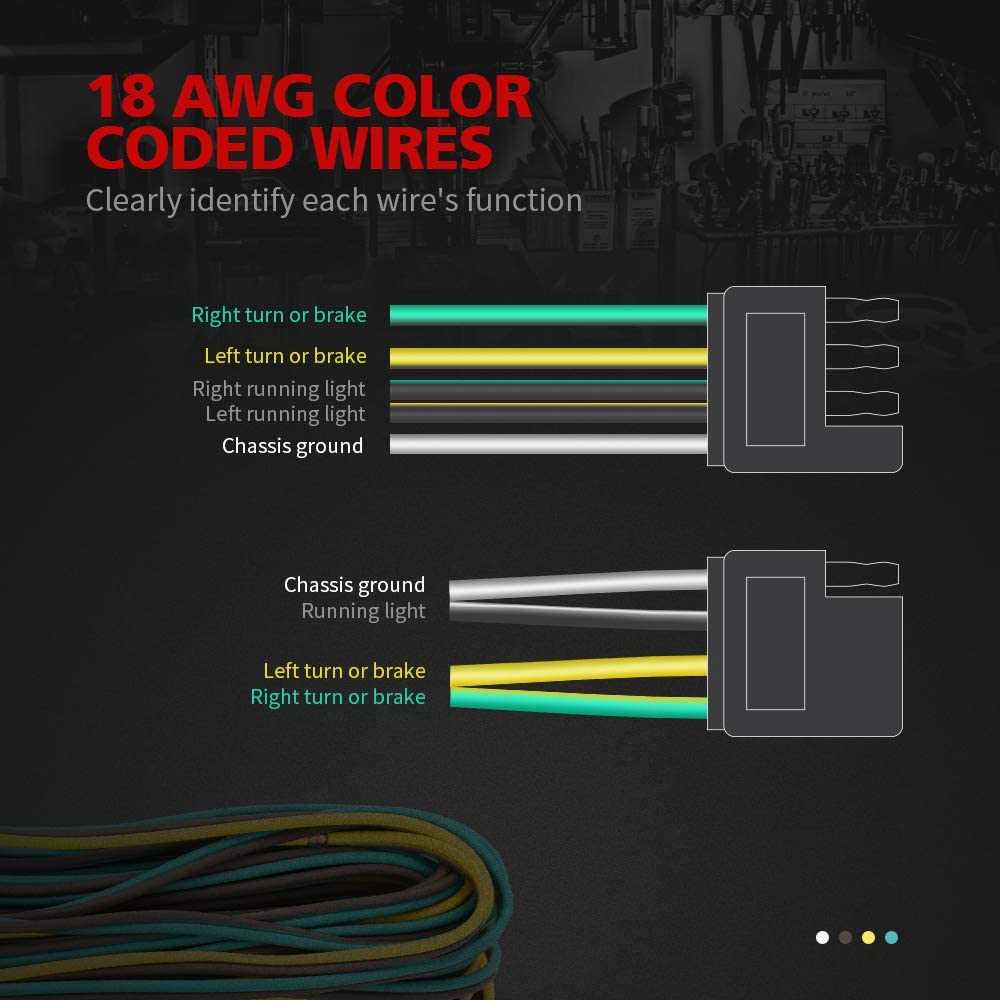

Use color-coded conductors as the foundation for any six-terminal setup. Ground (typically white) must connect directly to the chassis or a dedicated metal point–never daisy-chain it through other connections. The brown circuit (running lights) feeds from a single 12V source with a fuse rated for at least 10A, ensuring consistent illumination without overloading. For turn signals (yellow left, green right), splice into the vehicle’s existing flasher circuit; verify polarity matches before securing terminals to avoid short circuits.
Installing a breakaway power lead (red) requires a separate source fused at 20A or higher if towing heavy loads–integrate it with the vehicle’s ignition switch so the circuit only energizes when the engine runs. Blue auxiliary circuits, often used for electric brakes or camper accessories, need an independent switch; route this line through a relay if current exceeds 15A. Insulate all joints with heat-shrink tubing or dielectric grease to prevent corrosion, especially in exposed or damp environments.
Test each function with a multimeter before final assembly. Measure voltage at the vehicle-side connector under load–expect 12-14V on active circuits. For brake controllers, confirm compatibility with the vehicle’s electrical system; pulse-width modulated (PWM) signals require a specific output range (typically 0-12V). If reverse lights (purple) are included, tap into the factory backup light circuit, ensuring the bulb draws less than 5A to avoid damaging the wiring harness.
Secure all connections with crimp terminals rated for automotive use–avoid solder-only joints, which can fatigue under vibration. Route cables away from sharp edges, exhaust components, and moving parts; use loom or spiral wrap for protection. Label each conductor at both ends for future troubleshooting. For heavy-duty applications, upgrade the harness gauge: 12 AWG for lighting circuits, 10 AWG for brakes or auxiliary power. Always disconnect the battery before making modifications to prevent accidental shorts.

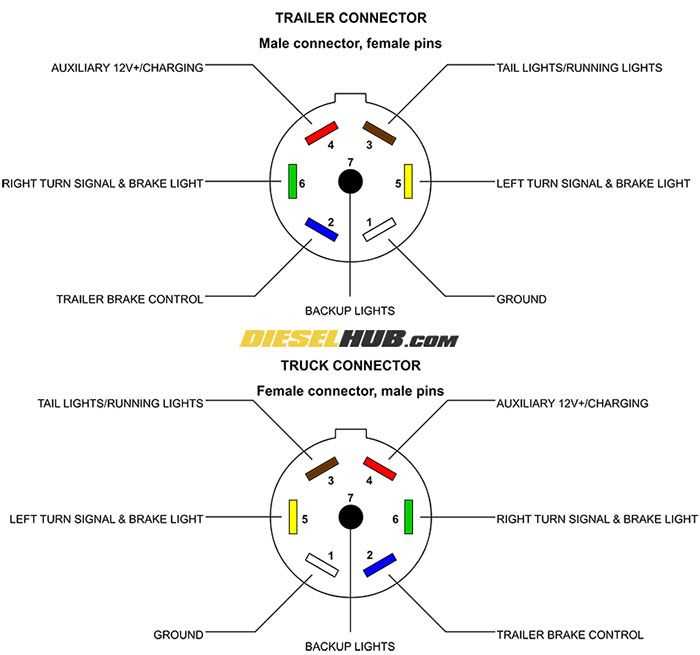

6-Pin Connector Electrical Layout Guide

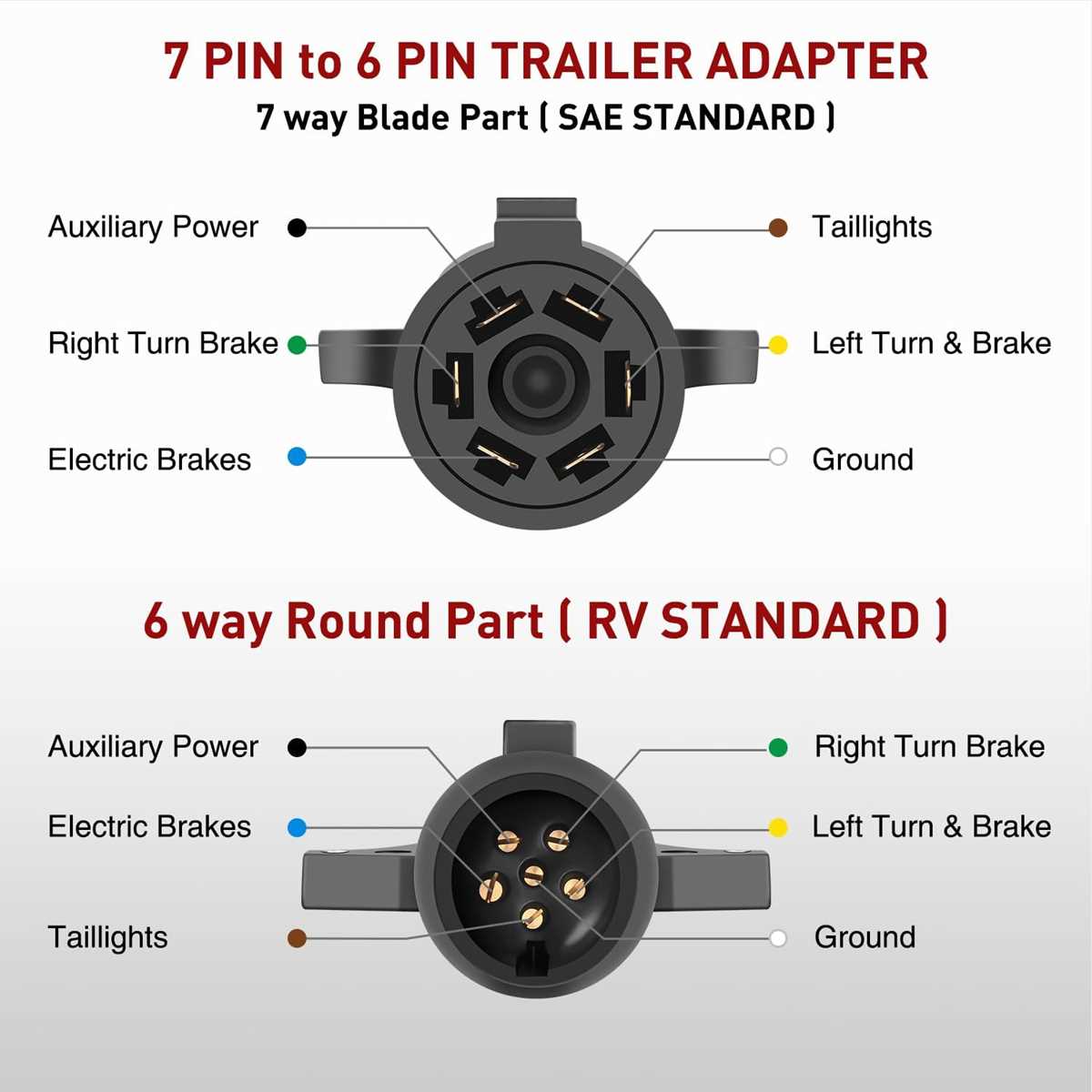

Always verify pin assignments with a multimeter before connecting any circuit. The standard configuration for a 6-pin automotive connector includes: Pin 1 (yellow) for left turn/brake, Pin 2 (green) for right turn/brake, Pin 3 (white) as ground, Pin 4 (brown) for running lights, Pin 5 (blue) for electric brakes, and Pin 6 (red) as a 12V auxiliary supply.
Utilize heat-shrink tubing on all soldered joints to prevent corrosion. For aftermarket installations, ensure the gauge matches the original equipment–typically 16 AWG for lighting circuits and 12 AWG for brake or power feeds. Mismatched sizes can cause voltage drop or overheating.
Test brake functionality independently by applying 12V directly to the corresponding terminal (commonly blue). If brakes engage but fail when pedal pressure is applied, inspect the vehicle’s brake controller output signal–peak voltage should reach 12V during full activation.
Ground connections must be secured to bare metal, free of paint or rust. A poor ground can cause intermittent lighting failures or erratic brake performance. Use a star washer to pierce surface oxidation for reliable contact.
For towing configurations requiring reverse lights, reassign Pin 6 (auxiliary) to a purple conductor. Re-label the harness to avoid confusion; standard SAE J2863 specifies purple for reverse circuits but aftermarket setups may vary.
When extending circuits, employ crimp connectors rated for automotive use–never twist and tape. Pre-insulated butt splices prevent moisture ingress, a leading cause of failures in exposed applications.
Avoid routing power feeds near moving components or sharp edges. Use loom tubing or split conduit to shield high-current lines, particularly those servicing electric brakes or auxiliary loads exceeding 10A.
Document all modifications with a labeled diagram stored in the vehicle’s manual. Include color codes, pin numbers, and custom functions (e.g., “Pin 6 – Auxiliary, fused at 15A for winch”). This prevents errors during future servicing or upgrades.

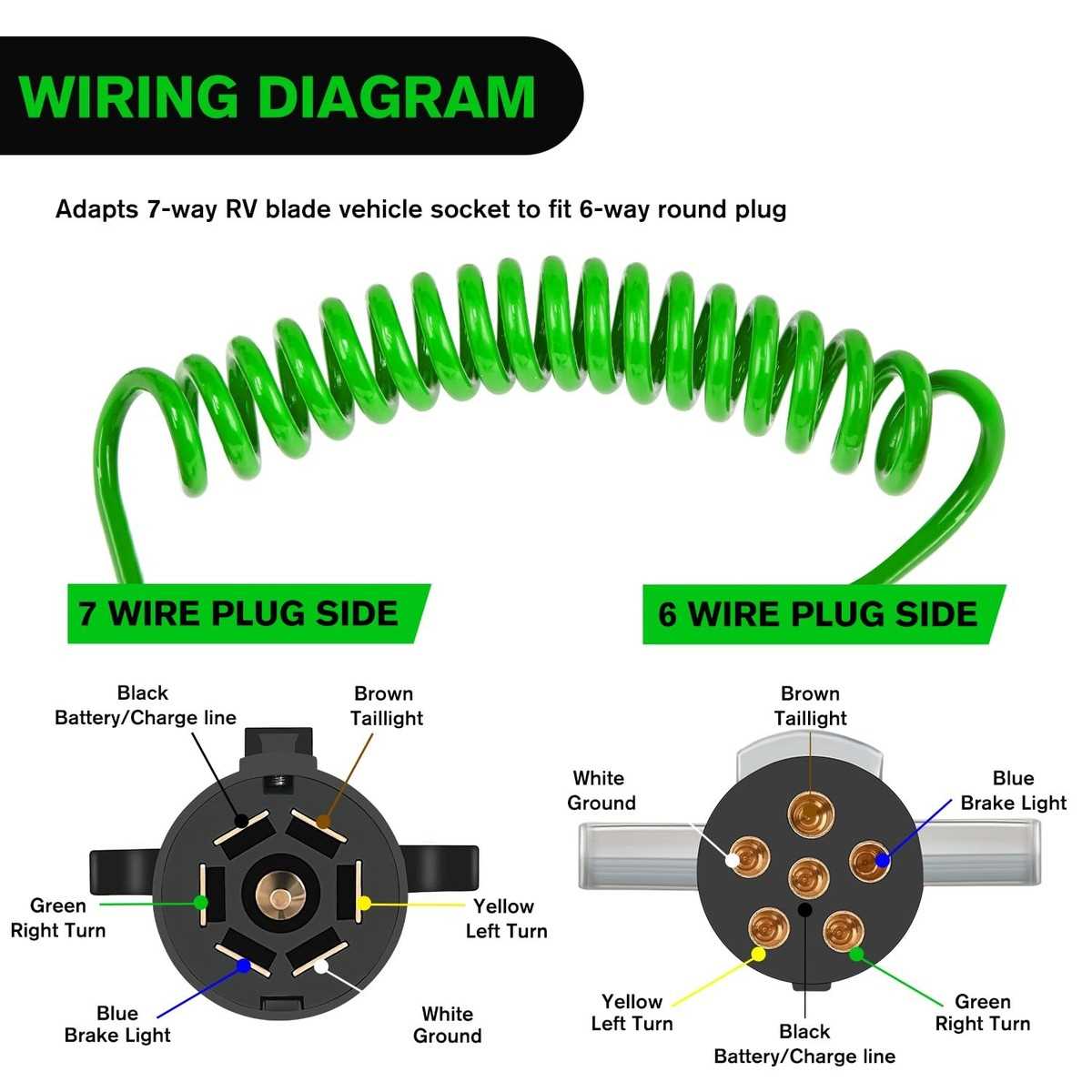

Step-by-Step Color Codes for 6-Pin Vehicle Connection Assemblies
Start by identifying the brown lead as the running lights circuit–connect this to the corresponding terminal at the rear of your vehicle’s towing harness. This ensures side markers, tail lamps, and license plate illumination activate in sync with the towing setup. Verify polarity before securing the connection; reverse polarity may damage bulbs or fuse circuits.
Attach the yellow conductor to the left turn signal and brake light cluster. This is typically positioned on the driver’s side and must align with the vehicle’s existing brake and turn signal feed. Use a multimeter to confirm a 12V reading when activating the left turn signal or brakes–no voltage indicates a faulty or misrouted link.
Ground and Power Distribution
The white strand serves as the common earth path and must be anchored to a clean, bare metal surface on the tow vehicle’s chassis. Avoid painted or coated surfaces; corrosion or poor contact will cause intermittent failures. For heavy-duty applications, consider adding a secondary ground strap to the frame for redundancy.
Route the green strand to the right turn signal and brake light assembly, mirroring the yellow lead’s setup. Test by engaging the right turn signal–both the indicator and brake light should illuminate simultaneously. If only one function operates, inspect the vehicle’s fuse block for a blown fuse or a split feed line.
Auxiliary Circuits and Safety Checks
Connect the blue auxiliary lead to the electric brake controller input if your towing rig includes surge brakes. This line must deliver 12V when the brake pedal is depressed; absence of voltage suggests a faulty controller or severed link. For non-braking setups, cap the blue strand with heat-shrink tubing to prevent short circuits.
Finish with the black (or red) power feed for the reverse lights or accessories. This line often draws directly from the vehicle’s battery via a fused relay to handle higher loads. Confirm the circuit’s integrity by reversing the vehicle–the reverse lights should glow brightly without flickering. Dim or inconsistent output indicates voltage drop, requiring thicker gauge strands or a dedicated relay.
Essential Gear and Supplies for Connecting a Six-Pin Electrical Connector
Begin with a multimeter rated for 20V DC or higher to verify circuit integrity before making any connections; models with auto-ranging simplify voltage checks across pins. A crimping tool with interchangeable dies ensures secure terminations for 16–12 AWG conductors–avoid pliers, as they crush strands and create resistance hotspots. Heat-shrink tubing with adhesive lining (polyolefin, 3:1 shrinkage ratio) provides durable insulation for joints exposed to moisture; match the diameter to the spliced gauge plus 1-2mm for a snug fit.
Use tinned copper ring terminals for ground attachments to prevent corrosion; sizes #8 or #10 suit most chassis mount points. For signal paths, butt splices with insulation support handle vibration better than twist-and-tape methods, which degrade under thermal cycling. A wire stripper with built-in cutter (adjustable for 14–10 AWG) prevents nicked conductors, a common failure point. Keep a set of hardened steel screwdrivers–flathead #2 and #3–for secure fastening of terminal blocks without stripping screws.
| Item | Specification | Quantity |
|---|---|---|
| Circuit tester | 12–24V DC, LED indicator | 1 |
| Flux-core solder | 60/40 rosin, 0.8mm diameter | 1 reel |
| Terminal block | Six-position, 30A per circuit | 1 |
| Voltage regulator | 12V, 3A, short-circuit protected | 1 |
Include a torque screwdriver for terminal screws–over-tightening cracks plastic housings, while under-tightening causes intermittent breaks. Silicone dielectric grease applied to contact surfaces repels moisture and reduces oxidation; a pea-sized dab per pin suffices. For heavy-duty setups, a relay kit (40A SPST) isolates high-current circuits, protecting the tow vehicle’s electrical system from backfeed. Store all supplies in a conductive-free case to prevent accidental shorts during transport.
Verify pin assignments with the vehicle’s manual–misaligned circuits damage components within seconds. Mark each conductor with heat-resistant labels (polyimide tape) at 15cm intervals to trace pathways during troubleshooting. A 10A fuse holder inline with the power feed protects against overloads; mount it within 15cm of the battery for instant disconnect in fault conditions.
Common Errors in Electrical Connector Installation for Towing Systems
Misidentifying circuits by relying solely on connector pin layouts rather than testing each lead with a multimeter risks cross-feeding power to unintended components. Verify every terminal with a continuity check before finalizing splices, especially when dealing with auxiliary lighting or brake controllers.
Skipping heat-shrink tubing over exposed junctions leaves connections vulnerable to moisture intrusion and corrosion. Use adhesive-lined sleeves for all outdoor connections, securing them tightly around the insulation to prevent water seepage even under high-pressure washing.
Overloading a single pin by combining multiple functions–like routing both brake signals and turn indicators through the same terminal–can cause voltage drops and intermittent failures. Allocate dedicated pins for each circuit, matching the vehicle’s harness specifications precisely.
Ignoring ground path integrity leads to inconsistent performance; attach all circuit returns directly to a clean, bare-metal chassis point rather than relying on existing paint or rust. Sand down contact surfaces to ensure maximum conductivity and apply dielectric grease to prevent future oxidation.
Using undersized conductors for heavy-duty applications, such as electric brakes or auxiliary power lines, results in overheating and potential fire hazards. Select cables with a minimum gauge of 12 AWG for brake circuits and 10 AWG for high-amperage inputs like winches or refrigeration units.
Failing to secure loose cables with appropriate clamps or loom tubing invites abrasion against sharp edges or moving parts, leading to short circuits. Route all leads away from suspension components and rotating assemblies, using plastic ties every 12 inches to prevent sagging.
Reversing polarity on critical circuits–such as brake controllers or reverse lights–can damage sensitive electronics. Double-check connector orientation against the tow vehicle’s socket layout before mating, and label all connections for future reference.
Disregarding local regulations for color-coding standards may result in non-compliance during inspections. Follow ISO 1724 for European setups or SAE J2691 for North American configurations, ensuring uniform identification across all splices and terminations.
