Use an MT3608 boost module for immediate results–it handles 28V max output with 95% efficiency at 1A. Solder the input leads directly to a USB power bank or Li-ion battery pack; ground the enable pin to maintain steady operation. Add a 22µF ceramic capacitor across the output to suppress ripple under dynamic loads.

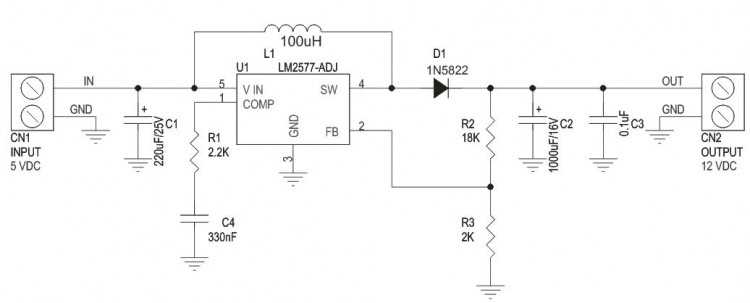

Avoid generic ICs like LM2577 for high-current needs–its 3A internal switch overheats above 1.5A without active cooling. Instead, pair an XL6009 with a 100µH inductor (saturated current ≥ 2A) for stable voltage jumps. Place a Schottky diode (1N5822) at the inductor’s flyback node to prevent backflow damage.
For custom PCB layouts, route the input and output traces minimum 2.5mm wide to handle inrush currents. Test regulation under no-load, 50%, and full-load conditions using a dummy resistor or motor. If output drifts, swap the feedback resistors–replace the default 33kΩ/10kΩ pair with a precise trimpot (10kΩ, multi-turn) for fine-tuned adjustments.
Isolate sensitive loads with an optocoupler (PC817) when stepping up for MCUs or sensors–this blocks noise coupling via the shared ground plane. Always fuse the input at 125% of expected current; a resettable PTC (e.g., 1.1A hold) protects against short circuits without requiring replacement.
Boosting 5 Volts to Higher Voltage: Schematic Solutions
Use the TI LM2588 or Analog Devices ADP2371 as a switching regulator for step-up applications. These ICs deliver up to 1.5 A output current with adjustable voltage ranges via a feedback pin connected to a voltage divider. For the LM2588, place a 15 μH inductor (Coilcraft SER2014-H-150KL or equivalent) between the IC’s SW pin and the input. Add a 33 μF capacitor (X5R dielectric) on the input and a 100 μF low-ESR capacitor (2 × 47 μF in parallel) on the output to minimize ripple. The feedback resistor ratio (R1 = 10 kΩ, R2 = 75 kΩ) sets the target at 13.8 V, accounting for a 1.23 V reference voltage.
For compact designs, replace the LM2588 with the Monolithic Power Systems MPQ4430. This 3 × 3 mm QFN package integrates the switch, reducing component count. Use a 4.7 μH, 2 A-rated inductor (sumida CDRH6D28 or TDK VLS6045EX-4R7M) and ceramic capacitors (2 × 22 μF 6.3 V X7R on input, 1 × 47 μF 25 V X7R on output). The MPQ4430’s 2 MHz switching frequency allows smaller magnetics but requires strict layout: keep traces between the IC, inductor, and diode wide and short to prevent EMI. Enable soft-start via a 0.1 μF capacitor on the SS pin to avoid inrush current spikes.
Verify performance with an oscilloscope on the output, ensuring ripple stays below 50 mV peak-to-peak. For loads exceeding 1 A, add a Schottky diode (Diodes Inc. B340A-13-F) parallel to the synchronous rectifier to handle transient currents. If efficiency degrades above 85%, check grounding: split the analog and power grounds, tying them together only at the output capacitor’s negative terminal. Over-temperature protection is automatic in the MPQ4430 but requires a thermal via array under the IC for heat dissipation in PCBs thinner than 1 mm.
Key Components for a 5V to Boosted Output Power Stage
Select an inductor with a saturation current rating 30-50% above your expected load current. For a 500mA target, a 10µH coil with ≥750mA saturation (e.g., Coilcraft MSS1048-103ML) prevents core collapse under full power. Pair it with a fast-switching IC like the TPS61094 or MT3608–both handle peak currents up to 2A and include built-in overcurrent protection. Add a Schottky diode (e.g., 1N5822) post-inductor; its 40V reverse voltage tolerance and 3A forward current ensure minimal losses during flyback.
Capacitor Selection for Stability
Input and output capacitors dictate ripple control. Use low-ESR ceramic capacitors: 22µF X5R (input) and 10µF X7R (output) for typical 200kHz switching frequencies. For higher efficiency, add a polymer tantalum (e.g., AVX TPSE227M010R0050) to the output–its 5mΩ ESR suppresses voltage sag under transient loads. Avoid electrolytics unless space constraints demand them; their higher ESR degrades performance at frequencies above 100kHz.
Step-by-Step Wiring Guide for a DC-DC Voltage Booster
Select a MT3608 module for its compact size and efficiency–it handles input ranges from 2V to 24V with adjustable output up to 28V. Verify component ratings match your load requirements: if driving a 1W load, ensure the module’s current limit (2A for MT3608) exceeds the estimated ~83mA draw at the target voltage.
Connect the input power source directly to the module’s VIN+ and VIN- terminals, observing polarity. Use 20-22 AWG copper wire for currents under 3A; for higher loads, upsize to 18 AWG. Insert a 1N5817 Schottky diode in series with the input to prevent backflow from capacitive loads.
Critical Component Pairings
| Component | Specification | Purpose |
|---|---|---|
| Inductor | 22µH (6x6mm SMD) | Minimizes ripple; verify saturation current (>2A) |
| Output Capacitor | 22µF (X5R/X7R, 25V) | Stabilizes output; ceramic preferred for low ESR |
| Feedback Resistors | R1: 100kΩ, R2: 10kΩ (1% tolerance) | Sets output to exactly 12.6V (adjust R2 for precision) |
Solder the feedback resistors between the module’s FB pin and ground/VOUT, then attach a multimeter to the output. Power on the source and adjust the potentiometer clockwise until the meter reads your target voltage. Secure the setting with thread-locking compound on the potentiometer screw if vibration is expected. For final validation, measure output under load–voltage drop should not exceed 0.2V at full current.
Calculating Inductor and Capacitor Values for Stable Output
For a 5V-to-higher-voltage step-up topology, select an inductor with a saturation current exceeding the peak switch current by at least 20%. A 10–47 µH inductor suffices for loads up to 500 mA, but use the formula L = (VIN × D) / (fSW × ΔIL) to refine selection–where D is the duty cycle (target/output voltage ratio), fSW is the switching frequency (typically 100–500 kHz), and ΔIL is the desired inductor ripple current (20–40% of max load). ESR should be below 0.5 Ω to minimize losses. Pair with a capacitor rated for >2× the ripple voltage; a 22–100 µF low-ESR ceramic or polymer cap ensures
Fine-Tuning for Efficiency
Measure actual ripple at max load; if >30 mVpp, increase capacitance incrementally (e.g., 22 → 47 µF) or raise fSW to reduce ΔIL. For inductors, core material matters: ferrite minimizes hysteresis losses above 200 kHz, while powdered iron suits lower frequencies. Use LC filter design equations to verify corner frequency: fC = 1 / (2π √(LC)) should sit below 1/10th of fSW to avoid resonance. Replace caps if their self-resonant frequency (SRF) is near fSW–X7R/X5R ceramics offer stable capacitance across temperature, critical for line/load transient response.
Common Pitfalls When Designing a 5V to Higher Voltage Booster
Select an inductor with a saturation current at least 30% above your peak load current. Many designs fail because the chosen coil saturates under transient loads, causing output voltage collapse within microseconds. For a 5W load, a 10µH inductor with a 1.5A saturation rating may seem adequate, but during startup or load steps, the current can spike to 2A–exceeding the core’s limits. Always verify inductor specs against worst-case scenarios, not just steady-state operation.
Undersizing the output capacitor leads to excessive ripple, especially at high switching frequencies. A 22µF ceramic cap might meet minimum requirements for filtering, but at 500kHz, ESR becomes critical. A 100mΩ ESR cap can generate ripple exceeding 200mVpp, while a 10mΩ cap reduces it to under 50mVpp. For sensitive applications, combine multiple low-ESR caps in parallel–three 47µF caps will outperform a single 100µF cap due to lower effective ESR and better high-frequency response.
- Thermal derating of components is often overlooked. A 1A-rated Schottky diode may handle 1A at 25°C, but at 85°C, its forward voltage drop increases by 20%, reducing efficiency. Similarly, MOSFET RDS(on) doubles between 25°C and 125°C, increasing conduction losses. Use a cooling solution or derate components by 40% for continuous operation.
- Feedback loop stability is frequently ignored. A single-pole compensation network with a 10kΩ resistor and 1nF capacitor may work in simulations, but real-world PCB parasitics introduce additional poles/zeros. Adding a 10pF cap across the feedback resistor improves phase margin by 30°, preventing oscillations under load transients.
- Input voltage sag during load steps can trigger undervoltage lockout. A 5V source with 50mΩ impedance may drop to 4.5V when a 1A load is applied, disrupting operation. Use a bulk input cap–minimum 470µF for a 1A load–to buffer transient currents.
Layout parasitics destabilize high-frequency boosters. A 10mm trace carrying 2A at 500kHz acts as an inductor (1nH/mm), introducing voltage spikes up to 2Vpp at switching edges. Route switch node traces as short as possible–under 5mm–and use a star-ground topology to minimize ground bounce. Place the input cap within 2mm of the IC’s power pin to reduce loop inductance, improving transient response by up to 50%.
