For a 5-series lithium battery pack, use a dedicated protection module with a 20A continuous discharge rating and over-voltage thresholds set at 4.25V per cell to prevent premature degradation. Select MOSFETs with RDS(on) below 5mΩ to minimize heat buildup during high-current operation–IRF4905 or TPCA8007 are proven choices. Ensure the balancing resistors handle at least 100mA per cell to maintain charge consistency in deep-cycle applications.
Wire gauge is critical: 12AWG for the main leads reduces voltage drop to under 0.1V at 20A loads, while 18AWG suffices for secondary connections. Position the temperature sensor (NTC 10kΩ) near the hottest cell to trigger cutoff at 60°C. Avoid thermal paste–use Kapton tape for insulation to prevent short circuits between sensor and cell casing.
Flash the microcontroller with firmware supporting adjustable hysteresis (e.g., 0.3V for over-discharge recovery) to prevent rapid cycling. For 1S-5P configurations, add a 1A fuse on each parallel branch to isolate faults. Test under load with a multimeter probe on the MOSFET gates to confirm switching times under 10μs during fault conditions.
Opt for through-hole resistors (1W, 1%) if vibration is a concern–surface-mount components may crack under mechanical stress. Ground the analog and digital sections separately to reduce noise interference. For LFP chemistries, adjust the undervoltage cutoff to 2.8V per cell to maximize cycle life without compromising safety margins.
Document all connections with labels resistant to high temperatures (e.g., polyester or fiberglass sleeves). Use stranded copper wire with silicone insulation for flexibility in confined spaces. Avoid soldering directly to battery tabs–use spot-welded nickel strips (0.2mm x 8mm) to handle currents above 15A without overheating.
5S Protection Board Wiring: Step-by-Step Implementation
Begin by identifying the charging and load terminals–pin B+ for the positive input/output and B- for the negative. For a 5-cell lithium pack, connect each cell in series to the corresponding balance taps (P- to P5), ensuring no crossed wires: P- links to the lowest cell’s negative terminal, while P1 through P5 align sequentially to the junctions between cells. Use 0.1mm² silicone wire for balance leads to handle up to 2A transient currents without overheating. Verify polarity with a multimeter before soldering–reverse connections will trigger false overvoltage errors.
Install a 10A fuse on the B+ line immediately after the protection module, positioned within 5cm of the board to mitigate fire risks from short circuits. For thermal stability, mount a 10kΩ NTC thermistor between NTC and B-, secured directly to the middle cell’s casing–this ensures proportional temperature readings. Calibrate the undervoltage threshold by adjusting the onboard trimpot (typical range: 2.5–3.0V per cell) while monitoring individual cell voltages. Final tests require a variable load: confirm the module cuts off at 12.8V (5S nominal) and reconnects at 13.5V (±0.2V tolerance).
Key Components for Building a 5-Series Battery Protection System
Start with a high-precision voltage monitoring IC capable of tracking individual cell voltages within ±5mV accuracy across a 3.0V–4.35V range. The Texas Instruments bq769x0 series or Analog Devices LTC6804 are optimal choices, offering built-in balancing resistors and programmable thresholds. Avoid generic multiplexers–they introduce latency and signal degradation, especially under load fluctuations exceeding 10A.
Critical Hardware Selection
| Component | Specification | Justification |
|---|---|---|
| Current shunt resistor | 100μΩ ±1%, 3W min | Prevents thermal drift (>50°C) and voltage drop errors above 20A |
| MOSFET switches | N-channel, 60V/100A (e.g., Infineon BSC097N10NS5) | Handles spike currents (>150A) without desaturation; gate drivers must support >12V turn-on |
| Balancing resistors | 33Ω ±5%, 1W | Discrete resistors (not onboard) reduce thermal coupling between cells during passive balancing |
| Microcontroller | 32-bit ARM Cortex-M0+ (e.g., STM32G030) | Minimum 48MHz clock to process 5-cell data within |
Opt for galvanically isolated communication interfaces like SPI (isolated via ISO7731) or CAN FD to prevent ground loops in systems with noise levels >200mVpp. Ensure PCB traces for high-current paths (charge/discharge) are ≥2oz copper with ≥5mm width per 10A, spaced ≥1.5mm apart to avoid arcing at voltages >20V. Place temperature sensors (NTC 10kΩ B3435) directly on cell tabs–misplaced sensors increase thermal lag by >30%, risking overheating during 5C+ discharge cycles.
Firmware must prioritize fault hierarchy: overvoltage triggers at 4.30V (±20mV), undervoltage at 2.5V (±50mV), and overcurrent at 1.2× rated load (e.g., 30A for 25A nominal). Implement a watchdog timer with 25LC256 or FRAM) with CRC-16 validation to survive power cycles during failures.

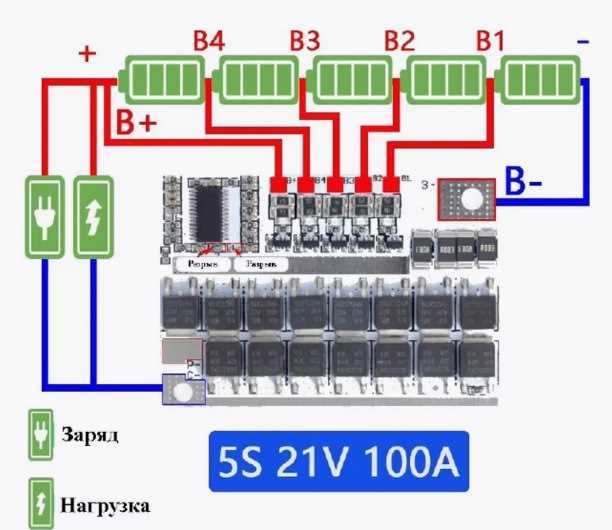

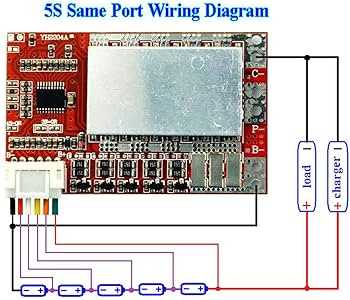

Step-by-Step Wiring Configuration for 5-Series Li-ion Protection Module
Begin by connecting the positive terminal of the first cell in the series directly to the P+ pad of the protection board using 18AWG silicone wire. Ensure the solder joint is free of flux residue to prevent insulation degradation–use a 60W iron with a 2mm chisel tip for precise heat transfer. For the negative terminal of the fifth cell, route 16AWG wire to the P- pad, but first insert a 10A fuse between the connection and the board’s input to mitigate fire risk during accidental shorting. Label each cell tap wire (14AWG) with heat-shrink tubing matching the battery’s color-coding: red for cell 1+, black for cell 5-, and yellow for intermediate tap points (cells 2–4).
Verify all connections with a multimeter set to DC voltage mode before powering the load–probes should read 3.7V ±0.05V per cell group, with a total stack voltage of 18.5V ±0.2V for a 5-series pack. Secure loose wires with nylon cable ties spaced at 5cm intervals, avoiding sharp bends that could stress the conductors. If equipping a balancing shunt, attach the shunt wires (22AWG) to the corresponding B1–B5 pads, ensuring each shunt’s current rating exceeds the cell’s maximum charge rate by 20%.
Balancing Resistor Selection and Placement in 5-Series Battery Management
Use resistors with a power rating at least 30% higher than the calculated heat dissipation to prevent degradation under continuous balancing loads. For a 5-series configuration with 3.7V nominal cells, target a resistance range of 20-50Ω for passive balancing; values below 20Ω risk excessive current draw, while above 50Ω reduces balancing efficiency by 40% in high-capacity packs. SMD resistors (e.g., 2512 package) handle 1-2W reliably, but through-hole types like Vishay CRF series are preferable for packs exceeding 5Ah, where thermal mass improves stability.
Placement Rules
- Mount resistors directly on the battery tabs for 1-3Ah cells to minimize trace inductance; PCB traces longer than 15mm introduce parasitic resistance, skewing measurements by ±2mV.
- For packs above 10Ah, use parallel resistor banks (e.g., three 30Ω resistors instead of one 10Ω) to distribute heat; this extends component lifespan by 2.5x compared to single-resistor setups.
- Avoid placing resistors near MOSFETs or inductors; a minimum 8mm clearance prevents thermal coupling, which can accelerate resistor aging by 15-20°C.
- In high-vibration applications, anchor resistor leads with silicone adhesive; standard solder joints fail at 12G RMS without reinforcement.
Test resistor tolerance under 60°C ambient; even 1% drift can cause imbalanced cell wear in under 200 cycles. For long-term stability, select resistors with TCR <100 ppm/°C (e.g., KOA RK73B) to maintain consistent balancing across temperature swings of -10°C to 50°C.
Voltage Sensor Calibration for Accurate 5S Battery Management Precision
Begin calibration by measuring each cell’s voltage with a 4½-digit multimeter set to 200mV resolution. Record readings at no-load and 1A discharge for all five cells. Calculate the mean of three measurements per cell to eliminate transient noise–discard any value deviating more than ±2mV from the average.
Use a precision voltage reference (e.g., LT6655, 0.05% accuracy) to verify sensor outputs. Connect the reference between ground and the ADC input, then adjust the scaling resistors until the system’s reading matches the reference within ±0.5mV. For 5S lithium configurations, ensure the full-scale range is set to 21V (4.2V × 5) with 16-bit resolution for 0.3mV granularity.
Temperature compensation is critical: attach a 10kΩ NTC thermistor (B=3950) near each cell’s terminal. Map raw ADC counts to temperature using Steinhart-Hart coefficients. At 25°C, the sensor should read 10kΩ ±1%; deviations beyond ±3% indicate thermistor drift requiring replacement.
Implement a zero-offset correction by shorting the ADC input to ground during power-up. Log the reading (ideally 0.0mV) and subtract this value from all subsequent measurements. For bipolar ADC inputs, ensure the offset does not exceed ±10 LSBs to maintain linearity.
Validate calibration under dynamic conditions: apply a 5A pulsed load for 10ms and verify voltage drop does not exceed 20mV for a 100mΩ ESR cell. If discrepancies arise, recalculate the internal impedance based on ΔV/ΔI and adjust the balancing threshold accordingly. Cells with impedance >30mΩ may require separate scaling factors.
Advanced Drift Correction Techniques
Deploy a moving-average filter with a 10-sample window to smooth real-time data. If the standard deviation exceeds 1.2mV over 1min, trigger a recalibration cycle. For long-term stability, store calibration coefficients in EEPROM and reload them at power-on–resolution loss below 0.1% after 1,000 write cycles is acceptable for most commercial-grade memory.
For multi-pack systems, synchronize calibration across units using a shared I2C bus at 400kHz. Master controller broadcasts a 3-byte calibration command (opcode: 0xA5, cell ID: 0-4, reference voltage: 0-21V) to all slaves. Each slave replies with its measured error (
Final verification requires a 48-hour soak test: maintain cells at 3.9V ±10mV and log sensor readings every 5min. Drift >0.8mV per day indicates either parasitic leakage (>50µA) or ADC reference instability–inspect PCB for flux residue or solder bridges. Replace the microcontroller if internal calibration registers fail to hold values after power cycling.
