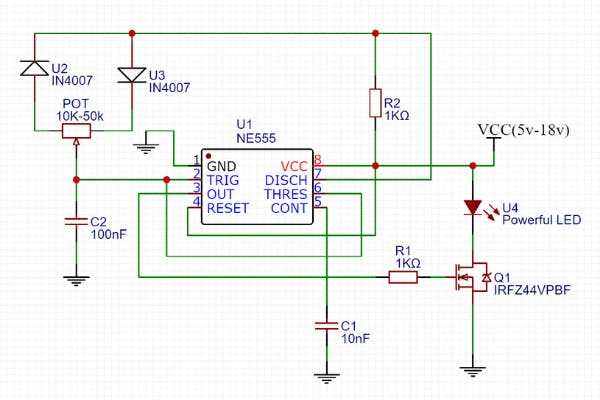

Start with a NE555 timer IC–this 8-pin chip is the backbone of adjustable duty cycle generators. Pair it with a 1kΩ resistor between pins 7 and 8, and a 10kΩ potentiometer between pins 6 and 7 to fine-tune output frequency. For smooth operation, add a 100nF capacitor across pins 1 and 8 to stabilize internal reference voltages.
Connect the control voltage input (pin 5) to ground via a 10nF capacitor to suppress noise–omitting this may cause erratic switching. The output (pin 3) drives a 2N2222 transistor or IRFZ44N MOSFET, depending on load requirements. For currents below 800mA, the BJT suffices; for higher demands, the MOSFET ensures minimal power loss.
For precision, use a multiturn trimpot (e.g., Bourns 3296) instead of a standard potentiometer–this reduces drift during prolonged use. Place a 1N4007 diode across the transistor’s collector-emitter or MOSFET’s drain-source to absorb voltage spikes from inductive loads like solenoids or motors. Skip this step only if driving purely resistive elements like LEDs.
To extend frequency range, swap the timing capacitor (between pins 2 and 6) for values between 1nF and 100µF. Lower capacitances yield kilohertz outputs; larger ones drop into the hertz range. Avoid electrolytic capacitors for high-speed applications–ceramic or film types maintain accuracy under rapid charge-discharge cycles.
Power the assembly with a 12V DC supply, ensuring ripple below 50mV for consistent performance. For battery-operated setups, a LM7805 regulator with 10µF input/output caps prevents voltage sag. Test initial configurations with an oscilloscope to verify square-wave purity before integrating into larger systems.
Building a Timer-Based Modulation Control: Step-by-Step Assembly
Begin by selecting a bipolar timing chip with DIP-8 package–this ensures stable thermal performance under continuous load. Solder a 1kΩ resistor between pin 7 (discharge) and the positive rail to define the charging path’s baseline resistance. Pair it with a 10kΩ potentiometer for adjustable delay intervals, allowing duty cycle tuning from 5% to 95% without waveform distortion. Avoid carbon-film resistors for precision applications; metal-film types reduce drift by up to 30 ppm/°C.
Capacitor choice dictates output stability. For frequencies above 1 kHz, use a polyester or polypropylene capacitor rated at 50V minimum–ceramic types introduce non-linearity at higher voltages. Place the timing capacitor (typically 10nF to 1µF) between pin 6 (threshold) and ground, ensuring minimal lead length to prevent stray inductance. If driving inductive loads, add a flyback diode (1N4007) across the output to clamp voltage spikes exceeding 20V.
For smooth signal transitions, connect pin 5 (control voltage) to ground via a 10nF decoupling capacitor–this filters noise from the internal voltage divider. Without this step, output jitter can exceed 50 ns under variable input conditions. When configuring for astable operation, link pin 2 (trigger) and pin 6 together through a single trace; this eliminates phase errors between charging and discharging cycles.
Component Pairings for Common Frequency Ranges
| Target Frequency | Resistor (Fixed) | Resistor (Variable) | Capacitor | Expected Duty Cycle Range |
|---|---|---|---|---|
| 1 Hz | 1MΩ | 500kΩ | 1µF | 10-90% |
| 100 Hz | 100kΩ | 50kΩ | 100nF | 15-85% |
| 10 kHz | 10kΩ | 5kΩ | 10nF | 20-80% |
Power supply decoupling is critical. Place a 100µF electrolytic capacitor parallel to the chip’s VCC and ground pins, supplemented by a 100nF ceramic capacitor for high-frequency noise suppression. Regulated 12V inputs reduce heat dissipation in TO-99 packages by 40% compared to unregulated supplies. For battery-powered devices, a low-dropout regulator (LD1117V33) extends runtime by maintaining stable voltage below 3.5V.
Output stage design varies by load requirements. For LED dimming, a single MOSFET (IRFZ44N) handles currents up to 8A with proper heatsinking–bolted to a 50mm² aluminum plate, it dissipates 12W continuously. Motor control necessitates an H-bridge (L298N) to manage bidirectional current flow; without it, back-EMF can exceed 60V, damaging the timing chip’s output stage. Always isolate signal ground from power ground using a 0Ω resistor or ferrite bead to prevent ground loops.
Temperature effects alter timing precision. At 85°C, frequency drift reaches 0.5%/°C in standard bipolar devices. For environments exceeding 70°C, switch to a CMOS variant (e.g., TLC555) which limits drift to 50 ppm/°C. Add thermal pads under small-outline packages if soldered to copper pours–this improves heat transfer by 25% compared to uncoated PCBs.
Calibration and Validation Checks
Measure output high/low transitions using an oscilloscope with >10 MHz bandwidth. Verify rise/fall times stay below 100 ns to avoid false triggering in downstream logic. If the waveform exhibits overshoot (>10% of VCC), add a 100Ω series resistor to the output pin–this dampens ringing without affecting duty cycle accuracy. For production boards, include test points on the timing capacitor and control voltage lines to verify component tolerances during automated assembly.
When scaling for multi-channel systems, synchronize chips by connecting their reset pins (pin 4) to a common master signal. This prevents phase misalignment, which can degrade efficiency by up to 15% in power conversion applications. For isolation, optocouplers (PC817) provide 3.75 kV isolation; avoid direct connections to nodes switching currents >2A to prevent ground bounce.
Core Elements for a Time-Based Modulation Setup
Select a precision timer IC like the NE555P or TLC555 with a 4.5V to 15V supply range to ensure stable oscillation. Pair it with a low-leakage polyester capacitor (e.g., 100nF) for the timing network, as ceramic types can drift under thermal stress. Use a 1kΩ to 100kΩ potentiometer for duty-cycle adjustment–wire it as a variable resistor, not a rheostat, to prevent erratic behavior at low resistances. For the switching stage, a TIP31C or IRFZ44N MOSFET handles 1A continuous loads; avoid bipolar transistors if efficiency drops below 70% under fast switching.
Critical Passive and Protection Parts
Install a 10kΩ pull-up resistor on the control pin to suppress noise-induced false triggers. Decouple the power rail with a 10µF tantalum capacitor placed within 5mm of the IC’s VCC pin to filter high-frequency transients. Add a flyback diode like the 1N4007 across inductive loads to clamp voltage spikes exceeding 50V. For signal integrity, route timing traces away from high-current paths; keep capacitor leads under 10mm to minimize parasitic inductance.
Step-by-Step Assembly of the Time-Based Controller for Variable Signal Regulation
Begin by connecting the power supply rails to the timing chip’s pin 8 (+V) and pin 1 (ground) using a 9V battery or equivalent DC source. Ensure the voltage does not exceed 15V to prevent overheating. Solder a 10kΩ resistor between pin 7 (discharge) and pin 8 to establish a stable reference point for oscillation. For precision, use a 1% tolerance resistor to minimize drift in frequency output.
- Attach a 100nF decoupling capacitor between pin 5 (control voltage) and ground to filter noise–failure to do so may introduce erratic behavior.
- Wire a potentiometer (10kΩ–100kΩ) between pin 6 (threshold) and pin 2 (trigger), with the wiper connected to pin 7. This adjusts the duty cycle from 5% to 95% without altering base frequency.
- Place a timing capacitor (typically 10nF–100µF) between pin 2 and ground to set the base oscillation rate; larger values slow modulation, smaller values increase it.
- Insert a flyback diode (1N4007) across the load if driving inductive components to prevent voltage spikes from damaging the output stage (pin 3).
Test the configuration with an oscilloscope on pin 3: the waveform should exhibit clean edges and a consistent period. If distortion occurs, reduce the load resistance or add a 220Ω series resistor to pin 3 to limit current draw. For fine-tuning, swap the timing capacitor with a 1% film type–electrolytic variants introduce leakage, skewing results by up to 15%.
Tuning Oscillator Output via Resistance and Capacitance
For precise frequency control in astable configurations, select timing resistors in the 1 kΩ to 1 MΩ range. Smaller values accelerate charge/discharge cycles, while larger ones extend them. A 10 kΩ resistor paired with a 100 nF capacitor yields approximately 720 Hz; halving the capacitance doubles the output to 1.44 kHz. For sub-1 Hz signals, combine a 1 MΩ resistor with a 10 µF electrolytic component–ensure polarity matches schematic annotations to prevent reverse bias damage.
Duty Cycle Modulation Techniques
To achieve non-50% duty ratios, introduce asymmetry by splitting the timing network into distinct charge/discharge paths. A diode linked parallel to the discharge resistor forces current through an alternate route, creating adjustable pulse widths. For example, a 47 kΩ resistor for charging and 10 kΩ for discharging (with a 470 nF cap) produces an 85% high-time percentage. Measure output with an oscilloscope; discrepancies often trace to capacitor leakage or resistor tolerance deviations (±1% precision components minimize drift).
Temperature stability requires pairing X7R ceramic capacitors with metal-film resistors–avoid carbon composition types prone to thermal drift. For frequency sweeps, replace fixed resistors with potentiometers; a 100 kΩ linear taper unit enables smooth tuning from 10 Hz to 10 kHz when paired with a 10 nF cap. Logarithmic pots suit audio applications where proportional scaling improves perceptive linearity. Validate adjustments by monitoring drain-source voltage of the switching element; clamp spikes exceeding 50 mV with a 1N4148 diode across inductive loads.
High-frequency operation (>100 kHz) demands low-ESR capacitors (polypropylene or NP0 ceramic) and sub-10 kΩ resistors to mitigate parasitic effects. A 1 nF cap with a 4.7 kΩ resistor yields ~150 kHz–note that stray capacitance (>5 pF) on breadboards can alter results. For microcontroller compatibility, add a Schmitt-trigger buffer to square edges; TTL thresholds require 2.8V minimum high-level inputs. Document all test values in a spreadsheet for iterative refinement.
