Start with a 8-pin mini-DIP timer IC and a handful of passive components. For a stable output, pair it with a 10 kΩ resistor between pins 8 and 7, and another 10 kΩ resistor connecting pins 7 and 2. Add a 0.1 µF capacitor between pin 2 and ground. This configuration delivers a consistent square wave at approximately 720 Hz with a 50% duty cycle.
To adjust frequency, replace the resistors with a potentiometer. A 100 kΩ potentiometer in place of the fixed 10 kΩ resistors allows tuning from 60 Hz to 1.2 kHz. Ensure the capacitor remains between 0.01 µF and 1 µF for predictable behavior–values outside this range introduce instability or excessive noise. For precision timing under variable load, decouple the power supply with a 0.1 µF ceramic capacitor directly across the IC’s power pins.
For high-current applications, buffer the output with a small-signal transistor, such as a 2N3904, or a logic-level MOSFET. Connect the emitter (or source) to the load, and drive the base (or gate) directly from the generator’s output pin. This isolates the core from inductive loads, preventing voltage spikes that degrade the waveform. Avoid exceeding 200 mA through the IC without external amplification.
Use a dual-trace oscilloscope to verify rise times and symmetry. Connect Channel 1 to the output and Channel 2 to the timing capacitor. Ideal waveforms show sharp edges with minimal overshoot–deviations indicate stray capacitance or improper grounding. If noise persists, shield the timing components with a grounded copper pour on the PCB.
Building Reliable Timing Solutions: A Hands-On Approach
Begin with a stable power supply–never exceed 15V for the timer IC to prevent permanent failure. A 9V battery or regulated 12V adapter works best for precision, but ensure ripple doesn’t exceed 10mV or it’ll distort output pulses. For testing, solder a 10μF decoupling capacitor directly between the IC’s power pins to filter noise.
Select resistor values using the formula: T = 0.693 × (R₁ + 2R₂) × C, where T is the time period in seconds. For a 1Hz signal, pair a 1μF capacitor with R₁=470kΩ and R₂=680kΩ. Always use 1% tolerance resistors for consistency; standard 5% carbon film types introduce up to ±5% timing error. Metal-film resistors reduce temperature drift to under 50ppm/°C.
Capacitor choice dictates long-term stability. Tantalum types leak less than electrolytic but cost more–use them for frequencies below 1kHz. For rapid prototyping, polyester film capacitors (0.01μF–1μF) offer ±5% accuracy at minimal expense. Never use ceramic capacitors above 100nF in timing applications; their nonlinear voltage response skews pulse width by up to 20%.
Common Pitfalls and Fixes
| Symptom | Likely Cause | Solution | Verification |
|---|---|---|---|
| No output | Open reset pin (4) | Connect to VCC | Measure >4.5V at pin 4 |
| Frequency drifts | Capacitor leakage | Replace with low-ESR type | Check ESR |
| Asymmetrical duty cycle | Incorrect R₂ value | Recalculate R₂ for 50% duty | Adjust R₂ to (R₁ + R₂)/2 |
| Overheating IC | Load exceeds 200mA | Add a 2N2222 transistor buffer | Verify collector current |
To achieve adjustable frequency output, replace R₂ with a 1MΩ potentiometer wired as a rheostat. This allows tuning from 0.5Hz to 10kHz with a single knob, but add a 1kΩ fixed resistor in series to prevent shorting the capacitor to ground when the pot is at minimum. For temperature-compensated adjustments, pair the pot with a thermistor having a –3300ppm/°C coefficient.
When driving inductive loads like relays or small motors, always include a flyback diode (1N4007) across the load to clamp voltage spikes to 0.7V above VCC. Without it, back-EMF can exceed 100V, destroying the IC in microseconds. For higher currents, use a MOSFET (IRFZ44N) instead of a bipolar transistor; its lower saturation voltage (
Advanced Configurations

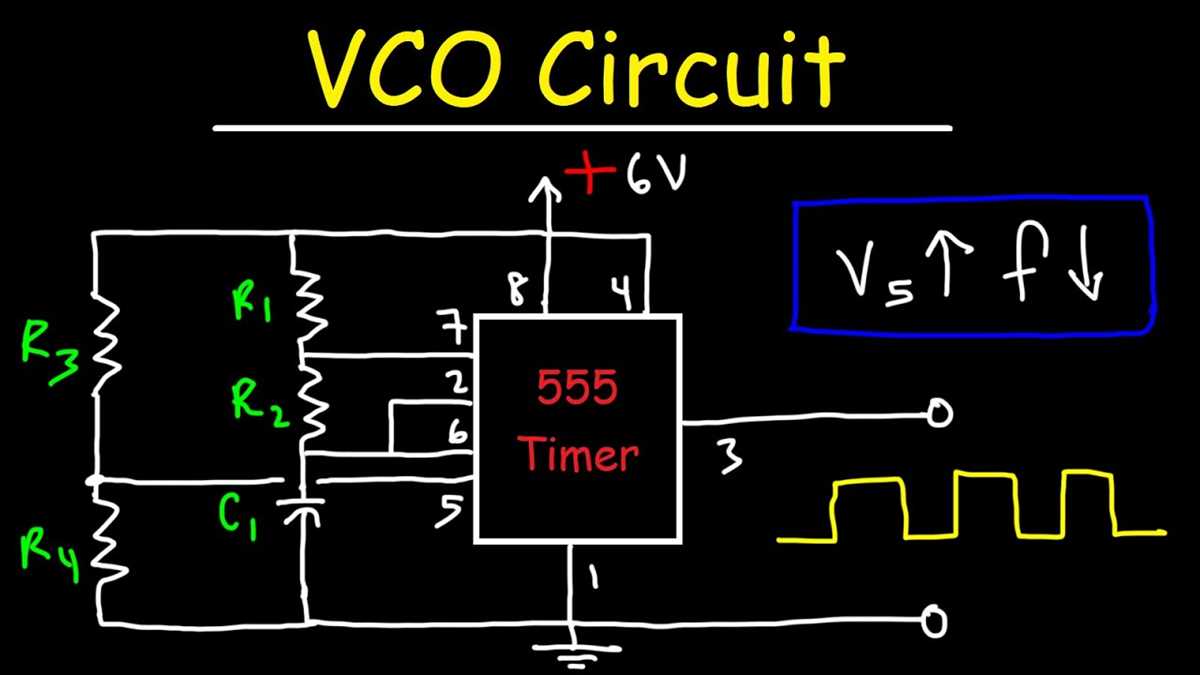

For a Voltage-Controlled Frequency (VCF) setup, feed an external control voltage (0–5V) to the control pin (5). This modulates the threshold level, shifting frequency by ±50% from the base value. Use a rail-to-rail op-amp (LMV358) to condition signals; even a 50mV offset at this pin alters timing by 10%. To increase modulation range to 10x, replace the upper threshold resistor with a current sink (LM334), allowing exponential response to the control voltage.
Troubleshoot with an oscilloscope, not a multimeter. A 10x probe prevents loading the output; AC coupling helps isolate DC offsets. If pulses appear rounded, increase VCC to 12V–the IC’s output swing is typically 1.5V below VCC. For breadboard testing, use a 10kΩ pull-down resistor on the output to prevent false triggering from stray capacitance. If duty cycle exceeds 80%, halve the capacitor value and double both resistors to maintain the same frequency while improving symmetry.

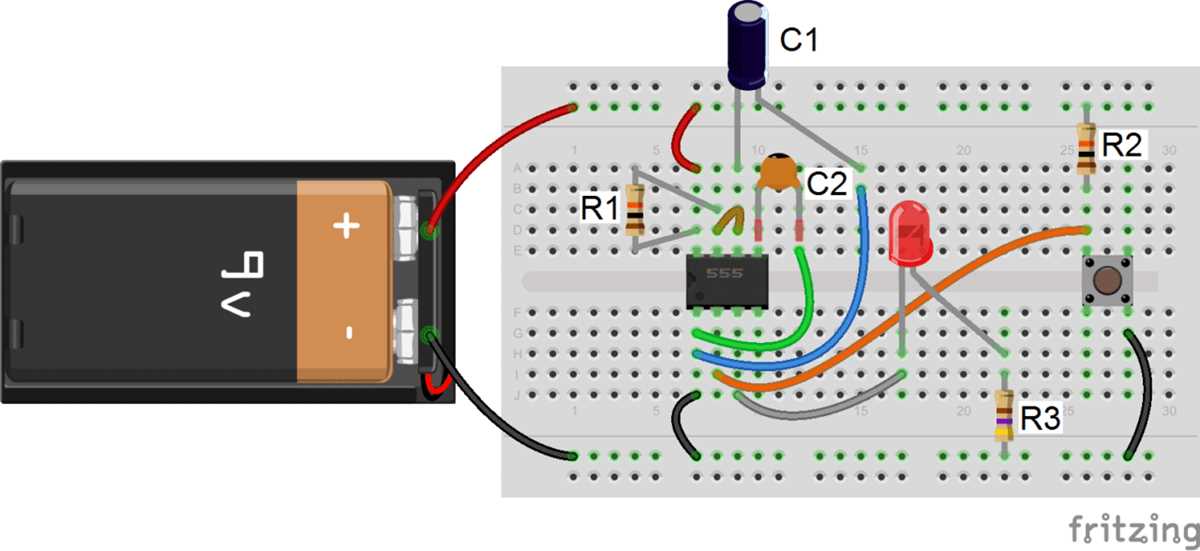

Assembling a Simple Timing Pulse Generator on a Prototyping Board
Begin by placing the NE555 chip into the center of the breadboard. Ensure the notch on the IC faces left to match the pin numbering convention. Pin 1 connects to ground, while pin 8 links to the positive supply rail. Verify these connections before applying power to prevent damage.
Attach a 10 kΩ resistor between pin 7 (discharge) and pin 8 (VCC). This component shapes the charge cycle of the timing network. Next, connect a 1 µF capacitor from pin 2 (trigger) to ground. The capacitor’s value directly influences the output signal duration–lower values yield faster pulses.
Bridge pin 2 and pin 6 (threshold) with a jumper wire. This creates the feedback loop necessary for stable operation. For frequency adjustment, incorporate a 100 kΩ potentiometer between pin 7 and pin 8, allowing fine-tuning without swapping fixed resistors.
- Power supply: 4.5–15 V DC (higher voltages increase output amplitude).

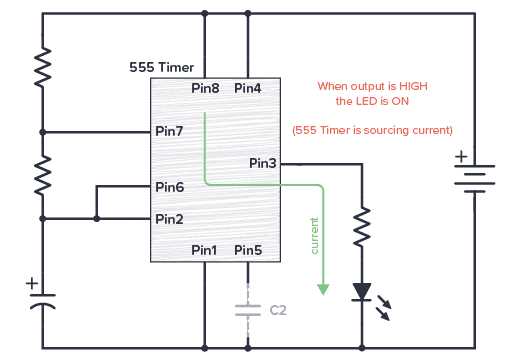

- Output pin (3): Connects to an LED with a 220 Ω series resistor for visual feedback.
- Control pin (5): Leave unconnected or tie to ground via a 10 nF capacitor for noise immunity.
Test the setup by applying power. The LED should blink at a rate determined by the resistor and capacitor values. If the output remains steady, check the feedback loop connections between pins 2 and 6. For variable duty cycles, replace the fixed resistor with two diodes–one in series with a 1 kΩ resistor for charge, another for discharge.
Troubleshooting Common Issues
No output signal? Confirm the IC’s orientation and ensure no shorts between adjacent breadboard rows. Silent operation often results from incorrect pin bridging–double-check the trigger-threshold link. Noise on the output? Add a 0.1 µF decoupling capacitor directly across the power rails near the chip.
Adjusting frequency without recalculating? Swap the 1 µF capacitor with a 10 µF unit for a 10× slower pulse rate. For precise timing, use a multimeter in frequency mode on pin 3 while tweaking the potentiometer. Record resistor values and corresponding frequencies for future reference.
Expanding the Prototype

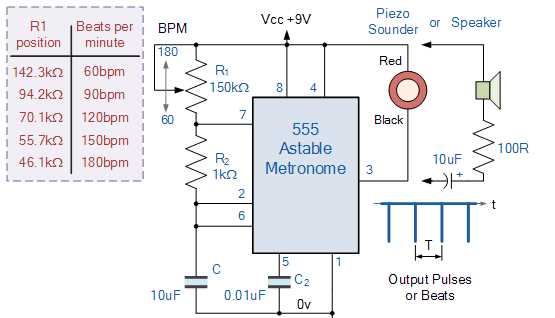

Replace the LED with a small speaker for audible tones, or drive a transistor to switch larger loads. Connect pin 4 (reset) to VCC for continuous operation; grounding it halts output. For astable mode with distinct on/off times, split the timing resistor into two separate paths with distinct values.
- Document all component values and measured frequencies.
- Label breadboard connections to avoid confusion during modifications.
- Store spare 47 µF capacitors for experimenting with extended pulse durations.
Calculating Resistor and Capacitor Values for Target Timing Signal
To achieve a precise output frequency, use the formula f = 1.44 / ((R1 + 2R2) * C). For a 1 kHz signal, set R1 = 10 kΩ, R2 = 10 kΩ, and C = 47 nF. This combination delivers reliable results with minimal drift. Adjust C first for coarse tuning, then refine with R2 for fine control.
For frequencies below 1 Hz, increase capacitance to reduce component sensitivity. Use C = 100 µF with R1 = 1 MΩ and R2 = 1 MΩ for a 0.1 Hz pulse. Polarized capacitors introduce leakage errors; prefer film or ceramic types for stability. Avoid electrolytic components unless temperature compensation is applied.
High-frequency designs require low-value components. A 100 kHz signal demands C = 1 nF, R1 = 1 kΩ, and R2 = 3.3 kΩ. Verify calculations with a frequency counter, as parasitic capacitance (5–20 pF) affects accuracy in the MHz range. Use 1% tolerance resistors to minimize deviations.
Temperature variations alter dielectric properties. For stable operation, select capacitors with NPO (COG) ceramic or polypropylene film dielectrics, which exhibit ±30 ppm/°C drift. Metal-film resistors (e.g., RN55) maintain resistance within ±0.1% across -55°C to +125°C. Avoid carbon composition resistors; their TCR exceeds ±500 ppm/°C.
Duty cycle control hinges on the ratio of R1 to R2. For a 50% duty cycle, set R2 = R1. To skew the pulse width, increase R2 (e.g., R1 = 1 kΩ, R2 = 10 kΩ) for a 90% high time. Capacitor ESR and equivalent series inductance (ESL) distort waveforms at frequencies above 500 kHz; use low-ESR ceramic or mica capacitors to preserve edge sharpness.
Resolving Common Problems in Timer-Based Pulse Generators
If the output waveform remains flat, first verify pin 8 (VCC) receives steady voltage within the chip’s operating range (4.5–15V). Measure directly at the pin–parasitic resistance in breadboard contacts or long wire runs can drop voltage below thresholds. Add a 0.1µF bypass capacitor adjacent to the pin, soldered if possible; loose connections introduce noise that disrupts timing. If voltage checks out, swap the timer IC–they occasionally fail internally without external damage.
Frequency drift under load typically stems from capacitive coupling or inadequate decoupling. Ensure timing capacitors (Ct) are film or ceramic types rated for low leakage (≤1nA); electrolytics introduce error. For resistor stability, use metal-film 1% tolerance–carbon composites shift with temperature. Interference from adjacent logic traces? Route signal lines perpendicular to high-current paths or add a guard trace tied to ground. If noise persists, reduce the value of the discharge resistor (Rd)–higher impedance makes the node more susceptible.
Diagnosing Output Instability
- Runt pulses: Increase the timing resistor above 1kΩ–values below this risk marginal charge cycles. Check for cold joints on capacitor leads; reflow solder.
- Noisy edges: Add a 10nF snubber capacitor across the output pin to ground. Avoid large capacitive loads (>1µF) unless buffered–they distort pulse shape.

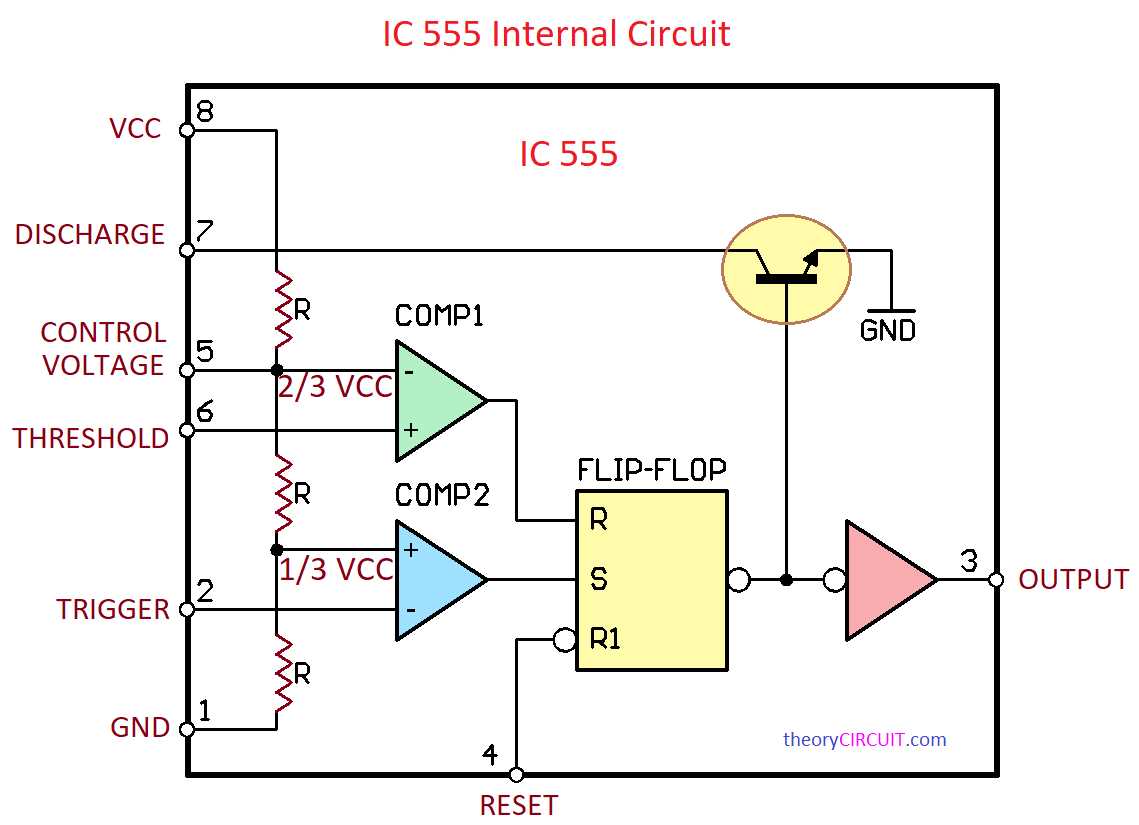

- Missing cycles: Probe the threshold and trigger pins with an oscilloscope–if waveforms don’t toggle between 1/3 and 2/3 VCC, the internal comparator may be compromised.
Thermal effects often cause intermittent failures. A chip heating above 70°C (measured at the package) may need a small heatsink or airflow. Reduce output current below 200mA if driving LEDs or relays–exceeding this stresses the output stage, shortening lifespan. For precision applications, replace the timing capacitor with a polypropylene variant (low dielectric absorption) and trim resistors with multi-turn potentiometers. Environmental RF noise? Shield the setup with a grounded metal enclosure; ferrite beads on control lines suppress high-frequency transients.
