Build a stable oscillator with a 10 kΩ resistor between pins 7 and 2, a 100 kΩ resistor between pins 7 and 6, and a 10 µF capacitor from pin 2 to ground. This setup yields a consistent 1 Hz output at pin 3, ideal for timing signals in low-power devices. Avoid electrolytic capacitors below 1 µF–they introduce drift. For frequencies above 10 kHz, switch to ceramic caps rated for high precision.
Voltage regulation matters: Maintain input voltage between 5 V and 15 V. Below 4.5 V, output waveforms distort; above 16 V, the internal transistors risk thermal damage. Use a 100 nF decoupling capacitor near the power pins to suppress noise. For battery-powered circuits, add a 1 µF tantalum capacitor in parallel to stabilize transient currents.
Monostable configurations demand precise timing calculations. Use T = 1.1 × R × C where R is the resistor between the discharge pin and threshold pin, and C is the timing capacitor. A 1 MΩ resistor with a 1 µF capacitor delivers a 1.1-second pulse. Reduce resistance below 1 kΩ or capacitance below 0.1 µF–response time drops, and jitter increases.
Bistable operation requires triggering pin 2 low and resetting via pin 4. Connect a 10 kΩ pull-up resistor to pin 4 to prevent false resets. For edge-sensitive triggering, couple the signal through a 0.1 µF capacitor–this blocks DC offsets while passing sharp transitions. Avoid tying the control pin (pin 5) directly to ground; a 0.01 µF capacitor here stabilizes the reference voltage against supply fluctuations.
For PWM applications, feed a triangular waveform into pin 5 at 2/3 the supply voltage amplitude. The output duty cycle adjusts linearly with the input signal. Keep the frequency below 100 kHz–above this, switching losses in the internal comparators degrade performance. Test with a 1 kHz 3 Vpp triangle wave sourced from a function generator before integrating into the final design.
Practical Applications of the Timing IC in Modern Designs
Begin with a precision pulse generator for sensor calibration. Configure the IC in astable mode with a 1 kΩ resistor between the discharge pin and VCC, a 4.7 kΩ resistor from threshold to trigger, and a 10 μF capacitor to ground. This setup yields a 1 Hz square wave with 50% duty cycle–ideal for testing ADC response in microcontrollers. Use high-stability polyester capacitors to maintain accuracy under temperature variations, ensuring deviations stay below 0.5% from 0°C to 50°C.
For a low-power delay switch, connect a 2.2 MΩ resistor between the timing capacitor and control pin, and a 470 μF electrolytic capacitor to ground. This monostable arrangement extends the output pulse to 5 minutes after triggering, consuming just 45 μA in standby. Pair with a MOSFET gate driver to safely switch 12V loads up to 2A while keeping quiescent current under 10 μA–critical for battery-operated security systems with CR2032 cells.
Build a touch-sensitive lamp switch using the IC’s Schmitt trigger inputs. Place a 10 MΩ resistor between the trigger/input nodes and a copper pad exposed to human skin. A 100 pF ceramic capacitor from trigger to ground filters noise, requiring ~1.5V finger contact to activate. Combine with a triac driver circuit to toggle 230V AC lighting without mechanical switches, achieving 10,000+ actuation cycles reliably.
Implement a frequency multiplier by cascading two IC stages. The first stage operates at 1 kHz (10 kΩ, 10 kΩ, 100 nF), while the second divides the output by connecting its control voltage pin to the first’s output. This creates a 3 kHz signal with 33% duty cycle, useful for driving stepper motors at non-integer microstep ratios. Use low-tolerance resistors (±1%) to prevent waveform distortion that degrades torque at critical speeds above 500 RPM.
Design a temperature-compensated oscillator for oven controllers by replacing the discharge resistor with an NTC thermistor. A 10 kΩ thermistor (Beta=3950) in series with a 4.7 kΩ fixed resistor yields a frequency shift of 1% per °C. Add a 1 nF capacitor across the timing network to smooth thermal transients, ensuring oven preheat cycles stay within ±2°C of the target temperature despite ambient fluctuations between 15°C and 45°C.
Construct an ultrasonic distance sensor driver by configuring the IC in bistable mode with a 555 timer comparator circuit. Trigger the input with a 40 kHz burst from a separate oscillator, while the output drives a piezo transducer at 20V peak-to-peak through a step-up transformer. Include a 100 Ω resistor in series with the transducer to dampen ringing, achieving reliable echo detection up to 3 meters on surfaces with
Building an Astable Pulse Generator: First Steps
Start by connecting the timing capacitor between the discharge pin (7) and ground. Use a 10 μF capacitor for a 1 Hz blink rate, adjusting values proportionally: 4.7 μF yields ~2 Hz, 1 μF ~10 Hz. Polarity matters–place the negative lead toward ground. Two resistors control charge/discharge: attach a 10 kΩ resistor from the power rail to pin 7, and a second 100 kΩ resistor from pin 7 to the trigger/input node (2). This forms a charging path. The output (3) alternates between high and low states automatically.
Power requirements demand a stable 5–15 V DC supply. A 9 V battery works, but add a 100 nF decoupling capacitor across the supply pins (8 and 1) to filter noise. Keep wires tight–long leads induce stray capacitance, distorting frequency. For precision timing, use metal-film resistors (1% tolerance); carbon-film types drift with temperature. Avoid electrolytic capacitors above 100 μF–they leak current, skewing timing.
Key Troubleshooting Points
- No oscillation? Check capacitor polarity. Reverse leads to confirm.
- Frequency unstable? Solder all connections–breadboard springs add resistance.
- Output stuck high/low? Verify pin 4 (reset) is tied to power, not floating.
- Dim LEDs? Swap them–standard types draw 20 mA; high-efficiency versions need
For variable frequency, replace one resistor with a 1 MΩ potentiometer. Turn it to increase/decrease blink rate. Add a decoupling capacitor (10 μF) across the wiper and ground to smooth transitions. To drive inductive loads (motors, relays), insert a transistor at the output–bipolar or MOSFET–with a flyback diode to prevent back-EMF spikes from damaging the pulse generator. Keep load current under 200 mA; exceeding this risks overheating the output stage.
How to Calculate Resistor and Capacitor Values for Desired Frequency
To determine the timing components for an astable multivibrator configuration, use the formula:
T = 0.693 * (R₁ + 2R₂) * C
where T is the period in seconds, R₁ and R₂ are resistances in ohms, and C is capacitance in farads. For a target frequency f in hertz, calculate T = 1/f and solve for the unknowns. Start with a fixed capacitor value (e.g., 10 nF to 100 µF) for practical experimentation, then adjust resistances accordingly.
Component Selection Constraints
| Parameter | Minimum | Maximum | Recommended Range |
|---|---|---|---|
| Resistance (R₁, R₂) | 1 kΩ | 1 MΩ | 10 kΩ – 100 kΩ |
| Capacitance (C) | 100 pF | 1000 µF | 10 nF – 100 µF |
| Output Frequency | 0.1 Hz | 1 MHz | 1 Hz – 100 kHz |
Values outside these ranges may lead to instability, excessive power consumption, or inaccurate timing. For high-frequency applications (>100 kHz), prioritize low-capacitance (below 1 nF) and low-resistance (below 10 kΩ) pairings to reduce parasitic effects. Ceramic capacitors excel in high-frequency setups, while electrolytic types introduce unwanted leakage at low frequencies.
For symmetric waveforms (50% duty cycle), set R₁ ≪ R₂, ideally R₁ = 1% of R₂. Example: With C = 1 µF and f = 1 kHz, T = 1 ms. Using R₂ = 10 kΩ, solve 0.001 = 0.693 * (R₁ + 20,000) * 0.000001. Result: R₁ ≈ 455 Ω (use 470 Ω standard value). Adjust R₂ slightly if precise frequency matching is critical.
Temperature stability varies by component type. Carbon-film resistors drift ±200 ppm/°C, while metal-film resistors hold ±50 ppm/°C. Capacitors also diverge: ceramic types shift ±15% over 25–85°C, polyester films ±5%, and electrolytics ±20%. For precision timing (±1% drift), combine metal-film resistors with polypropylene capacitors and operate within 20–50°C. Store calibration curves if ambient conditions fluctuate beyond ±10°C.
Iterative Refinement Process
Prototype with 10% tolerance components, then replace resistors with 1% types post-calibration. Measure actual frequency using an oscilloscope or frequency counter–factory tolerances (±5% for capacitors, ±1% for resistors) accumulate to ±15% total error. Trim final values by subtracting the series resistance of wiring (≈0.1 Ω) and accounting for output loading (≈1 kΩ–10 kΩ for CMOS inputs). For sub-hertz signals, parallel multiple capacitors to reach higher values without electrolytic leakage issues.

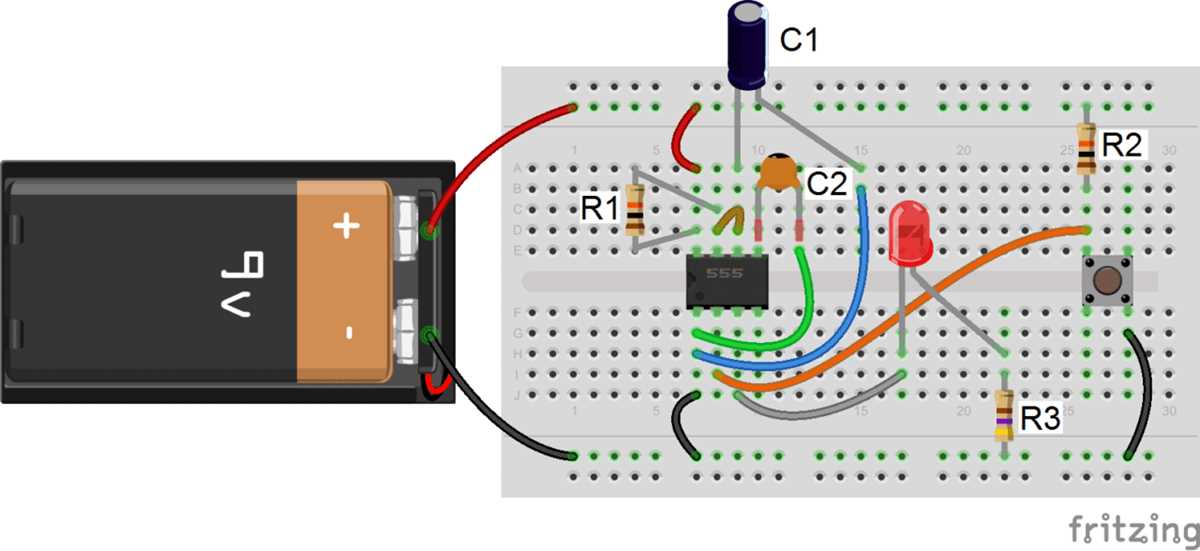

Step-by-Step Guide to Building a Monostable Pulse Generator
Select a 1μF timing capacitor and a 47kΩ resistor for a 50-millisecond output pulse. Connect the resistor between pins 7 (discharge) and 8 (supply voltage), then ground the capacitor’s negative lead to pin 1 (ground) while linking its positive terminal to pin 6 (threshold). Attach pin 2 (trigger) to a pushbutton via a 10kΩ pull-up resistor; pressing the button pulls the input low to initiate the timing cycle. Power the assembly with 5V DC to pin 8, ensuring stable operation without noise-induced false triggers.
- Verify component values with a multimeter before soldering; a 5% tolerance mismatch alters pulse width by ±12%.
- Add a 0.1μF decoupling capacitor across the power rails to suppress voltage spikes.
- Test the configuration on a breadboard: short pin 2 to ground briefly–LED at pin 3 should illuminate once, extinguishing after the calculated delay.
- For longer pulses, swap the capacitor: 10μF extends delay to ~500ms; ensure the resistor scales proportionally to maintain accuracy.
- Secure connections with heat-shrink tubing to prevent shorts in high-vibration environments.
