Start by verifying the amperage and voltage ratings on your appliance’s nameplate. For a 60-ampere, 240-volt circuit, NEMA 6-50P connectors are standard. Confirm the cable type–6 AWG copper or 4 AWG aluminum–before stripping insulation. Exceeding these gauges reduces safety margins and violates NEC 210.19(A).
Terminations follow a strict polarity: the brass screw accepts the hot (L1) conductor, the silver screw takes the neutral (if applicable), and the green screw secures the bare ground wire. Reverse these assignments and the device trips breakers or damages internals. For a three-prong setup, omit the neutral; the ground and two hots carry the full load.
Tighten terminals to 12–15 lb-in torque. Loose connections overheat, measured by infrared thermometers exceeding 60 °C. Strip ⅝” of sheath; longer exposures risk short circuits under vibration. Test continuity with a multimeter–zero ohms between prongs confirms correct assembly. Label the panel with circuit ID per NEC 408.4.
Mains-rated accessories are non-negotiable. Use 10 AWG ground pigtails for configurations lacking a dedicated terminal. Install strain relief clamps around the cord jacket to prevent conductor pull-out. Validate polarity again before energizing; reversed hots swap phase rotation in motors, stalling compressors or pumps.
Connecting a High-Amperage 240V Connector: Step-by-Step Instructions

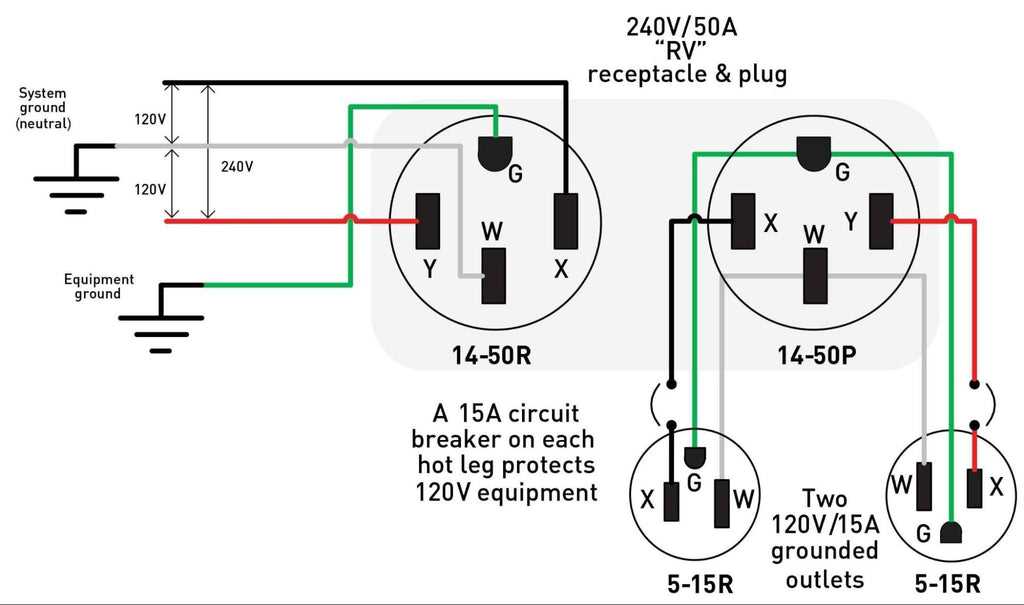

Begin by confirming the power source’s voltage matches the terminal ratings–never exceed 250V AC. Use a multimeter to verify the live, neutral, and ground wires; incorrect polarity risks equipment damage or fire. For North American NEMA 14-50 configurations, attach the red (L1) and black (L2) wires to the brass terminals, the white (N) to the silver terminal, and the green or bare copper (G) to the green grounding screw. Torque each screw to 12-15 lb-in (1.36-1.7 N·m) to prevent loosening under load.
Follow these critical safety checks before energizing the connection:
- Insulate all exposed conductors with heat-shrink tubing or electrical tape rated for 600V.
- Route cables through a strain-relief bushing to prevent abrasion where they enter the housing.
- Avoid aluminum wiring unless using properly rated anti-oxidant compound and UL-listed connectors.
- Ensure the breaker is off and locked out during installation–test for absence of voltage with a non-contact voltage tester.
Common Pitfalls and Troubleshooting
Symptoms of improper installation include tripped breakers, overheating, or intermittent power. Check for:
- Loose connections: Retighten all terminals; vibration from nearby heavy machinery can loosen them over time.
- Incorrect wire gauge: For 40A continuous loads, use 8 AWG copper (6 AWG if aluminum). Refer to NEC Table 310.16.
- Phase imbalance: Measure voltage between L1-L2 (should be ~240V), L1-N (~120V), and L2-N (~120V). Deviations >5V suggest wiring errors.
- Ground faults: Use a megohmmeter to test insulation resistance; values
After validation, apply power gradually. Monitor for unusual heat at the terminals during the first 30 minutes of operation–abnormal warmth suggests resistance issues. For international applications (e.g., IEC 60309 “Commando” connectors), adhere to regional color-coding standards: green-yellow for ground, blue for neutral, and brown/gray for phases. Always consult the equipment’s manual for device-specific deviations from standard wiring practices.
Gear and Supplies for Assembling a High-Current Socket
Begin with heat-resistant 6 AWG copper cable–stranded variants reduce brittleness under repeated bending, unlike solid core, which risks fatigue fractures near the terminals. A crimp-style lug kit rated for 60A continuous duty ensures secure compression; avoid soldered connections as they soften under thermal cycling. Use a torque screwdriver calibrated to 25 in-lbs to prevent overtightening brass terminals, which can deform the screw threads and increase resistance over time. Include insulated bootlace ferrules for the neutral and grounding wires to prevent stray strands from shorting.
Verify the receptacle’s compatibility with UL-listed NEMA 14-50 or L14-50 configurations before acquisition–counterfeit enclosures often lack proper strain relief, leading to conductor chafing. Keep thermal paste on hand to apply between the metal housing and any heat-generating components if ambient temperatures exceed 40°C, as sustained load degrades contact integrity. A multimeter with AC voltage range up to 600V is mandatory for phase-verification before energizing; probes with spring-loaded retractable tips reduce accidental arc faults during testing.

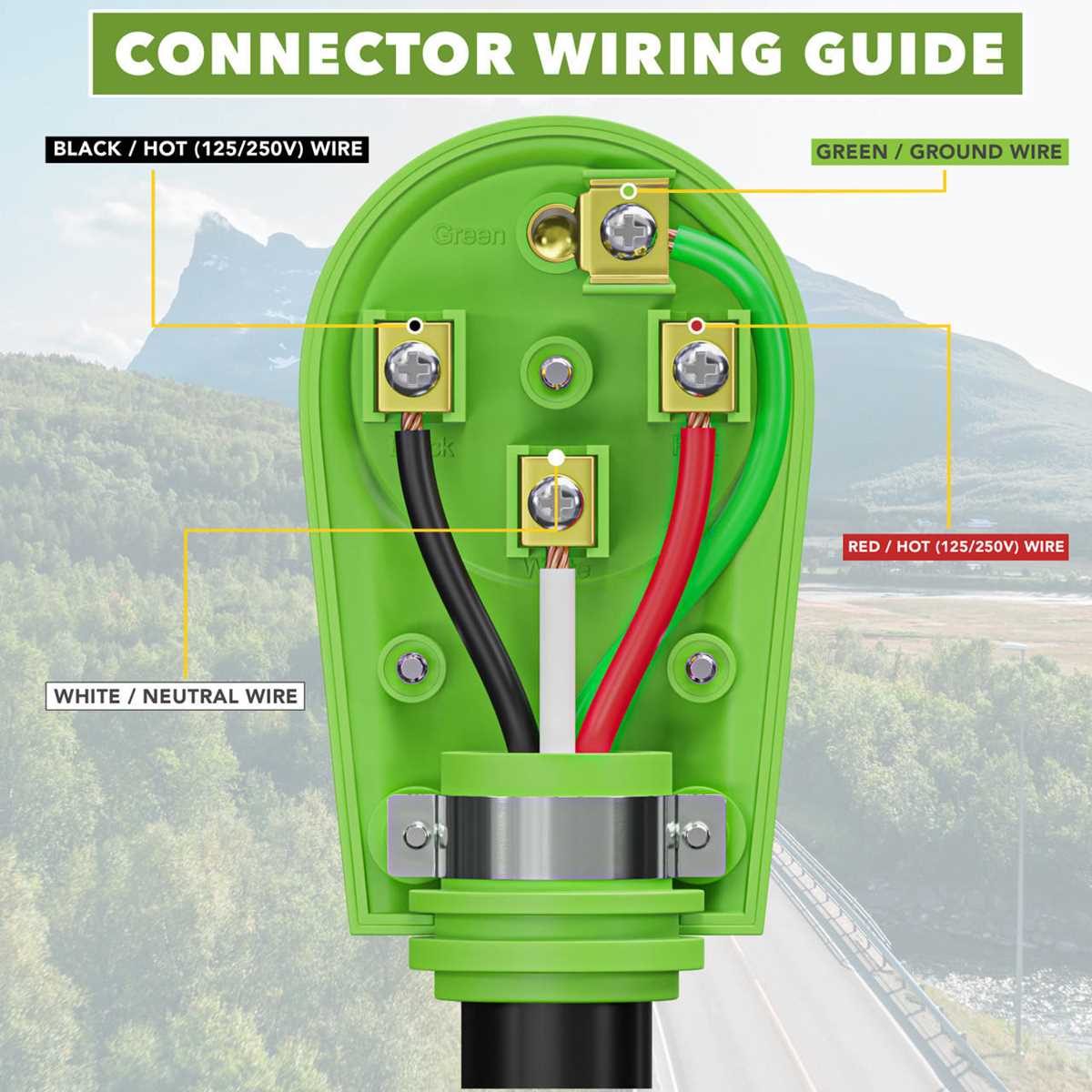

Step-by-Step Color Coding for High-Current 240V Connector Leads
Start by identifying the conductor functions based on standardized color norms for North American electrical systems. The hot legs must use black and red insulation–never swap these, as misidentification risks short circuits under load. The neutral line requires a white or gray jacket, sized to handle the full return current without overheating. Grounding is non-negotiable: strip back the green or bare copper wire to expose at least 5mm of conductor, then crimp with a properly rated ring terminal before securing to the chassis. For European or IEC-compliant applications, replace black/red with brown (L1) and black (L2), neutral with blue, and retain green/yellow for earth.
| Wire Function | NEMA/UL Color | IEC/EN Color | AWG Min. Gauge* |
|---|---|---|---|
| Line 1 (Hot) | Black | Brown | 6 |
| Line 2 (Hot) | Red | Black | 6 |
| Neutral | White/Gray | Blue | 6 |
| Equipment Ground | Green/Bare | Green-Yellow | 8 |
| *Gauge based on 75°C THHN/THWN-2 copper conductors; verify local codes for ambient derating. | |||
Verify tightness of each connection with a torque screwdriver: 7-9 lb-in for brass terminals, 10-12 lb-in for stainless steel. Before energizing, apply a non-contact voltage detector to confirm absence of stray voltage on the housing. If adapter cables cross regions (e.g., NEMA 6-50 to IEC 60309), label both ends with heat-shrink tubing annotated per wire function–never rely on color alone for cross-border installations.
Secure Wire Preparation and Termination for High-Current Connectors
Use a calibrated wire stripper adjusted to remove only 7–8 mm of insulation–exceeding this length weakens tensile strength and increases short-circuit risk when bent. Confirm the gauge matches the rated capacity: 6 AWG for most heavy-duty configurations; deviation by even one size reduces current handling by 22%. Apply downward pressure while rotating the stripper once to score copper strands evenly, then pull straight; twisting or sawing motion frays filament bundles and raises resistance by 5–8%. Discard any wires showing discoloration or oxidized strands as these indicate overheating history.
Slide each bared conductor into its terminal block until the insulation edge touches the collar–misalignment by 1 mm exposes live copper and violates clearance codes. Crimp connections with a hydraulic tool delivering 1500–1800 psi; ratcheting pliers produce inconsistent clamping force, risking hotspot formation. Tighten terminal screws to 12–14 inch-pounds–over-torque cracks phenolic housing while under-torque invites arcing. Verify continuity with a milli-ohmmeter reading below 0.3Ω; higher values signal corrosion or loose strands requiring rework before energizing.
Wrap each joint in self-adhesive vinyl tape stretched to 50% elongation, followed by two layers of heat-shrink tubing with 4:1 shrink ratio. Position the tubing so it extends 3 mm beyond both the terminal and wire insulation, ensuring no air gaps; trapped moisture accumulates sodium hydroxide at 85°C, corroding copper within 90 days. Seal terminal blocks with dielectric grease containing ≥1% zinc oxide to inhibit oxidation under load cycles exceeding 20 amps.
Common Mistakes to Avoid When Installing Heavy-Duty Electrical Receptacles
Failing to torque terminal screws to the manufacturer’s specifications causes loose connections, leading to overheating and potential fire hazards. Use a torque screwdriver calibrated for electrical work–most copper terminals require 12–18 inch-pounds. Skip the guesswork; overtightening deforms threads, while undertightening risks arcing.
Mixing neutral and ground conductors at the outlet violates NEC requirements, creating safety risks in fault conditions. The neutral bus must remain isolated from the grounding bus except at the service panel. Verify continuity with a multimeter before energizing the circuit–crossed wires compromise GFI protection and can damage sensitive equipment.
Ignoring Wire Gauge Compatibility
Using undersized conductors for high-current applications causes voltage drop and excessive heat, even if the circuit breaker doesn’t trip immediately. A 10 AWG copper wire, rated for 30A at 75°C, will overheat when forced to carry 40A continuously. Check the ampacity chart in NEC Table 310.16 and derate for conduit fill, ambient temperature, and wire length.
Skipping the polarity test after installation invites equipment damage or reverse operation. A meter set to AC voltage should show 240V across the hot terminals and 120V from each hot to neutral. Reversed polarity on a dryer or EV charger can fry internal components–never assume the factory wiring is correct.
Neglecting to secure cables with strain relief bushings shears insulation over time, exposing live conductors. Use listed cable clamps where wires enter the junction box, and leave 6–8 inches of slack inside the box for future maintenance. Loose wires pull free under vibration, creating dead shorts or open circuits.
