For a 50A electrical feed, use 6 AWG copper conductors–or 4 AWG if the run exceeds 100 feet–to prevent voltage drop under full load. Install a double-pole 50A breaker in the main panel, matching the wire gauge to avoid overheating. Ensure all connections are torqued to manufacturer specifications (typically 20–30 lb-ft for lugs) to eliminate loose terminals, a leading cause of electrical fires.
Ground the circuit with an 8 AWG bare copper wire or insulated equivalent, bonding it to the subpanel’s grounding busbar. For outdoor or wet locations, use weatherproof junction boxes rated NEMA 3R or higher, sealing all entry points with UL-listed conduit fittings. Avoid combining neutral and ground wires beyond the main service disconnect–this violates NEC Article 250 and creates safety hazards.
Label all conductors with phase (X, Y), neutral (W), and ground (G) identifiers at both ends of the run. Test continuity and insulation resistance with a megohmmeter (minimum 1,000V reading for new installations) before energizing. For subpanels, maintain a minimum 1-inch separation between neutral and ground busbars to comply with NEC 408.4.
Use rigid metal conduit (RMC) or intermediate metal conduit (IMC) for runs exposed to physical damage, securing them every 10 feet or less. For flexible solutions, opt for liquid-tight flexible nonmetallic conduit (LFNC) with appropriately sized fittings. Verify torque specs for all connections using an adjustable torque screwdriver–loose connections account for 12% of electrical failures in high-current systems.
Include a surge protector rated for 50,000A if the circuit powers sensitive equipment, mounting it within 10 feet of the subpanel. For mobile applications (e.g., RVs), add a 50A manual transfer switch to isolate the load from the utility feed. Document the circuit layout with clear schematics, noting conductor types, conduit specs, and breaker ratings for future troubleshooting.
50-Amp Circuit Setup: Step-by-Step Installation
Select 6 AWG copper conductors for a 50-volt-rated circuit operating at 240V. These cables handle continuous loads up to 40 degrees Celsius without derating, assuming ambient temperatures stay below 30°C. For aluminum, use 4 AWG wires–both require THHN/THWN-2 insulation rated for 90°C. Verify the breaker’s compatibility with the panel’s busbar rating; most residential panels max out at 125A, so a 50-volt double-pole breaker won’t exceed safe limits.
Strip 0.75 inches of insulation from each conductor before inserting into the breaker’s terminal. Tighten lugs to 25 in-lbs using a calibrated torque screwdriver–over-torquing risks conductor deformation, while under-torquing leads to resistive heating. Neutrals and grounding wires must terminate in separate designated bars; for subpanels, isolate the neutral bar from the grounding bar to prevent objectionable currents.
Run conduit only after calculating voltage drop. For a 100-foot run at full load, 6 AWG copper drops about 3.8V–under the 3% NEC threshold for branch circuits. Schedule 40 PVC suffices for indoor use; outdoors, switch to rigid metal conduit or PVC schedule 80. Use conduit bodies at every 90-degree bend to simplify pulling and future maintenance. Label each cable at both ends with permanent markers: “L1,” “L2,” “N,” “G.”
Test continuity before energizing. Measure resistance between L1-L2 (should be infinite), L1-ground (zero), and L1-neutral (infinite). Verify 120V between each hot leg and neutral, 240V between legs. If readings deviate, inspect for nicked insulation, loose terminations, or mixed-up wires. For EV chargers or welders, install a 50-volt-rated disconnect within sight of the device per NEC 625.42.
Seal outdoor conduit entries with silicone-based duct seal–this prevents condensation accumulation, which causes corrosion over time. Mount junction boxes at least 18 inches above grade for flood-prone areas. Replace standard wall outlets with NEMA 14-50 receptacles for RVs or heavy appliances; ensure the faceplate aligns vertically to prevent moisture ingress. Keep a 3-foot clearance in front of all panels and disconnects for firefighter access.
Required Tools and Materials for 50-Amp Power Setup
Use a digital multimeter with a minimum 600V AC/DC rating to verify voltage, continuity, and resistance. Select one with true RMS for accurate readings under load–models like the Fluke 117 or Klein MM700 meet these requirements. Include a non-contact voltage tester (e.g., Fluke 1AC-II) for quick safety checks before handling live components. A torque screwdriver (adjustable to 25–30 in-lbs) is mandatory for securing terminal connections to NEC torque specifications; improper tightening causes overheating.
Core Components
- Heavy-duty cable: 6 AWG copper (or 4 AWG aluminum) THHN/THWN-2 for conduit runs, or 6/3 NM-B with ground for indoor installations–both rated for 75°C minimum.
- Breaker: A two-pole, 50-unit molded case unit with a 65°C terminal rating (e.g., Siemens QP, Eaton CH). Match the brand to the panel to avoid compatibility issues.
- Outlet receptacle: NEMA 14-50R (4-prong) with a weatherproof while-in-use cover if outdoors. Verify the device’s listing for continuous load (40-unit derating).
- Conduit: Schedule 40 PVC (minimum 1-inch diameter) for buried runs, or EMT if exposed. Use sweeps instead of 90° elbows to reduce cable stress.
- Grounding rod: 8-foot copper-clad steel, 5/8-inch diameter, UL-listed, installed with an approved clamp and #6 solid copper bonding wire.
Consumables and Extras
- Wire connectors: Purple (for aluminum) or red/blue (copper) insulated twist-on types, rated for 90°C conductors. Crimp terminals must be UL-listed and sized for 6 AWG.
- Anti-oxidant compound: NOALOX or equivalent for aluminum connections–apply sparingly to prevent conductor slippage.
- Pulling lubricant: Wire lube compatible with PVC/EMT (e.g., Ideal Yellow 77), applied to each conductor to reduce friction during installation.
- Inspection tape: Color-coded (e.g., red for hot, white for neutral) to identify circuits without relying on markings that may fade.
- Sealing compound: Duct seal or electrician’s putty for conduit entrances to block moisture and pests–use only UL-rated products.

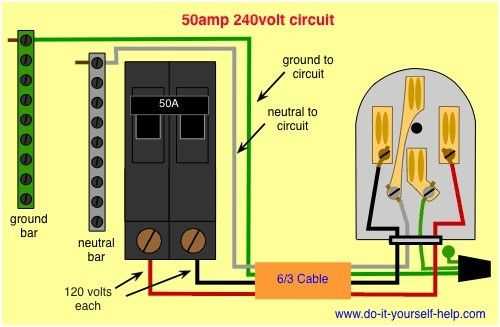

Step-by-Step Installation Guide for a 50-Ampere Receptacle
Shut off the main power panel before handling any conductors. Use a non-contact voltage tester to confirm all lines are inactive. A 50-A feed requires copper conductors sized at 6 AWG minimum–not the 8 AWG often mistakenly used–and a ground wire of the same gauge.
Selecting the Right Breaker and Cable
| Wire Type | Minimum Gauge (Copper) | Max Voltage Drop (3%) | Cable Length Limit (ft) |
|---|---|---|---|
| THHN | 6 AWG | 7.2 V | 120 |
| NM-B | 6 AWG | 7.2 V | 95 |
| UF-B | 6 AWG | 7.2 V | 75 |
Install a two-pole 50-A breaker in the panel. Verify the panel busbar is rated for 100 A minimum if this is the highest draw circuit. Route conduit or cable through studs with 1¼-inch clearance from edges; use protective plates where passing near framing.
Strip ¾ inch of insulation from each conductor. Terminate the neutral (white) and hot wires (red and black) to the corresponding brass screws on the receptacle, tightening to 18 inch-pounds with a torque screwdriver. Secure the bare copper ground to the green screw, ensuring no insulation remains under the screw head.
Final Assembly and Testing
Push the receptacle into the box, aligning screw holes, and fasten with No. 10-32 screws. Label the circuit at the panel. Restore power, then measure 240 V across the hot terminals and 120 V from each hot to neutral and ground using a multimeter. If readings deviate by more than 3%, recheck terminations.
Cap unused knockout holes with ½-inch conduit plugs to prevent dust intrusion. Seal cable entries with fireblock foam if penetrating fire-rated assemblies. Store leftover 6 AWG scrap for future repairs; never splice it underground or in wet locations.

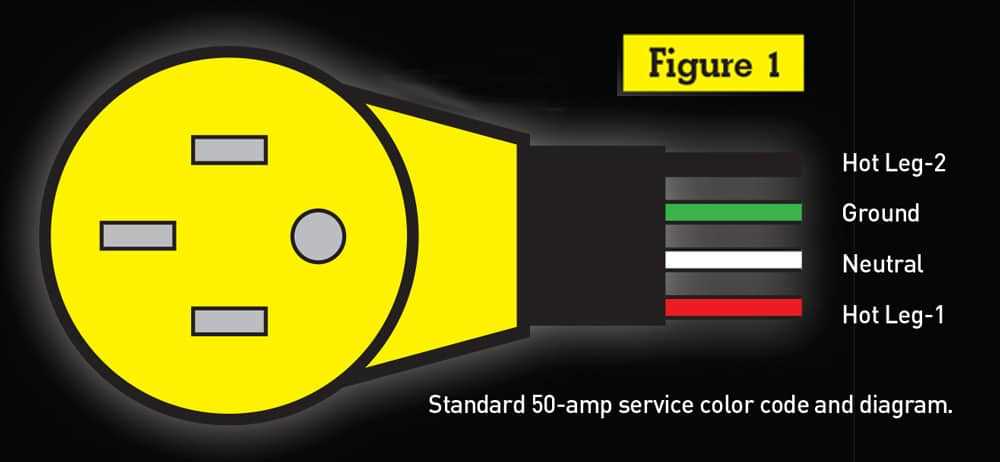

Color Coding and Wire Size Specifications for 50-Ampere Conductors
Use 6 AWG copper or 4 AWG aluminum cables for 50-rated circuits to comply with NEC Table 310.16. These gauges ensure derating limits are met at 75°C for 90°F ambient conditions. Grounding conductors must match the ungrounded conductor size–6 AWG copper or 4 AWG aluminum–to maintain fault current capacity.
Follow NFPA 79 color standards: black or red for ungrounded hot conductors, white for grounded neutrals, and green or green with yellow stripe for equipment grounding. Derated circuits requiring parallel conductors mandate identical color coding per phase to prevent misidentification. Verify local codes–some jurisdictions mandate blue for secondary phases in multi-wire setups.
Temperature Ratings and Insulation Types
Select THHN for dry locations (90°C rated) or THWN-2 for wet environments (75°C rated). Avoid Romex (NM-B) for 50-rated applications–it lacks the required ampacity for sustained loads. For underground feeds, use UF or XHHW-2 insulation, ensuring burial depth meets NEC 300.5 minimum (24″ for direct burial).
Crimp terminals must be ring-style, sized for the conductor gauge, and rated for the insulation temperature class. Use dielectric grease on aluminum connections to prevent oxidation. Label all conductors at termination points with permanent markers indicating voltage (e.g., “L1 240V”) to comply with OSHA 1910.334.
Safety Precautions When Working with High-Capacity Electrical Circuits
Always verify the circuit is de-energized using a non-contact voltage tester before handling any components. A 50-ampere system can deliver lethal currents–even residual charge in capacitors may cause severe shock. Confirm both the main breaker and any subpanels are switched off, then test all terminals with the detector to eliminate false readings.
- Wear insulated gloves rated for at least 1,000 volts when servicing live parts.
- Use tools with insulated handles certified to IEC 60900 standards.
- Keep a Class C fire extinguisher nearby–electrical fires require non-conductive agents.
- Store flammable materials at least 3 meters away from active components.
Overcurrent protection devices must match the conductor size precisely. A mismatched breaker–e.g., pairing 50-ampere capacity cables with a 60-amp fuse–can lead to overheating and insulation failure. Refer to NEC Table 310.16 for copper conductor ampacity: 6 AWG copper wire rated for 55 amperes at 60°C, 65 amperes at 75°C, and 75 amperes at 90°C. Exceeding these limits risks meltdown.
Grounding integrity is non-negotiable. Ensure the equipment grounding conductor is continuous and bonded to the grounding electrode system with a resistance below 25 ohms. Use a megohmmeter to test insulation resistance; values below 1 megohm signal compromised dielectric strength. Corroded connections or undersized grounding straps can transform a fault into a deadly arc flash.
- Label every disconnect switch and breaker clearly–misidentification causes accidents.
- Secure all cables with strain relief to prevent conductor fatigue at terminal points.
- Test ground fault circuit interrupters (GFCI) monthly via the built-in test button.
- Never bypass protective devices–temporary fixes become permanent hazards.
- Document all modifications with dated photographs and schematics for future reference.
