Start by identifying the correct terminals on your overcurrent protection device. Terminals labeled 50 (instantaneous trip) and 51 (time-delayed trip) must be wired to the circuit breaker’s control circuit. Use 14 AWG copper wire for signal paths and 12 AWG for power connections to handle current loads safely. Ensure the power source is isolated before making any connections to avoid accidental shorts.
For the 50 terminal, connect the wire directly to the circuit’s fault detection coil. This triggers an immediate shutdown when current exceeds preset thresholds, typically 8–12 times the rated load. The 51 terminal requires linking to a timing mechanism–adjust the dial to match the system’s coordination curve. Factory settings often default to 0.1–1.0 seconds of delay for moderate overloads.
Ground the protection device’s chassis using a minimum 10 AWG green wire to a dedicated earth point. Verify all connections with a multimeter set to continuity mode–readings above 1 ohm indicate loose or corroded terminals. Apply antioxidant paste to aluminum connections to prevent oxidation, which can degrade signal integrity over time.
Before energizing, test the setup with a secondary current injection tool. Simulate a fault by injecting 150% of the rated current–the 50 terminal should trip within 30 milliseconds, while the 51 terminal should activate after the configured delay. Recheck all wire nuts and compression terminals for torque compliance using a calibrated screwdriver; industry standards specify 7–9 lb-in for #14 AWG.
Understanding 50/51 Switch Configuration for Electrical Systems
Start by connecting the control signal to terminal 85 of the activation module, ensuring the correct voltage matches your system’s requirements–typically 12V for automotive or 24V for industrial setups. Terminal 86 should link directly to the power source, with a fuse sized at 125% of the expected load to prevent overload. For high-current applications, use a 40A fuse for circuits exceeding 30A, or a 20A fuse for standard loads under 15A.
Pin 30 must attach to the load’s positive terminal, while pin 87 connects to the system’s power input. Use 10-gauge wire for currents above 20A and 14-gauge for lighter loads. Ground the switch module at terminal 85 or 86 via a dedicated chassis point, avoiding shared grounds to minimize interference. For dual-coil configurations, split the signal between both coils with a current-limiting resistor if the manufacturer specifies.
Voltage Drop and Wire Sizing Guide
| Current (A) | Recommended Wire Gauge | Max Voltage Drop (V) | Distance Limit (ft) |
|---|---|---|---|
| 5 | 18 | 0.2 | 30 |
| 10 | 14 | 0.3 | 25 |
| 15 | 12 | 0.4 | 20 |
| 20 | 10 | 0.5 | 15 |
| 30 | 8 | 0.7 | 10 |
Install a flyback diode across inductive loads like motors or solenoids to protect the control circuit from voltage spikes. Position the diode cathode on the positive side of the load. For AC systems, replace the diode with a varistor rated at 1.5× the peak voltage. Transient suppression diodes fail silently–test with a multimeter in diode mode annually.
Route all control lines away from high-current paths to avoid crosstalk. Use twisted-pair wiring for signals over 5 feet, with a minimum twist rate of 6 turns per foot. Secure connections with heat-shrink tubing or dielectric grease to prevent corrosion in humid environments. For marine applications, opt for tinned copper wire and seal all terminations with silicone-based compound.
Label each connection at both ends to simplify troubleshooting. Use a multimeter to verify continuity before powering the system–set to ohms mode and probe terminals 30 and 87 to confirm open-circuit state when inactive. For smart modules with adjustable trip points, program the threshold via the manufacturer’s software, typically defaulting to 110% of the nominal current for overcurrent protection.
Common Fault Codes and Corrective Actions
| Fault | Symptoms | Solution |
|---|---|---|
| Coil Open | No click; load remains off | Test resistance (should be 50-120Ω); replace if out of spec |
| Contact Weld | Load stuck on; audible buzzing | Check for excessive current; replace module if contacts are pitted |
| Short to Ground | Blown fuse; load inoperative | Inspect terminals 85/86 for damage; verify insulation on control lines |
Understanding the Core Components of a 50/51 Protective Switch
Prioritize the selection of a current transformer (CT) with a ratio matching your system’s anticipated load–misalignment introduces inaccuracies in trip thresholds. Opt for CTs with a saturation point at least 20% above the maximum fault current to prevent false activations during transient spikes. For 50/51 configurations, ensure the CT’s burden resistance aligns with the trip unit’s specifications; deviations distort pickup values and delay responses.
Trip Unit Calibration Adjustments
Set instantaneous (50) and time-delayed (51) thresholds using manufacturer-provided curves, adjusting for ambient temperature variations–thermal drift can shift tolerances by ±5%. Verify the trip unit’s self-test function before deployment; failed diagnostics skew coordination with upstream protective devices. Use a secondary injection tester to simulate fault conditions, measuring response times at 30%, 60%, and 90% of the CT’s rated current for consistency.
Step-by-Step Guide to Configuring a 50/51 Overcurrent Protection Device
Begin by identifying the fault detection thresholds for instantaneous (50) and time-delayed (51) tripping. Consult the manufacturer’s specifications for the exact pickup current values–typically 1.2 to 2 times the rated load current for the 51 element. Use a calibrated test set to inject primary current and verify the device responds within ±5% of the designated threshold. Ensure auxiliary DC supply (24V, 48V, or 110V) is stable before energizing the control circuit; fluctuations above 10% can cause false operations or failure to trip.

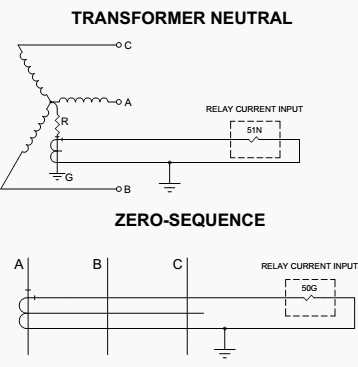

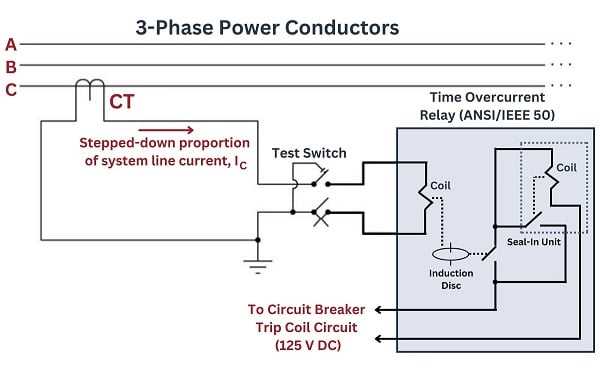

Connect the sensing transformers (CTs) to the protection unit terminals in strict polarity: P1 to the line side, P2 to the load side. Mismatched polarity will invert the current direction, resulting in incorrect tripping or no operation. For three-phase systems, wire the CTs in a wye or delta configuration based on the system grounding method:
- Wye-connected CTs: Neutral point must be grounded if residual overcurrent detection is required.
- Delta-connected CTs: Eliminates zero-sequence current but requires phase-to-phase fault consideration.
Set the time-current curve for the 51 function using the device’s dials or software interface–common curves include IEC Standard Inverse, Very Inverse, or Extremely Inverse. Program the time multiplier (TMS) between 0.05 and 1.5, starting with 0.5 for balanced protection coordination.
Terminate the output contacts to the circuit breaker trip coil, ensuring the circuit can handle the coil’s inrush (usually 5A for 200ms). Test the entire setup with a secondary injection kit, simulating fault conditions:
- Apply 80% of pickup current–device should not operate.
- Increase to 120% of pickup current–verify tripping within the expected time window (e.g., 200ms ±20ms for 50).
- For 51, confirm the tripping delay aligns with the selected curve and TMS.
Log all test results, including the actual current injected and tripping times, for compliance with IEEE C37.90 or IEC 60255 standards. Replace any leads showing resistance above 0.1Ω or insulation below 1MΩ at 500V DC.
Common Pitfalls in Switching Circuit Configurations and Prevention Strategies
Misidentifying coil terminals leads to reversed polarity, causing the electromagnetic mechanism to fail. Check manufacturer markings like “85” (negative) and “86” (positive) or use a multimeter in continuity mode to trace the correct path. Incorrect polarity destroys protective diodes in sensitive components within 0.3 seconds at 12V.
Overloading Contact Capacity
Using 30A contacts for a 45A load shortens lifespan by 80%. Match contact ratings to the peak current draw, accounting for inductive loads–motor startups can surge 6-8x nominal amperage. Verify datasheets: silver alloy contacts tolerate higher inrush than copper.
Skipping flyback diodes invites voltage spikes up to 200V, frying adjacent modules. Always place a 1N4007 diode across inductive loads (coils, motors) with the cathode connected to the positive side. For high-speed switching, opt for TVS diodes with nanosecond response times.
Ignoring Ground Path Integrity
Single-point grounding for multiple circuits creates ground loops, generating 50-300mV noise. Separate signal and power grounds, using a star topology with a dedicated ground bus for each branch. Measure impedance–ideal ground paths show below 0.1Ω resistance.
Loose crimps or undersized conductors (below 14AWG for 20A+ loads) cause overheating at connection points. Use ferrules with a 2:1 crimp ratio, verified with a pull-test of 5N per mm² of cross-section. Apply dielectric grease at junctions to prevent corrosion in high-vibration environments.
Choosing the Right Wire Gauge and Terminals for Switching Device Connections
Select conductors sized at least 18 AWG for standard automotive circuits handling up to 10A. For currents exceeding 15A, upgrade to 16 AWG or thicker to prevent voltage drop and heat buildup. Verify the circuit’s maximum amperage before finalizing–undersized cables risk insulation damage or failure under load. Manufacturers like Delphi and TE Connectivity provide ampacity charts matching wire sizes to expected loads.
For high-current applications (20A+), opt for tinned copper strands over bare copper. Tinning resists corrosion, especially in damp or salty environments, extending service life. Crimp terminals must match the wire gauge precisely–terminals too large won’t grip properly, while undersized ones compress strands, reducing conductivity. Use a ratcheting crimper with calibrated dies to ensure consistent, gas-tight crimps without distorted connectors.
Terminal choices depend on the environment: insulated spade terminals for general use, heat-shrink or adhesive-lined types for moisture-prone areas. Gold-plated contacts suit low-level signals (under 5A), while silver or tin-plated work for higher currents. Avoid pre-insulated terminals for currents above 25A–their plastic sleeves can melt, exposing live metal. Instead, use bare terminals with separate heat-shrink tubing.
Measure voltage drop across the circuit during testing. A 0.5V drop over 4 meters of 16 AWG at 15A is acceptable; anything higher signals resistance issues. For extended runs (>6m), increase wire thickness by one gauge size or split the load across parallel paths. Cold-weather applications benefit from slightly oversized conductors, as low temperatures raise resistivity.
Secure connections with strain relief–zip ties every 15cm for loose runs or spiral wrap for bundled cables. Exposed junctions near moving parts or sharp edges require conduit or braided sleeving. Label both ends of each conductor (e.g., “87-output”) to simplify troubleshooting. Store spare terminals in sealed containers to prevent oxidation, and replace any showing greenish discoloration (copper oxide).
