Before handling any installation, disconnect the vehicle’s battery to prevent short circuits or unintended activation. A multimeter set to continuity mode helps verify each terminal’s function before splicing cables. Identify the power input (typically 12V) and ground terminals first–they’re often color-coded red and black, respectively. The remaining three connections usually control extension, retraction, and feedback signals, though pinouts vary by manufacturer.
Trace the harness from the control module to the mechanism–cutting into factory harnesses risks voiding warranties or triggering error codes. Use crimp connectors instead of solder for reliability under vibration. For aftermarket modules, consult the datasheet: some systems require a 500mA fuse on the power line to avoid overheating. If the mechanism operates sluggishly, check for voltage drops across terminals; a difference over 0.5V indicates high resistance in the circuit.
Test sequences should mimic real-world use: simulate a short press (lock cycle) and a long press (unlock cycle) to confirm bidirectional motion. Reversing polarity during installation can permanently damage the motor’s windings. For troubleshooting, probe the feedback terminal while manually activating the lever–absence of signal suggests a failed microswitch or broken trace. Always insulate splices with heat-shrink tubing rated for 125°C or higher.
5-Pin Automotive Solenoid Connection Map
Identify the motor’s two power leads first–these require direct connection to the vehicle’s central control unit or relay. Polarity determines direction: reverse +12V and ground to switch between extended and retracted states. Failure to match voltage specs (typically 10-14VDC) risks overheating the winding coils.
Locate the microswitch pins next: one common and two signal terminals. The normally open and normally closed contacts route feedback to the alarm or body module, confirming latch engagement. Verify continuity with a multimeter–oxidation often disrupts these low-current paths, causing intermittent faults.
Use color-coded 18-gauge stranded copper for all high-current links. Insulate splices with heat-shrink tubing; electrical tape degrades under hood vibrations. Route harnesses away from sharp edges and moving parts–chafing induces shorts that drain the battery or trigger false alarms.
Critical note: splice the anti-theft interface pin only after confirming compatibility with the immobilizer protocol. Ford’s PATS, GM’s PassKey, and Chrysler’s SKIM each demand unique resistor values (470Ω to 2.2kΩ) for proper handshake. Incorrect pairing bricks the module, requiring dealer-level reprogramming.
Test the installation in stages. Manually trigger the solenoid with a 9V battery to verify smooth travel and full stroke (usually 15-25mm). If movement stalls, check for binding or worn gears–plastic components fracture after ~80,000 cycles. Lubricate internal slides with silicone grease to prevent future seizing.
For aftermarket upgrades, bypass the factory anti-pinch circuit only if the new system includes its own pressure sensors. Retain the original fuse rating (±25A) to protect against surges during solenoid activation. Log voltage drops during operation–readings below 11.5VDC indicate corroded connections or undersized cabling.
Identifying the Five Terminal Connections and Their Roles
Begin by examining the motor’s casing for labeled markings–most manufacturers etch (+), (-), “R,” “S,” or numeric codes (1–5) near each contact. If absent, use a multimeter in continuity mode: the pair that beeps during manual latch movement identifies the motor terminals, while the remaining three handle signal control. Polarity matters–reverse connection risks burning the mechanism, so verify with the vehicle’s service manual or a verified schematic for exact pin assignments.
Typical configurations split into permanent power (constant 12V), switched ignition feed, ground, and two control leads tied to the body control module. The first control terminal relays the “unlock” command, often drawing 300–500mA for 0.5–2 seconds; the second carries the “lock” pulse, usually mirroring the duration but with inverted polarity. Some European models integrate a fifth feed for anti-theft feedback, pulsing a 5V reference signal back to the ECU–probing this pin with an oscilloscope reveals a 10–15Hz square wave during activation.
For rapid diagnosis, backprobe each terminal while cycling the remote: the power input will show steady voltage, the ground remains near 0V, and the control pins spike briefly. If voltages align but the latch remains inert, check for corroded contacts–clean with DeoxIT or a fiberglass pen–and test resistor values between motor terminals; expected readings fall between 20–80 ohms. Replace the assembly if resistance exceeds 150 ohms or if the multimeter emits a distorted tone during continuity tests.
Step-by-Step Connection Color Code Decoding for Popular Automobile Brands
Begin by referencing the vehicle’s service manual for exact schematics–manufacturers like Toyota, Ford, and Volkswagen adhere to distinct coding conventions. For Toyota models (Camry, Corolla, RAV4), the standard harness typically includes:
- Red/Green stripe: Constant 12V power input (fused)
- White/Black stripe: Ground reference (chassis contact)
- Yellow/Red stripe: Unlock command signal (momentary pulse)
- Blue/Red stripe: Lock command signal (momentary pulse)
- Pink/Black stripe: Feedback sensor (optional, varies by trim)
Ford (F-150, Escape, Explorer) diverges slightly with:
- Dark Green/Violet: Positive trigger for unlocking
- White/Light Blue: Positive trigger for locking
- Black: Negative ground
- Orange/Light Blue: Ignition-switched power (key-dependent)
- Gray/Red: Actuator motor lead (pulse-to-move)
Always verify polarity with a multimeter–incorrect pairing risks damaging the solenoid or BCM. GM (Silverado, Equinox) and Honda (Accord, Civic) follow similar logic but invert signal polarities on specific circuits; consult OEM documents for exact pinouts.
Special Cases and Troubleshooting Anomalies
Nissan (Altima, Rogue) and Hyundai/Kia (Sonata, Sportage) introduce a fifth circuit for anti-theft validation, often coded as:
- Brown/White (Nissan): Security module handshake
- Yellow/Black (Hyundai): Decoder request pulse
If the mechanism behaves erratically, check for voltage drops across each lead–corrosion or loose terminals on the violet/white (Ford) or black/yellow (Toyota) traces frequently cause false triggers. European brands (BMW, Mercedes) bundle diagnostics into CAN bus networks; bypassing requires a scan tool to interpret multiplexed signals.
Integrating the Mechanism with Central Security Circuit Relays

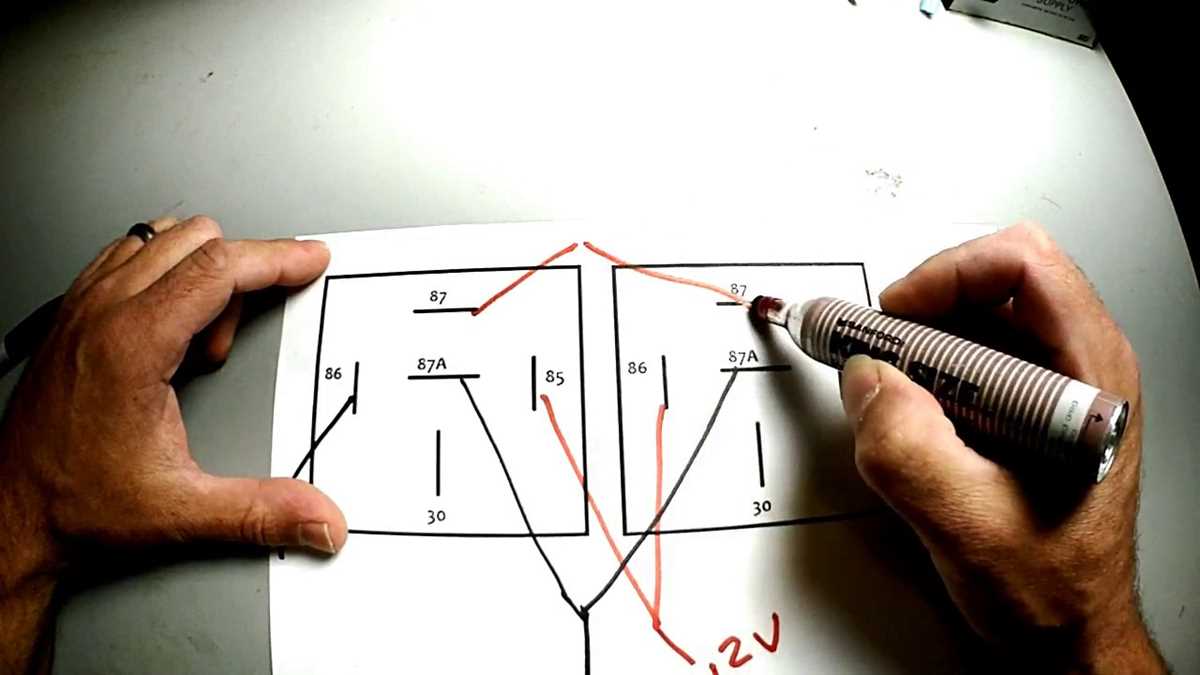

Begin by identifying the relay terminals: 85 and 86 for control input, 87 for switched output, and 30 for power feed. Use a multimeter set to continuity mode to confirm terminal assignments–probe between 85 and 86; the relay should click if functional. For most 5-pin automotive relays, pin 87a is inactive but verify this with manufacturer specifications to avoid incorrect connections.
Splice the motor’s positive lead directly to the relay’s output (terminal 87). Ensure the splice uses solder or a crimp connector rated for at least 20 amps; twist-and-tape methods degrade under vibration. The negative lead should terminate at a grounding point with minimal resistance–scrub paint from the chassis mount and apply dielectric grease to prevent corrosion.
Relay activation requires a switching signal, typically from the vehicle’s central controller or keyless entry module. Tap into the trigger circuit at the module’s output or a door trigger wire (often pink or purple in Asian models, brown/black in European makes). If modifying an existing system, isolate the circuit with a diode (1N4007) to prevent backfeed into other components.
| Relay Pin | Function | Recommended Gauge | Connection Point |
|---|---|---|---|
| 85 | Control Input (+) | 22-20 AWG | Switching signal source |
| 86 | Control Input (-) | 22-20 AWG | Ground or module output |
| 30 | Power Feed | 14-12 AWG | Fused ignition or battery |
| 87 | Switched Output | 18-16 AWG | Motor positive terminal |

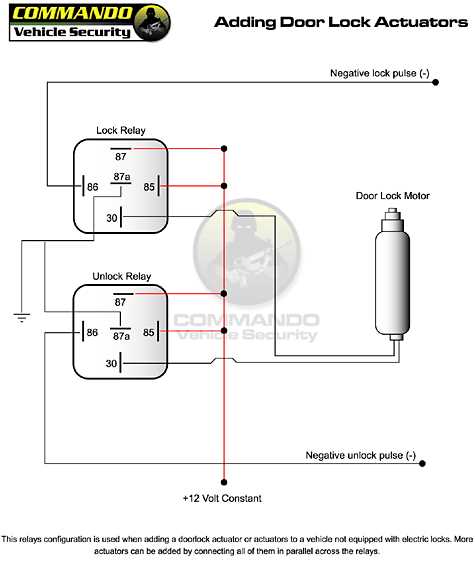

For dual-action mechanisms (extend/retract), two relays are necessary–one for each direction. Wire them in parallel but with opposite polarity outputs. Use a double-pole relay or two single relays; the latter offers redundancy. Test polarity before finalizing connections: reverse polarity may cause erratic operation or fuse failure. Always fuse the power feed (terminal 30) within 7 inches of the battery to protect the entire circuit.
Signal interference can cause unintended activation. Route control leads away from high-current cables (starter, alternator) and shield them if running near OEM harnesses. A 0.1µF ceramic capacitor across the motor terminals can suppress voltage spikes that might damage relays or the vehicle’s computer.
Troubleshooting Relay Failures
If the mechanism fails to respond, check relay coil resistance–most automotive relays measure 50-120 ohms between terminals 85 and 86. A reading below 20 ohms indicates a shorted coil; above 200 ohms suggests an open circuit. Replace the relay if faulty. For intermittent operation, apply contact cleaner to the relay’s internal switch; oxidation is a common failure point.
Voltage drop across relay contacts should not exceed 0.1V under load. Measure between terminal 30 and 87 while activating the circuit–higher readings indicate corroded contacts or undersized cables. Upgrade to a relay with silver-alloy contacts if operating in humid environments; standard copper contacts corrode faster.
Always start integration with the vehicle’s ignition off to prevent accidental short circuits. Label all leads during disassembly to simplify reassembly. If retrofitting into a non-factory system, use a scan tool to verify no diagnostic trouble codes (DTCs) are triggered–some vehicles monitor security circuits and may disable features if improper signals are detected.
