For precise control of an airflow unit, use terminals 85 and 86 for the coil circuit–these handle the activation signal. Connect one to a 12V trigger source and the other to ground through the controlling module. This ensures reliable engagement without voltage spikes affecting sensitive electronics.
Terminals 30 and 87 manage the load path–route 30 to the power source and 87 to the motor’s positive lead. Avoid using thin wires here; a 16-gauge minimum prevents overheating under full load. If the switch includes an 87a terminal (a normally closed contact), reserve it for fail-safe circuits or auxiliary cooling modes.
Test continuity before finalizing: energize the coil and verify current flow between 30 and 87. If resistance exceeds 0.5 ohms, inspect solder joints or terminals for corrosion. For PWM-controlled units, place a flyback diode across the coil to suppress voltage transients.
Integrate a fuse inline with terminal 30–20A for most radiator blowers, 30A for high-output industrial models. Mount the switch within 30cm of the motor to minimize voltage drop, and secure it to a grounded chassis point to reduce electromagnetic interference.
For dual-speed setups, use terminal 87a to toggle between low and high modes by switching ground paths. Ensure the trigger module interprets the control signal correctly–incorrect polarity can damage the coil or prevent activation entirely.
Controlling Cooling Systems with a Five-Terminal Switch

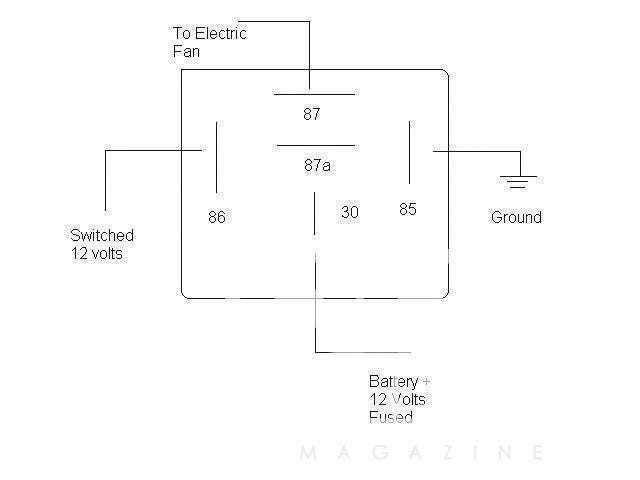

Start by identifying the coil connections on your electrical switch–typically labeled 85 and 86. Connect 85 to a 12V power source, such as the ignition feed, while grounding 86 to the chassis or a dedicated negative terminal. This energizes the magnetic coil, allowing current to flow through the high-amperage contacts.
Locate the common (COM) and normally open (NO) terminals, usually marked 30 and 87. Wire the COM terminal directly to the vehicle’s battery or a fused 12V line, ensuring the fuse rating matches the cooling unit’s current draw–typically 15-20 amps for automotive applications. The NO terminal should route to the blower’s positive lead, completing the circuit when activated.
For additional safety, incorporate a diode across the coil terminals (85 and 86) to suppress voltage spikes. Use a 1N4007 diode, installing it with the cathode (striped end) toward the power source. This prevents transient currents from damaging sensitive control modules or triggering false signals in adjacent electronics.

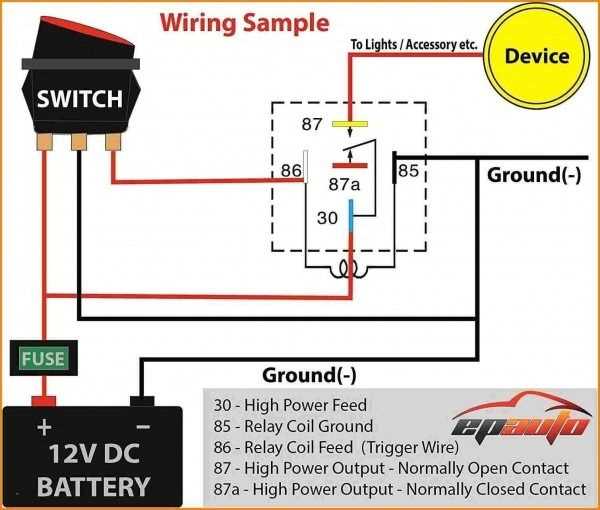

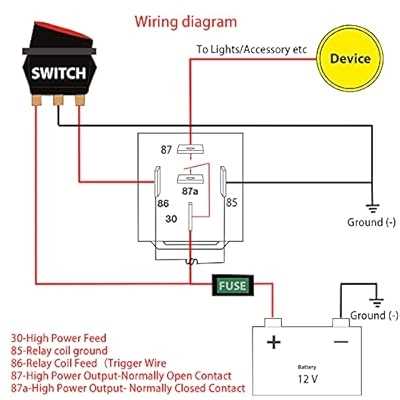

Integrate a manual override switch between the coil’s power feed (85) and the ignition circuit. This allows direct control of the blower without relying on automated triggers, useful for diagnostics or emergency cooling. A simple SPST toggle switch rated for at least 10 amps suffices.
Test the setup with a multimeter before finalizing connections. Measure continuity between the COM and NO terminals while energizing the coil–resistance should drop to near zero. If the blower fails to activate, verify the fuse integrity, coil resistance (typically 50-120 ohms), and ground continuity.
For variable speed control, splice a resistor pack or PWM controller into the NO-to-blower circuit. Automotive resistor blocks, commonly found in HVAC systems, can reduce airflow in three to four increments. Alternatively, a solid-state speed controller provides infinite adjustment but requires careful heat dissipation.
Avoid common pitfalls: never exceed the switch’s ampere rating (usually 30-40A for standard units), ensure all connections are crimped or soldered to prevent corrosion, and use tinned copper wire for high-current paths. Label every wire clearly during installation to simplify future troubleshooting.
Understanding Terminal Roles in a 5-Contact Switch
Locate the coil contacts first–these are the two narrower terminals typically labeled *85* and *86*. Apply a multimeter in continuity mode: when the control circuit closes, these points should register near-zero resistance. If readings fluctuate or exceed 20 ohms, the coil may be compromised, causing intermittent activation or failure.
Next, examine the switching terminals–usually marked *30*, *87*, and *87a*. Terminal *30* serves as the common feed, accepting power directly from the source. Terminal *87* connects to the load path when energized, while *87a* provides a normally closed path, bypassing the load until coil excitation. Verify these roles by testing with the control circuit both active and inactive–*87* should energize only when the coil is powered, while *87a* loses continuity.
- Terminal *85*: Coil input, often grounded in negative-switching setups.
- Terminal *86*: Coil output, typically connected to the triggering signal (e.g., ignition, sensor).
- Terminal *30*: Power entry point from the main circuit.
- Terminal *87*: Output to the accessory (e.g., cooling device) when engaged.
- Terminal *87a*: Alternative path for current flow during idle state.
Use a 12V test lamp to confirm terminal behavior. Connect the lamp between *30* and *87*–it should illuminate only when the coil is energized. Repeat the test between *30* and *87a*; the lamp should extinguish during coil activation, proving correct alternate-path operation. If either test fails, inspect for corroded connections, burnt contacts, or reversed assignments.
Voltage Drop Considerations
Measure voltage across *30* and *87* under load (e.g., with the cooling device active). A drop exceeding 0.5V suggests excessive resistance–clean terminals, tighten fasteners, or upgrade wire gauge. For *87a*, confirm no voltage drop exists when de-energized; a drop here indicates unintended current flow, wasting power and risking overheating.
- De-energize the system before probing.
- Set multimeter to DC voltage, 20V range.
- Connect probes to *30* and *87*; energize coil.
- Read voltage–record any drop beyond 0.2V.
- Repeat for *30* and *87a* with coil inactive.
Check coil excitation voltage at *85*/*86* while triggering. Nominal readings should match system voltage (e.g., 12V–14.5V). If readings are lower, the signal source may be weak–inspect fuses, switches, or sensor integrity. Persistent low voltage at these terminals can prevent full contact engagement, leading to chattering or failure to latch.
Label each terminal immediately after identification using heat-shrink tubing or colored tape. Mislabeling *87* and *87a* can route power incorrectly, bypassing or overloading the cooling device unintentionally. For dual-fan configurations, verify both relays swap terminals consistently–*87* always feeds the primary path, while *87a* serves as the fallback for auxiliary circuits.
Step-by-Step Guide to Integrating a Cooling Module with a Five-Contact Switching Device
Begin by securing the thermal management unit to a stable surface near the power source. Use M4 bolts and rubber grommets to minimize vibration–failure to isolate moving parts will accelerate wear. Ensure the motor’s rated voltage matches the circuit’s supply; standard automotive applications typically operate at 12 volts DC. If the unit demands higher current, verify the conductor gauge: 14 AWG suffices for up to 15 amperes, while 12 AWG accommodates 20 amperes with minimal voltage drop.
Identify the switching device’s terminals: two for coil activation, one common, one normally open (NO), and one normally closed (NC). For cooling systems, connect the common to the power feed from the battery’s positive terminal via a fuse–place it within 15 cm of the source for optimal protection. Link the NO contact to the thermal unit’s positive lead, leaving the NC terminal unused unless integrating fail-safe features. The coil’s negative side requires grounding to the chassis or a dedicated negative busbar.
| Component | Recommended Conductor Size (AWG) | Max Continuous Load (Amperes) |
|---|---|---|
| Coil Circuit | 18 | 5 |
| Load Circuit | 12 | 20 |
| Ground Return | 10 | 30 |
Trigger the switching mechanism by routing control voltage through a dashboard switch, thermal sensor, or ECU output. A 1N4007 diode across the coil terminals prevents back-EMF spikes–cathode faces the positive side. Test the setup with a multimeter: probe the common and NO contacts while energizing the coil; voltage should match the supply. If absent, inspect the fuse, connections for corrosion, and coil resistance, which typically ranges 50–120 ohms.
Finalize by encasing exposed conductors in braided sleeving or non-conductive tubing, securing routes away from moving components or sharp edges. Apply dielectric grease to connectors prone to moisture, particularly in high-humidity environments. For dual-speed units, introduce a second switching device: one activates at 85°C, the other at 95°C, each wired to separate load contacts. Calibrate sensors using a thermometer at the heat source to ensure precise engagement.
Common Mistakes When Installing a Cooling Switch Assembly
Connecting the control module incorrectly to the temperature sensor output leads to erratic activation. Most thermal sensors in automotive applications output a 5V signal when engaged; forcing this into the coil driver terminal reverses polarity, damaging the module. Verify the voltage path using a multimeter before securing connections–ground reference should always match the vehicle’s chassis, not the positive supply line.
Oversizing fuse ratings to avoid “nuisance trips” compromises circuit protection. A 30A breaker paired with 18-gauge wire creates a fire risk under sustained load. Instead, follow the manufacturer’s ampacity table: 20A fuse for 16-gauge, 15A for 18-gauge. Replace blown fuses immediately–bypassing them with makeshift jumpers defeats the entire safety mechanism.
Neglecting Ground Path Integrity
A single loose fastener at the mounting point increases resistance, causing heat buildup that melts plastic connectors. Clean all contact surfaces with a wire brush, apply dielectric grease, and torque bolts to 8-10 Nm. Avoid daisy-chaining grounds; terminate each device directly to the battery negative post or a dedicated ground block.
Ignoring noise suppression spikes from inductive loads triggers false switching. Follow the schematic’s placement of a flyback diode (1N4007) across the coil terminals–cathode to positive, anode to ground. Omitting this allows 200V transients to fry the control unit within seconds, especially in newer vehicles with sensitive ECU inputs.
Using twist-on connectors instead of crimped sleeves for field connections invites corrosion. Moisture ingress increases resistance by 300% over six months, leading to intermittent failures. Solder all joints below 60°C, seal with adhesive-lined heat shrink, and route harnesses above splash zones–avoid the wheel wells and exhaust manifold intersections.
