For reliable control in automotive and industrial applications, a standard 5-terminal switching module separates the coil activation path from the load connections. The dual contact configuration allows one common terminal to route current to either of two independent outputs–ideal for flicker-free lighting, motor direction switching, or fail-safe safety cutoff systems. Begin by identifying the two excitation connectors (typically labeled A1/A2 or +/–) and the three power ports (common, normally open, normally closed). Apply 12V DC to the excitation pair to toggle the internal mechanical actuator, verifying connectivity with a multimeter before integrating into a live setup.
Critical wiring precautions: Always pair the excitation leads with a blocking diode to suppress voltage spikes when de-energizing. These transients–measured up to 200V in poorly shielded setups–can degrade sensitive electronics. For incandescent lighting circuits, use a transient suppression resistor (1–2kΩ) in parallel to the coil terminals to dampen inrush currents. Never substitute solid-state equivalents without recalculating load current–mechanical variants handle 30A+ at 250V AC/DC, whereas semiconductor switches often restrict to lower thresholds.
Load-side considerations: Connect heavier loads (e.g., starter motors, compressors) through the normally open terminal, reserving the normally closed path for standby functions or alerts. Double-check insulation ratings: automotive variants tolerate –40°C to +125°C but may corrode in humid environments without conformal coating. Industrial-grade units (e.g., Omron MY4, TE Connectivity RT1) include snap-lock housings–use compatible DIN rail adapters to prevent vibration-induced disconnects.
Test sequences should mirror real-world timing: energize for 0.5s, then de-energize, measuring contact bounce duration (typically 2–5ms). Deviations suggest contaminated contacts–clean with solvent-applied brass brushes or replace. For pulse-width modulation, limit frequencies below 20Hz to prevent overheating the coil. In 24/7 operations, derate maximum current by 20% to prevent thermal degradation, especially in sealed enclosures lacking airflow.
Understanding 5-Terminal Switching Device Connections
Start by identifying the coil terminals–these are typically the two narrow contacts on opposite ends of the housing. Apply a control voltage (e.g., 5V, 12V, or 24V DC) between these points to activate the electromagnet inside. Verify correct polarity; some units tolerate reverse current, but standardization ensures reliability. A flyback diode (e.g., 1N4007) placed in parallel with the coil protects against voltage spikes when de-energizing.
Locate the common (COM) terminal–often marked or positioned centrally. This serves as the input for the load you intend to switch. Attach the power source here, ensuring the wire gauge matches the expected current. Exceeding the manufacturer’s rated amperage (commonly 10A at 125VAC or 28VDC) will degrade performance or cause failure.
The normally open (NO) and normally closed (NC) contacts flank the COM terminal. Use NO for loads that should energize only when the switch activates, such as safety interlocks or indicators. NC suits fail-safe operations, like maintaining power to a cooling fan even when the control signal drops. Always confirm contact ratings; some models handle resistive loads better than inductive or capacitive ones.
Wiring Steps for Common Applications
- For basic switching: Connect COM to the positive supply rail. Run the load from NO to ground (or negative rail). Apply control voltage to the coil.
- For latching setups: Wire a momentary pushbutton between COM and NO. Connect NO to one coil terminal and the other terminal to power. Pressing the button engages the coil, holding it in the activated state until power resets.
- For timed delays: Pair the device with a 555 timer IC. Use the timer’s output to drive the coil, setting the delay via resistor-capacitor networks. Calibrate with an oscilloscope for precision.
Avoid daisy-chaining multiple loads on a single contact unless the cumulative current stays below 80% of the rating. Thermal paste or a heat sink isn’t typically needed, but enclosures with poor airflow can elevate temperatures enough to reduce lifespan. Test all connections with a multimeter in continuity mode before powering up–this catches short circuits or open loops instantly.
For high-frequency toggling (e.g., in PWM applications), opt for solid-state variants instead. Mechanical units introduce bounce and wear, limiting cycles to around 100,000 operations at rated loads. Snubber circuits (resistor-capacitor pairs across contacts) suppress arcing in DC switching but add unwanted capacitance in AC setups. Adjust values empirically–start with 0.1µF and 100Ω for 120VAC.
Troubleshooting Checklist
- Coil not activating? Measure voltage across the control terminals. If correct, check for burnt odor or discoloration–replace if damaged.
- Load not switching? Probe the COM and NO/NC contacts with a meter while toggling the coil. No continuity indicates stuck contacts or incorrect wiring.
- Chatter or buzzing? Reduce coil voltage slightly (common with 12V supplies) or add a capacitor (47µF–220µF) across the coil to smooth fluctuations.
- Overheating? Verify the load current with a clamp meter. Short durations (≤1 second) can tolerate 2–3× the rated current, but sustained operation demands derating.
How to Determine the Terminal Layout of a 5-Contact Switch
Locate the numbering or marking on the plastic or metal housing near each connection point–most manufacturers label them clearly. Typically, the coil inputs are marked as 85 and 86, while the switching contacts are numbered 30, 87, and 87a. If markings are absent, check the datasheet or product page for the specific model.
Use a multimeter set to continuity mode to trace the internal arrangement. Apply voltage to the coil terminals and observe which output terminal closes first–this identifies the normally closed contact (usually 30 to 87a). The remaining output terminal (87) becomes live only after coil activation.
Standard DIN-style switches follow a predictable pattern: the common input sits adjacent to the normally closed output, forming a compact trio on one side. The normally open connection occupies the opposite edge, ensuring consistent spacing for socket compatibility. Exceptions exist in miniaturized or automotive-grade variants, where layout may shift for space efficiency.
If testing with a bench supply, limit current to 100 mA or less to avoid damaging sensitive contacts. Micro-switching types, especially those rated for low signal currents, can weld under excess load during bench checks. Always use a series resistor to safeguard internal components.
For polarized setups, confirm coil polarity by referencing the manufacturer’s notation–some incorporate a protective diode across the coil, requiring correct orientation to avoid reverse breakdown. Ignoring this can lead to erratic switching or permanent damage.
Socket-mounted variants often mirror the numbering on the base connector–match these labels directly to avoid wiring errors. PCB-mounted types may use staggered terminals; verify spacing against the footprint drawing before soldering to prevent shorts.
When in doubt, consult the part number etched on the component–cross-reference it with manufacturer documentation for exact specifications. Generic replacements may deviate from expected configurations, particularly in industrial or custom designs.

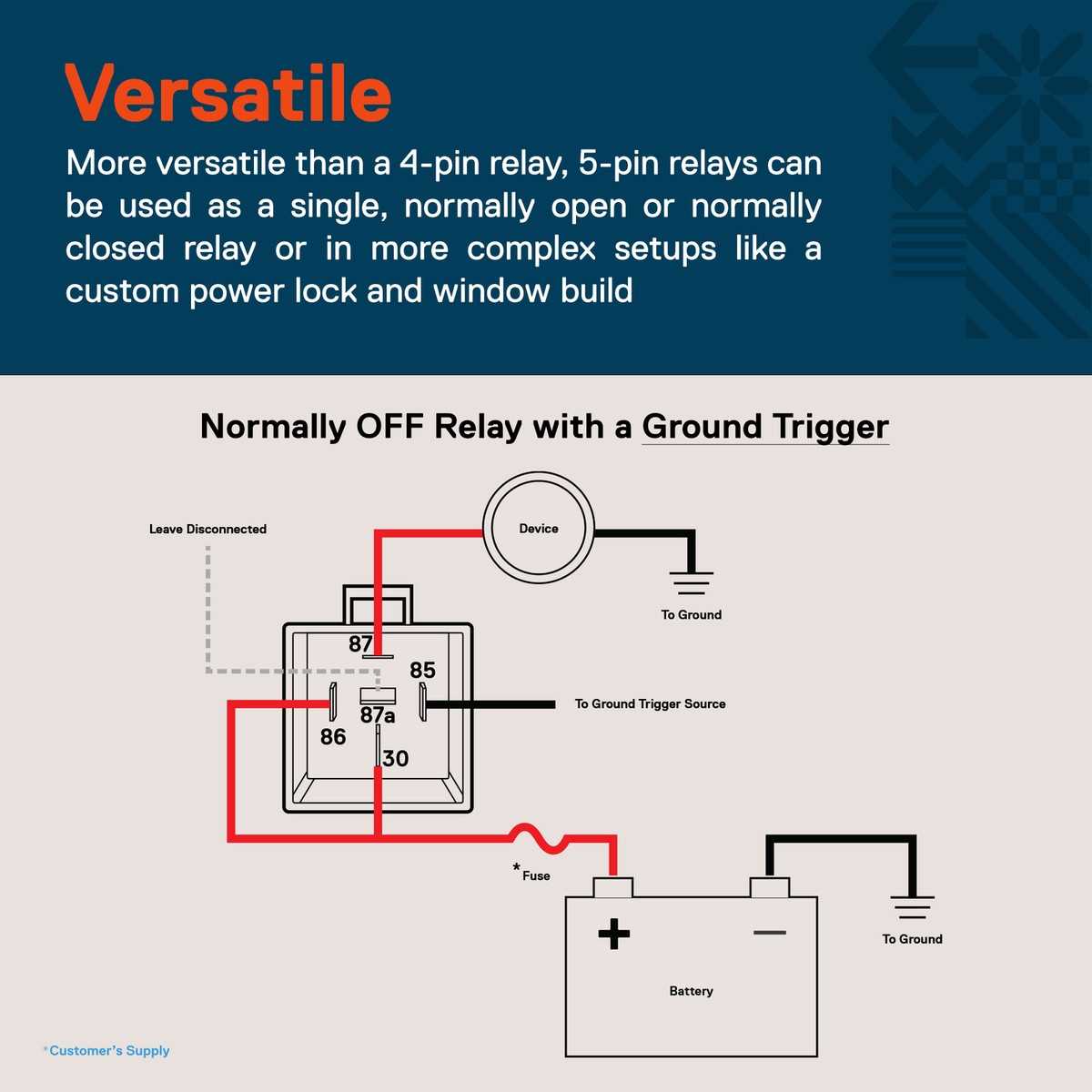

Step-by-Step Wiring Guide for Automotive Switching Modules

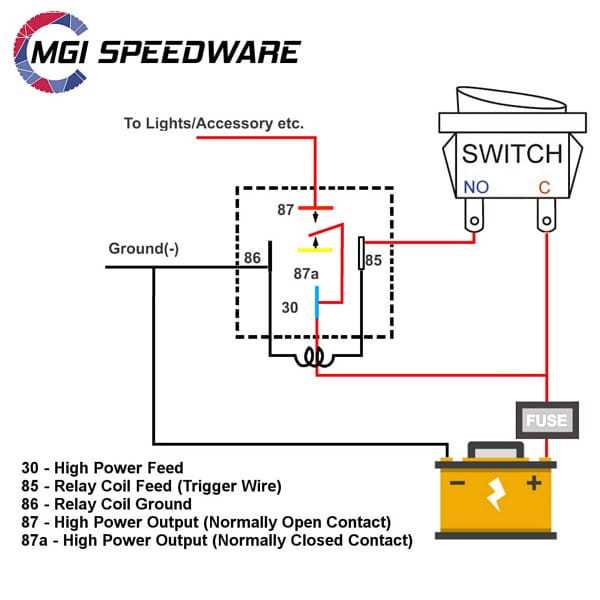

Begin by identifying the control contact and load terminals on the module–typically labeled 85 (trigger input), 86 (ground reference), 30 (power feed), and 87/87a (output connections). Connect the 85 terminal directly to the switched signal source, such as an ignition accessory wire or a manual switch, ensuring the voltage matches the module’s rating (usually 12V). Use a multimeter to verify the trigger signal strength; fluctuations below 9V may cause unreliable activation. For consistent performance, route the 86 terminal to a solid chassis ground, avoiding shared paths with high-draw components like motors or solenoids.
Attach the 30 terminal to the battery’s positive terminal via a fuse rated 5A above the module’s maximum load. For example, if the module controls a 20A device, use a 25A fuse to prevent nuisance blowing while maintaining protection. Route the wire through the engine bay firewall using a grommet to prevent chafing, and secure it with adhesive-lined clamps every 12 inches. The output terminals (87 for normally open, 87a for normally closed) must connect to the load–high-beam headlights, fuel pumps, or cooling fans–with appropriately gauged wire: 14 AWG for loads under 15A, 12 AWG for 15–25A, and 10 AWG for heavier demands.
Testing and Troubleshooting
Before finalizing connections, probe each terminal with the multimeter in continuity mode. With the vehicle off, verify that 85 and 86 show open circuit, while 30 and 87/87a reflect the module’s default state (open or closed). Activate the trigger source–turning the ignition or pressing the switch–and confirm the module clicks audibly; silence suggests a faulty unit or incorrect wiring. If the load fails to energize, check for voltage at the 30 terminal under load; absence indicates a blown fuse or broken wire, while presence but no operation points to a failed module or misrouted 87 connection.
For inductive loads like relays or motors, fit a flyback diode (1N4007) across the output terminals in reverse bias to absorb voltage spikes. Solder the diode directly to the module’s contacts, ensuring the cathode (marked band) aligns with the positive side of the load. After assembly, operate the system in a controlled sequence–start with the vehicle off, then ignition-on, and finally engine-running–to isolate issues. Monitor wire temperatures with an infrared thermometer; values exceeding 60°C indicate undersized conductors or excessive load current, requiring immediate correction.
