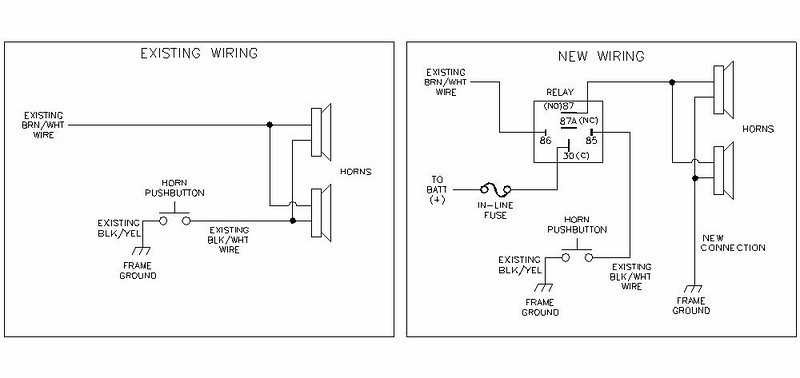

Connect the primary control terminal (typically marked 85) to the steering column trigger circuit–this ensures instant activation when the driver presses the alert button. The second control terminal (86) must link to a stable 12V source, preferably fused at 10A to prevent overload. Ground the relay housing directly to the chassis using a minimum 12-gauge wire for reliable operation.
Power terminals require strict adherence: Terminal 30 receives constant 12V from the battery via a 20A fuse, while the output terminal (87) delivers current to the acoustic device. Use 14-gauge wire minimum for this path–thinner wires risk voltage drop under load. For the unused normally closed contact (87a), either leave it disconnected or ground it through a 1kΩ resistor to eliminate voltage spikes.
Avoid common pitfalls: Never splice the main power feed into existing lighting circuits–this creates interference and reduces alert volume by 2-3 decibels. Route wires away from rotating components and heat sources, securing them every 15cm with zip ties. Test continuity between all connections before finalizing; resistance above 0.5 ohms indicates corrosion or poor crimping that will fail under repeated use.
For vehicles with idle stop systems, insert a diode between terminal 85 and the trigger circuit to block reverse current that can drain the battery. Polish aluminum contact points with 1000-grit sandpaper to remove oxidation before assembly–this extends switch lifespan by 40%. Keep the total wire length under 3 meters to maintain optimal response time, ideally less than 50 milliseconds from button press to full output.

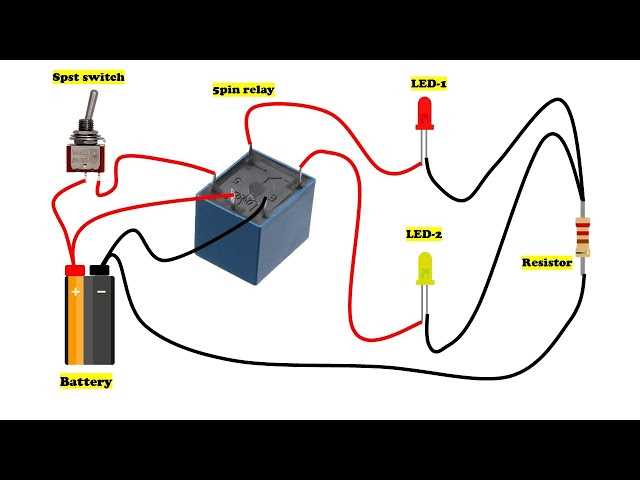

Connecting a 5-Terminal Sound Activation Switch: Key Steps
Start by identifying the two power inputs: the constant 12V source (battery feed) and the switched circuit (trigger signal). Connect the battery feed to terminal 30 and the trigger signal to terminal 86, ensuring proper fuse protection–typically a 10A inline fuse for the battery line. Ground terminal 85 to the vehicle’s chassis or a dedicated negative terminal, using a wire gauge no thinner than 16 AWG for reliable conductivity. Terminal 87a serves as the default output when the switch is at rest, while terminal 87 activates the load when triggered.
Verify the trigger source before installation. A momentary pushbutton, vehicle ignition signal, or existing steering wheel circuit can activate the output. For a factory replacement setup, trace the original sound activation circuit to terminal 86–this often originates from a fuse box or a column-mounted switch. If integrating into an aftermarket system, use a relay-rated 40A switch to handle current loads up to 30A continuously. Avoid splicing into lighting or accessory circuits, as voltage drops may cause unreliable operation.
For dual-output configurations (e.g., activating two devices simultaneously), connect the primary load to terminal 87 and the secondary load to a separate 40A relay powered directly from the battery. This prevents voltage drop issues, especially for high-current devices like air compressors or auxiliary lights. Test all connections with a multimeter before finalizing: measure 12V at terminal 30, 0V at terminal 85 (ground), and confirm terminal 87 outputs 12V when triggered. If the device fails to activate, check for loose terminals, correct polarity, and proper fuse integrity.
- Use tinned copper wire for corrosion resistance in high-moisture environments.
- Avoid soldering terminals–crimp connections with heat-shrink tubing for durability.
- Label all wires during installation to simplify troubleshooting.
- Never exceed the relay’s rated amperage (typically 40A for automotive models).
- For marine or off-road applications, use waterproof connectors (e.g., Deutsch DT series).

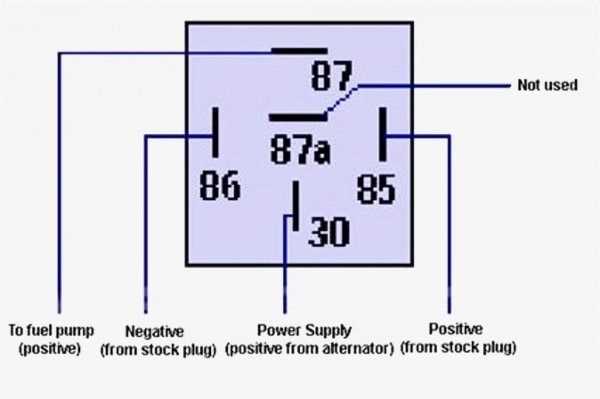

How to Identify the Terminals on a 5-Socket Signal Activator
Locate the numbering etched near each connector on the unit–typically 85, 86, 87, 87a, and 30. Terminals 85 and 86 form the control circuit: 85 connects to ground, while 86 receives the trigger voltage from a switch. The remaining three sockets handle the load path: 30 serves as the common input, 87 delivers power when activated, and 87a carries current in the de-energized state, if present in your model.
Test continuity with a multimeter to confirm each function. With no voltage applied, 30 and 87a should show closed contact, while 30 and 87 remain open. Apply 12V to 86 (with 85 grounded) to verify switching–87a should open and 87 close. Mark ambiguous sockets based on this behavior, prioritizing safety by disconnecting power during all checks.

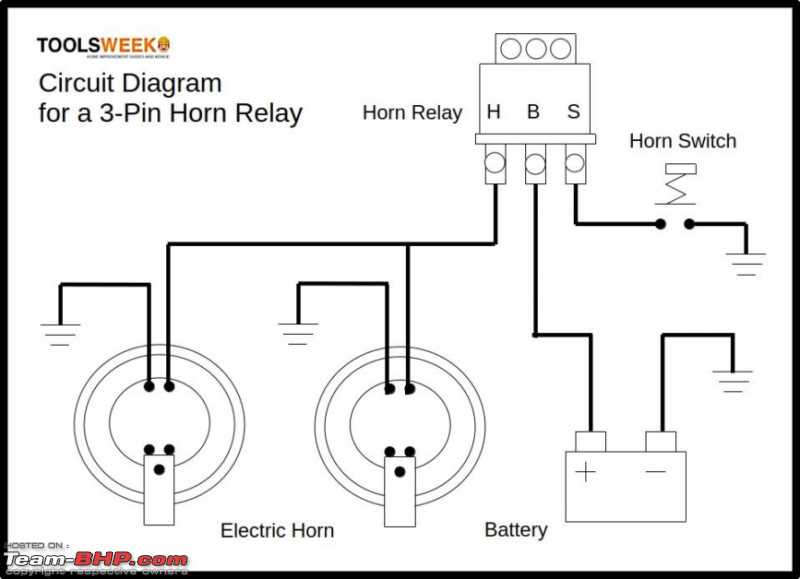

Step-by-Step Guide to Connecting an Audible Signal Module with a Control Button
Start by securing the power source directly from the vehicle’s battery terminal. Use 12-gauge cable for the main supply line to handle the current draw–typically 15-20 amperes–without voltage drop. Route the cable through a 20-amp fuse within 7 inches of the battery’s positive post to prevent overheating. Ground the module’s metal frame to the chassis using an 8-gauge cable bolted to unpainted, clean metal; resistance here should not exceed 0.2 ohms.
Component Layout and Secure Junctions
| Connection Point | Wire Gauge | Max Recommended Length | Termination Method |
|---|---|---|---|
| Battery positive to fuse | 12 AWG | 18″ (45 cm) | Crimp with heat shrink |
| Fuse to input contact | 12 AWG | 36″ (90 cm) | Solder and adhesive-lined tubing |
| Output contact to signal device | 14 AWG | 60″ (150 cm) | Crimp ring terminal |
| Control button to low-current trigger | 18 AWG | 72″ (180 cm) | Quick-disconnect spade |
Attach the control button between the low-current trigger contact and the switched 12-volt source–use the vehicle’s ignition-switched circuit to avoid parasitic drain. Test continuity with a multimeter before finalizing connections; actuating the button should yield zero ohms across the circuit. Enclose all splices in waterproof dielectric grease and wrap with self-fusing silicone tape rated to 150°C to prevent corrosion and shorts.
Common Mistakes When Connecting a 5-Terminal Signal Controller
Mixing up the activation and load circuits by swapping the 85 and 86 terminals causes immediate failure. The coil side (typically 85 and 86) requires a low-current trigger, while the output side (30 and 87) handles the heavier load. Reversing them risks burning out the internal electromagnet or leaving the device unresponsive. Always verify terminal assignments against the manufacturer’s datasheet before securing connections–some compact models label them differently.
Using undersized conductors for the high-current path invites voltage drop and overheating. A 14-gauge wire suffices for the control path, but the primary feed (from battery to contact) demands at least 12-gauge for a 20-amp circuit, heavier if the device draws over 30 amps. Many overlook this, relying on the original wiring harness, which may not be rated for the added demand. Solder or crimp connections properly–twisted strands or loose terminals corrode within weeks under vibration.
Omitting a fuse on the positive input exposes the entire setup to catastrophic shorts. Place a fuse as close as possible to the power source, sized at 125% of the device’s peak current draw. Common values: 20A for most compressors, 30A for heavier loads. Skipping this step risks melting insulation or starting fires if the circuit faults. Ground the metal casing separately–sharing the grounding path with other components can introduce noise or intermittent failures.
Tools and Materials Required for Electrical Signal Enhancer Setup
Begin with a multimeter capable of measuring at least 20 volts DC and 10 amperes. Accuracy down to 0.1 ohms resistance ensures precise circuit checks. Avoid analog models–digital displays eliminate misreading fluctuations.
Wire strippers with 10-22 AWG cutting slots prevent insulation damage. Choose models featuring a spring-loaded return mechanism for fatigue-free operation. Verify the blade sharpness by stripping #14 copper wire–clean cuts indicate reliable performance.
Heat-shrink tubing assortment (3/16″, 1/4″, 3/8″ diameters) provides corrosion-proof connections. Polyolefin material rated for 125°C handles automotive voltage spikes without degradation. Match tubing color to circuit polarity conventions: red for positive, black for ground.
Crimping tool with interchangeable dies accommodates 0.5–6.0 mm² terminals. Ratcheting models ensure consistent compression force. Test each die set on scrap wire–deformed terminals signal improper calibration.
A soldering iron delivering 40–60 watts with a fine conical tip enables precise joint reinforcement. Lead-free solder (60/40 tin-copper alloy) creates durable bonds. Flux-core-only options prevent oxidation during application.
Insulated butt connectors (blue for #16–14 AWG, yellow for #12–10 AWG) seal connections against moisture ingress. Tinned copper construction resists vibration-induced fatigue. Verify dielectric strength with a 1000V megohmmeter before installation.
Automotive-grade adhesive-lined ring terminals (M4, M5, M6) secure ground connections. Nickel-plated barrels prevent galling on mounting studs. Apply anti-seize compound to threads when attaching to aluminum chassis points.
Fuse tap harness with 15-amp rating isolates the signal circuit from existing power feeds. Blade-style fuses offer faster response than glass tube variants. Route tapping wires through grommeted firewall pass-throughs to prevent chafing.
