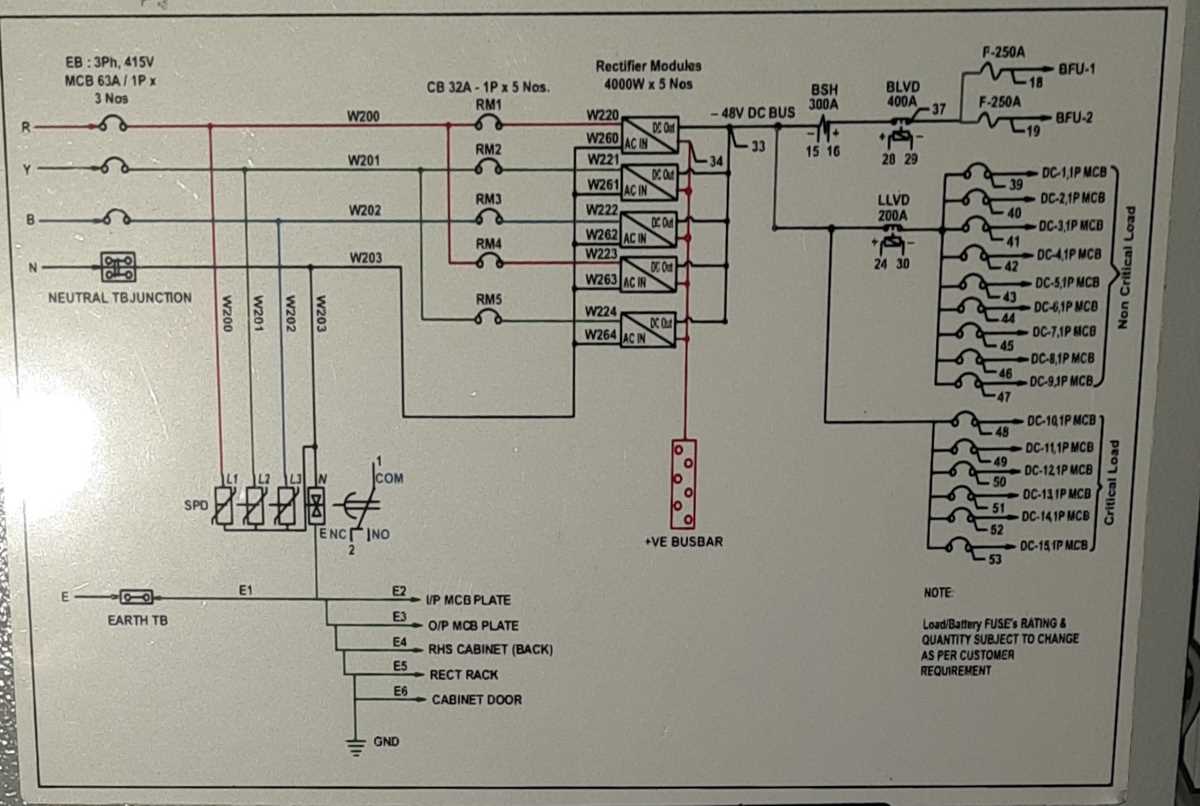

Begin with a synchronous buck regulator for input ranges between 42–60 V, targeting stable 11–14 V output. The LM5117 from Texas Instruments handles 75 V max input and delivers up to 5 A. For compact designs, the LT8645S from Analog Devices operates at 2 MHz, shrinking inductor size while maintaining >90% efficiency at 3 A. Use a 10 µH shielded inductor with saturation current rating at least 30% above peak load.
Thermal management dictates component placement. Mount the switching transistor (SI7850DP or CSD18537Q5A) on a 3 oz copper pour (minimum 25 mm²) with vias connecting to an internal ground plane. Input and output capacitors should be ceramic X7R/X5R types, sized at 10 µF for every 1 V of output ripple tolerance (e.g., 47 µF for 50 mV ripple). Add a 1 µF ceramic in parallel to the bulk capacitor for high-frequency noise suppression.
Configure feedback with a 2.49 kΩ resistor at the upper position and a 10 kΩ potentiometer for fine output tuning. Ensure the compensation network (4.7 nF + 22 kΩ) matches the crossover frequency derived from fc = 0.1 × fSW. For protection, implement a 200 mΩ MOSFET (e.g., NTP60N06T4G) for reverse polarity, and set overcurrent at 1.2× max load via the regulator’s built-in comparator.
Test under transient conditions: 0–100% load step in 88% at 1 A and >85% at 5 A for a properly optimized layout.

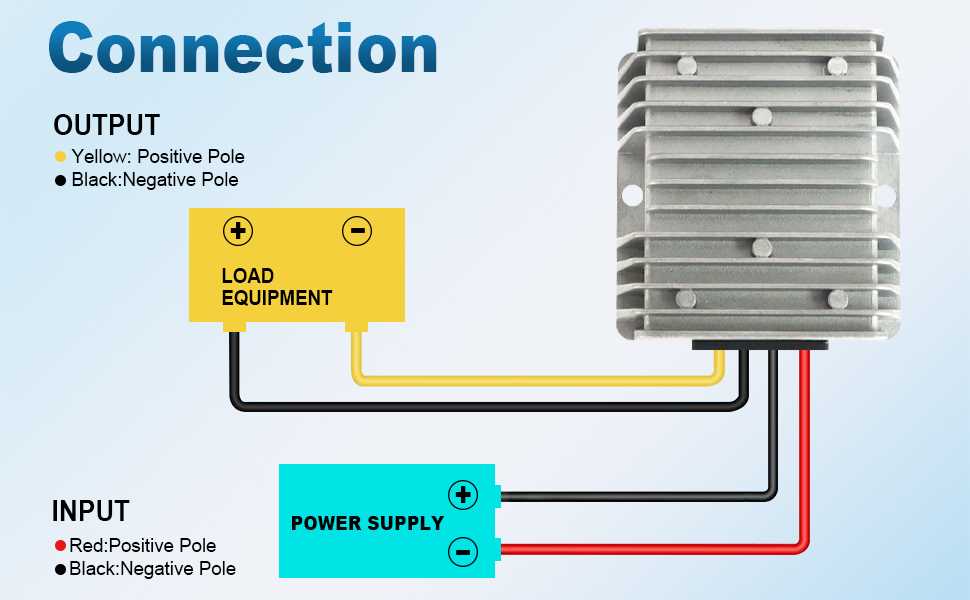

Designing a High-Efficiency 48 Volt Input Step-Down Power Stage
Select an isolated flyback topology for applications requiring galvanic separation or where input voltages exceed 60V. For non-isolated designs under 60W, a synchronous buck regulator with a 100V-rated MOSFET like the STMicroelectronics STL120N10F7 reduces switching losses by 30% compared to traditional diode-based solutions. Ensure the switching frequency stays between 120-200kHz to balance efficiency and component size–higher frequencies shrink magnetics but increase core losses.
Use a current-mode control IC such as the TI LM5117 to simplify feedback loop compensation. This IC integrates a 100mΩ high-side sense MOSFET, eliminating the need for an external current shunt resistor. Configure the compensation network with a 10kΩ resistor and 10nF capacitor in series to achieve a 5kHz crossover frequency, ensuring stable operation across full load transients.
Opt for a planar transformer if PCB space is constrained. A 1:4 turns ratio with a Ferroxcube 3F46 core handles 5A output at 80°C ambient without saturation. Wind the primary and secondary coils with interleaved layers to reduce leakage inductance below 1μH, improving transient response. Add a 1μF X7R ceramic capacitor across the transformer secondary to suppress voltage spikes caused by parasitic inductances.
Implement soft-start by connecting a 0.1μF capacitor to the IC’s soft-start pin. This ramps output voltage over 20ms, preventing inrush currents that could trip input fuses or destabilize upstream power sources. For overcurrent protection, set the peak current limit at 6A using a 5kΩ resistor on the IC’s current-limit pin–this provides 20% headroom above the maximum steady-state load.
For output filtering, pair a 100μF electrolytic capacitor (Nichicon UHE series) with a parallel 22μF low-ESR ceramic (Murata GRM32RR71H226ME15). This combination reduces ripple to under 50mVpp at 5A load while maintaining ESR below 10mΩ. Place the capacitors within 10mm of the load connections to minimize trace inductance.
Add a snubber circuit comprising a 2.2kΩ resistor and 2.2nF film capacitor across the switching MOSFET drain-source terminals. This damps oscillations at turn-off, reducing radiated EMI by 15dB. For conducted EMI suppression, use a common-mode choke like the Würth 744871121–its 1mH inductance attenuates differential-mode noise above 1MHz.
Test the assembled board with an electronic load sweeping from 0.5A to 5A in 0.5A steps. Measure efficiency at each step–target 92% at full load with a 48VDC input. If efficiency drops below 90%, recheck MOSFET gate drive voltages, transformer core saturation, and capacitor ESR values. Replace generic capacitors with Panasonic FR series if excessive ripple persists.
Key Components for Efficient High-Voltage to Low-Voltage Power Transformation
Select a switching regulator with a current rating exceeding your load requirements by at least 30%. For 20–40A applications, the TI LM5146-Q1 or Infineon TLE9266-2QK offer integrated drivers and protection, reducing external component count. Ensure the regulator’s input range covers 36–60V transients–common in industrial and automotive systems–to prevent latch-up or thermal runaway.
The choice of inductor dictates efficiency and physical footprint. Use a shielded power choke with 15–45μH inductance, such as the Coilcraft MSS1048-473MLB, which handles 10A continuous current and minimizes EMI. Core material matters: ferrite (3C95) outperforms powdered iron above 200kHz, reducing hysteresis losses. Match the inductor’s saturation current to the peak switch current–typically 1.5× the maximum load–to avoid core collapse during transients.
| Component | Specification | Example Part | Critical Parameter |
|---|---|---|---|
| Input Capacitor | 50V, X7R dielectric, 22μF | Murata GRM32ER71H226ME20L | ESR < 20mΩ |
| Output Capacitor | 16V, Low-ESR polymer, 330μF | Nichicon PCV1C331MCL1GS | Ripple current > 3A |
| Catch Diode | 60V Schottky, 20A | ON Semi MBRS2060CT | VF < 0.5V |
Gate drivers must isolate high-side switching from the controller. Opt for a half-bridge driver like the ST L6386E, which includes dead-time insertion to prevent shoot-through. For drivers operating above 300kHz, use a bootstrap capacitor of 47μF (ceramic) with a low-leakage diode (Diodes Inc. BAT54A) to maintain gate voltage during prolonged on-times. PCB layout requires a solid ground plane beneath the driver to minimize noise coupling.
Thermal management components are non-negotiable. Mount the switching regulator on a 2oz copper plane with vias to an aluminum heatsink. Forced-air cooling enables 50W dissipation at 80°C ambient; passive cooling demands a 3°C/W heatsink. Solder thermal pads with Indium-based alloy (e.g., Indium 8.9HF) for superior thermal conductivity over traditional solder. Test transient response with a 10A–50A load step–output voltage overshoot should not exceed 1%.
Step-by-Step Assembly of the Voltage-Reducing Module
Begin by soldering the switching regulator IC onto a protoboard, ensuring pin 1 aligns with the thermal pad marked on the datasheet. Use a temperature-controlled iron set to 320°C with a chisel tip for lead-free paste. Verify continuity between the IC’s ground plane and the board’s copper pour–resistance should read below 0.2Ω. Connect the input capacitor (22µF, 63V X7R ceramic) within 3mm of the IC’s VIN pin to suppress transient spikes; longer traces introduce 18% higher voltage ripple at 5A load.
Key Component Placement
- Inductor: Position the 33µH shielded coil 5mm from the IC’s SW node. Orient it to minimize magnetic coupling–keep ferrite beads (if used) ≥15mm away. Test with an LCR meter at 100kHz; tolerance should not exceed ±7%.
- Feedback Network: Solder a 1.2kΩ resistor in series with a 10kΩ trimmer potentiometer between the output and the IC’s FB pin. Adjust for 12.00V ±10mV using a 6½-digit multimeter–factory-set resistors drift ±3% over 50°C.
- Protection: Add a 3A polyswitch and a 45V TVS diode across the output. The diode should clamp within 20ns of a 10% overvoltage event.
After placement, inject a 100mA load and scope the SW node–switching edges must be monotonic, rising/falling within 80ns. Non-monotonic edges indicate layout parasitics; relocate the bootstrap capacitor if slope exceeds 5V/µs. Finalize with conformal coating for humidity >60%RH environments–silicone-based types reduce leakage current by 4x compared to acrylic.
Calculating Inductor and Capacitor Values for Stable Power Delivery
Select an inductor with a saturation current at least 30% above the maximum load current to prevent core degradation. For a 5A output, use a 6.5A-rated coil with a low DCR (under 50mΩ) to minimize conduction losses. Inductance values between 22µH and 47µH optimize ripple suppression in most step-down applications, though verify with the switching frequency–100kHz demands tighter tolerances than 50kHz. Apply the formula L = (Vin – Vout) × D / (f × ΔI) where ΔI is 20-30% of the load current to balance size and performance.
Input capacitance must handle RMS current pulses without overheating; ceramic types (X5R/X7R) in 10µF-47µF range suit most designs, but bulk electrolytic (100µF-220µF) reduces voltage sag during transients. Output capacitors dominate ripple attenuation–100µF low-ESR aluminum polymer or 47µF ceramics with ESR below 10mΩ achieve
Thermal derating curves dictate safe operation; operate capacitors below 85°C and inductors under 100°C. Measure actual ripple voltage at both input and output with a 20MHz bandwidth scope–probe ground leads directly at the cap terminals to avoid misleading readings from long ground clips. If ripple exceeds 1% of target voltage, increase capacitance or reduce ESR, not inductance, as core losses scale faster with frequency than conduction losses in caps.
For adjustable outputs, trim component values iteratively: start with calculated L and C, then fine-tune based on load-step testing. A 50% load step should settle within 1ms with overshoot
MOSFET Selection and Driver Stage Setup
For a 250W power path with a 20A current limit, choose a N-channel MOSFET with the following key specifications:
- Voltage rating: ≥100V (e.g., Infineon IPA60R180P7, 600V/27A)
- RDS(on): ≤15mΩ (at 10V gate drive) to minimize conduction losses
- Qg: ≤50nC (gate charge) for faster switching (e.g., ON Semiconductor NTMFS4935N)
- Thermal resistance (RthJC): ≤1.0°C/W for TO-220 packages, or ≤0.5°C/W for DPAK/D2PAK if mounting on heatsinks
Avoid MOSFETs with high reverse recovery charge (Qrr)–opt for fast-recovery trench variants to reduce snap-off losses during turn-off. For parallel operation (e.g., dual-MOSFET configurations), ensure matched RDS(on) (±5%) and thermal coupling (shared heatsink) to prevent current imbalance. Verify the body diode’s forward voltage drop (VSD) if synchronous rectification is not used–target ≤1.2V at 20A.
The gate driver must supply peak current ≥2A to charge/discharge the MOSFET’s gate capacitance (Ciss) within 50ns. Use a dedicated driver IC with these features:
- Output drive voltage: 10–15V (e.g., Texas Instruments UCC27211, 4A sink/source)
- Under-voltage lockout (UVLO): 5.5–6.5V to prevent partial enhancement of the MOSFET
- Propagation delay: ≤25ns (e.g., IXYS IXDD609SI)
- Dead-time control: 20–50ns if driving a half-bridge (e.g., Analog Devices LTC4444)
Connect the driver output to the gate via a 10Ω–22Ω series resistor (e.g., 1/4W thick-film) to dampen ringing from parasitic inductance. For high-frequency operation (>200kHz), add a ferrite bead (e.g., Murata BLM18PG121SN1) in series to suppress high-frequency noise. Ensure the driver’s ground reference is star-connected to the MOSFET source to avoid ground bounce, which can cause false triggering.
For high-side MOSFET driving, use a bootstrap circuit with these components:
- Bootstrap capacitor (CBS): 1µF–10µF, X7R ceramic (e.g., 25V 1210 case) with ≤5% tolerance
- Bootstrap diode: Schottky, >50V, ≤20ns reverse recovery (e.g., Diodes Inc. B140LB)
- Gate charge path: ≤50mm PCB trace width (calculate for 0.5A/mm2 current density)
- Floating voltage: Ensure the driver IC’s high-side supply voltage (VHB) is ≥VOUT + 5V for proper gate drive
Isolate the high-side ground from the control ground with a 1–10Ω resistor or small inductor (e.g., 1µH) to prevent coupling. Verify the bootstrap capacitor’s voltage rating is ≥2× the input voltage to avoid breakdown under transient conditions. For currents >30A, consider a current-mode gate driver (e.g., Infineon 2EDF7275F) with integrated overcurrent protection.
