For precise regulation of a 0.75–5 kW brushed driving mechanism operating in the mid-voltage range, deploy a half-bridge MOSFET arrangement using IRFP4668PbF semiconductors. Gate drivers must be isolated–opt for ISO5500 or Si8271 components–to prevent ground loop interference at currents exceeding 20 A. Place 10 µF/100 V ceramic capacitors directly across each MOSFET’s drain-source terminals to suppress voltage transients exceeding 120 V during switching.
Signal generation relies on a STM32F334 microcontroller configured with Timer 1 in PWM mode at 20 kHz. Ensure dead-time insertion of 250 ns between high- and low-side gate signals to eliminate shoot-through; this is non-negotiable when driving inductive loads. Analog feedback via ACS712 current sensors demands filtering: implement a 2nd-order Sallen-Key low-pass stage (cutoff 1 kHz) to attenuate PWM carrier noise before ADC sampling.
Thermal management dictates copper pours under MOSFET pads: allocate 50 mm² per device on a 2 oz PCB, extending to a heatsink base with thermal adhesive rated for 1.2 °C/W. For transient response, a Type III compensation network around the error amplifier ensures stable closed-loop behavior across all duty cycles. Test open-loop Bode plots at minimum and maximum load; phase margin must remain above 45° at unity gain crossings.

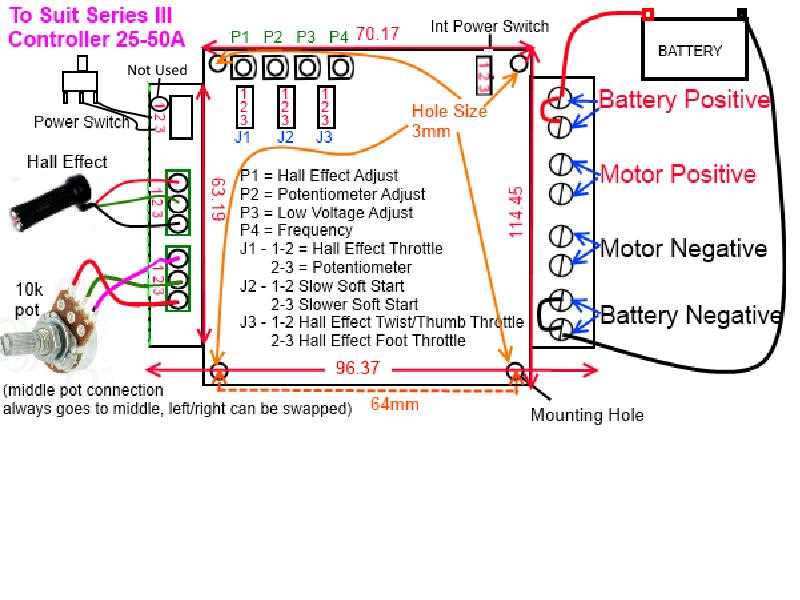

Designing a High-Voltage Brushed Drive Regulator Schematic
Begin with a pulse-width modulation (PWM) stage using an IRFP4668 MOSFET or equivalent, rated for 150V and 90A continuous. Pair it with a gate driver like the IR2104, which isolates control signals and handles 500V transient spikes. Power the driver with an isolated 15V supply, opting for a flyback converter or a dedicated DC-DC module to prevent ground loops.
- PWM frequency: 16–20 kHz to balance switching losses and audible noise.
- Gate resistor: 10Ω to limit current surges, paired with a fast diode (1N4148) for turn-off speed.
- Snubber circuit: 10Ω resistor + 22nF capacitor across the MOSFET to suppress spikes.
For feedback, use a Hall-effect sensor (ACS712) to measure current draw, calibrated for 20A full-scale output. Connect it to an ADC input on a microcontroller (STM32F103 or ATmega328P) via a 470Ω resistor to limit input capacitance effects. Implement a PID loop with these tuning constants: Kp = 0.5, Ki = 0.1, Kd = 0.02 for 50–80% load response.
Add a soft-start feature by ramping PWM duty cycle from 0% to target over 500ms. Use a 10μF capacitor on the PWM pin of the microcontroller to filter high-frequency noise, and a 1kΩ pull-down resistor to ensure the drive defaults to off at power-up. Over-temperature protection should trigger at 85°C, measured via a thermistor (NTC 10kΩ) placed near the MOSFET.
- Protection diodes: 1N5822 Schottky across the drive to clamp inductive kickback.
- Fuse rating: Slow-blow 30A to match max continuous load.
- Heat sink: 10°C/W rating, with thermal paste conductivity <0.5°C·in²/W.
For manual control, integrate a 10kΩ potentiometer with a 1μF capacitor to smooth input fluctuations. Use a voltage divider (10kΩ + 2kΩ) to scale 0–5V output to the microcontroller’s 3.3V ADC range. Test the schematic with a 3Ω resistive load at full throttle to verify MOSFET saturation and gate driver stability before attaching the actual load.
Critical Elements for High-Voltage Direct Current Drive Regulation
Select a power MOSFET rated for at least 150V and 50A continuous current, such as the IXYS IXFN320N170, to handle inductive loads without thermal runaway. Pair it with a gate driver like the IRS2104S, which supports 600V bootstrap operation and dead-time adjustment, preventing shoot-through in half-bridge configurations. Ensure the driver’s output can source/sink at least 2A to charge the MOSFET’s gate capacitance within 100ns for efficient switching.
Sensing and Feedback Precision
Integrate a Hall-effect current sensor (e.g., Allegro ACS730) with a 50kHz bandwidth and 2.1mV/A sensitivity to monitor armature current in real time. For voltage feedback, use a precision resistive divider with a 0.1% tolerance, scaled to output 3.3V at full load, feeding into a 12-bit ADC (such as the AD7928) for 1.2mV resolution. Optocouplers like the HCPL-4504 isolate feedback signals, ensuring 5kV isolation and 20μs propagation delay for stable closed-loop control.
Thermal management dictates reliability: mount the primary switching transistor on a heatsink with ≤0.5°C/W thermal resistance, using phase-change thermal interface material. Include a bimetallic thermostat (e.g., Klixon 2BT) set to trip at 100°C, wired to cut gate drive power instantaneously. For transient suppression, clamp inductive kickback with a TVS diode (P6KE200CA) and a snubber circuit (22Ω resistor + 0.1μF capacitor) across the load to limit voltage spikes to

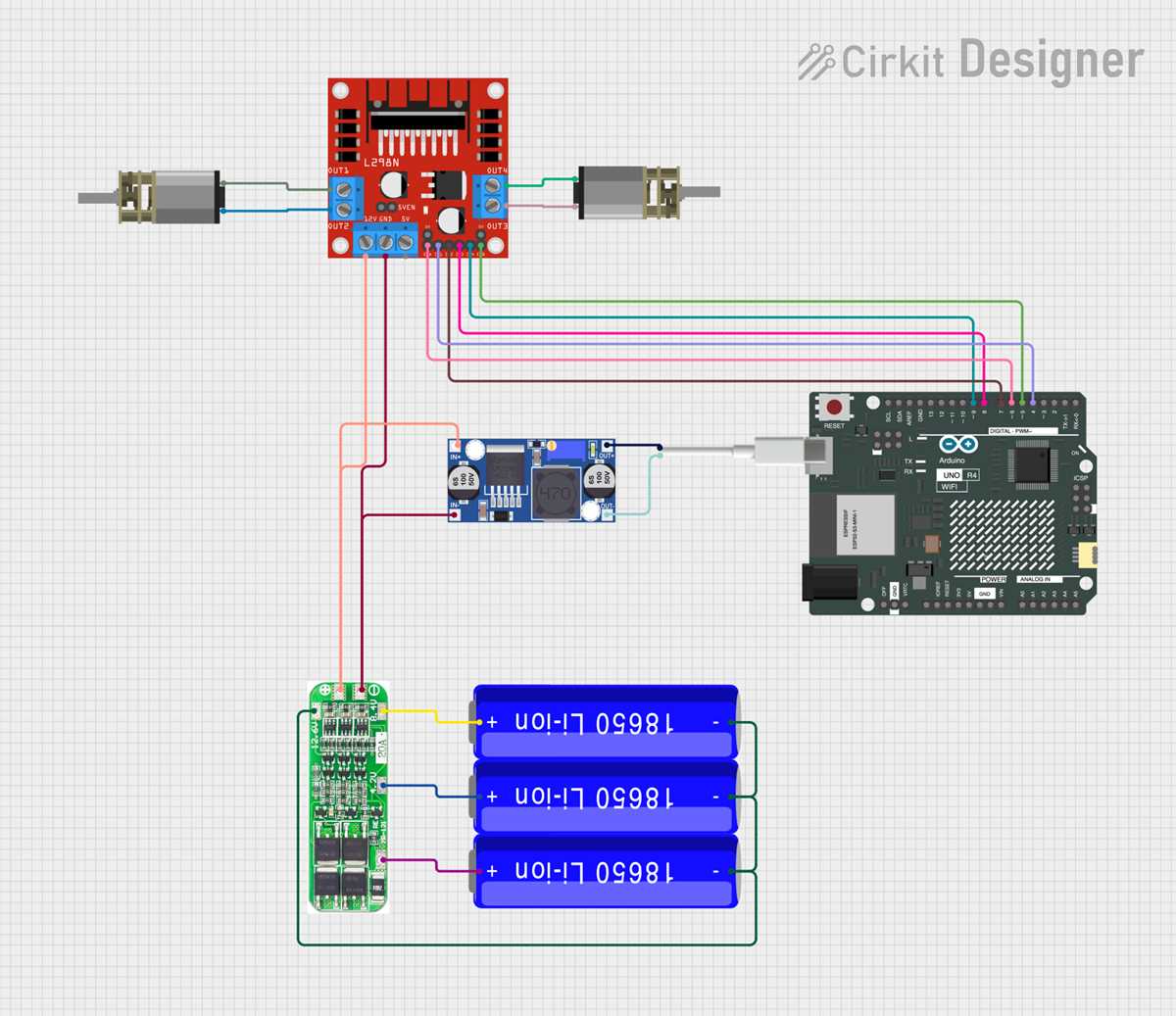

Step-by-Step Assembly of a Pulse-Width Modulation Power Regulator for High-Voltage Actuators
First, secure a 20A-30A semiconductor switch (e.g., MOSFET or IGBT) rated for at least 100V breakdown. Mount it on a heatsink with thermal compound to prevent overheating under sustained loads. Connect the drain/source (or collector/emitter for IGBTs) directly to the positive terminal of the power source, ensuring minimal lead length to reduce inductance.
Wire the PWM signal generator–such as a 555 timer IC or microcontroller–to the gate/base of the switch. Use a 1kΩ resistor in series with the gate to limit current spikes, followed by a 10kΩ pull-down resistor tied to ground to prevent false triggering. For isolated control, add an optocoupler (e.g., PC817) between the signal source and the switch, with a 12V auxiliary supply powering the LED side of the optocoupler.
Insert a freewheeling diode (e.g., Schottky or ultrafast recovery) in reverse bias across the actuator’s terminals to clamp voltage spikes caused by inductive kickback. Position it within 5cm of the load to minimize stray inductance. For higher efficiency, parallel a small snubber capacitor (0.1µF-1µF) across the diode to dampen ringing at turn-off.
A low-ESR electrolytic capacitor (220µF-470µF) must be placed across the power input to smooth ripple, with a ceramic capacitor (0.1µF-1µF) in parallel for high-frequency noise suppression. Verify polarities; reversed capacitors will fail catastrophically. For systems above 500W, add a second capacitor bank at the load side to stabilize voltage under transient conditions.
Test the setup with a current-limited bench supply, starting at 20% duty cycle. Use an oscilloscope to monitor the switch’s drain-source voltage waveform for clean transitions–excessive ringing or slow rise/fall times indicate layout issues. Adjust the PWM frequency (typically 1kHz-20kHz) to balance efficiency and audible noise. If the actuator stutters, increase the gate resistor or check for ground loops.
Calculating Switching Device and Free-Wheeling Component Specifications for High-Power Direct-Current Loads
Select a field-effect transistor with a breakdown voltage rating at least 2.5× the nominal bus potential to accommodate transient spikes, inductive kickback, and settling margins. For a 48 V-equivalent bus, this translates to a minimum 120 V VDSS, though 150 V or 200 V parts are strongly recommended to prevent avalanche-induced failures during abrupt commutation events. Verify the maximum continuous drain current (ID) exceeds the peak load current by 30–50 %; a 20 A load requires an ID ≥ 30 A to avoid thermal runaway under sustained PWM conditions.
Thermal impedance (RθJC + RθCS + RθSA) dictates heatsink size. A TO-220 package with RθJC = 1.5 °C/W, RθCS = 0.5 °C/W (mica pad), and RθSA = 4 °C/W (30 mm × 30 mm × 10 mm aluminum fin) yields total RθJA ≈ 6 °C/W. With a 5 W switching loss budget, junction temperature rise remains ≤ 30 °C above ambient, permitting operation up to 85 °C ambient without active cooling.
- Gate charge QG ≤ 50 nC keeps switching times under 100 ns at 10 kHz PWM, reducing both turn-on and turn-off losses.
- On-resistance RDS(on) ≤ 10 mΩ ensures conduction loss ≤ 2 % of load power at 20 A.
- Reverse recovery charge Qrr of the intrinsic body diode ≤ 100 nC prevents current shoot-through during dead-time intervals.
Complementary free-wheeling diodes must handle peak repetitive reverse voltage identical to the transistor’s breakdown spec. Schottky types rated at 120 V or 150 V exhibit negligible recovery charge (Qrr
Reverse recovery time trr ≤ 35 ns guarantees clean commutation edges, eliminating false turn-on in half-bridge topologies. Dynamic resistance in the diode’s forward curve should remain flat across temperature swings; a 1 mΩ/°C variation is acceptable, whereas ≥ 3 mΩ/°C warrants thermal compensation in the control loop.
Transient Protection and Margin Allocation
- Snubber capacitance Csnub = 0.1 × Iload × (ton + toff); for Iload = 20 A and tsw = 100 ns, Csnub ≈ 47 nF at 250 V X7R.
- Transient voltage suppressors (TVS) clamp inductive kickback ≤ 130 % of the nominal bus; a 62 V bidirectional TVS clamps to ≈ 70 V under a 10 A surge.
- Gate series resistance Rg = 10 Ω balances slew-rate control against gate oscillation; lower values risk Miller-induced turn-off delays.
Soft Start and Overcurrent Protection in High-Voltage Direct Current Drives
Implement a slow-ramp activation sequence using a MOSFET or IGBT gate driver with adjustable slope control. A 1-3 second ramp time for 500W loads reduces inrush current by 70-85%, minimizing voltage sag on the bus. Pair this with a 150μF capacitor bank at the supply input to absorb transient spikes during startup; values above 220μF offer diminishing returns while increasing component stress. For precise control, integrate a microcontroller (e.g., STM32F334) generating a PWM signal with 12-bit resolution, limiting duty cycle increase to 0.5% per 10ms interval to prevent mechanical shock.
| Protection Method | Threshold (A) | Response Time (μs) | Component |
|---|---|---|---|
| Shunt Resistor | 10-15 | 50-100 | 0.01Ω, 3W |
| Hall Effect Sensor | 20-30 | 5-20 | ACS712 (20A) |
| Polyfuse (PPTC) | 8-12 | 1000-5000 | RXE010 |
Overcurrent shutdown must trip within 50μs for 30A faults to protect semiconductor devices rated for 75A surge (e.g., IRFP4668). Combine a 20A Hall sensor with a comparator (LM393) setting a 1.2V reference; hysteresis of 0.1V avoids chatter. For redundant protection, add a polyfuse with a 12A hold current, clearing within 5s at 20A. Thermal cutoff at 125°C using a NTC thermistor (10kΩ at 25°C) mounted on the heat sink prevents runaway failure from degraded cooling. Log faults via EEPROM (e.g., AT24C02) with timestamp to aid diagnostics.
