Begin with the power supply connections: pin 16 to +5V and pin 8 to ground. Any deviation here will prevent the rest of the configuration from functioning, regardless of downstream wiring accuracy. Verify these links first before troubleshooting other segments.
Connect the clock input to pin 1 through a debounced switch or a stable pulse generator set to 1Hz. Higher frequencies can distort the display, especially if segment drivers lack sufficient current capacity. Avoid direct microcontroller outputs unless buffered–oscillations in logic states may trigger erratic counting.
Route output pins a–g (pins 13–9, 15) to a common-cathode seven-segment display with series resistors of 220Ω. Resistor omission risks LED burnout; values above 470Ω reduce brightness visibly. For multiplexed designs, latch pin 5 must remain high during active counting–tying it low freezes the output, useful for pausing sequences.
Ground control pins 3 (enable display) and 2 (disable count) unless modifying default behavior. Pull pin 4 (carry-out) high via a 10kΩ resistor to cascade counters; omit this for standalone units. Test each stage with a logic probe–floating inputs invite unpredictable resets.
For noise immunity, add a 100nF ceramic capacitor between +5V and ground near the chip. Long unshielded wires (>10cm) require ferrites or twisted pairs to minimize signal corruption. When cascading, connect carry-out of the first stage directly to the clock input of the next–intermediate gates introduce latency and skew.
Building a Decade Counter: Step-by-Step Assembly Guide
Start by connecting the decade IC’s clock input (pin 1) to a debounced push button or a 555 timer in astable mode at 1-2 Hz. Use a 10 kΩ pull-down resistor to prevent floating inputs. For reliable operation, add a 0.1 µF decoupling capacitor between VCC (pin 16) and ground as close to the chip as possible. Common cathode seven-segment displays require series resistors–select 220-470 Ω values for each segment (A-G) to limit current to 5-10 mA per LED. Connect the carry-out (pin 5) to the clock input of a second identical stage for multi-digit counting, but ensure the second stage’s clock enable (pin 2) is tied low.
Critical Pin Configurations for Error-Free Counting
Ground the display test (pin 14) and lamp test (pin 15) pins unless testing; leaving them floating can cause erratic behavior. Tie the clock inhibit (pin 2) to VCC when not cascading to prevent unintended counting pauses. For up/down counting, connect pin 10 (UP/DOWN) to VCC for ascending order or ground for descending–switching this during operation resets the count to zero. If using a single-digit display, leave the carry-out (pin 5) unconnected, but add a 10 kΩ pull-down resistor to avoid noise-induced false triggers.
Power the IC with 3-15 V DC, but note that segment brightness scales with voltage–5 V yields dimmer results than 9 V. For battery-powered setups, use a 7805 regulator to stabilize voltage and extend display lifespan. Avoid exceeding 15 V, as the internal CMOS gates have limited breakdown protection. For memory retention (if needed), connect pin 13 (STORE) to a momentary switch; pulling it low latches the current count until released.
To troubleshoot, check segment outputs with a logic probe or multimeter: expect ~0.7 V drop per LED when active. If segments flicker, verify clock stability–replace the push button with a Schmitt trigger (e.g., CD4093) if bouncing persists. For cascaded stages, ensure all ground and VCC rails are shared; noise on supply lines can corrupt counts. Replace the decoupling capacitor with a 10 µF tantalum if voltage dips occur during transitions.
Pin Configuration and Signal Flow in the Decade Counter
Start with pin 1 (CLOCK INHIBIT): pull it to ground to enable counting. Leaving it floating or tying it high disables clock pulses–useful for freezing the display during debugging. Always connect a 0.1µF decoupling capacitor between VDD (pin 16) and ground near the chip to suppress noise-induced miscounts.
Feed the input clock signal into CLOCK (pin 1). A 5V CMOS-compatible square wave (1Hz–1MHz) ensures reliable decade progression. For frequencies above 100kHz, reduce stray capacitance on this pin to
- CARRY OUT (pin 5) emits a narrow pulse on the 9→0 transition. Use this to cascade counters: connect directly to the next stage’s CLOCK without external components. Stray capacitance here can cause false triggers–keep wiring
- DISPLAY ENABLE (pin 6) gates the 7-segment outputs. Low = all outputs active; high = outputs high-Z, blanking the display. Drive this with a microcontroller or switch to strobe multiple digits in multiplexed setups.
- UNGATED C SEGMENT (pin 14) remains active even when DISPLAY ENABLE is high. Use it as a constant indicator (e.g., decimal point) without affecting blanking.
SEGMENTS OUTPUTS (pins 13, 12, 11, 10, 9, 7, 15) sink current. Add 330Ω–1kΩ resistors in series with each segment to limit current to VDD.

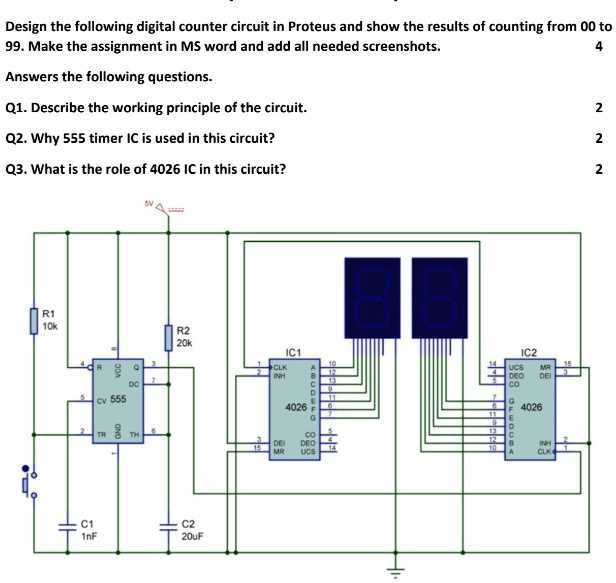

Cascading Multiple Stages
- Connect CARRY OUT of the first stage to the CLOCK of the next.
- Pull CLOCK INHIBIT of subsequent stages high via 10kΩ resistors (enable them sequentially via diode gates if required).
- Sync blanking by tying all DISPLAY ENABLE pins together or use a dedicated line for dimming.
Signal flow prioritization: clock edges trigger on the rising edge, so edge steepness >5V/µs minimizes metastability. For noisy environments, add a 10kΩ pull-down on CLOCK and a 100pF capacitor to ground to filter spikes below 1µs.
Reset via RESET (pin 15): pulse high for >50ns to clear the counter. Avoid holding this pin high–it latches the counter to zero, blocking further clock pulses. Use an open-drain driver if external reset sources (e.g., power-on-reset) are shared.
Step-by-Step Assembly of a 7-Segment Display Counter Interface
Begin by soldering the decade counter IC into the breadboard, ensuring pin 1 aligns with the notch facing left. Connect the power rails: VCC to +5V and GND to the negative rail. Verify the supply voltage with a multimeter before proceeding to avoid damage to the logic module.
Attach current-limiting resistors (220Ω–470Ω) to each segment output–labeled a through g–using the table below. Resistor values may vary based on display brightness requirements; test increments of 100Ω with an LED first to confirm visibility in ambient lighting.
| Segment | Counter IC Pin | Resistor (Ω) |
|---|---|---|
| a | 5 | 220 |
| b | 6 | 330 |
| c | 7 | 220 |
| d | 9 | 330 |
| e | 10 | 220 |
| f | 11 | 330 |
| g | 8 | 220 |
Wire the common cathode of the 7-segment module to ground. For common anode displays, connect to +5V instead and reverse resistor connections. Double-check polarity–miswiring risks permanent display failure. Add a 0.1µF decoupling capacitor between VCC and GND near the IC to suppress voltage spikes.
Connect the clock input (pin 1) to a debounced pushbutton or oscillator source. Use a 1kΩ pull-down resistor on the input to prevent floating signals. For manual testing, a momentary switch with a 10kΩ resistor to ground ensures clean transitions. Observe the display; it should increment on each button press or clock pulse. If behavior is erratic, inspect solder joints and clock signal integrity with an oscilloscope.
Link the carry-out pin (pin 12) to the clock input of a second counter IC for multi-digit cascading. Each carry pulse increments the next digit, enabling displays up to 99. Insert a 1µF electrolytic capacitor across the power rails to stabilize long cascades–voltage drops cause miscounts. Test with a slow clock source (~1Hz) first to verify digit synchronization.
Avoid exceeding 3.5mA per segment; calculate total current draw: Itotal = (Isegment × 7) + IIC quiescent. For a 5V supply, this limits display brightness. Substitute higher-efficiency LEDs or lower resistor values if dimness persists, but prioritize heat dissipation in compact setups.
Finalize by enclosing the assembly in a grounded metal case if operating in electrically noisy environments. Add a 100nF capacitor across the display’s VCC and GND pins to filter high-frequency interference. Label all wires–pin swaps during reconfiguration are a common failure point. Document threshold voltages for future troubleshooting; typical logic-high levels are 2.0V–5V, and logic-low under 0.8V.
Common Wiring Mistakes and Debugging Tips
Reverse polarity on IC pins is the most frequent error in counter-based setups. Check the datasheet’s pinout–miswiring VDD to GND or clock inputs to data lines instantly damages the chip. Use a multimeter in continuity mode to verify each connection before powering on. A 1 kΩ resistor in series with LED outputs prevents burning when testing with 5 V supplies, especially if segment current exceeds 20 mA.
- Clock signals floating: Attach a 10 kΩ pull-down resistor to the clock input if switch bounce causes erratic counts.
- Unused inputs left unconnected: Tie reset, latch enable, and blanking pins to either VDD or GND to avoid random glitches.
- Incorrect segment assignments: Trace voltage to each LED anode; a segment remaining dark suggests swapped common cathode wiring or a blown diode.
- Ground loops: Star-ground all IC grounds and power supply ground at a single point to eliminate false counts.
Debug progressive counting failures by tapping a logic probe at the clock input, then each binary output. A missing pulse on one output indicates either a broken trace or a faulty internal stage–swap ICs to isolate the issue. Thermal cameras reveal hotspots within seconds; excessive current draw points to shorts between adjacent pins, often caused by flux residue or microscopic solder bridges.
