Begin by examining pin 16 (VCC)–the heart of the chip’s power distribution. A stable 5V supply routed directly to this point ensures consistent performance across all ten outputs, but noise suppression requires a 100nF decoupling capacitor placed within 2mm of the pin. Without it, transient voltage spikes risk triggering false states, particularly when cascading multiple stages.
Signal progression follows a Johnson counter architecture, where each flip-flop alternates output states in sequence. The clock input (pin 14) demands a clean, edge-triggered pulse–rising edges advance the counter, while noise tolerance is improved with a Schmitt trigger configuration. For frequencies above 1MHz, reduce stray capacitance on the clock line to avoid signal degradation.
Resetting the sequence involves pulling pin 15 (MR) high–this immediately forces all outputs low while preserving internal logic alignment. However, avoid floating this pin; a 10kΩ pull-down resistor prevents erratic resets during power transitions. When extending the counter beyond ten stages, interconnect carry-out (pin 12) to the next module’s clock input, ensuring a seamless transition without signal attenuation.
Output load considerations dictate performance limits. Each output (pins 1–7, 9–11) can sink up to 5mA but struggles above this threshold. For higher-current applications, buffer outputs with NPN transistors (e.g., 2N2222) or ULN2003 arrays. Avoid exceeding VOL = 0.5V to maintain TTL compatibility–adjust pull-up resistors accordingly.
Grounding pin 8 (VSS) directly to a common ground plane reduces ground bounce, a frequent culprit behind output jitter. For precision applications, isolate the analog ground from high-speed digital traces using star grounding techniques. Thermal derating begins at 70°C–ensure adequate heat dissipation in enclosed designs.
Decoding the Johnson Counter Chip: Core Structure and Signal Flow
Begin by identifying the ten-step ring counter at the heart of the chip–each stage connects via a D-type flip-flop, cascading outputs Q0 through Q9 in sequence. Apply a clock pulse to pin 14 (CLK) and observe how the single active-high output shifts right with every rising edge, wrapping around after Q9 resets to Q0. For reliable operation, tie unused outputs to ground through a 10kΩ resistor to prevent floating states that could trigger erratic behavior.
| Stage | Output Pin | Voltage Range (V) | Typical Load (mA) |
|---|---|---|---|
| Q0 | 3 | 0.0–VCC | ±10 |
| Q1 | 2 | 0.0–VCC | ±10 |
| Q2 | 4 | 0.0–VCC | ±10 |
| Q3 | 7 | 0.0–VCC | ±10 |
| … | … | … | … |
Avoid exceeding the clock frequency of 2.5 MHz at 5V; beyond this, internal propagation delays between flip-flops cause race conditions, corrupting sequential outputs. For frequencies above 1 MHz, decouple the supply (pin 16) with a 0.1µF ceramic capacitor placed within 2mm of the chip to suppress voltage spikes that disrupt synchronization.

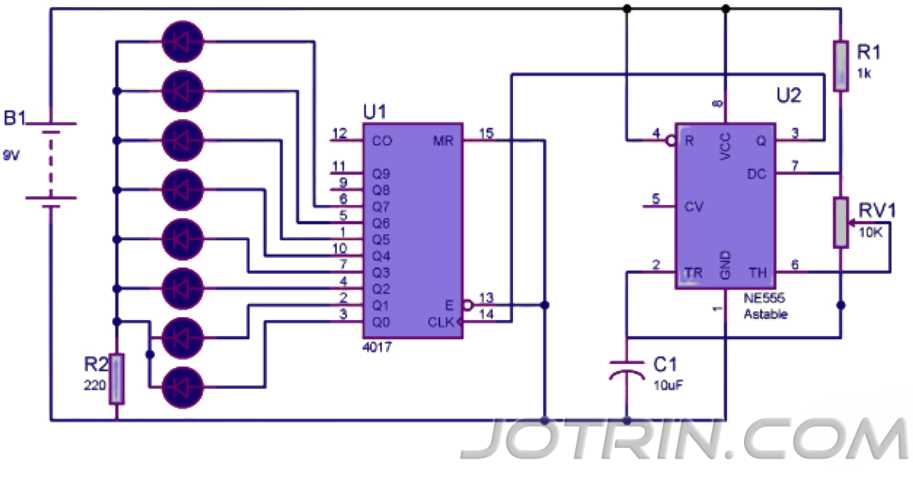

Reset functionality (pin 15) overrides the counter: pulling it high forces Q0 active while clearing all other outputs. Use a debounced switch or a monostable multivibrator (e.g., NE555) to generate a clean 200ns pulse–shorter pulses risk partial resets, leaving intermediate flip-flops latched. When cascading multiple units, connect the carry-out (pin 12) of the first chip to the clock-in (pin 14) of the next; synchronize enable pins (pin 13) to low for seamless chaining.
Identifying Key Functional Blocks in the Decade Counter IC
Begin by locating the clock input stage at pin 14. This node includes a Schmitt trigger buffer that shapes incoming pulses, reducing noise susceptibility. Verify its operation by applying a 1 kHz square wave–output transitions should remain crisp even with 10% duty cycle distortion. The buffer’s hysteresis threshold is approximately 0.7V for low-to-high and 0.3V for high-to-low transitions, critical for metastability prevention in noisy environments.
Trace the sequential decoding matrix from pins 3, 2, 4, 7, 10, 1, 5, 6, 9, and 11 back to the internal flip-flop array. Each output activates in strict order via a 10-stage Johnson ring counter configuration. Measure propagation delay between adjacent outputs (typically 15-20 ns at 5V) to confirm uniform timing–deviations exceeding 5 ns indicate potential latch-up in specific stages. The carry-out pin (12) reflects state 10 completion, triggering subsequent counter chains without requiring additional logic gates.
Diagnosing Common Pitfalls in State Transitions
Isolate the reset circuitry tied to pin 15. A 50 ns pulse at this node forces immediate rollover to position 0, bypassing remaining states. Ensure the reset pulse width stays below 200 ns to prevent false triggers–excess duration locks outputs in a high-impedance state. The reset transistor’s saturation current (3 mA typical) limits external pull-up resistor values to 1 kΩ or lower for reliable operation under 3V supply.
Examine the power supply decoupling network between pins 16 (VDD) and 8 (VSS). Place a 100 nF ceramic capacitor within 2 mm of these pins to suppress voltage spikes during state changes–each transition draws up to 8 mA transient current. For designs exceeding 1 MHz clock rates, add a 10 µF tantalum capacitor at the board’s power entry point to stabilize shared rail noise, particularly when cascading multiple devices.
Step-by-Step Signal Pathway Through the Decade Counter’s Logic Stages
Trace the clock pulse entry at pin 14 (CP) directly into the first D-type latch within the counting module. This input triggers the master stage of the first flip-flop, where the signal latches on the rising edge of the waveform. Enable pins (CE at pin 13 and MR at pin 15) must remain in their inactive states–CE tied low and MR high–to permit normal operation. If CE goes high or MR is pulled low, the counter resets forcibly, bypassing all downstream logic.
Propagation Through Sequential Bistable Elements
The latched signal advances to the slave stage of the first flip-flop, then cascades to the subsequent nine bistable elements in strict sequence. Each stage divides the clock frequency by two, ensuring the input pulse propagates through exactly one stage per positive clock transition. Outputs Q0–Q9 activate in turn as the pulse ripples forward, with only one output high at any moment. Verify continuity by probing each Q-output during operation–skipped stages indicate faulty interconnections or damaged gates.
- Q0 (pin 3) initializes high on power-up or reset.
- Next clock edge moves the high state to Q1 (pin 2), then Q2 (pin 4), and so forth.
- The tenth pulse recirculates to Q0 via an internal feedback gate, completing the cycle.
Debounce input signals externally to prevent erratic counting–edge-triggered logic interprets noise as valid transitions. Terminate unused outputs with pulldown resistors (10 kΩ) to suppress floating nodes that may induce false states. Monitor propagation delays with an oscilloscope; typical clock-to-output rise times measure 100–200 ns, while feedback gating introduces an additional 50 ns delay.
Critical Junctions and Failure Modes
Examine the reset network at pin 15 (MR). A momentary low pulse here forces Q0 high and disables all other outputs immediately. Failure to reset cleanly often stems from undersized decoupling capacitors–mount a 0.1 µF ceramic directly between VDD (pin 16) and ground. Similarly, the carry-out signal at pin 12 (CO) produces a pulse only when Q9 transitions low; this pin sources limited current and requires buffering for driving loads above 5 mA.
- Clock skew between cascaded counters: align edges with Schmitt-trigger inputs.
- False toggling: shield clock traces and segregate from high-current lines.
- Thermal drift: operate within 0–70 °C; performance degrades beyond this band.
Clock Input and Reset Pin Behavior in the Decade Counter Logic
Connect the clock trigger line to a stable pulse source with rise times under 50 ns to prevent false edge detection. The Schmitt-trigger input stage (typical hysteresis ~0.3 V to 0.9 V for VDD = 5 V) ensures clean transitions even with noisy signals, but avoid waveforms slower than 1 MHz unless buffered externally–observed phase jitter increases exponentially below this threshold.
Ground the reset terminal via a dedicated 1 kΩ pull-down resistor when idle to prevent floating-node activation; inadvertent spikes as brief as 10 ns can force an immediate counter reset, corrupting sequential outputs. For synchronized resets, drive this pin high with a minimal 1.5 V threshold (VDD = 5 V) and sustain for at least one clock cycle to guarantee state clearance across all ten output stages. Edge-triggered behavior is non-retriggerable–completing the reset pulse before the next clock rising edge avoids metastability.
Clock Pulse Width Constraints
Observe minimum pulse widths: 200 ns low, 100 ns high for reliable triggering. Narrower pulses may not fully propagate through the asynchronous toggle stages, especially at temperature extremes (-40°C to +85°C), where propagation delays widen by up to 30%. For cascaded configurations, maintain uniform pulse widths; skew exceeding 10% between stages desynchronizes output sequencing.
Reset Recovery Timing
Allow 15 ns recovery time after releasing the reset line before applying the next clock pulse–violating this interval risks undefined output behavior, particularly at Q9, which exhibits a 2-3 ns longer propagation delay than other outputs. When using RC networks for auto-reset on power-up, select component values ensuring the reset duration exceeds 15 ms (avoids false 0→1 transitions during cap charge-up). Test under actual load conditions; the counter’s 8 mA per output sink current alters timing margins.
