Begin by matching the color codes between the housing connector and the vehicle’s harness: brown to rear marker contacts, yellow to left turn/brake circuits, green to right turn/brake circuits, and white to the ground terminal. Verify the harness voltage with a multimeter–expect 12 volts across the white and colored strands when the corresponding signal is active. If readings fluctuate, inspect the main vehicle fuse box for a dedicated 10-amp fuse; common locations include the driver-side kick panel or beneath the instrument cluster.
Route conductors through the frame aperture using a 1/2-inch grommet to prevent chafing. Secure strands every 18 inches with nylon zip ties, avoiding bends sharper than 90 degrees. Attach the white return path to an unpainted chassis point; clean the contact area with 120-grit sandpaper and apply dielectric grease before tightening the ring terminal to 12 inch-pounds. Test each circuit sequence: left turn (amber flash), right turn (amber flash), brake (steady amber), and tail illumination (dim amber) before proceeding.
Strip each conductor to expose 5/16 inch of copper; crimp using a 16–14 AWG butt connector for secure splicing. Apply heat-shrink tubing that extends 1/2 inch beyond each splice to seal against moisture ingress. Mount the housing assembly no higher than 24 inches from the road surface to comply with DOT FMVSS 108; use stainless-steel screws and lock washers for vibration resistance. After final torque (8 inch-pounds), coat screw heads with clear silicone to deter corrosion.
Program the vehicle’s hazard module if LED modules pulse at double the intended frequency–consult the owner’s manual for the flasher relay replacement procedure. For late-model trucks, access the body control module via OBD-II port and reset the bulb-out detection feature using a scan tool with SAE J1939 support. Confirm proper operation by engaging the parking brake and verifying that tail illumination remains steady while turn signals flash independently.

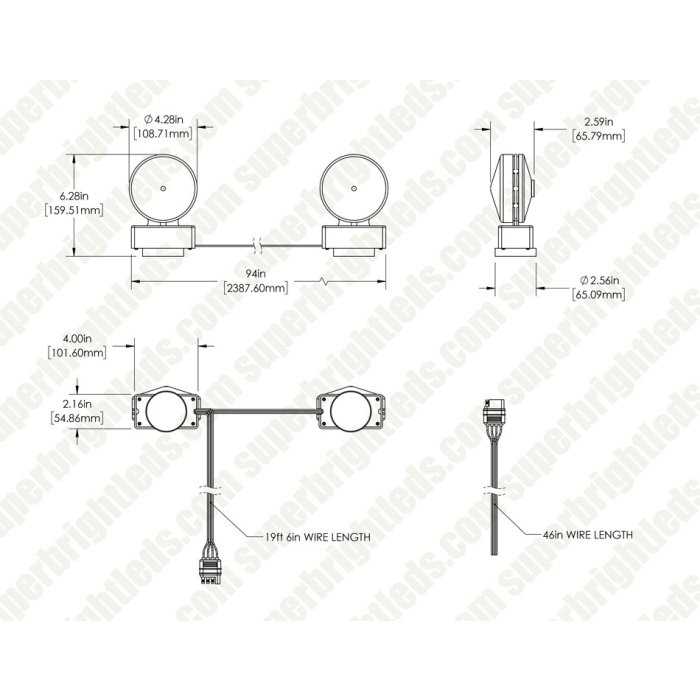

Connecting Vehicle Signal Systems with Auxiliary Illumination
Start with a multimeter to verify the pinout arrangement of your connector. Standard setups use a brown conductor for chassis ground, yellow for left turn signal and brake output, green for right turn and brake, and white as the main return path. Confirm these assignments before making any splices–reverse polarity will damage solid-state components.
Use heat-shrink tubing with adhesive liner for all splices. Crimp connectors rated for marine environments–16-14 AWG terminals withstand vibrations better than smaller gauges. Avoid solder alone; mechanical connection ensures durability under road shock and moisture exposure.
Route each branch away from sharp edges and moving parts. Bundle conductors with split loom tubing, securing every 12 inches with nylon ties. Leave 6-8 inches of slack at connector ends to prevent tension failures during suspension articulation.
Install an in-line fuse holder directly at the power source–15 amps for combined running and brake circuits. Match the fuse rating to the thinnest conductor in the circuit; overheating risks exceed light failure alone and can ignite adjacent insulation.
Diagnosing Intermittent Failures
Check for voltage drop across each connection point. A 0.5V loss over a 3-foot span indicates corrosion or loose contact. Scrape terminals to bright metal, coat with dielectric grease, then reassemble under torque. Even factory connectors erode under road grime and condensation.
Ground loops create phantom signals–test by isolating the main return path. Connect a temporary jumper directly to the chassis; if illumination stabilizes, relocate ground attachment to a dedicated unpainted surface, preferably zinc-plated.
Matching Circuit Capacities
Verify the towing vehicle’s flasher relay can handle additional current. LED clusters consume 0.1A per segment, versus 1.5A for filament-based units. Upgrade relays if turn indicators visibly dim when both brake and signal are engaged; incompatible modules cause erratic flashing or thermal shutdown.
Essential Gear and Supplies for Connecting Vehicle Illumination Systems
Start with a multimeter rated for at least 20V DC to verify circuit integrity before attaching any components. Accuracy matters–opt for models with a minimum 0.5% error margin to avoid signal misreadings that could damage low-voltage assemblies. Brands like Fluke or Klein provide reliable readings for automotive-grade connections, while budget alternatives may suffice if calibrated correctly.
Harness the right splicing tools: a ratcheting crimp tool with interchangeable dies ensures uniform pressure on connectors, preventing corrosion-prone gaps. For insulation displacement connectors (IDCs), select dies matching 18-14 AWG specifications–standard sizes for auxiliary signaling setups. Thermal strippers offer precise heat application, stripping sheathing without nicking conductors, a critical step for moisture-resistant junctions. Avoid utility knives–they risk uneven cuts and compromise seal integrity.
Critical Fasteners and Protective Components
| Component | Recommended Type | Key Function |
|---|---|---|
| Adhesive-lined shrink tubing | Polyolefin 4:1 ratio | Seals splices from environmental exposure |
| Waterproof butt connectors | Tin-plated copper, 3/16″ diameter | Prevents oxidation in wet conditions |
| Dielectric grease | Silicone-based, non-conductive | Repels moisture at terminal interfaces |
| Cable tie mounts | Stainless steel with screw base | Secures conduits without chafing |
Select 12-volt rated fuses with a 5A threshold for turn signals and 10A for brake/tail functions–exceeding these values risks overloading the assembly. Mini blade-style fuses fit most modular sockets, but verify compatibility with the tow vehicle’s socket dimensions. Always keep spare fuses on hand; corrosion or vibration may trigger unexpected failures during operation.
Leverage a cable track system–flexible conduit with split housing simplifies routing and protects leads from abrasion. Choose UV-resistant materials like polyethylene for exposed sections, especially near undercarriage components where road debris accumulates. For concealed runs, reinforced vinyl loom prevents pinching from sharp chassis edges. Secure the entire setup with mounting clips spaced no more than 12 inches apart to avoid sagging.
Precision Enhancements for Longevity
Apply anti-seize compound to all threaded fasteners, particularly on aluminum frames prone to galvanic corrosion. Torque specifications for reflectors and housings typically range between 8-12 Nm–overtightening strips threads, while undertightening risks vibration loosening. Use a torque wrench for consistency. When sealing gasket interfaces, apply a thin bead of marine-grade silicone to the reflector base, not the lens; excess material can obstruct optical clarity.
Document every splice location with a simple schematic referenced during future troubleshooting. Label both ends of each conduit segment with heat-shrink markers detailing function (e.g., “LF TURN” or “RT BRAKE”). This reduces diagnostic time significantly if disassembly becomes necessary. Store all tools in a divided organizer to avoid losing small components like snap rings or terminal pins during installation.
Step-by-Step Guide to Identifying Vehicle Signal Connector Roles

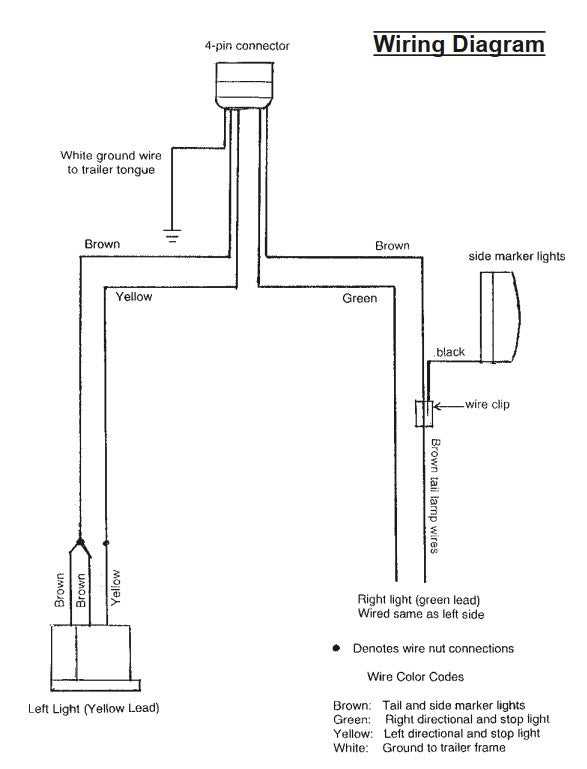

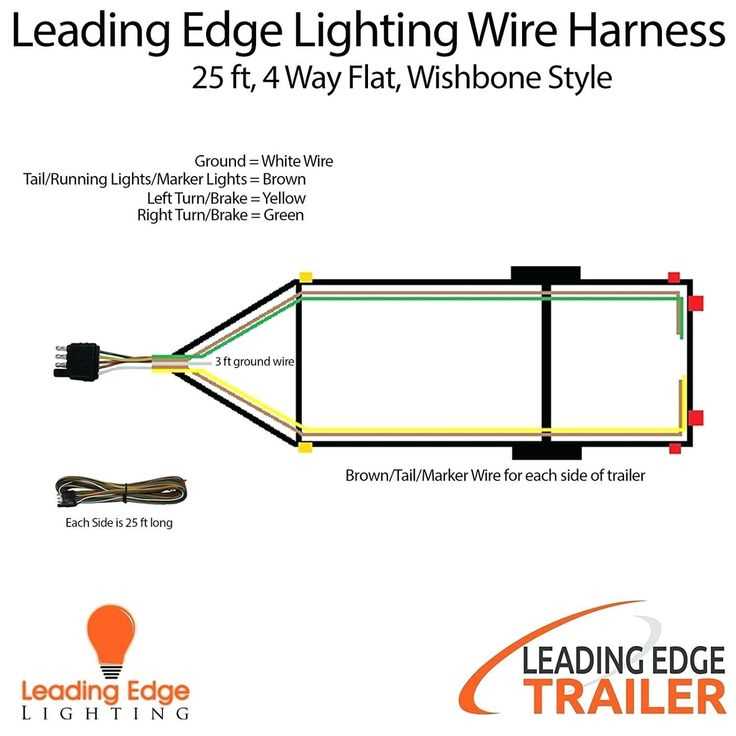

Start by locating the primary harness at the rear of the towing assembly–typically a four-pin plug or socket. The color codes follow a universal standard: brown corresponds to the running lamps, yellow to the left turn/brake circuit, green to the right turn/brake, and white grounds the entire system. Use a multimeter set to DC voltage (20V range) and probe each contact while activating the respective functions on the tow vehicle. A reading of ~12V confirms the role of each conductor.
If the harness lacks clear markings, trace each strand backward from the lamp clusters. The brown lead will always terminate at a dual-filament bulb powering both tail and license plate illumination. Yellow and green often split near the bulb socket–each simultaneously controls blinker output and braking pulses. White wires attach directly to the chassis or a dedicated ground point; verify zero voltage drop across this link with the multimeter in continuity mode.
For connectors with non-standard coloring, cross-reference with the tow vehicle’s owner manual or a wiring schematic specific to the make/model. Aftermarket adapters may invert or combine circuits–ignore socket labels and rely solely on voltage readings. Test each pin sequentially: switch on the hazard flasher (both yellow and green should pulse), then depress the brake pedal (both front filaments illuminate), then activate the running lamps (brown alone energizes). Document each result.
Isolate potential shorts by disconnecting the harness at both ends. Probe the vehicle-side plug: running lamps should show battery voltage on brown with all lamps off, turn signals pulse between zero and 12V, and brakes spike only when activated. Any deviation–such as voltage on white–indicates a chassis corrosion or a misrouted conductor that requires immediate re-termination.
Once functions are confirmed, secure connections with dielectric grease and heat-shrink tubing. Re-test all circuits under load (with lamps connected) to ensure no voltage drop exceeds 0.5V between the source and load. A final road test–observing lamp behavior during turns, braking, and night driving–validates the installation matches OEM output patterns.
