Use 16-18 AWG copper strands for optimal signal transmission–avoid aluminum or thinner gauges, as they increase resistance and risk overheating under load. Position the ground (white) lead at the connection closest to the tow vehicle’s chassis; attach it directly to unpainted metal to ensure a solid return path. Secure all joints with heat-shrink tubing rated for at least 80°C to prevent corrosion from road salt or moisture.
Route the brown circuit (running lights) along the upper frame rail, away from suspension components and sharp edges. For the green and yellow conductors (right/left turn/stop signals), keep them separated by at least 50 mm to minimize interference. Solder all splices and apply dielectric grease before crimping connectors to inhibit oxidation.
Test continuity with a multimeter: less than 1 ohm between the plug terminal and bulb socket validates a proper link. Load each circuit with a 5W bulb to confirm voltage drop stays above 11.8V at the farthest lamp–values below indicate excessive resistance or a faulty ground.
For trailers over 5 meters, extend the brown lead with additional 14 AWG strands to compensate for longer distances. Install a 20A fuse within 15 cm of the battery connection to protect the harness from short circuits. Replace OEM connectors every two years if exposed to frequent moisture.

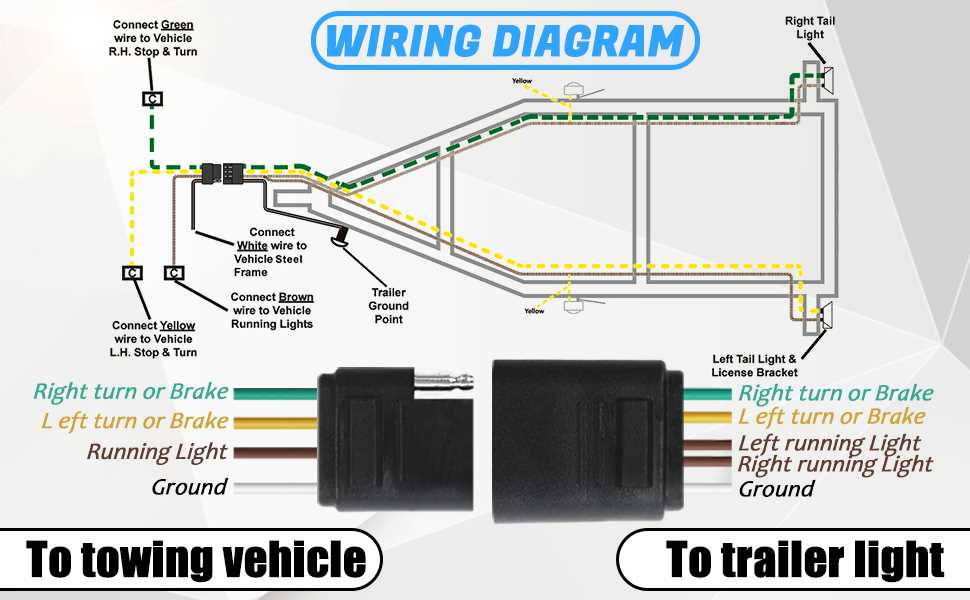

Standard 4-Conductor Towing Connection Guide
Connect the brown circuit to the tail illumination cluster on both sides of the load carrier–verify a minimum 12 AWG cross-section for consistent voltage at 13.5V under load. Terminate the yellow lead exclusively to the left-hand lamp bank, ensuring a watertight crimp joint with dielectric grease before soldering; failure risks intermittent flicker due to moisture ingress. Route the green conductor directly to the right-side assembly with identical precautions, noting that reversed polarity will disable brake activation but preserve marker function.
Secure the white return path to the mounting frame or designated ground stud, scraping paint to bare metal at the attachment point for under 0.1-ohm resistance; corrosion from dissimilar metals (aluminum-chassis) can elevate impedance beyond 0.5 ohms, triggering error codes in modern vehicle networks. Install a 20-amp fuse on each positive line within 7 inches of the connector, replacing any blown element immediately–prolonged overload draws above 15A degrade insulation, leading to thermal failure beyond 85°C sheath temperature.
Decoding Connector Pin Colors and Their Roles in Standard 4-Pin Vehicle Towing
Match each color to its designated circuit before making connections: brown for running lamps, yellow for left-side stop/turn signals, green for right-side stop/turn signals, and white for the ground return path. Verify polarity with a circuit tester–point the probe at the pin’s contact surface and confirm 12V DC appears only for the brown lead when headlights are activated, and for the yellow/green leads when brakes or turn signals engage. Reverse polarity risks damaging bulb filaments and module fuses.
Inspect the cable harness for physical damage–frayed insulation, corroded terminals, or brittle sleeving often indicates compromised conductivity. Strip 5 mm of sheathing from each lead, twist strands clockwise, and crimp a ring terminal or blade connector rated for 20A current. Avoid soldering on the ground path; mechanical compression ensures lower resistance. Secure all terminals with dielectric grease to prevent oxidation inside the plug housing.
Route the harness away from exhaust manifolds and suspension components, using looms or spiral wrap to reduce abrasion. Connect the ground lead directly to the towed vehicle’s chassis at a clean, unpainted point within 18 inches of the plug–avoid sheet metal screws; use a self-tapping zinc-plated bolt for optimal contact. Test each function sequentially: activate tail lamps, apply brakes, toggle left/right indicators, and verify brightness consistency across all bulbs before finalizing the setup.
Step-by-Step Guide to Joining and Securing 4-Conductor Vehicle Cables
Start by stripping 6–8 mm of insulation from each lead using precision cutters, ensuring strands remain intact. Match conductors by color code: brown (tail lamps), yellow (left turn/brake), green (right turn/brake), and white (ground). Verify polarity with a multimeter–ground must read 0 Ω to chassis; active circuits should show 12V when activated.
Twist corresponding strands tightly in a clockwise direction, then apply a soldering iron at 350°C for 3–5 seconds. Use rosin-core solder only–acid-core will corrode connections. Immediately slide heat-shrink tubing over the joint and shrink with a heat gun at 120°C until snug. Avoid excessive heat to prevent insulation damage.
Connection Methods Comparison
| Method | Durability | Weather Resistance | Time Required |
|---|---|---|---|
| Crimp connectors | Moderate | Low (sealant required) | 45 sec/connection |
| Solder + heat-shrink | High | High (if properly sealed) | 3 min/connection |
| Twist + electrical tape | Low | None | 15 sec/connection |
Secure all splices to a rigid surface using UV-resistant zip ties spaced every 15 cm. Route cables away from sharp edges, suspension components, and heat sources. Use dielectric grease on terminals to prevent oxidation–apply a 2 mm bead before mating surfaces.
Test each circuit individually: activate turn signals, brake lights, and running lamps while observing functionality. Check for voltage drop across joints (should be <0.2V). If flickering occurs, recheck crimping or soldering–cold joints often cause intermittent failures. Finalize by wrapping the harness section with split-loom tubing, securing ends with adhesive-lined heat shrink.
Solving Frequent Electrical Problems in Standard Vehicle Connectors
First, verify ground integrity by testing continuity between the connector’s ground pin and the tow vehicle’s chassis using a multimeter. A resistance reading above 5 ohms indicates corrosion or a loose connection–clean contacts with a wire brush and re-secure terminals with lock washers. Common failure points include the grounding screw on light assemblies; detach and inspect for oxidation.
For intermittent signal loss, inspect all splices in the harness, especially near heat sources like exhaust manifolds. Use heat-shrink tubing with adhesive lining on splices–standard vinyl tape degrades within months. Check pin alignment in the connector housing; even a 0.5mm shift can disrupt contact. Replace the entire harness if pins show signs of arcing or pitting.
Dim or flickering lamps often trace to voltage drops across connectors. Measure voltage at each lamp while activated–readings below 11.5V at 12V systems require intervention. Bypass suspect connectors with temporary leads to isolate the issue. Ensure all fasteners in the circuit (including battery terminals and chassis grounds) are torqued to 9-12 Nm; loose linkages add resistance.
- Test brake signal continuity by activating the tow vehicle’s brake pedal–readings should match turn signal output (typically 12-14V).
- Inspect bulb sockets for melted plastic or carbon deposits–replace if contacts show discoloration.
- Confirm pin assignments with a test light: ground (white), tail lights (brown), left turn/brake (yellow), right turn/brake (green).
- Avoid crimping connectors without a ratcheting tool–hand crimps fail under vibration.
- Disconnect the plug before probing with a multimeter to prevent short circuits.
- Use dielectric grease on all connections to prevent moisture ingress.
- Replace the entire assembly if any pin shows signs of melting–individual pin replacement risks future failures.
Essential Gear for Connecting a Four-Conductor Vehicle Lighting System
Begin with a multimeter capable of reading 12V DC circuits. Ensure it has a continuity test function to verify connections before applying current. Models like the Fluke 87V or Klein Tools MM700 offer durability and precision, critical for avoiding shorts that could damage onboard electronics. Check probe tips–replace worn ones to prevent false readings.
A crimper designed for insulated terminals is non-negotiable. Select one with dies for 16-14 AWG splice connectors to match most harness specifications. Avoid generic tools; ratcheting crimpers like the Klein Tools J2000 ensure consistent compression, preventing loose connections that lead to intermittent failures. Include a set of heat-shrink tubing (3/16″ and 1/4″ diameters) to seal splices against moisture.
For stripping sheathing, use a dedicated cable stripper with calibrated notches, such as the Ideal 45-121. Adjustable blades risk cutting into conductors–opt for fixed-gauge strippers to preserve copper strands. Keep a utility knife nearby for removing outer jackets on main harness runs, but always score lightly to avoid nicking underlying insulation.
Electrical tape isn’t sufficient for outdoor connections. Armor-lock thermoplastic adhesive liners (e.g., 3M 8898) provide UV resistance and waterproofing when heated properly. Apply with a heat gun set to 350°F–hold 5-7 seconds until adhesive melts and forms a glossy seal. Avoid torches; uneven heating causes brittle seals that crack under vibration.
Include a set of spade or ring terminals (tinned copper, 10-12 AWG) for securing ground circuits to chassis points. Bolts alone won’t suffice; use star washers to penetrate paint and corrosion. For troubleshooting, a 12V test light with alligator clips helps verify power delivery without risking delicate LED signals. Store all components in a tackle box–loose tools lead to lost parts during installation.
