Use a four-node configuration where the live feed enters at one toggle location to ensure consistent voltage distribution across all access points. Route the hot conductor from the primary source terminal through the central contacts of each secondary module in sequence–this prevents voltage drop and maintains balanced load handling. Ground connections must tie into a single dedicated path terminating at the fixture’s junction block, avoiding parallel splits that can introduce interference.
Mandate specific conductor colors for clarity: black for unbroken hot feed, red for traveler links between intermediate nodes, white re-marked with black tape for neutral return where required, and bare copper exclusively for grounding. Label each terminal at every node with its functional designation–source, load, or travel–before securing connections to eliminate miswiring.
Position the intermediate modules at physically equidistant intervals between the first and last controls, ensuring no single segment exceeds 6 feet of conductor length between contacts. This geometric spacing minimizes inductive coupling and guarantees uniform resistance across the entire loop, reducing flicker and erratic operation under variable loads.
Test each segment individually with a digital multimeter set to continuity mode before energizing the circuit. Verify zero resistance between corresponding traveler contacts at adjacent nodes, infinite resistance across non-connected terminals, and correct polarity at all access points. Isolate the fixture and toggle all controls simultaneously to confirm no unintended paths exist between the hot and neutral conductors.
Install an overload protector rated for 15% above the maximum fixture wattage at the primary source terminal. This safeguard prevents thermal damage to conductors if high-draw bulbs exceed circuit capacity–critical in configurations where ambient heat accumulation is unavoidable due to confined installation spaces.
Connecting a Multi-Location Control Setup with Source at the Controller
Start by identifying the hot conductor from the circuit source–typically a black or red wire–and connect it directly to the common terminal of the first intermediary toggle. Label this feed wire clearly to avoid confusion during splices. Use a wire nut rated for at least 14 AWG if joining multiple conductors, ensuring the connection is twisted clockwise for maximum grip before securing the nut. The remaining terminals on this device should accept the travelers that link to the subsequent toggles in the series.
For accurate pairing of travelers between controllers, maintain consistent color-coding: one brass terminal pair consistently receives the red conductor, while the other brass set handles the black. This prevents crossed paths and erratic operation. Below is a reference for terminal assignments when integrating three or more control points:
| Toggle Position | Traveler Pair A | Traveler Pair B | Common Terminal |
|---|---|---|---|
| First | Red (brass) | Black (brass) | Hot feed (dark screw) |
| Middle | Black → Red | Red → Black | – |
| Last | Red (brass) | Black (brass) | Load (dark screw) |
Ground conductors must terminate at every device using a green ground screw or wire pigtail; never omit this step, as improper grounding risks shock and fire hazards. Secure all connections inside a weatherproof junction box if the setup extends outdoors, using silicone-filled connectors to prevent corrosion.
Test each position before restoring power. Confirm the light cycles correctly by toggling every control point in sequence–failure to achieve consistent operation often indicates misrouted travelers or loose terminals. If issues persist, use a non-contact voltage tester to verify the hot feed reaches the first control’s common screw, then trace the travelers step-by-step through the series.
Essential Gear and Supplies for Multi-Location Control Setup
Start with voltage-verified testers–non-contact probes rated for 120–277V AC detect live conductors without direct contact, reducing arc-flash hazards. Insulated screwdrivers with torque-limiting handles (0.8–1.2 Nm range) prevent overtightening brass terminals. For stranded conductors, ratcheting crimpers (AWG 14–12) ensure gas-tight splices when paired with tin-plated copper ferrules. Labeling guns with heat-shrink sleeves eliminate ambiguity in circuits sharing a neutral.
- Fish tape (7/32″ diameter, 25′ stainless steel) for pulling 12-gauge THHN through 1/2″ EMT with minimal friction.
- Junction boxes: 4″ square (21 cu. in.) for splicing; depth must accommodate 6 conductors plus grounds.
- Binding screws: nickel-plated brass, #10-32 thread; torque to 18–22 in-lbs for consistent conductivity.
- Traveler conductors: minimum 12 AWG, THHN, red/blue insulation to distinguish from common (black) and neutral (white).
Heat-resistant wire nuts (yellow, 24–32 cu. mm capacity) must be listed for 90°C copper; avoid twist-on types lacking silica gel fillers. Gangable device plates in 0.040″ stainless steel resist deformation during mounting. For damp locations, use silicone-filled seals around box knockouts and UL-listed conduit (3/4″ PVC Sch 40). Mock-up the sequence on a non-powered breadboard first–verify continuity before energizing.
- Capacitive proximity sensors (NC/NO, 10–30V DC) can supplement mechanical toggles for fail-safe redundancy.
- Polarity-sensitive LEDs (5 mm, 20 mA) wired in series with 470Ω resistors indicate correct configuration at each toggle.
- Multi-meter: auto-ranging (600V AC, 10A DC) with min/max hold captures transient voltage drops during testing.
- Anti-seize compound (nickel-based) prevents galling on aluminum conductors in mixed-metal installations.

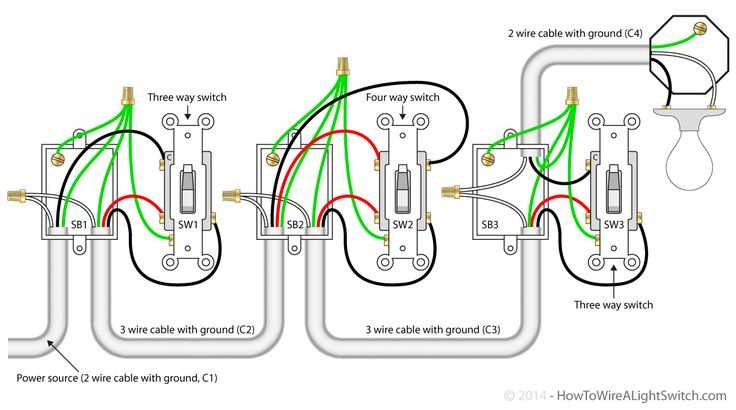

Step-by-Step Guide to Installing a Multi-Point Control Circuit With Supply at the Initial Terminal
Start by identifying the incoming live conductor at the first control point. Use a non-contact voltage detector to confirm the feed cable carries the current before disconnecting. Label the black (or red) wire as the supply line and the white wire–if marked with tape or paint–as the neutral return. Secure the bare copper or green grounding wire to the terminal box’s grounding screw.
Connect the supply line to the common screw (typically darker or brass-colored) on the first control. Attach the other two traveler wires (usually brass-colored screws) to the remaining terminals, ensuring no bare strands protrude. Route these traveler cables to the second and third controls, maintaining consistent wire color-coding between each connection point.
At the intermediate control (second in sequence), attach the incoming traveler wires to the matching terminals. Cross-connect the opposite terminals with the outgoing traveler wires leading to the final control. Verify each screw is tightened to 12–15 in-lbs torque to prevent loose connections, which can cause intermittent operation or overheating.
For the last control, connect the incoming traveler wires to the paired terminals. Attach the load wire (leading to the light fixture or appliance) to the common screw. Cap unused wires with twist-on connectors rated for the circuit’s amperage (typically 15A or 20A), and fold all conductors neatly into the junction box to avoid pinch points.
Restore power and test each control by toggling between positions. If any control fails to operate the load, recheck the traveler connections at the malfunctioning point, ensuring no reversed wires or incorrect terminals. For added safety, use a multimeter in continuity mode to verify proper circuit path before closing the terminal covers.
Locating Carrier Conductors in Multi-Path Control Setups
Start by isolating the circuit at the breaker and confirming de-energization with a voltage detector. In a three-point intermediary configuration, two connectors–typically brass-colored–will terminate pairs of conductors entering from opposite directions. These are the carriers; they shuttle current between the toggle endpoints and must remain consistent across the linkage path.
Examine conductor colors: modern installations often use red and black for carriers, while older builds may pair red with white-striped or yellow leads. If colors repeat, label each with masking tape before disconnecting. Note the physical layout–conductors entering the same knockout (top/bottom or left/right) are almost always the carriers, while the remaining terminal handles incoming or outgoing line load.
- Test continuity between suspected carriers using a multimeter in resistance mode (expected 0–0.5 ohms between paired carriers).
- Identify the odd terminal: the single brass connector carrying the common line will show infinite resistance.
- Trace each carrier pair visually through conduit or cable cladding to confirm they terminate at the next control point.
If no color coding exists or conductors were altered, force a known load sequence by toggling endpoint toggles one at a time. The intermediary device will toggle only when both carriers are energized; observe which terminals react simultaneously while the remaining terminal stays inert–those reacting terminals are the carriers.
Critical Errors to Sidestep in Multi-Location Circuit Configurations
Misidentifying the common terminals on intermediary control points causes inconsistent operation. Each toggle mechanism labeled as a 4-way unit has two brass-colored screws and two darker screws. Connect traveler conductors exclusively to the brass screws–reversing this pair disrupts the entire sequence, leaving certain positions non-functional. Label each conductor before disconnecting any fixture to prevent mismatched reconnections.
Skipping the continuity test between terminals risks hidden faults. Use a multimeter in resistance mode (Ω) to verify that each traveler path registers near-zero ohms when toggled. Infinite resistance indicates an open circuit, often traceable to loose wire nuts or broken strands–address these before finalizing connections. A single overlooked strand can render all control points inoperative.
Over-tightening terminal screws crushes conductor strands, creating intermittent failures. Apply 4–5 inch-pounds of torque, just enough to prevent slippage without deforming the copper. After securing, tug gently on each conductor; if any slides, re-strip and re-terminate. Aluminum-clad conductors require antioxidant compound–skip this step and oxidation will gradually increase resistance, degrading performance.
Ignoring the direction of toggle travel introduces confusion for users. Standardize the orientation so flipping any mechanism upward always corresponds to “on” and downward to “off.” Mark each plate with adhesive dots during installation to maintain consistency. Reversing this logic at any single point breaks user expectations and increases troubleshooting time.
Using improper gauge conductors creates voltage drop over long runs. For 15-amp circuits, #14 AWG suffices for under 50 feet; beyond that, #12 AWG is mandatory. Measure actual voltage at the farthest control point–any drop exceeding 3% from the supply level requires thicker conductors or a dedicated sub-panel. Undersized conductors also overheat splices, risking insulation failure.
Omitting a grounding conductor invites shock hazards. Even in metal conduit systems, bond all control-mechanism frames to the grounding bus. Plastic boxes require a separate green grounding pigtail terminated to the bare conductor. Verify grounding continuity from every toggle to the service panel–an ungrounded frame can retain lethal potential after a short circuit.
