To transmit process data reliably over long distances, a 4–20 mA current loop remains the industrial standard due to its immunity to electrical noise and voltage drops. Start with a precision current source, ensuring it stabilizes between 4 mA (minimum signal) and 20 mA (full-scale output) with less than ±0.1% error. Select a 24 VDC power supply–common in industrial setups–as the loop driver, but verify its compliance with IEC 61010 to avoid drift under load. Use a series-connected resistor (typically 250 Ω) at the receiver end to convert current into a readable 1–5 VDC signal, while keeping lead resistance below 10 Ω to prevent inaccuracies.
For sensor integration, opt for transmitters with built-in linearization rather than raw transducers–examples include Rosemount’s 3051 series or Siemens SITRANS P. These devices handle temperature compensation and scaling internally, cutting calibration time. If designing a custom setup, isolate the loop with an optocoupler or transformer-based barrier to block ground loops and transients exceeding 1 kV. Avoid non-isolated designs; they introduce drift errors from stray capacitance or inductance, especially in hazardous areas where intrinsic safety is required (IEC 60079-11).
Test the loop with a calibrated multimeter in current mode–place it in series, not parallel, to avoid skewing measurements. Verify linearity by adjusting the transmitter’s zero and span trims; a 4 mA output should correspond to 0% of the measured range, and 20 mA to 100%. Replace standard resistors with precision metal-film types (1% tolerance or better) if the loop includes passive components. For PLC or DCS inputs, confirm the device’s input impedance doesn’t exceed 500 Ω, as higher values distort the signal by dropping loop voltage below the transmitter’s compliance limit (usually 12 V for 24 VDC supplies).
Fault detection is critical: configure a 3.8 mA threshold as a warning for cable breaks or short circuits, and 21 mA as an alarm for overrange conditions. In outdoor installations, shielded twisted-pair cable (e.g., Belden 9841) minimizes interference; ground the shield at only one point to prevent circulating currents. For long runs (>100 m), use a loop-powered repeater or a HART-enabled isolator (like Pepperl+Fuchs KFD2 series) to segment the path, ensuring each segment stays within 24 V compliance. Document every component’s specifications–power supply ripple, cable capacitance, and max loop resistance–to troubleshoot drift or erratic readings later.
4 to 20 mA Signal Setup: Practical Steps
Use a precision resistor between 100Ω and 250Ω to convert the current loop to a measurable voltage. A 20 mA signal across a 250Ω resistor yields 5V–ideal for ADC inputs. Avoid resistors outside this range: lower values reduce resolution, while higher values risk exceeding compliance voltage limits of transmitters. For noise-prone environments, place the resistor closest to the receiving device to minimize interference pickup on long cable runs.
Select power sources carefully: loop-powered devices require 24V DC, but verify voltage drops across all components including wiring (0.5Ω per 100m for 22 AWG copper). Series-connected transmitters and receivers must not exceed the total loop voltage budget–calculation errors cause erratic readings or total signal loss. Test with a milliamp meter in series before finalizing connections to confirm steady-state current matches expected output (e.g., 4 mA at 0%, 20 mA at 100%).
Basic Components of a 4 to 20 mA Current Loop
Use a precision current source rated for 24–36 VDC to maintain stability under load variations up to 600 Ω. Select a source with ≤0.1% line regulation and short-circuit protection to prevent loop interruption during transient conditions.
Transmitters must convert process variables–pressure, temperature, flow–into a linear 4–20 mA signal. Opt for devices with:
- ≤±0.2% accuracy over full scale
- Isolated grounds preventing noise coupling
- Reverse polarity protection
- Built-in diagnostic LEDs showing loop status (e.g., under-range, over-range, fault)
Adjustable zero and span controls ensure compatibility with legacy panel meters.
Two-wire configurations require a series resistor of 250 Ω ±0.1% to drop voltage across the receiver without exceeding 5 V (e.g., 20 mA × 250 Ω = 5 V). Install the resistor within 2 meters of the receiving device to minimize capacitance-induced signal lag. Shielded twisted pair cabling (Belden 9841 or equivalent) reduces EMI susceptibility; maintain a 1:1 twist ratio per 5 cm for best noise rejection.
Receivers decode 4–20 mA signals into readable outputs. Industrial PID controllers typically include:
- Scalable analog inputs (4–20 mA mapped to 0–100% of control range)
- Input filtering with adjustable time constants (0.1–10 s) to smooth turbine meter pulsations
- Cold-junction compensation circuitry for thermocouple signals multiplexed with 4–20 mA inputs
- High-impedance input (≥10 MΩ) to avoid signal attenuation
Calibrate receivers annually using a precision calibrator set for 0.02% traceable accuracy.
Fuses rated ≤100 mA fast-acting prevent catastrophic failure from shorted loops. Position fuses at both transmitter and receiver ends to isolate faults. Ground the loop only at a single designated point (typically the transmitter chassis) to avoid ground loops, which induce ≥50 mV AC ripple on the signal. Test loop integrity with a loop validator before energizing; validate zero (4 mA) and span (20 mA) readings within ±0.05 mA of expected values after installation.

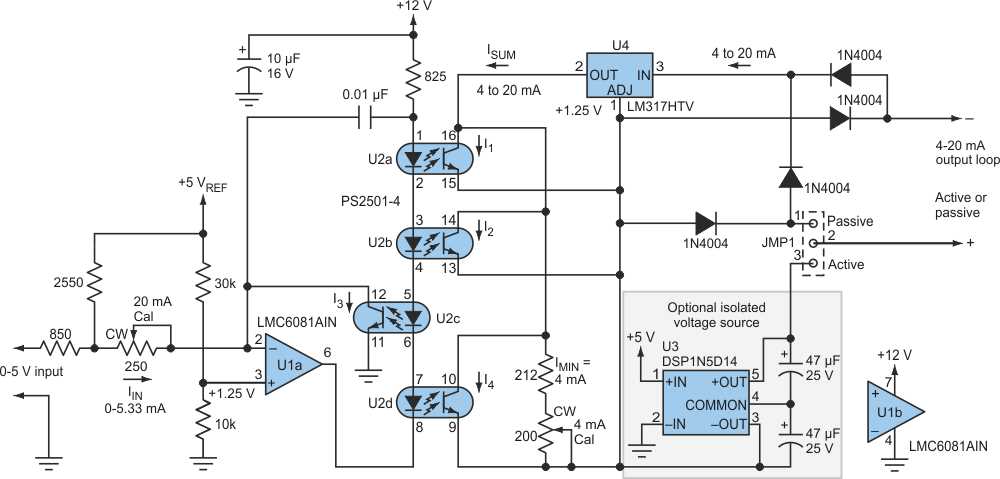

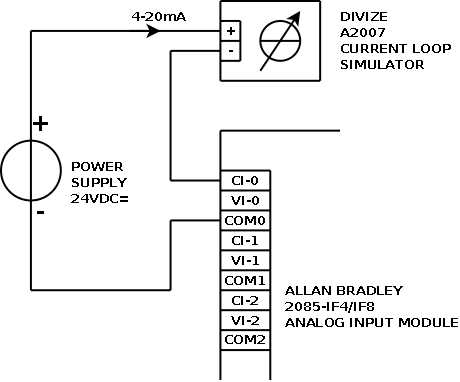

Step-by-Step Wiring for a 2-Wire Transmitter Setup
Start by connecting the transmitter’s positive (+) terminal to the 24VDC power supply’s positive output. Ensure the wire gauge matches the loop impedance–22 AWG for runs under 500 meters or 18 AWG for longer distances–to prevent voltage drop. Route the negative (-) transmitter terminal to the receiving device’s input, maintaining polarity. Add a 250Ω precision resistor across the receiver’s input terminals to convert the 4–20mA signal to a 1–5VDC range if voltage measurement is required. Verify loop integrity with a multimeter: 4mA at 0% output, 20mA at 100%.
Isolate the loop from ground to avoid noise–use shielded twisted pair cable with the shield grounded at one end only, typically at the power supply. For hazardous areas, apply an intrinsically safe barrier between the transmitter and power source, ensuring it’s rated for the zone’s classification. Test under load: disconnect the loop at the transmitter and measure 12VDC across the resistor (for 4mA) and no less than 20VDC (for 20mA) to confirm compliance with the transmitter’s voltage requirements. Replace standard fuses with fast-acting 50mA types if the setup includes overcurrent protection.
Common Mistakes in 4 to 20 mA Signal Wiring
Reverse polarity remains one of the most frequent errors in current loop installations. A transmitter wired backward to the receiver will display erratic readings or no signal at all. Always verify the positive (+) and negative (-) terminals on both devices before connecting. Use color-coded wires–red for positive, black for negative–or label them directly. Some sensors and controllers have non-standard terminal markings; refer to the datasheet if labels are unclear.
Neglecting Loop Resistance Limits
Exceeding the maximum allowable loop resistance causes signal attenuation or failure. Calculate total resistance by adding sensor output impedance, cable resistance, and receiver input impedance. For example:
- Copper wire (18 AWG) adds ~8.5 ohms per 100 meters.
- Most 2-wire transmitters specify a max loop resistance of 500–1000 ohms.
- A 24 VDC supply with 1000 ohms total resistance yields only 16 mA at full scale.
Measure cable length and wire gauge, then cross-reference with manufacturer specs. If resistance exceeds limits, use heavier gauge wire, shorten cable runs, or switch to a higher voltage power source.
Ground loops introduce noise and offset errors in 4–20 mA loops. Avoid multiple ground connections by keeping the loop isolated from earth ground except at a single point. Use galvanically isolated current converters or optocouplers when interfacing with grounded systems like PLC analog inputs. If noise persists, insert a 10–100 nF capacitor across the receiver input to filter high-frequency interference without affecting the DC signal.
Ignoring Supply Voltage Drop
Undersized power supplies cause voltage sag, reducing the available headroom for the signal. Follow this rule: supply voltage must exceed the sum of the sensor’s voltage drop (typically 8–12 V), cable resistance drop, and receiver burden voltage. For instance:
- Sensor drop: 10 V
- Cable drop (200 m, 24 AWG): 2 × 8.5 Ω × 0.020 A = 0.34 V
- Receiver burden: 5 V
- Total: 15.34 V
Use a 24 VDC supply with at least 20% headroom. Check voltage at both the transmitter and receiver under maximum current (20 mA) to confirm adequate margin.
Incorrect scaling in the receiving device mismatches the physical measurement with the displayed value. Always calibrate the input range to match the transmitter’s output span. For example, a pressure transducer outputting 4 mA at 0 bar and 20 mA at 10 bar requires the receiver’s input range set to 0–10 bar, not 0–20 mA. Failure to adjust scaling will show half the actual pressure at full scale. Document the configuration in the system log to avoid recalibration errors after maintenance.
