Connect the control unit directly to the power source using 4-gauge cables for optimal performance. Ensure the battery provides at least 650 CCA to handle peak loads without voltage drops. Route the positive lead through a 50-amp circuit breaker before reaching the actuating switch–this prevents overloads during prolonged use. Ground the negative terminal to the vehicle’s chassis at two distinct points for redundancy.
For the puller’s activation module, use relays rated for 30A continuous current to avoid overheating. Install a 40A fuse inline between the battery and first relay to protect against short circuits. Position the switch within 6 feet of the operator station but away from moisture-prone areas–sealed marine-grade components resist corrosion in humid conditions.
Test each path with a multimeter before first operation. Voltage should read 12.6V at rest and no less than 10.5V under load. If readings fluctuate beyond 1V during activation, check for loose terminals or undersized cables–replace with 3-gauge wires for distances exceeding 10 feet. Label every connection point with heat-shrink tubing to simplify future diagnostics.
Avoid daisy-chaining multiple accessories to the same circuit. Dedicate a separate 80A fuse box for auxiliary equipment to maintain stable power delivery. For systems installed on off-road vehicles, use waterproof connectors and silicone dielectric grease on all junctions to block moisture ingress. Verify torque specifications on terminal bolts–over-tightening cracks housing; under-tightening causes arcing.

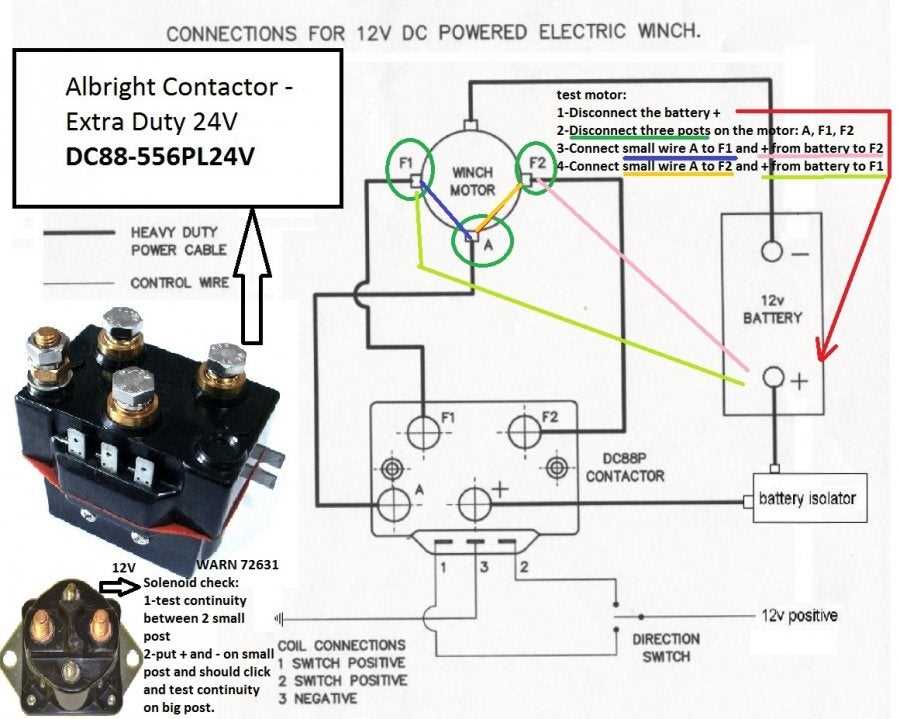

Electrical Hookup Guide for Quad-Coil Pulling Device
Start by identifying the power source’s voltage–typically 12V for automotive systems. Connect the battery’s positive terminal directly to the primary relay switch using 4 AWG cable to handle high current draw without voltage drop. Ground the negative terminal to a clean, unpainted metal surface on the vehicle’s frame to ensure reliable conduction.
Use a dedicated fuse holder between the battery and relay, selecting a fuse rating (usually 200-300A) that matches the device’s peak amperage. Place the fuse no more than 7 inches from the battery terminal to protect the circuit from short circuits. Secure all connections with crimped lugs and heat-shrink tubing to prevent corrosion and loose contacts.
For remote activation, wire a momentary switch with 18 AWG wire to the relay’s trigger post. Confirm the switch’s polarity–most relays require a positive signal to engage. Test the switch before finalizing connections to avoid erroneous engagement during operation.
Below are the wire gauge recommendations based on distance from the power source:
| Distance (feet) | Wire Gauge (AWG) | Max Current (Amps) |
|---|---|---|
| 0-5 | 4 | 200 |
| 5-10 | 2 | 250 |
| 10-15 | 1/0 | 300 |
| 15+ | 2/0 | 350 |
Label each wire at both ends to simplify troubleshooting. Use colored heat-shrink tubing or adhesive markers–red for positive, black for ground, and blue for control circuits. Avoid yellow or green wires near high-current paths to prevent confusion with safety protocols.
Install a solenoid protector or diode across the relay coil terminals if the device will be used in off-road conditions. This prevents voltage spikes from damaging sensitive electronics when disengaging the pulling mechanism. Check that the diode’s cathode aligns with the relay’s positive trigger terminal.
Before final assembly, apply dielectric grease to all terminal connections to repel moisture and reduce oxidation. Seal exposed wire ends with waterproof connectors or liquid electrical tape for outdoor installations. Recheck tension on all crimps and screws after the first use, as initial thermal cycling can loosen connections.

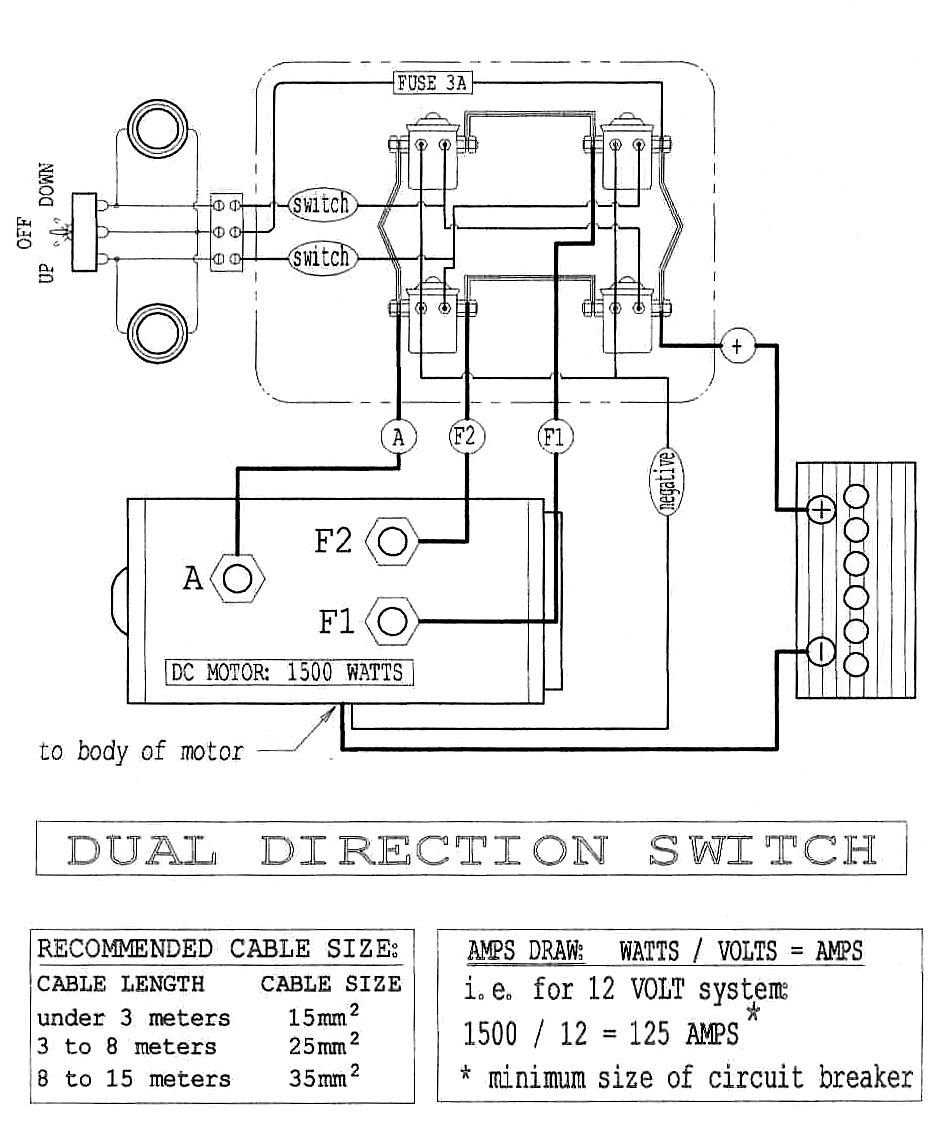

For bidirectional operation, connect a second relay in parallel but reversed polarity. Ensure the control switch for reverse direction is a double-pole, double-throw (DPDT) type to prevent simultaneous activation of opposing relays, which could cause a dead short and catastrophic failure.
Choosing Optimal Parts for a Four-Actuator Pulling System
Prioritize heavy-duty relays rated for at least 30% above the peak current draw of your motor. For a 12V system, look for models like the Tyco V23079 or Bosch 0 332 209 150–both handle 120A continuous with 400A surge capacity. Avoid generic automotive relays; their contact plating degrades under repeated high-amperage cycles, leading to premature failure. Match the relay’s coil voltage exactly to your system’s power supply to prevent overheating or insufficient switching force.
Select cables with a minimum of 2 AWG thickness for motor connections and 4 AWG for control circuits. Tinned copper wiring resists corrosion in outdoor conditions, while standard copper oxidizes quickly when exposed to moisture or road salt. Use heat-shrink tubing with adhesive lining (3M 300L series) over all crimp connectors–vibration loosens standard connectors in off-road applications. Pre-terminate all leads with soldered and heat-shrunk ends to eliminate voltage drop points.
Install a hydraulic-magnetic circuit breaker (e.g., ETA 1100 series) instead of a fuse block. These devices trip only under sustained overloads, not transient spikes like cranking amps, and reset automatically. Position the breaker within 18 inches of the battery’s positive terminal to protect the entire power path. For auxiliary functions, use momentary toggle switches with gold-plated contacts (NKK MB2011SS) to prevent arcing in low-voltage control signals.
Step-by-Step Guide to Connecting 12V Pulling Device Contactors

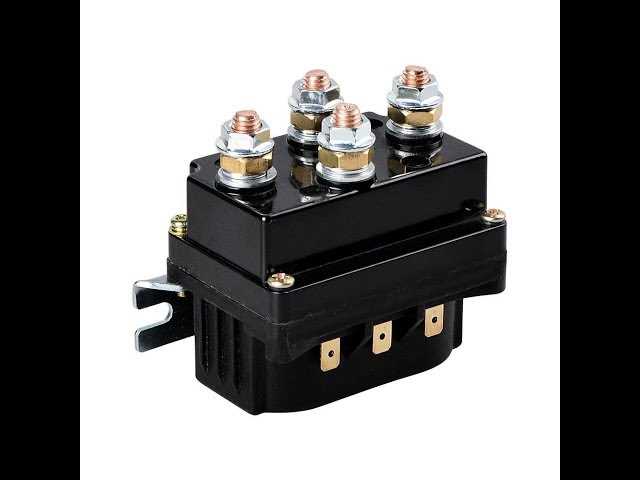

Begin by identifying the four terminals on the relay assembly–two thick posts for high-current flow and two thinner ones for control signals. Label them immediately with masking tape: B+ (battery positive), M+ (motor positive), C1 (control in), and C2 (control out). Use 6 AWG cable for B+ and M+ connections, ensuring strands are fully tinned before crimping terminal lugs to prevent corrosion. For control circuits, 14 AWG wire suffices, but opt for heat-resistant insulation if the installation is near engine components.
Attach the B+ terminal directly to the battery’s positive post using a 100A fuse no farther than 7 inches from the battery. This fuse protects the entire system from catastrophic short circuits. Route the M+ cable to the pulling device’s motor lead, securing it with a tight crimp connector or soldered joint for longevity. Avoid using quick-disconnects here–vibration can loosen them over time. Ground the motor’s negative terminal to the vehicle’s chassis with an 8 AWG cable, sanding paint off contact points for unimpeded current flow.
Connect the control leads to a momentary switch rated for at least 20A. Wire C1 to one switch terminal and C2 to the other, ensuring the switch interrupts the circuit completely when released. For remote operation, splice a secondary 12V trigger source (like an auxiliary relay) in parallel, but isolate it with a diode to prevent backfeed. If using a wireless remote module, match its output voltage to the contactor’s activation threshold–typically 9-14V–verifying compatibility with a multimeter before finalizing connections.
Test the setup without engaging the load: press the switch briefly while monitoring voltage at M+. A healthy circuit will show near-battery voltage (12.6V+) across B+ and M+ when activated and drop to 0V when released. If voltage lingers, check for faulty control wiring or a stuck contact inside the relay assembly–replace it if necessary. For dual-direction systems, add a second identical contactor and crossover diode network, but ensure only one activates at a time to avoid shorting the battery through the motor.
Seal all connections with adhesive-lined heat shrink tubing, especially in exposed or high-moisture areas like undercarriages. Wrap the relay assembly in a waterproof cover if mounted externally, and apply dielectric grease to terminals to repel moisture. For extended cable runs, use grommets where wires pass through metal panels to prevent chafing. After final inspection, disengage the battery’s negative terminal before connecting the system to prevent accidental activation during setup.
Critical Errors in Connecting Multiple Electromagnetic Coils
Reverse polarity on control terminals causes immediate failure of activation modules. Verify pin assignments before energizing–confusing IN/OUT ports burns contacts. Check manufacturer markings; some units label terminals in reverse sequence.
Overloading circuits with undersized conductors creates voltage drop at peak loads. Calculate wire gauge using ampacity charts: 10 AWG handles 30A at 60°C, but derate 20% for engine bay heat. Copper-clad aluminum wires require one size larger to compensate for higher resistance.
Ground Path Blunders
- Common-ground loops induce false triggers–isolate each actuator’s return path.
- Painted chassis surfaces block current flow; scrape to bare metal at attachment points.
- Rusty bolt threads increase resistance–use star washers to penetrate corrosion.
- Temporary jumpers corrode quickly; crimp ring terminals with heat shrink for permanence.
Skipping transient suppression invites erratic operation. Install flyback diodes (1N4007) across each coil, cathode toward power source. For inductive loads above 5A, add a snubber network (0.1µF capacitor + 10Ω resistor) across contacts to absorb spikes.
Incorrect fusing defeats protection. Match fuse amperage to the weakest link: 30A breaker for coils drawing 25A continuous. Place fuses within 7 inches of the power source to prevent fire hazards from melted insulation. Avoid automotive blade fuses–use Class T fuses for high-inrush circuits.
Signal Interference Pitfalls
- Parallel signal lines longer than 18 inches pick up engine noise–use twisted pairs.
- Unshielded cables near ignition systems cause random activations–route through grounded conduit.
- Low-voltage control circuits (below 5V) require optoisolated relays to prevent false triggers.
- Aluminum foil shields need proper grounding–drain wire should connect to chassis, not signal return.
