Use a color-coded pin layout for reliable power delivery: white for neutral, green for ground, brown for 120V hot, and black for the second 120V hot or auxiliary line. Verify the trailer’s electrical requirements–most 30-amp systems need 10-gauge wire for the hot leads, while 50-amp setups demand 6-gauge. Solder or crimp connections with heat-shrink tubing to prevent corrosion.
Match the male pins on the vehicle’s outlet to the female contacts on the adapter. The neutral slot is typically larger and L-shaped; misalignment risks short circuits. For split-phase systems, ensure the brown and black wires correspond to the correct 180-degree phase difference–crossing them will trip breakers or damage appliances.
Test continuity with a multimeter before powering on. Set to AC voltage mode and probe each pin pair: neutral-to-ground should read 0V, while hot-to-neutral and hot-to-ground should show 120V (±5V). If readings deviate, recheck wire stripping depth–exposed copper beyond 3/8 inch causes arcing.
Secure the junction box with stainless-steel screws; standard zinc corrodes outdoors within months. Apply dielectric grease to connector surfaces to block moisture–especially in coastal or high-humidity areas. Label all wires at both ends with alphanumeric markers (e.g., “N-White,” “G-Green”) for future troubleshooting.
For trailers with onboard generators, verify the connector supports reverse polarity protection. A mismatched generator (e.g., 240V output) will destroy 120V appliances instantaneously. Always attach a surge protector rated for outdoor use–transient spikes exceed 6000V during thunderstorms.
Proper Configuration for 30-Amp RV Electrical Connection

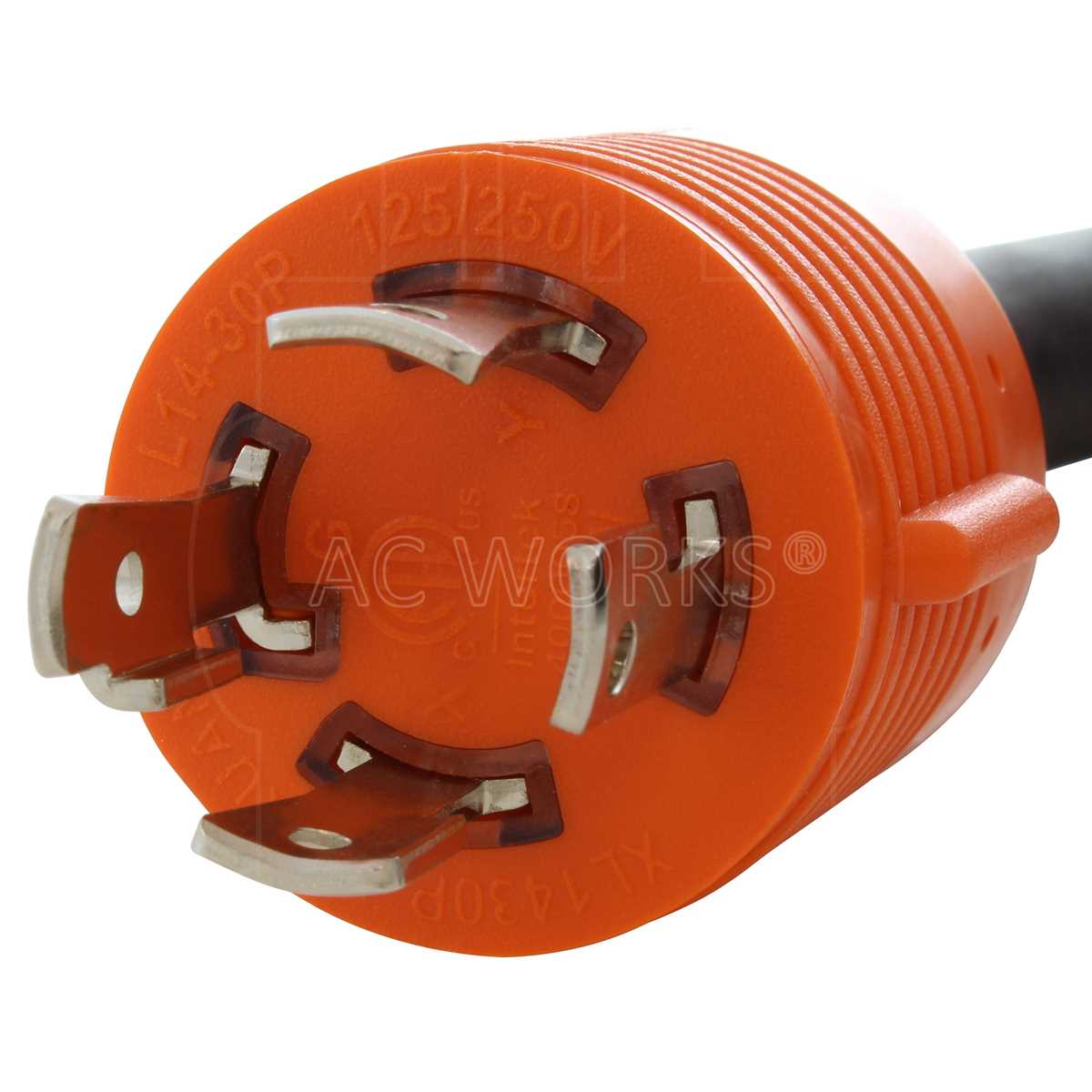

Ensure the four-terminal configuration follows the L14-30 standard: line one (black, X) connects to the left vertical post, line two (red, Y) to the right, neutral (white, W) centers at the bottom, and ground (green, G) attaches to the U-shaped terminal. Verify torque settings–10-12 pound-feet for aluminum conductors, 15-18 for copper–to prevent overheating.
Label each conductor at both ends before securing connections. Mistakes in polarity create fire hazards or damage onboard systems, particularly inverters and refrigeration units. Use a multimeter: 240V between X and Y, 120V from either line to W, and zero volts from lines or neutral to G.
Non-metallic sheathed cable (NM-B) or conduit with individual wires work best. For 50-amp service, upsize conductors: 6 AWG for lines, 8 AWG neutral, 10 AWG ground. Check local codes–some regions require GFCI protection within six feet of the pedestal.
Weatherproof the connection with silicone-filled junction boxes or heat-shrink tubing over terminals. Avoid splices; direct connections reduce resistance. Test under load using a clamp meter–current should match appliance ratings within 5%. Discrepancies indicate faulty breakers or undersized wire.
Reverse-engineer OEM adapters if modifying factory configurations. Some European RVs use 16A blue connectors with different pin spacing–adapters must match internal ratings, never exceed 30A continuous draw on a 125V circuit. Inspect annually for corrosion, especially in coastal areas where salt accelerates degradation.
Understanding the Components of a 4-Contact RV Connector

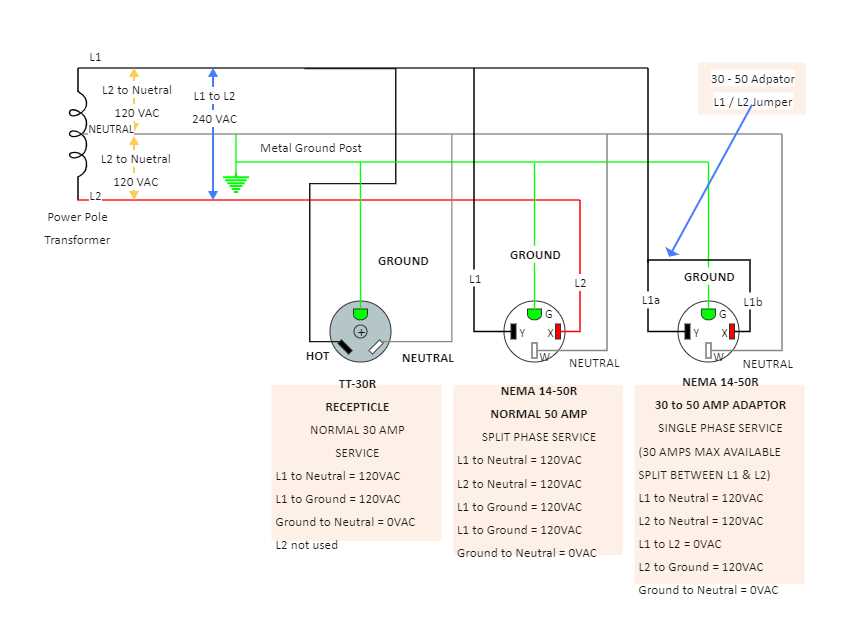

Prioritize verifying the ground terminal first–it’s the largest oval slot on a NEMA 14-50 connector and must link directly to the grounding bus bar in your electrical panel. Use a multimeter to confirm zero resistance between this contact and the metal housing of the outlet; any reading above 0.5 ohms signals corrosion or loose connections. Replace any terminal exhibiting discoloration or heat damage immediately, as compromised grounding creates lethal shock hazards.
The two hot contacts (120V each) sit at the upper left and right positions and deliver 50 amps of combined power–240V for high-demand appliances. Label each wire with heat-shrink tubing before disconnecting: black for L1, red for L2. Secure connections with torque-rated screwdrivers set to 12 inch-pounds; overtightening cracks plastic housings while undertightening causes arcing. Use only stranded copper wire sized at 6 AWG for 50-amp circuits–aluminum or solid core variants risk overheating under load.
The neutral contact (upper center) carries return current and must never exceed 120V relative to ground. Test with a non-contact voltage detector before handling; if illuminated, shut off the main breaker and trace back to the panel. Strip insulation precisely to 0.375 inches–excess exposes bare wire to short-circuit risks, while insufficient length prevents proper clamping. Wrap the terminal screw threads with anti-seize compound to prevent galvanic corrosion in coastal or humid environments.
Inspect the terminal block housing for cracks or melt marks; these indicate past overload events that may have weakened the assembly. Clean all internal surfaces with electric contact cleaner and a nylon brush–never steel wool, which leaves conductive residue. Apply dielectric grease to each contact before reassembly to inhibit oxidation, focusing on the ground terminal where moisture ingress is most likely. Store replacement connectors in sealed bags with moisture absorbers to prevent premature degradation.
For compliance and safety, cross-reference your installation against NEC Article 551 for RV parks and UL 2231 for high-current connectors. Use a dedicated 50-amp double-pole breaker, never splicing into existing circuits. Test the completed setup under load with an amp clamp meter, verifying equal current draw on both hot leads–imbalance points to miswiring or internal faults. Document all measurements, including resistance readings, for future troubleshooting.
Step-by-Step Guide to Installing a NEMA 14-50 Receptacle
Shut off the main breaker at the panel before handling any electrical components. Verify power is disconnected using a non-contact voltage tester on the circuit wires. Failure to confirm zero current risks severe injury or fatal shock.
Remove the outlet cover plate and secure the device box to the wall stud using screws, ensuring it sits flush. If the existing box is non-metallic or undersized, replace it with a 22-cubic-inch metal box rated for 50-amp service. Stray conductors or loose connections create fire hazards–tighten all clamps firmly.
Strip ¾ inch of insulation from each conductor (red, black, white, green) using wire strippers calibrated for 6 AWG copper. Twist the exposed strands clockwise to prevent fraying before inserting into terminal screws. The bare ground wire connects to the green grounding screw at the receptacle’s bottom; wrap it clockwise around the screw shaft twice for maximum contact area.
Attach the red and black wires to the brass-colored terminals (line and load) at the top and bottom of the receptacle–polarity does not matter for 240V circuits, but consistency simplifies troubleshooting. Secure the white neutral wire to the silver-colored terminal. Torque all terminal screws to 20 inch-pounds using an insulated torque screwdriver; overtightening damages threads, while loose connections cause arcing.
Fold the conductors neatly into the box, ensuring no bare copper is exposed beyond the terminal clamps. Snap the receptacle into place, then attach the cover plate, aligning the slots vertically to match the NEMA 14-50 configuration. Misalignment indicates improper installation–recheck connections immediately.
Restore power at the panel and test the outlet with a multimeter: 120V between either hot terminal and neutral, 240V between both hots, and 0V between ground and neutral. If readings deviate, disconnect power and re-inspect all joints for errors. A final inspection with an arc-fault circuit interrupter tester verifies safety compliance before connecting appliances.

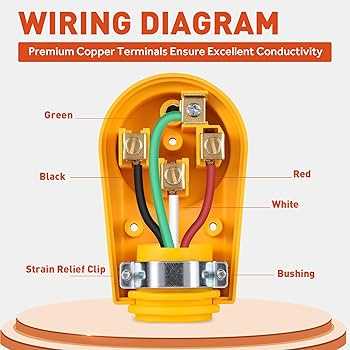

Color Coding Standards for 4 Wire RV Connector Installation
Adhere strictly to the following color scheme for all 4-terminal recreational vehicle power inlets to prevent hazardous mismatches: green (ground), white (neutral), black (120V hot), and red (secondary 120V hot). Deviations from this sequence increase risk of electrical fires or equipment damage.
Ground conductors must terminate exclusively to the center post or U-shaped terminal marked with a green screw or label. Verify continuity to the chassis before energizing.
- White (neutral) – connects to the wider terminal slot; never fuse this circuit.
- Black (primary live) – energizes loads requiring breaker protection; label breakers accordingly.
- Red (secondary live) – used for split-phase devices; pair with dedicated 30A breaker if present.
Inspect insulation colors against local electrical codes–some regions substitute brown for red or grey for white. Confirm with a multimeter set to AC voltage: expected readings are 120V between live and neutral, 0V between live and ground, and 240V between live terminals.
Apply color-matched heat-shrink tubing or adhesive sleeves at both ends of each conductor to maintain identification during maintenance. Document the configuration on a metal placard mounted adjacent to the inlet panel.
Troubleshooting Common Issues in 4-Pin Recreational Vehicle Electrical Connections
First, verify the ground terminal (neutral) connection on the trailer-side connector is not corroded or loosely fastened. A faulty ground disrupts current flow, leading to intermittent power loss or failure in appliances. Use a multimeter set to continuity mode–probe between the ground pin and the vehicle’s chassis. If resistance exceeds 0.5 ohms, clean the contact surfaces with emery cloth and apply dielectric grease before reassembling.
Check for reverse polarity by testing voltage between the hot (typically 120V) and neutral terminals. Incorrect alignment–where live and neutral wires are swapped–can damage electronics or prevent system operation. A non-contact voltage tester or voltmeter will confirm correct polarity: hot-to-neutral should read ~120V AC, while hot-to-ground and neutral-to-ground should measure near zero. If readings deviate, trace the cable to the source and correct the misconnection at the breaker panel or distribution box.
Inspect the 12V auxiliary circuit if interior lights or brakes malfunction. Common failures include blown fuses, degraded connectors, or a weak battery. Use a test light to confirm power at the tow vehicle’s socket; if absent, examine the fuse block for a tripped 20A or 30A fuse. For persistent issues, measure voltage drop across the auxiliary terminal under load–any reading below 11.5V suggests excessive resistance in the cable or poor contact at the terminal block.
| Symptom | Diagnosis | Solution |
|---|---|---|
| No power to 120V outlets | Tripped GFCI breaker, loose terminal | Reset breaker; tighten connections with 10-12 lb-ft torque |
| Flickering lights | Voltage drop >5% under load | Replace undersized gauge cable (minimum 10AWG for 30A circuits) |
| Brake controller inoperative | Faulty solenoid or insufficient power | Test solenoid resistance (should be 3-5 ohms); verify 12V supply |
Examine the backfeed path if the main circuit fails to energize. Loose or broken strands in the feeder line–especially at the strain relief point–cause high resistance. Strip the cable jacket 1 inch from the connector and inspect for frayed conductors. Re-crimp terminals using a proper ratcheting tool, ensuring 100% wire insertion into the barrel. For 50A connections, confirm the neutral wire is not carrying current; it should only serve as a return path for unbalanced loads.
