Connect the battery-positive cable to the larger terminal on the relay–this is the input for power. Most units label this as “B” or “Bat.” Use a 10-gauge wire for the main feed to handle the high-current draw during engagement without voltage drop.
The smaller control circuit terminal (often marked “S”) takes a 14-gauge wire from the ignition switch. Ground the opposite side of the coil to the engine block or frame using a dedicated 16-gauge wire–ensure the connection is clean to prevent erratic operation.
Attach the remaining large terminal (marked “M”) to the starter motor with a 10-gauge wire. Heat-shrink all connections after soldering to prevent corrosion from moisture or vibration. Test the circuit with a multimeter before final assembly–open-circuit voltage should measure near 12.6V at rest and drop below 0.5V when engaged.
For engines prone to stalling in cold starts, add a 7.5-amp fuse inline with the control circuit to protect the switch from backfeed. If the relay clicks but the motor fails to spin, check for loose mounting bolts–they often serve as the ground return path for the motor field windings.
Label all wires at both ends with heat-resistant sleeves. Use crimp connectors rated for 30A minimum, avoiding bare wire splices that can oxidize over time. Store spare relays in a dry location–moisture inside the housing can create false contacts after prolonged disuse.
Understanding the Electrical Switch Layout on Garden Equipment
Always verify the color coding before connecting any wires to avoid mismatches. On most models, the red cable connects to the battery’s positive terminal, while the black or dark brown wire leads to ground. Smaller gauges–typically 14 or 16 AWG–link the ignition key to the activation coil, ensuring minimal voltage drop over distance.
Install a dedicated relay if the engine requires repeated engagement attempts. This reduces strain on the control switch and extends service life. A 30-amp relay with weatherproof housing works well for compact engines, housing contacts rated for 12V DC in a sealed plastic casing.
Step-by-Step Connection Guide
- Disconnect the battery’s negative clamp first to prevent accidental short circuits.
- Identify the main posts: one thick lug for incoming power, another for outgoing current to the motor.
- Attach the heavy-duty cable from the battery’s positive post directly to the larger input lug, securing with a 10mm bolt and lock washer.
- Route the matching output cable to the motor’s terminal, ensuring no sharp edges chafe the insulation.
- Link the smaller control leads–usually one from the ignition circuit, another to a neutral safety switch–using spade connectors and heat-shrink tubing.
Test engagement with a digital multimeter set to continuity mode. Place probes on the control terminals; pressing the ignition should produce a clear, audible click. Absence of response indicates either a faulty switch or broken circuit–inspect for corroded terminals or frayed wiring.
Apply dielectric grease to all connections after tightening. This prevents oxidation, especially in damp environments typical for outdoor gear. For engines exposed to heavy debris, add a protective rubber boot over the main lugs to block dirt accumulation.
Replace any worn components if resistance exceeds 0.5 ohms measured across the main contacts. Most modern assemblies use copper alloy contacts rated for 200+ amps peak current; aluminum or thin copper variants degrade faster under repeated use.
Troubleshooting Common Issues
- Intermittent starting: Check for loose spade connectors–tug gently to confirm secure attachment.
- Slow cranking: Measure voltage at the motor terminal while engaging; drops below 10V suggest high resistance in cables or corroded terminals.
- Continuous engagement after release: Inspect the return spring inside the assembly–broken springs require full replacement.

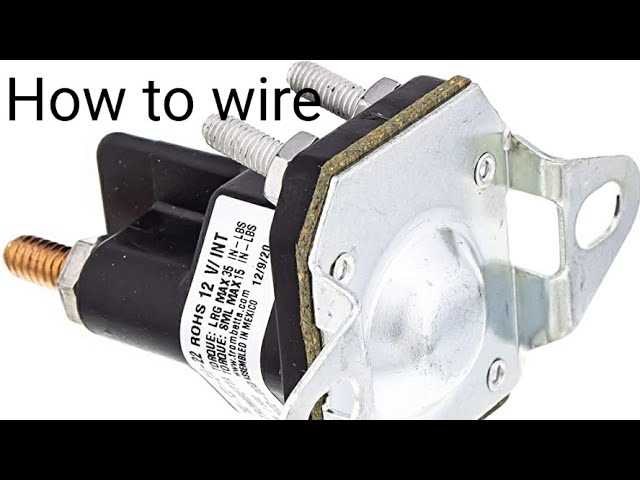

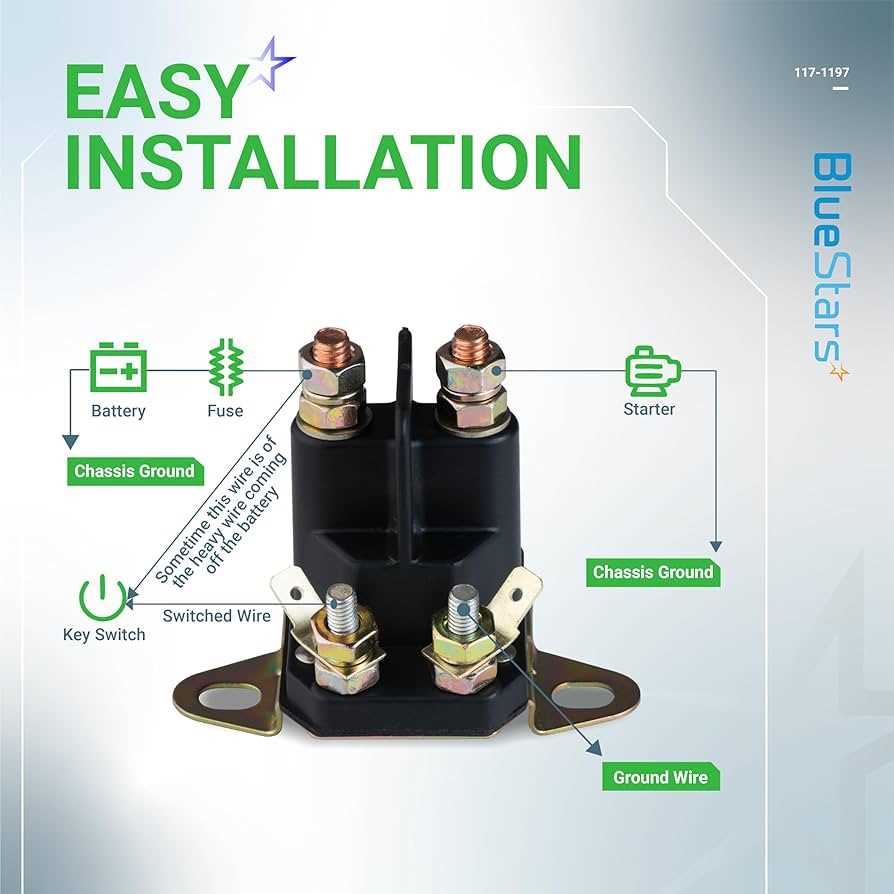

Identifying Terminals on a 4-Contact Electrical Switch
Locate the battery connection first–it’s the largest post, usually marked “B” or with a “+” symbol, and often thicker than others. This terminal delivers power from the main energy source to the rest of the circuit. Verify its position by tracing the red cable from the battery; it should lead directly to this post without branching.
Identify the motor engagement contact next–labeled “M” or “S,” it connects to the thick cable running toward the engine’s activation mechanism. This post is critical for completing the high-current path that energizes the machine. Check for corrosion or loose fittings here, as resistance at this junction can prevent proper operation.
Additional Terminals and Their Purpose
The auxiliary posts–typically marked “I” and “A”–serve secondary control functions, often linking to safety switches or accessories. The “I” post may connect to an ignition module, while “A” could interface with dash lights or diagnostic circuits. Use a multimeter to confirm voltage on these: “I” should show battery-level readings when the key is turned, while “A” may read lower or intermittent voltages.
Label each terminal clearly if markings are worn or missing. Masking tape and a permanent marker work for temporary identification; for permanent solutions, use engraved tags or colored heat-shrink tubing. Cross-reference with the machine’s service manual–terminal layouts vary by brand, and incorrect connections can damage sensitive electronics or fail to activate the system.
Test continuity between the motor engagement post and the battery post with the switch activated. If resistance exceeds 0.5 ohms or current flow is inconsistent, the internal contacts may be pitted or oxidized. Cleaning with fine-grit sandpaper or replacement is recommended for reliable performance. Always disconnect the battery before servicing to avoid short circuits.
Precise Connection Guide for Engine Activation Circuit
Disconnect the battery’s negative terminal first to prevent accidental shorts. Identify the main relay attached to the engine block–its larger post connects to the power source, while the smaller post links to the ignition switch. Use a multimeter set to continuity mode to verify circuit paths before attaching any cables; resistance should read below 0.5 ohms on intact connections.
Attach the thick red cable from the battery’s positive terminal directly to the relay’s primary input post. Secure it tightly with a 10mm wrench, ensuring no bare wire extends beyond the terminal clamp. The relay’s secondary post must connect to the ignition switch via a 14-gauge wire; strip 6mm of insulation from the wire end and crimp a ring terminal for secure fastening.
Handling Auxiliary Components
Locate the engine’s safety interlock, typically a small switch near the seat or blade engagement lever. Connect its output to the relay’s smaller control post using a 16-gauge wire–failure to wire this correctly will prevent current flow even when the key is turned. Test the switch by toggling it while monitoring voltage at the relay; expect a drop from 12V to 0V when engaged.
For machines equipped with an hour meter, splice its red lead into the wire running from the relay to the ignition. Use heat-shrink tubing over the splice to prevent corrosion–exposure to moisture will cause false readings. Route all wires away from moving parts, securing them every 15cm with plastic zip ties to prevent chafing against metal edges.
Reconnect the battery’s negative terminal last. Before attempting to start, rotate the key to the “on” position and check for parasitic draws with the multimeter–any reading above 50 milliamps indicates a short. If the engine cranks slowly, inspect the cable from the battery to the relay for looseness; torque the connection to 12Nm.
After successful ignition, monitor the relay’s temperature during operation. Excessive heat (above 60°C) suggests a faulty relay–replace it immediately. Label each wire with its function using color-coded tape for future troubleshooting; consistency in labeling prevents errors during maintenance.
Common Connection Errors and Prevention
Reverse polarity on battery terminals causes immediate failure of the ignition relay. Always match red leads to positive (+) and black to negative (-) clamps–deviation triggers a surge that burns internal contacts. Verify markings before attaching clips; faded labels on used units often mislead. Test continuity with a multimeter if cables appear identical.
Loose ground straps create intermittent failures. Secure the engine-to-chassis link with a 10mm bolt and star washer–plain washers allow corrosion buildup. Check resistance: values above 0.2 ohms indicate poor conductivity. Replace corroded terminals immediately; dielectric grease on connections prevents future oxidation. Avoid attaching multiple accessories to a single ground point–current overload drops system voltage below 11.8V, stalling rotation.
| Error | Symptom | Fix |
|---|---|---|
| Ignition wire too thin | Slow crank, dim lights | Upgrade to 10-gauge minimum |
| Relay coil wired backward | No response at key turn | Swap small terminal leads |
| Battery cables undersized | Engine clicks, won’t start | Use 6-gauge for 12V systems |
Incorrectly routing cables near moving parts damages insulation. Keep wires 3 inches from blades and belts–vibration wears through shielding within hours. Zip-tie bundles every 6 inches to prevent entanglement. If replacing a fuse, match the exact amperage; a 20A fuse in a 15A circuit risks fire. Always disconnect the battery’s negative clamp first when servicing–accidental shorts weld tools to metal surfaces.
