Connect the ground conductor directly to the towing vehicle’s frame using a minimum 12-gauge wire. Ensure the attachment point is free of paint, rust, or debris to prevent voltage drop. A corroded or poorly secured ground is the primary cause of intermittent lighting failures.
Route the left turn/brake and right turn/brake circuits separately–avoid splicing them into a single harness unless the trailer’s wiring harness explicitly allows it. Use waterproof crimp connectors rated for outdoor use; soldering exposed wires without proper insulation leads to oxidation and signal loss.
The tail/running lights circuit should be fused at 7.5 amps on the towing vehicle’s side. Verify the bulb wattage matches the trailer’s requirements; exceeding 40 watts per bulb increases heat, risking melted lenses and short circuits. LED replacements require bypassing the standard flasher relay if the vehicle still uses incandescent systems.
Test each function before finalizing connections: activate brakes, turn signals, and running lights individually. Use a multimeter to measure voltage at the trailer plug–expect 11.8–13.2 volts with the engine off, 13.5–14.5 volts with it running. Deviations indicate poor grounding or inadequate wire gauge.
Protect exposed connections with heat-shrink tubing or dielectric grease; electrical tape alone degrades within months. Secure excess wire with zip ties to prevent vibration-induced chafing against sharp edges or moving parts. Install a surge protector if the trailer includes electric brakes–voltage spikes from faulty alternators can burn brake controllers.

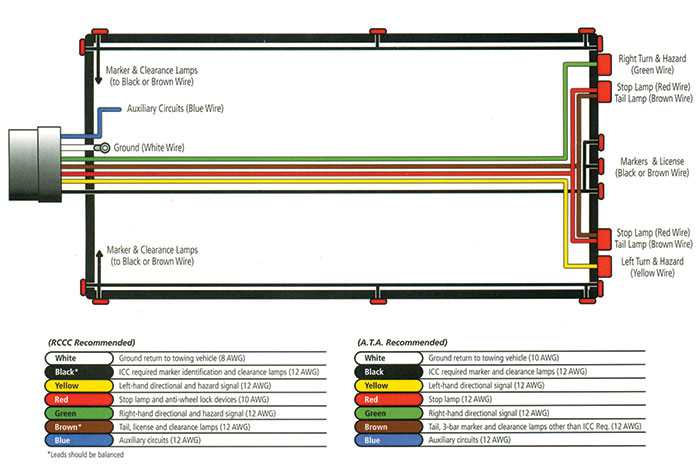

Document each circuit’s color code on a label affixed to the trailer’s tongue. Common U.S. standards: white (ground), brown (tail/running), yellow (left turn/brake), green (right turn/brake). European trailers may reverse yellow and green–consult manufacturer specifications if discrepancies arise.

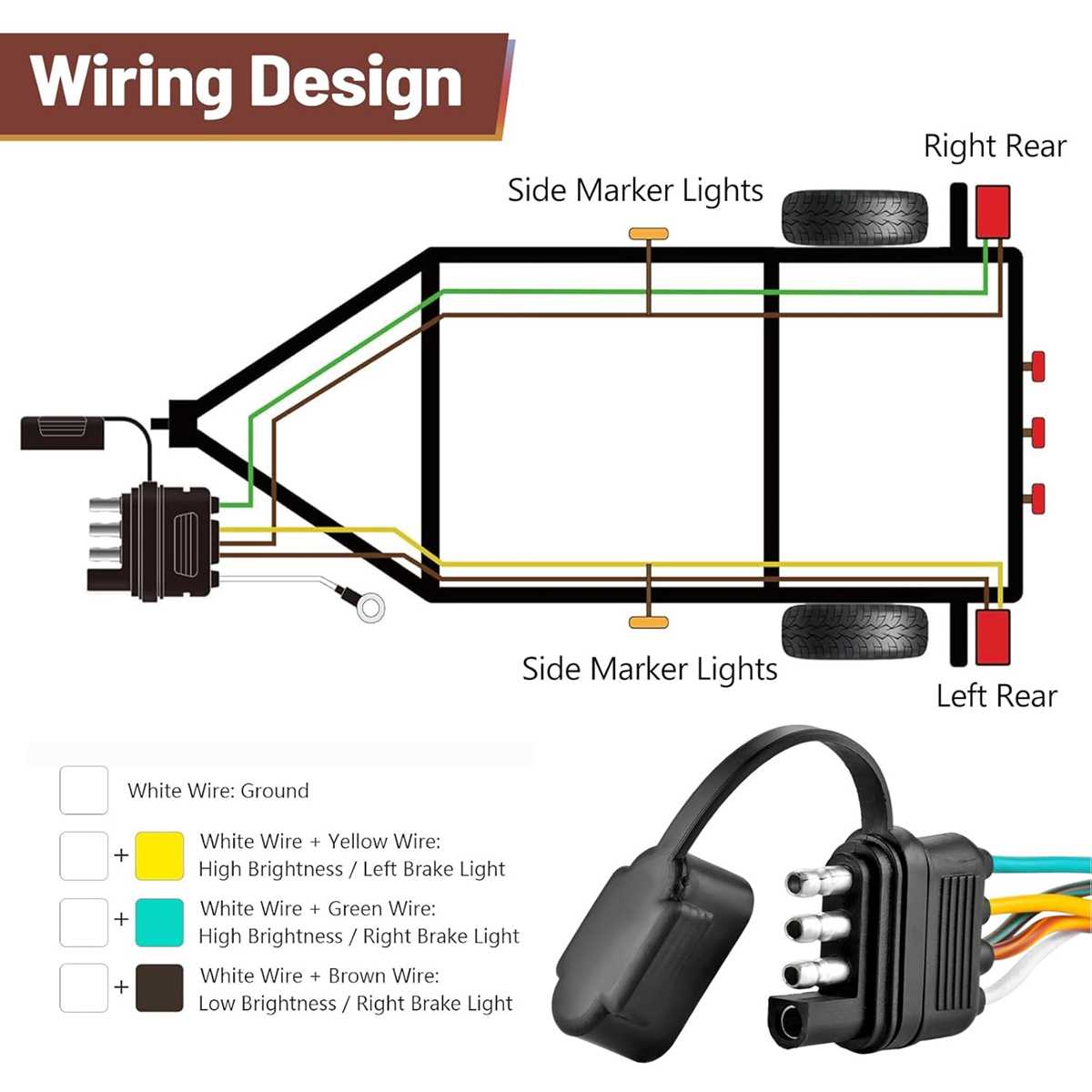

Connecting a 4-Conductor Plug for Light Vehicle Hauling
Begin by matching the vehicle’s socket colors to the harness connectors. Standard configurations assign white to ground, brown to running lights, yellow to the left turn/brake signal, and green to the right turn/brake signal. Use a multimeter set to continuity mode to verify each connection before securing them–this prevents reversed signals that could trigger incorrect lighting or fuse blowouts.
Solder joints last longer than quick splices but require heat-shrink tubing for insulation. If soldering isn’t feasible, crimp connectors rated for 16-14 AWG wire will suffice; ensure they’re clamped tightly to avoid corrosion. Apply dielectric grease sparingly inside each terminal to repel moisture, especially if the harness will be exposed to road spray or extreme humidity.
Route the cable along the tow vehicle’s frame to avoid sharp edges or moving parts. Use adhesive-backed clamps spaced every 12-18 inches to prevent sagging, which can lead to chafing. If the harness must pass near the exhaust or suspension components, encase it in split braided loom for thermal protection.
Test every function before finalizing the setup. Have an assistant operate the turn signals, brakes, and running lights while you inspect each bulb. Look for uneven brightness or flickering–these indicate poor ground contact or voltage drop, often solved by cleaning the attachment point to bare metal or adding a dedicated ground wire directly to the battery negative terminal.
Common mistakes to correct immediately:
- Skipping the ground verification–an inadequate ground causes all signals to malfunction.
- Using wire strippers that nick conductors, leading to premature breaks under vibration.
- Ignoring wire gauge mismatches–thicker wires (14 AWG) handle brake circuits better than standard 16 AWG lighting circuits.
- Overlooking loose connections at the plug housing, which can disconnect under road vibrations.
For extended utility, add a modular connector like a 7-way adapter plate. This allows future upgrades without rewiring, such as integrating a backup camera or electric trailer brakes. Keep a spare 4-way plug in the tow vehicle’s toolkit for quick replacements if damage occurs during hauling.
After final testing, secure excess cable with a rubber bump-stop protected storage coil. Avoid coiling tightly around metal hooks, as this creates inductive loops that can interfere with LED signals. Document the color-code layout on a waterproof label affixed to the plug for future reference if repairs are needed off-site.
Identifying the Correct Leads in a 4-Way Vehicle Plug
Begin by locating the color-coded cables inside the connector housing. The standard arrangement includes a white ground lead, a brown running lamp cable, a yellow left turn/brake line, and a green right turn/brake line. Use a multimeter set to continuity mode to verify each conductor–touch the probe to the metal terminal inside the plug and the other end to the corresponding bulb socket or chassis ground. Voltage checks should show 12V between the ground and brown lead when running lights are activated, while yellow and green should register 12V only during brake application or turn signal activation.
Quick Reference for Troubleshooting
If any lead fails the test, trace the cable back to its source harness. The brown circuit typically feeds both tail lights, while yellow and green split to their respective sides. A common failure point is corroded terminals–clean contacts with electrical cleaner and reconnect firmly. Ensure the white ground connects directly to the vehicle’s frame with no paint or rust interfering. When splicing, use heat-shrink butt connectors instead of twisting and taping to prevent moisture intrusion.
Step-by-Step Guide to Connecting a 4-Terminal Towing Connector
Start by identifying the color-coded cables on both the vehicle’s socket and the towing apparatus. Verify compatibility using a multimeter: attach the ground probe to the chassis and test each terminal for voltage. The primary colors–yellow, green, brown, and white–correspond to standardized functions. Mismatches indicate faulty previous installations or incorrect adapters.
Strip 6mm of insulation from each cable using wire strippers, then twist the exposed strands tightly. Secure connections with solder for maximum durability, followed by heat-shrink tubing to prevent corrosion. Avoid crimp connectors for long-term use; vibrations from road travel degrade their integrity over time. Test each joint with a gentle tug to confirm mechanical strength.
| Color | Function | Voltage Check |
|---|---|---|
| Yellow | Left turn signal | 12V when activated |
| Green | Right turn signal | 12V when activated |
| Brown | Tail and marker lamps | 12V with headlights on |
| White | Ground reference | 0V (chassis connection) |
Mount the connector bracket firmly to the towing structure using stainless steel bolts. Route cables away from moving parts–exhaust pipes, suspension arms, or sharp edges–to prevent chafing. Use zip ties every 15cm to maintain organization and reduce movement. Apply dielectric grease to the terminals before final assembly to repel moisture and inhibit oxidation.
Activate the vehicle’s lighting system and verify each function sequentially. Use a helper or a reflective surface to confirm proper operation of turn indicators both left and right. If flickering occurs, inspect for loose joints or inadequate grounding; relocate the ground point closer to the power source if necessary. Document the installation with photographs for future reference or troubleshooting.
Solving Problems in Standard 4-Connection Tow Plug Setups
Check continuity between the vehicle socket and connector harness using a multimeter. Common failures occur at stress points where cables exit the hitch or enter the plug housing–inspect these areas for frayed copper strands or cracked insulation. Replace only with 16-gauge minimum copper conductors to prevent voltage drop under load.
Dim or flickering lights often indicate a corroded ground contact. Scrape oxidation from the frame attachment point and apply dielectric grease to prevent recurrence. For unreliable brake modules, test voltage at the plug’s white lead while activating the signal–less than 10.5V means the circuit needs direct grounding to the chassis.
If signals work but marker lamps fail, examine the brown wire path for partial shorting. Disconnect the harness at the junction box and measure resistance to ground; values below 100 ohms suggest internal insulation breakdown. Use heat-shrink tubing on splices instead of electrical tape for lasting moisture resistance.
Mismatched bulb brightness between left and right sides requires testing current draw. Load each circuit with a 21W test bulb and compare amperage–A difference over 0.2A indicates a faulty relay or high-resistance joint in the feed path. Replace relays only if voltage drop exceeds 0.5V across the coil terminals.
Intermittent operation on rough terrain points to loose connectors. Crimp new terminals with a proper wire-strip tool, ensuring insulation reaches the barrel but doesn’t interfere with contact. For persistent loose fits, solder connections and secure with adhesive-lined shrink tubing.
Verify fuse ratings match the draw specification–10A for auxiliary circuits, 15A for brake and signal feeds. If fuses blow repeatedly, disconnect the harness from the vehicle and check each branch for shorts by measuring resistance to ground–values above 5MΩ are safe, lower indicates insulation compromise.
For vehicles with pulse-width modulated outputs, use a dedicated tester or scope to confirm signal integrity. Standard 12V test lights can damage module logic–always probe with a 50Ω load to simulate bulb resistance. Replace any flickering LED assemblies with incandescent equivalents during diagnostics.
After repairs, apply silicone spray to the plug face and socket interior to displace moisture. Store the connector in a sealed bag with a desiccant packet when not in use, especially in coastal areas where salt accelerates corrosion.
