Use the 85-86 coil pair for control and the 30-87 pair for the load circuit. This is the standard configuration for single-throw, double-make units. Terminal 85 connects to the trigger side of your manual control (ground or positive, depending on coil polarity), while 86 links to the opposite power source. The load path runs from terminal 30 (input) to 87 (output), ensuring the contact set closes only when the coil energizes.
Always wire the trigger device in series with the coil. A simple on/off toggle or momentary push-button works best–connect one side to terminal 85 and the other to a 12 VDC source or chassis ground. If using a negative-trigger coil, link 85 to ground and route the switch between 86 and the positive supply. This prevents accidental activation and keeps the control path discrete from the high-current load.
For constant power applications, insert a protective diode across the coil. Place it cathode-to-positive (banded end toward 12 V) to block inductive kickback when the trigger opens. A 1N4007 diode handles 1 A continuous, enough to safeguard standard automotive coils. Skip this step only if your manual switch includes built-in suppression.
Double-check terminal alignment before energizing. Miswiring the contact set (reversing 30 and 87) routes full battery voltage through the coil at rest, risking coil burnout or fused contacts. Test with a multimeter: continuity between 30-87 should appear only when the trigger device closes.
Use 16-14 AWG wire for the load path and 18 AWG for control. The heavier gauge prevents voltage drop across the contact set, while the lighter wire keeps trigger current low, extending switch life. Secure all connections with crimp terminals and heat-shrink tubing–solder alone risks fatigue under vibration.

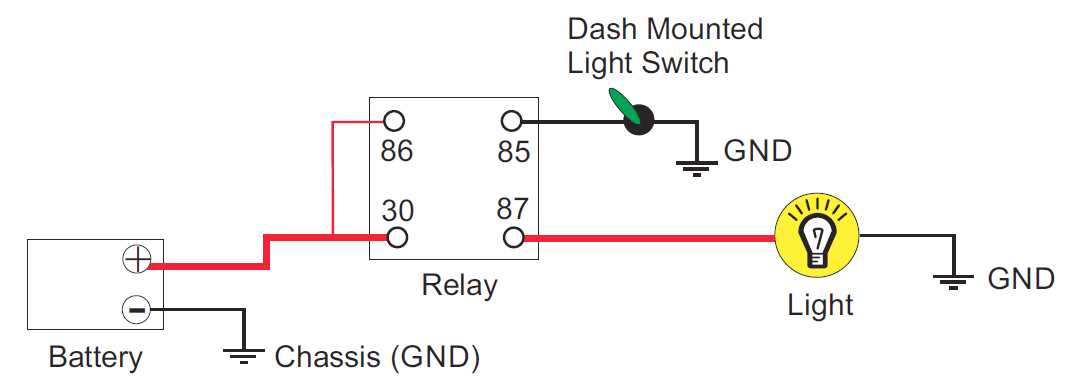

Connecting a 4-Terminal Electromagnetic Control Unit to a Toggle Mechanism
Start by linking the control circuit’s input terminal (typically labeled 85) to the positive side of your power source–12V for automotive applications or 24V for industrial setups–via a manual toggle or pushbutton. The corresponding output contact (usually 86) should terminate at the ground rail or vehicle chassis, ensuring a complete low-resistance path for activation. Verify the coil’s resistance matches the expected range (60–160 ohms for standard automotive variants) to prevent overheating; use a multimeter across the coil contacts before energizing. For high-current loads–motors, compressors, or halogen lamps exceeding 30A–route the primary current through the switched terminals (30 and 87), while lighter loads (LED clusters, solenoids) may use the normally closed pair (30 and 87a).
Critical Configuration Details
| Component Pair | Recommended Wire Gauge | Max Continuous Load | Fuse Rating (Slow-Blow) |
|---|---|---|---|
| Coil Contacts (85–86) | 22–18 AWG | 0.2A | 0.5A |
| Switched Output (30–87) | 16–10 AWG | 40A | 30A |
| Normally Closed (30–87a) | 20–14 AWG | 15A | 10A |
Solder all connections to the toggle’s terminals, then apply heat-shrink tubing–avoid electrical tape, which degrades under vibration. Position the control unit within 30 cm of the load to minimize voltage drop; longer runs require thicker conductors (reduce gauge by 2 sizes per 3 m). Test with a 12V test lamp before connecting sensitive electronics: connect the lamp between the switched output (87) and ground–activation confirms correct operation without risking device damage. If the control unit fails to latch, check for reversed coil contacts or a shorted toggle.
How to Identify Terminals on a 4-Contact Electromechanical Unit
Locate the etched or embossed markings on the component’s plastic housing–most manufacturers label contact points as 30, 85, 86, and 87. Terminal 30 acts as the common power feed for both the coil and load circuits. Numbers 85 and 86 form the control circuit coil pair, where 85 typically grounds the coil when energized. Number 87 connects the switched output to the accessory or device once the control circuit activates.
Check for accompanying documentation or manufacturer datasheets; symbols next to each connection point often illustrate intended functionality–an arrow or dot may denote the switched output side. If markings are absent, use a multimeter in continuity mode: probe each pair while manually pressing the armature; the coil contacts will show minimal resistance (typically 50–150 ohms), while the load contacts should measure open until energized. The fixed power input (30) remains live regardless of activation state.
- Terminal 30: Permanent power supply–input for load and coil circuits.
- Terminal 85: Coil ground–completes the control path when connected to negative.
- Terminal 86: Coil power–requires 12V trigger voltage.
- Terminal 87: Switched output–energizes only when coil circuit closes.
For unmarked units, align the component’s flat side with visible contacts facing upward; the top-right contact is usually 30, adjacent left becomes 85, bottom-left 86, and bottom-right 87. Verify with a test light or probe: attach a 12V source to contacts 30 and 86, then touch a lead to 87–if the accessory activates, the identification is correct. Reverse-engineer older models by tracing the control circuit from the activating device back to the coil pair.
Step-by-Step Connection Guide for a Multi-Terminal Control Module with Manual Trigger
Identify the power source–typically a 12V DC supply–and connect the positive lead to terminal 85 on the control unit. Verify voltage stability with a multimeter before proceeding; fluctuations above 13.8V risk damaging the coil. Use 18-gauge wire for low-current signal paths to prevent voltage drop over distances longer than 3 meters.
Attach the manual trigger’s common terminal to terminal 86, ensuring the contactor is rated for at least 10A if controlling inductive loads like motors or solenoids. For illuminated triggers, use a separate 5V line to avoid interference with the control circuit’s magnetic field. Label all connections with heat-shrink tubing to simplify troubleshooting.
Load Circuit Preparation
Route the load-positive wire to terminal 30, matching the gauge to the expected current draw: 16-gauge for up to 15A, 14-gauge for 20A, or 12-gauge for sustained loads above 25A. Secure the connection with a crimp terminal and solder for reliability under vibration. Ground the load-negative directly to the chassis or battery negative, bypassing the control unit entirely to eliminate potential noise in sensitive applications.
For high-power applications, insert a fuse between the power source and terminal 30, sized at 125% of the maximum load current. Example: a 30A load requires a 40A fuse. Keep the fuse holder within 20cm of the battery positive to protect the entire circuit. Test continuity before energizing–accidental shorts can destroy the control unit’s internal contacts.
Complete the setup by connecting terminal 87 to the load-positive output. Use a relay socket with built-in diode suppression if controlling inductive loads to prevent back-EMF spikes. For lighting circuits, add a flyback diode across the trigger contacts to extend component lifespan. Verify operation by toggling the manual trigger; the control unit should emit an audible click within 50ms, confirming proper activation.
Inspect all joints for corrosion resistance–apply dielectric grease to exposed terminals in outdoor or high-humidity environments. For dual-mode setups, parallel a second control unit sharing terminals 85 and 86, but ensure the power supply can handle the combined coil current draw, typically 150mA per control unit.
Common Errors in Linking a Four-Terminal Control Module to a Toggle Device
Reversing the input and output terminals on the control unit will render the entire setup non-functional. The coil side must connect to the power source through the toggle, while the load side handles the high-current path. Verify terminal markings–typically labeled 85/86 for coil and 30/87 for load–before securing connections. Misalignment here creates an open circuit, preventing activation.
Omitting a flyback diode across the coil leads to voltage spikes when de-energizing, damaging sensitive components. Use a 1N4007 diode, placed cathode-to-positive to absorb inductive kickback. Without this, microcontrollers or LED indicators may fail prematurely. Test continuity with a multimeter to ensure correct diode polarity.
- Underestimating current ratings causes overheating. A 30A module won’t safely handle 40A loads–check the datasheet for exact limits. Exceeding capacity melts insulation, risks shorts, and may trigger fires.
- Ignoring coil resistance wastes power. A 12V module with 50Ω resistance draws 240mA; matching this to the toggle’s contact rating prevents premature wear.
- Using solid wire for high-vibration applications leads to fatigue fractures. Stranded wire (18-20 AWG) flexes better under mechanical stress, especially near engine compartments.
Ground loops occur when connecting the control module’s return path to multiple chassis points. Route all grounds to a single, clean bolt near the power source. Shared paths introduce noise, causing erratic operation in audio systems or sensors. Verify zero ohms between ground points before finalizing connections.
Loose or corroded junctions increase resistance, generating heat and voltage drops. Crimp terminals properly–solder-only connections fail under vibration. Apply dielectric grease to outdoor installations to prevent oxidation. After tightening, tug-test each terminal to ensure mechanical strength.
- Skipping a fuse on the load side risks catastrophic failure. Place a fuse rated 20-25% above the maximum load current immediately after the power source. Without it, short circuits weld contacts or ignite wiring.
- Assuming universal compatibility leads to mismatches–some modules require latching toggles, others momentary. Confirm switch type (SPST/DPDT) matches the module’s triggering needs.
- Over-tightening mounting screws cracks the module’s plastic housing, compromising moisture resistance. Torque to 1-1.5 Nm; use thread-locking adhesive if vibrations are present.
Lack of isolation between control and load circuits introduces interference. Separate high-current and signal paths with at least 5cm spacing. Twisted-pair wiring reduces EMI in sensitive setups like automotive ECUs. Shielded cable may be necessary near radio transmitters or ignition systems.
