Begin by identifying each contact on your tactile component–two will serve as input/output pairs for the signal path, while the remaining pair handles mechanical actuation. The primary signal path typically connects to the outer terminals, ensuring stable current flow when activated. Verify the datasheet for manufacturer-specific markings if polarity matters in your application.
Use a multimeter in continuity mode to confirm which terminals bridge when depressed. Connect one probe to a fixed terminal and depress the actuator–listen for the audible beep or note the resistance drop. Repeat for all combinations to eliminate guesswork before soldering. This step prevents reverse wiring, which can disrupt functionality or damage sensitive components.
For low-current applications (under 50mA), a direct connection to a microcontroller’s GPIO suffices. Add a 10kΩ pull-down resistor between the input terminal and ground to avoid floating signals. If interfacing with inductive loads (relays, motors), insert a flyback diode in parallel to absorb voltage spikes when the switch opens.
In high-power scenarios (exceeding 100mA), isolate the control side with an optocoupler or transistor. Wire the switch’s signal terminals to the base of an NPN transistor, with the emitter to ground and the collector to the load. This protects delicate digital logic from voltage surges and extends switch lifespan.
Avoid daisy-chaining switches without current-limiting resistors–parasitic capacitance between traces can cause erratic behavior. For matrix arrangements, stagger the connections to prevent ghosting effects, especially in keypad-like layouts. Test each path independently before integrating into larger systems.
How to Wire a 4-Terminal Switch Without Common Errors
Start by identifying the terminals on your tactile component. Most four-contact switches have two pairs: one for normally open (NO) and one for normally closed (NC). Use a multimeter in continuity mode to verify which pairs connect when actuated. Label them immediately to avoid confusion later.
Connect the common terminal to your power source or ground, depending on your design requirements. For a momentary activation, link the NO pair to your load–this ensures current flows only when pressed. If using an NC configuration, attach the NC side to the load for inverted operation.
- Use 22-24 AWG solid core wire for reliable connections–stranded wire can fray and cause intermittent failures.
- Avoid soldering directly to the contacts; instead, use a breadboard or terminal blocks for prototyping.
- If integrating into a PCB, ensure trace widths are at least 0.5mm to handle typical currents (≤500mA).
For debouncing, place a 0.1µF ceramic capacitor between the common terminal and ground. This suppresses voltage spikes caused by mechanical bounce, which can interfere with microcontroller readings. If using an Arduino or similar board, sample the input state after a 20-50ms delay for stable detection.
Test the assembly under load before finalizing. A simple LED with a 330Ω resistor works for low-power checks. For higher currents (e.g., relays), verify with a multimeter that the expected voltage appears across the load when engaged. If the load fails to trigger, recheck polarity and terminal assignments–miswiring is the leading cause of failures.
Mount the switch securely to prevent mechanical stress on the contacts. For panel installations, use a 12mm diameter hole and a matching mounting ring. Apply a small amount of thread-locking compound to screws if vibration is expected, but avoid adhesives that could seep into the housing.
Document your wiring scheme for future reference. Sketch the layout on paper or use schematic software like KiCad, labeling each connection (e.g., “NO→GPIO5”, “Common→VCC”). This step prevents mistakes during troubleshooting or modifications later.

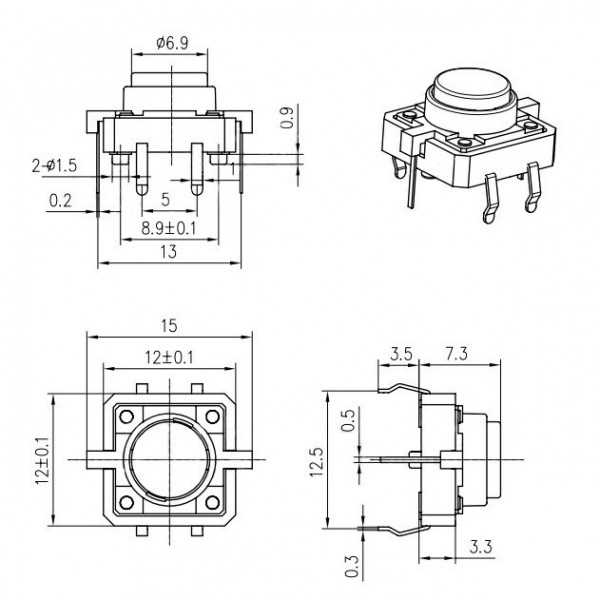

How to Identify the Terminal Layout of a 4-Contact Momentary Switch
Start by examining the switch’s housing for markings–manufacturers often label connections with symbols like “C” (common), “NO” (normally open), or “NC” (normally closed). If absent, use a multimeter in continuity mode: probe pairs while pressing the actuator to detect conductivity. A constant connection indicates the common terminal, while a brief signal reveals the active contact.
For switches without visible labels, observe the internal structure through translucent plastic. Two terminals on one side typically share the common trace, while the opposing pair serves as the switching contacts. Larger copper pads often belong to the shared side, simplifying identification without tools.
Common Configurations and Exceptions
Most 4-contact momentary switches follow either a single-pole double-throw (SPDT) or push-on/push-off latching pattern. SPDT variants route current through two paths, toggling between them when activated. Test by measuring resistance across pairs: 0Ω suggests a closed path, while infinite resistance indicates an open state under no pressure.
Beware of reversed polarity designs–some manufacturers swap the common and active terminals. Verify by pressing the switch while probing suspected contacts: the correct pairing will show a temporary short. Misidentification risks damaging sensitive components like microcontrollers by applying voltage to the wrong trace.
Visual and Mechanical Clues
Inspect the switch’s underside: protruding legs or asymmetrical spacing often correspond to the common terminal. On PCB-mounted models, one side may feature a thicker lead or a heat-staked anchor–these typically denote the input/output pair. If all else fails, trace the internal metal spring’s attachment point; it usually connects to the common contact.

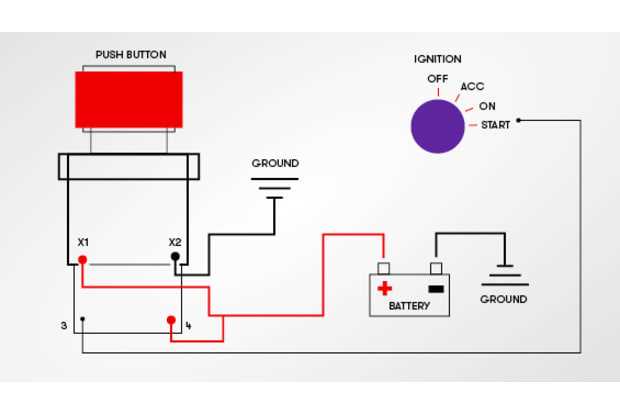

Step-by-Step Assembly for a Fundamental Four-Contact Momentary Switch Setup
Begin by identifying the switch’s terminals–two pairs on opposite sides. One pair carries the input current, while the other delivers the controlled output. Connect a power source’s positive lead to the first terminal using a 22 AWG solid-core wire, ensuring a secure crimp or solder joint to prevent loose connections. Use a multimeter in continuity mode to verify contact closure before proceeding; this eliminates ambiguity in later stages.
Attach the second input terminal to the microcontroller’s or load’s return path, grounding it directly if no intermediate components are required. For battery-powered designs, maintain a clear path to the negative terminal without unnecessary bends or extensions–voltage drops accumulate quickly in low-power systems. If incorporating an LED as an indicator, insert a 220-ohm resistor inline to limit current, placing it between the output terminal and the light-emitting component.
Route the output pair through the intended load, whether it’s a relay, transistor base, or low-power device. Avoid exceeding the switch’s rated current–typically 50 mA for standard tactile units–to prevent premature failure. For inductive loads like motors, add a flyback diode across the terminals to clamp voltage spikes. Orientation matters: cathode toward the power source’s positive side.
Test the assembly in stages. First, confirm the switch toggles continuity between its internal contacts when pressed. Then, observe the response of connected components under load–flickering LEDs or erratic behavior suggests loose wiring or insufficient power delivery. Use a breadboard for prototyping, but transition to a perforated board for permanent builds, keeping traces short to minimize interference.
Incorporate a pull-down resistor (10 kΩ) if interfacing with sensitive digital inputs, tying it between the output terminal and ground. This stabilizes the signal level when the switch is open, preventing floating voltages. For higher reliability, opt for a low-value resistor (1 kΩ) if noise is a concern, though this increases quiescent current draw slightly.
Secure all components mechanically with adhesive or standoffs to resist vibration. Stress-relieve wires with a knot or clamp near the switch body, particularly if the assembly will face movement. Label wires if the build involves multiple switches or complex routing; misconnections are easier to debug visually than through tracing.
Final validation involves cycling the switch repeatedly under load. Monitor voltage levels at critical junctions with an oscilloscope–unexpected drops or delays may indicate undersized conductors or thermal issues. Adjust wire gauge to 18 AWG if currents exceed 1 A, ensuring the switch and traces remain within safe operating limits.
Common Mistakes When Connecting a 4-Terminal Switch
Misidentifying the contact pairs is the most frequent error. A 4-terminal switch typically has two independent pairs–often labeled NO (normally open) and NC (normally closed) with a common terminal (COM). Confusing these leads to unexpected behavior, such as a momentary action triggering continuously. Always verify the datasheet or use a multimeter in continuity mode to confirm which terminals form a closed loop when pressed.
Ignoring voltage and current ratings causes premature failure. A switch rated for 12V DC at 50mA won’t handle 24V AC at 200mA without damage. Check the manufacturer’s specifications–some miniature switches tolerate only 20mA, while industrial-grade variants support 5A. Exceeding these limits risks arcing, overheating, or outright burnout.
Incorrect wire gauge selection introduces resistance or fragility. Stranded 22 AWG works for low-current signals, but solid 18 AWG is necessary for loads above 1A to prevent voltage drops. For high-vibration environments, use tinned copper wires to avoid corrosion at solder joints. Ferrules on stranded ends also prevent fraying when clamped under screw terminals.
Overlooking debounce requirements disrupts microcontroller interactions. Mechanical switches produce rapid on-off transitions during actuation, which can register as multiple signals. Implement hardware debouncing with a 0.1µF capacitor across the contacts or software debouncing via a 20-50ms delay in code. Failure to do so may cause erroneous counts or unstable system states.
Reversing polarity in latching configurations corrupts toggle logic. Some switches maintain state using a dual-coil latching mechanism–applying power to the wrong terminal causes unintended resets. Verify coil polarities with the switch’s schematic, especially in bistable designs where a brief pulse sets or resets the position.
Critical Insulation and Mounting Errors
Inadequate insulation between adjacent wires invites short circuits. Use heat-shrink tubing or nylon wire sleeves on exposed conductors, particularly in tight enclosures where metal edges could abrade the insulation. For PCB-mounted variants, maintain a 2mm clearance between traces to prevent arcing at voltages above 30V.
Loose mounting compromises reliability. A switch secured with only one screw or adhesive may shift under vibration, breaking connections. For panel-mounted designs, use switches with lock washers or threaded bushings rated for the application torque (typically 0.5-0.7 Nm). Check alignment before final tightening to avoid mechanical stress on the terminals.
| Error Type | Symptoms | Solution |
|---|---|---|
| Floating input | Intermittent signals or false triggers | Add a 10kΩ pull-up or pull-down resistor |
| Unsecured wiring | Intermittent loss of connection | Use strain relief or soldered joints |
| Excessive load | Switch contacts welding shut | Replace with a relay or solid-state module |
Environmental and Longevity Oversights
Sealing against moisture and dust extends lifespan. IP67-rated switches resist water ingress, but even minor condensation inside unsealed housings corrodes contacts over time. Apply dielectric grease to screw terminals in humid environments. For outdoor use, select switches with gold-plated contacts to resist oxidation.
Disregarding mechanical lifespan leads to early wear. A switch rated for 50,000 cycles at 1A may fail at 10,000 cycles if subjected to 3A. Match the electrical and mechanical ratings to the application–frequent actuation, such as in robotics, demands industrial switches with 1 million-cycle ratings. Lubricate sliding contacts with dry PTFE spray to reduce friction wear.
